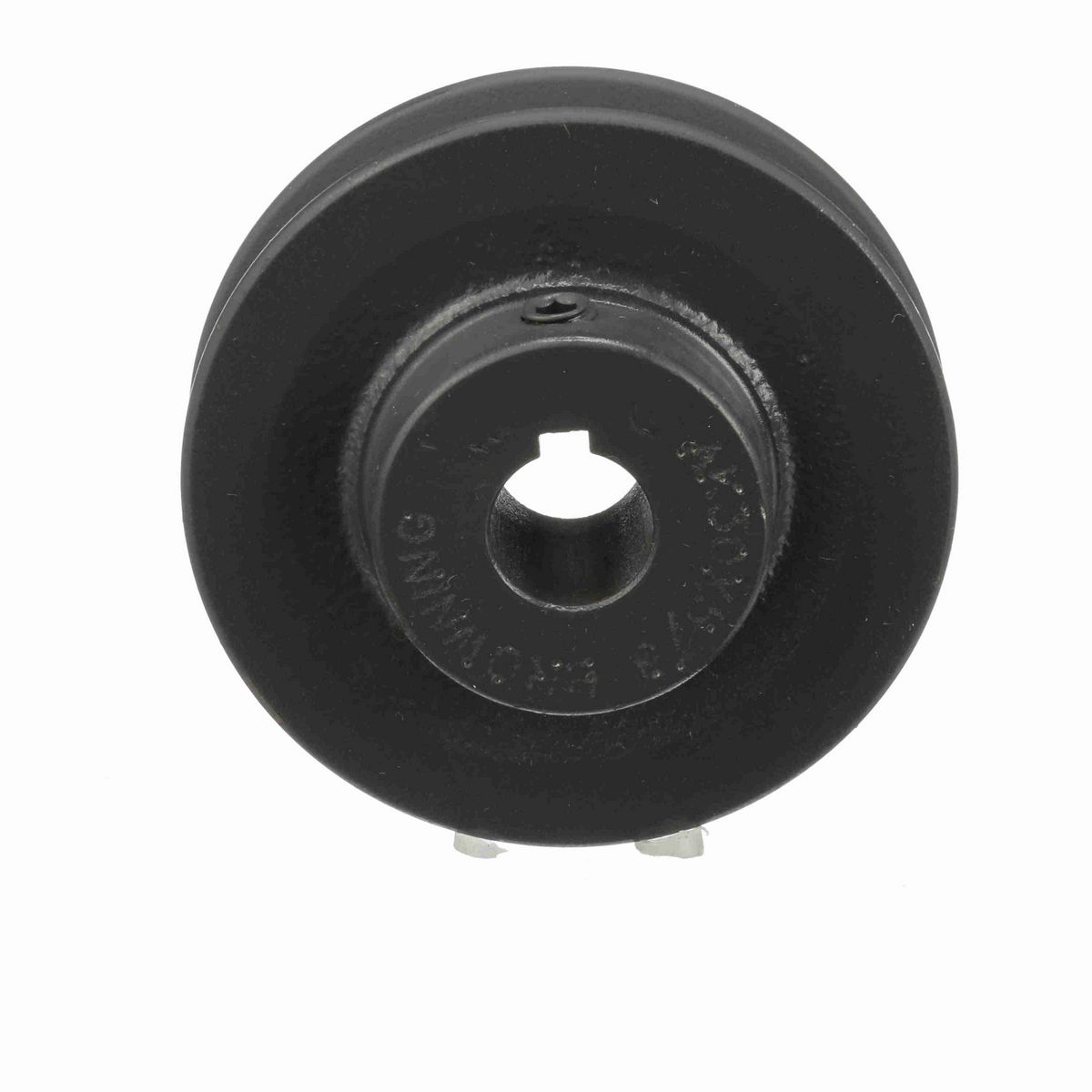

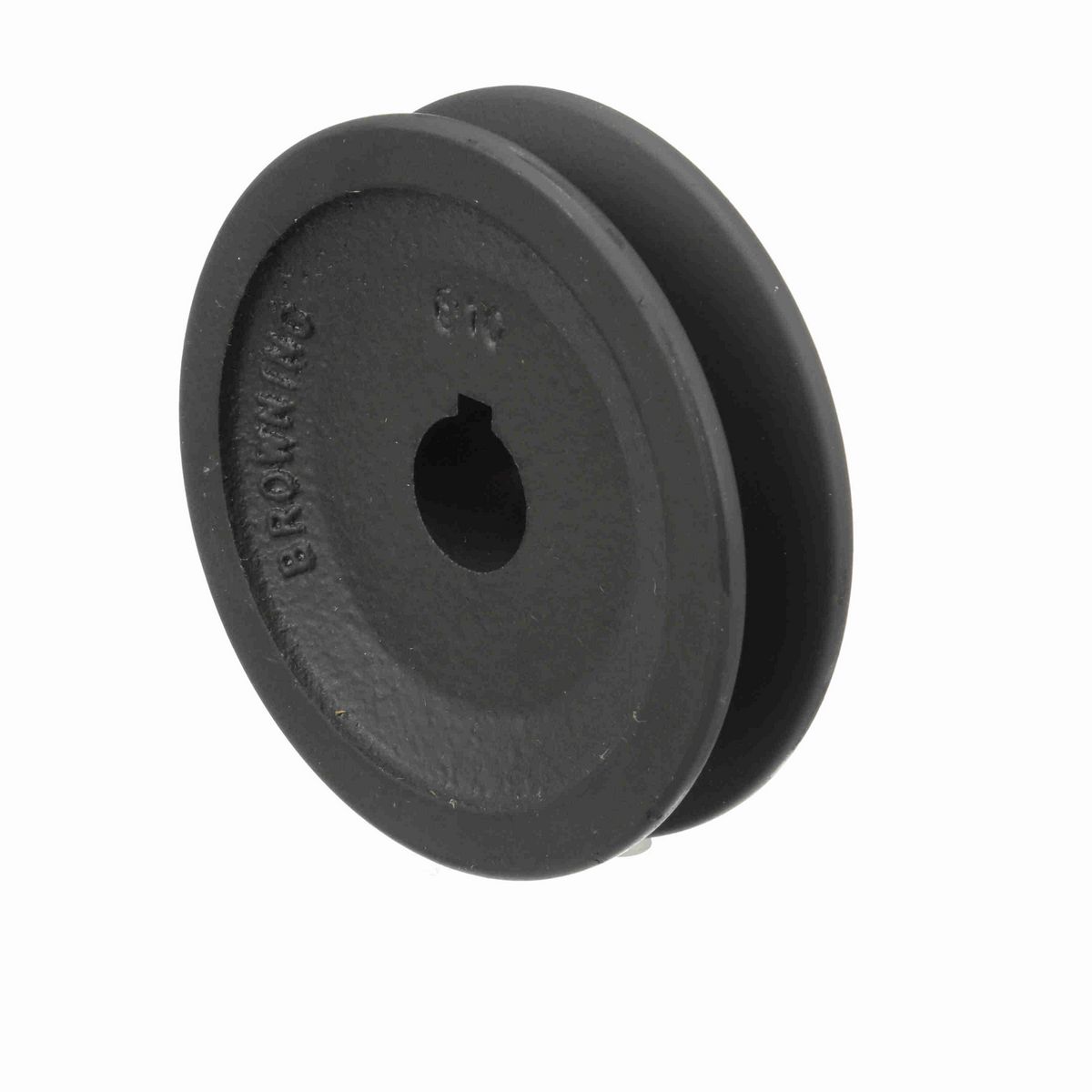

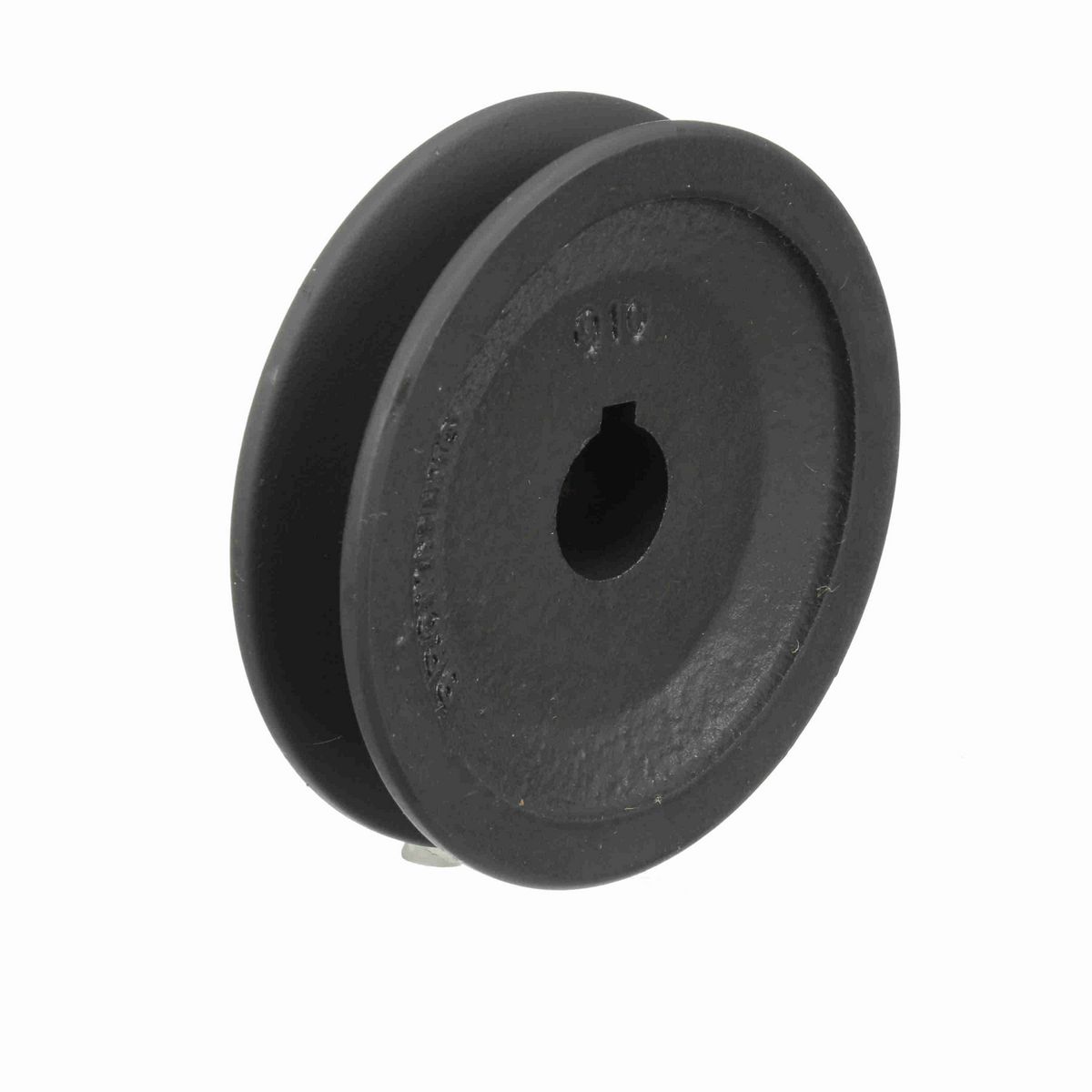

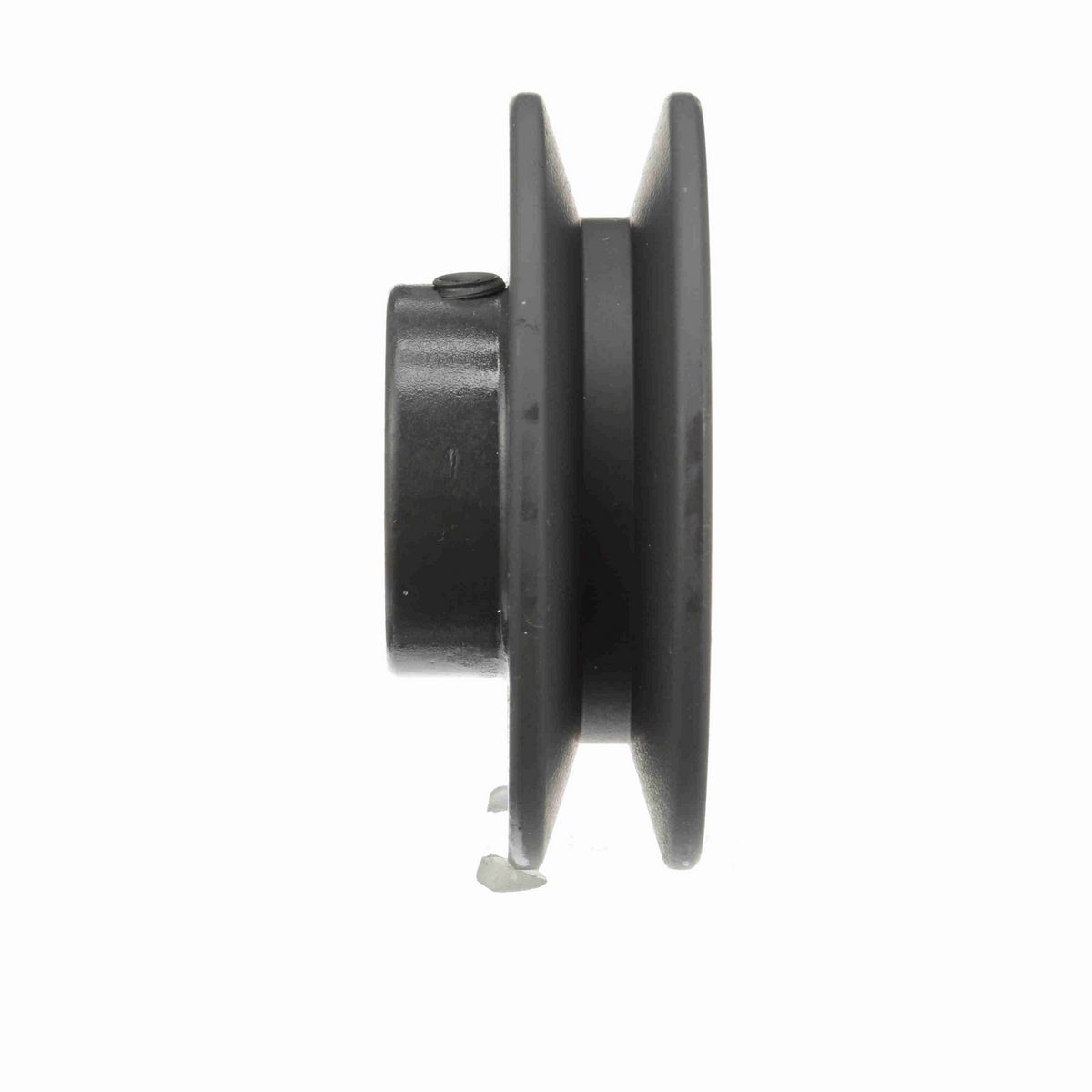

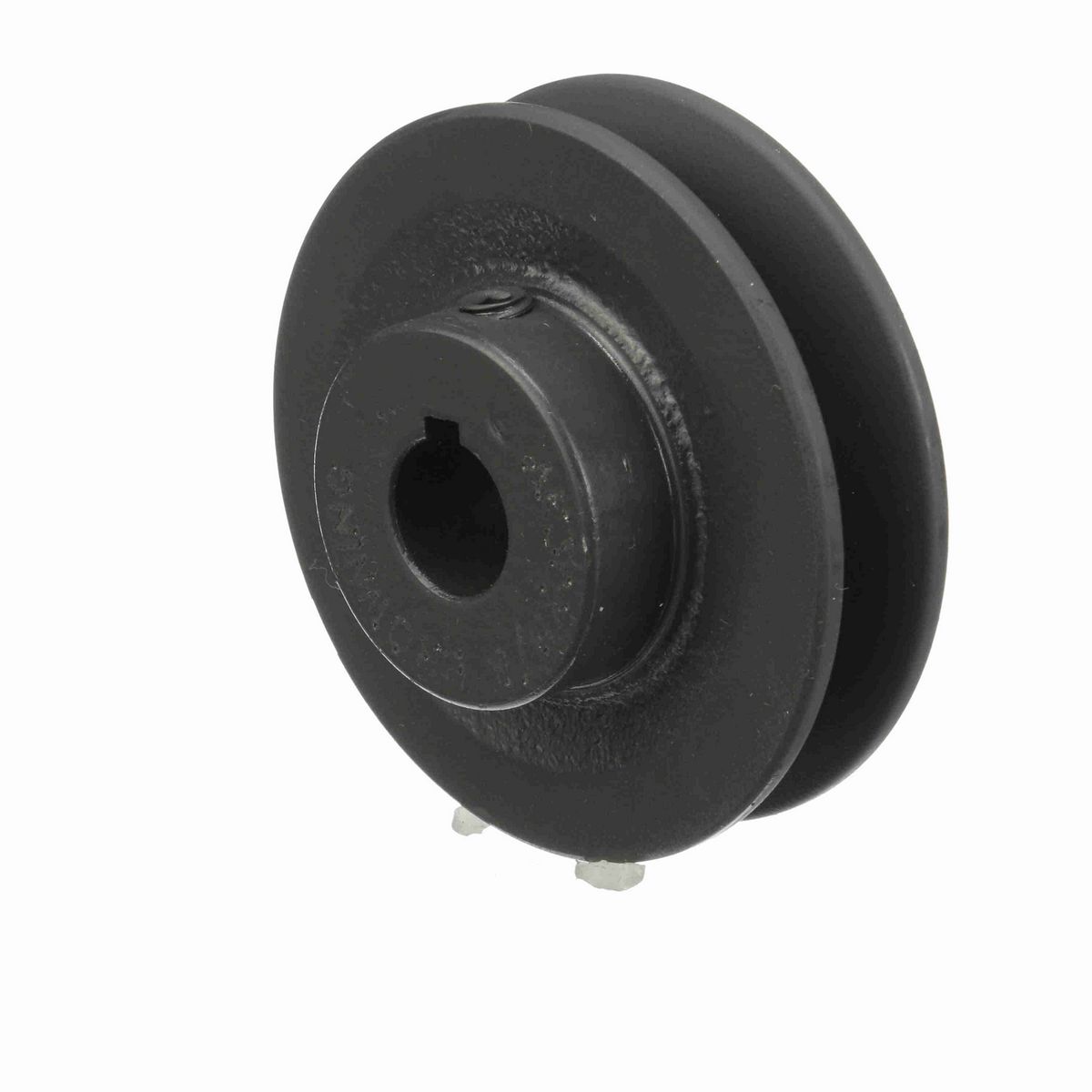

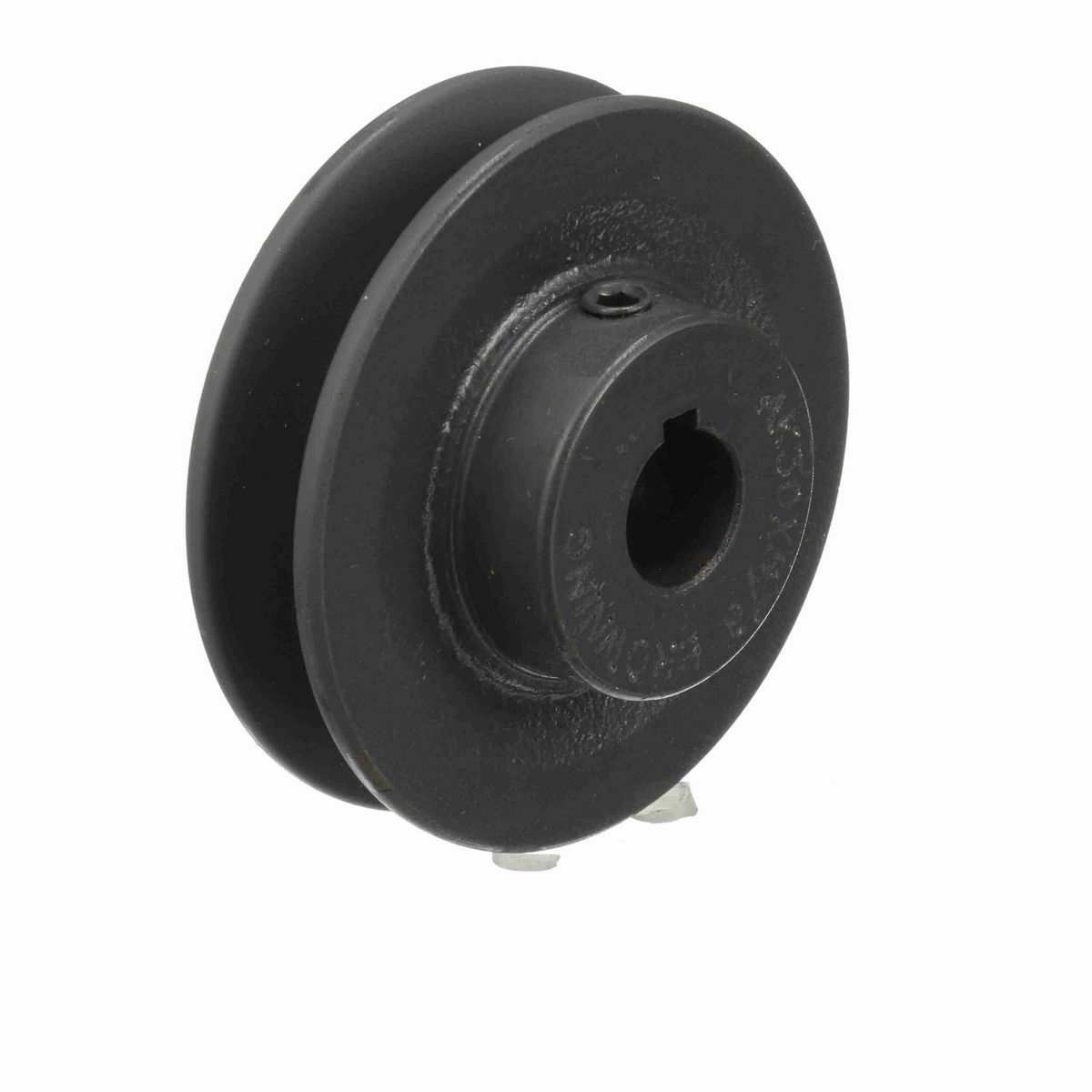

• Largest Selection of H Bushed sheaves of any other manufacturer - Browning offers bushed sheaves in both A and B Combination (A/B) configuration. 1 and 2 Grooves are available to meet any fractional horsepower requirement.
• Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance.
• Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
• Combination Groove - All Browning BK H Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.

Technical Specifications

Pitch Diameter (A)	2.8
Pitch Diameter (B)	3.3
Material	Cast Iron
Number of Grooves	1
Datum Diameter (B)	3
Model Name	BKH_Sheave_Master
Datum Diameter (A)	2.6
Type of Bore	Bushed
Bore (Min) (in)	0.375 in
Belt Section	4L or A, 5L or B
Outside Length (in)	1.9375 in
Product Type	FHP - Bushed
Outside Diameter (in)	3.35 in
Bore Type	Split Taper Bushed
Bushing Bore Range	0.375 - 1.500
Face Width (in)	0.875
Overall Width (in)	1.9375
Pulley Construction	Plain

General Specifications

UPC	662289102259
Weight	0.75 LB
Packaged Length	3.70 IN
Packaged Width	4.00 IN
Packaged Height	1.60 IN
HTC	8483.50.9040
Country of Origin	Mexico
