• Lifetime Warranty - If this bushing ever fails Browning will replace it Free of charge.
• Solid Flange and Double Split Barrel - Assures better concentricity to the shaft.
• Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive.
• 3/4" per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product.

Technical Specifications

Bore Size (in)	0.8125 in
Total Length (in)	1.9375 in
Length Through Bore (in)	1.9375 in
Wrench Torque (in-lb)	192
Cap Screws (Size)	5/16 x 1 1/4
Bushing Type	B
Outside Diameter (in)	3.6875 in
Model Name	B_Bushing-Type1_Master
Compatible Bore Size [Max] (in)	0.8125 in
Material	Sintered Steel or Ductile Iron
Keyseat	3/16 x 3/32

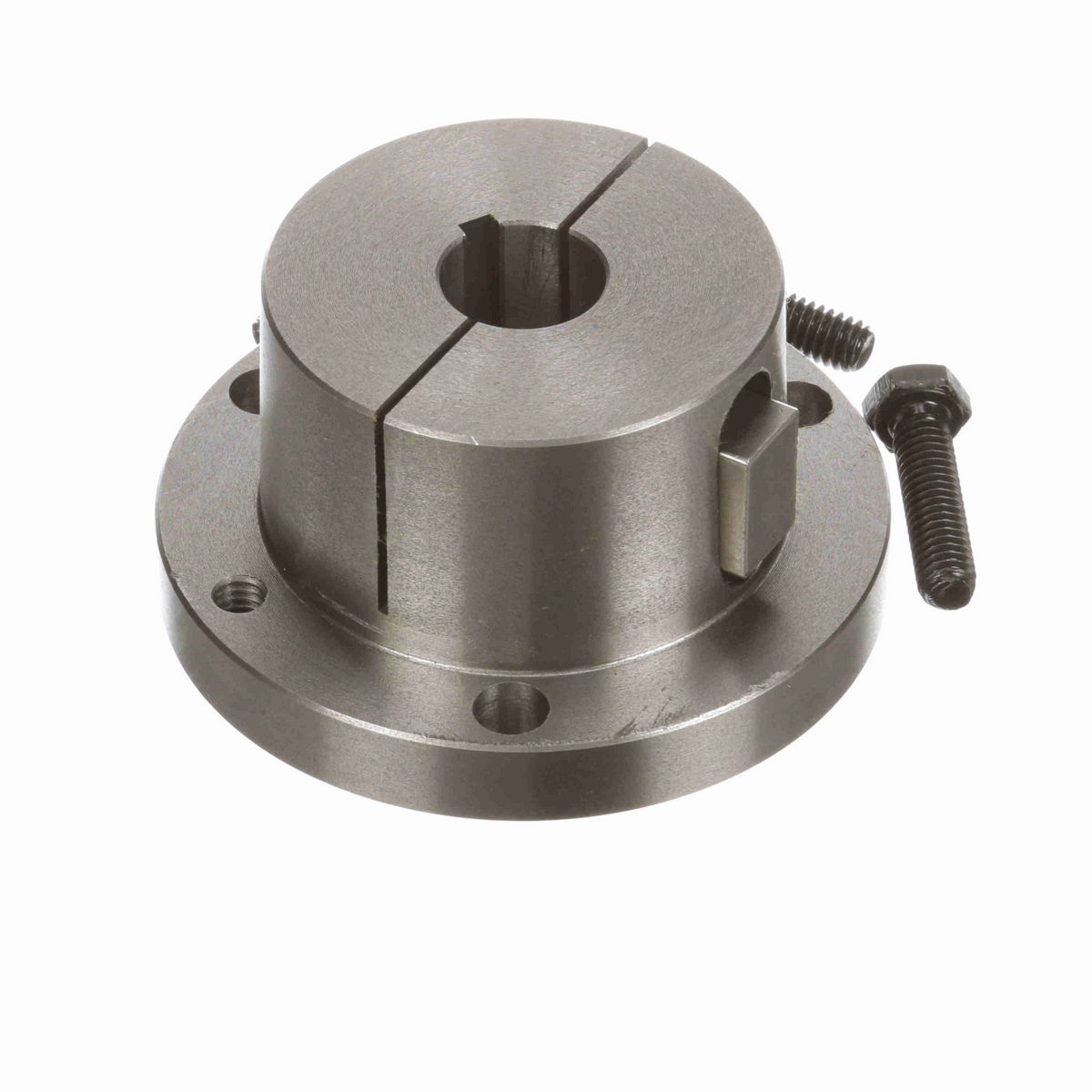

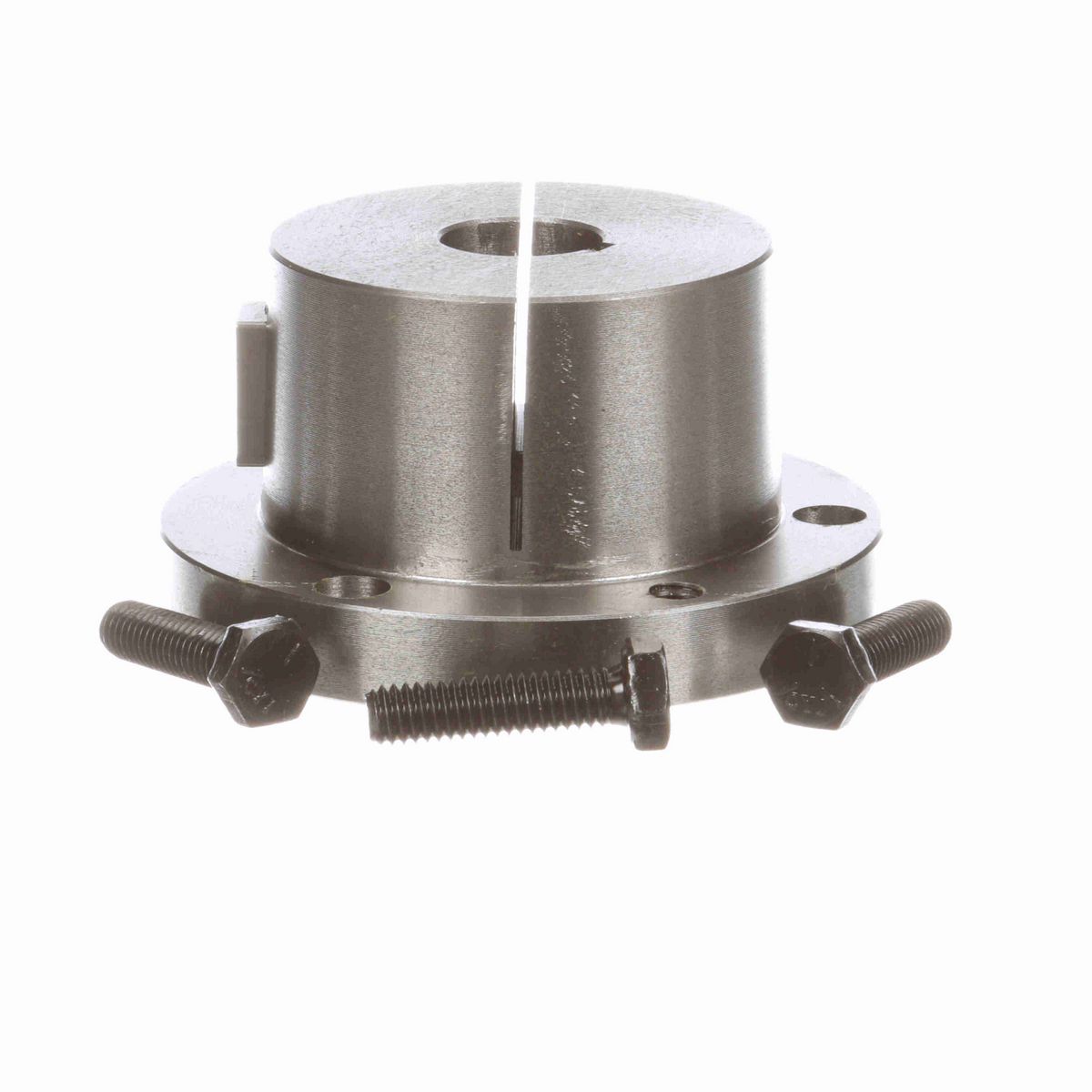

Product Type	Split Taper Bushing
Cap Screws (No.)	3
Bore Type	Inch
Mounting Type	Conventional
Thread Size	5/16-18
Barrel Diameter (Small End)	2.5567
Screw Length	1.25
Flange Thickness	0.5
Barrel Diameter (Large End)	2.625
Includes	Cap Screws and Ext. Key
Flange Type	Solid Flange
Bolt Circle Diameter (in)	3.125

General Specifications

UPC	662289038459
Weight	3.16 LB
Packaged Length	4.19 IN
Packaged Width	4.19 IN
Packaged Height	2.50 IN
HTC	8483.90.8080
Country of Origin	Mexico
