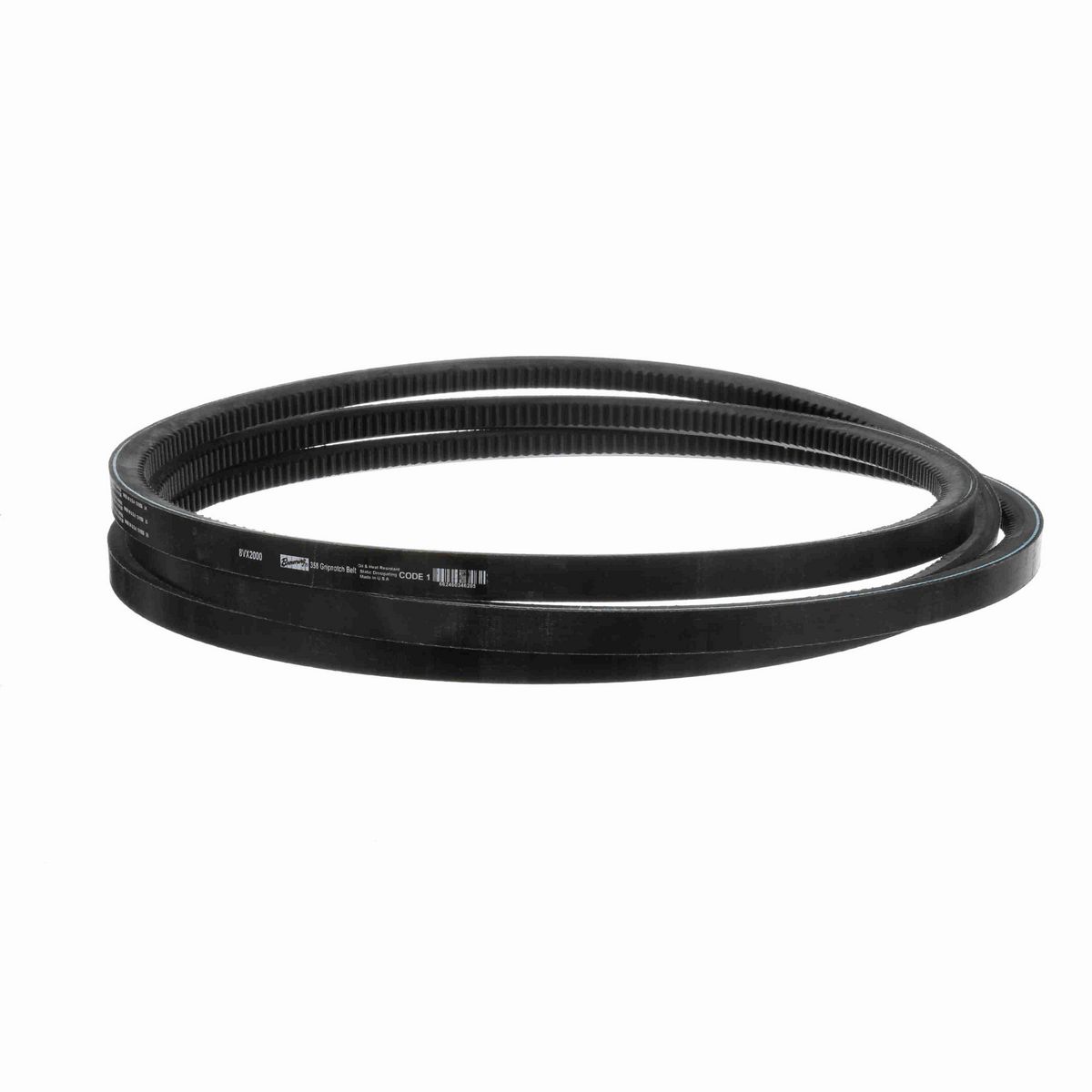

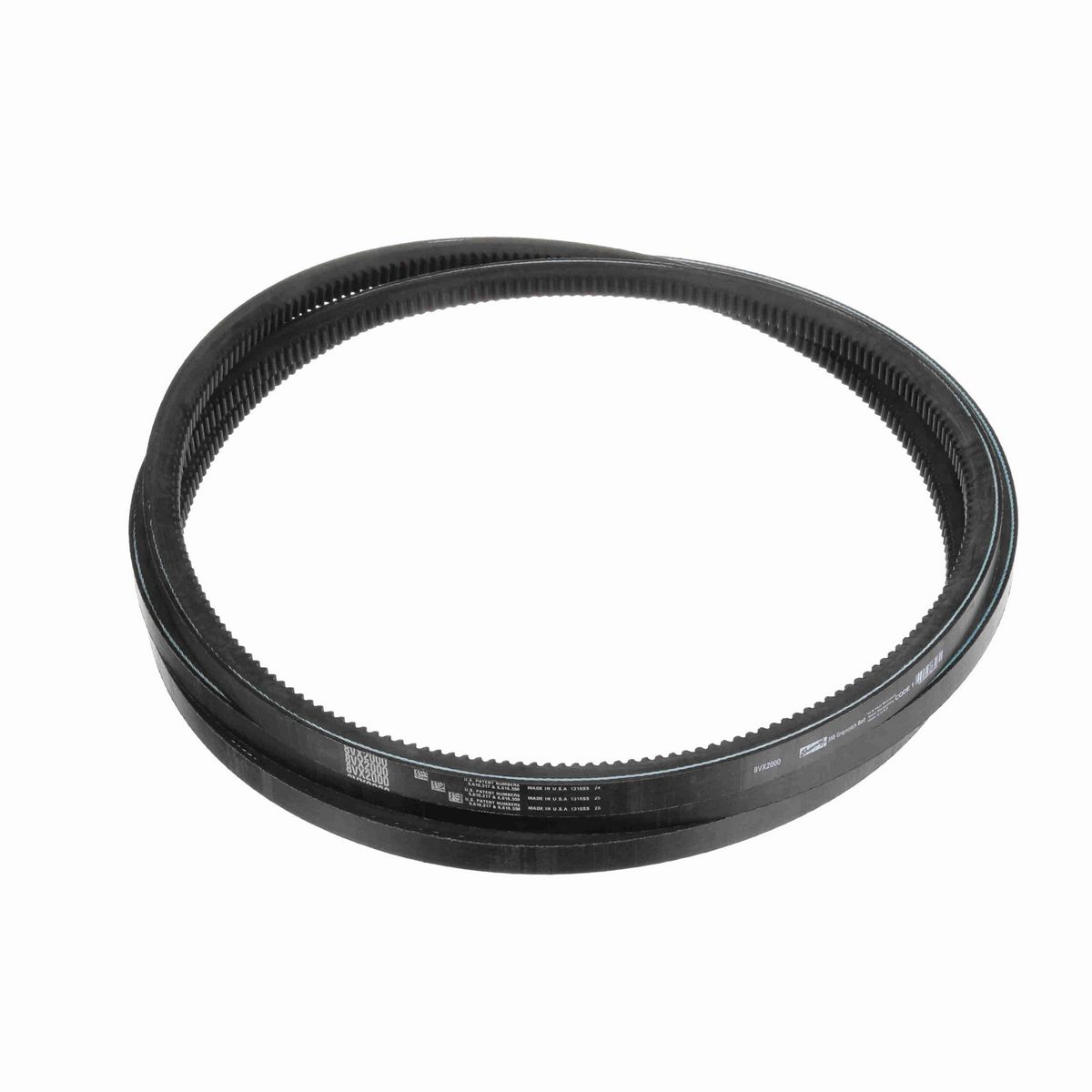

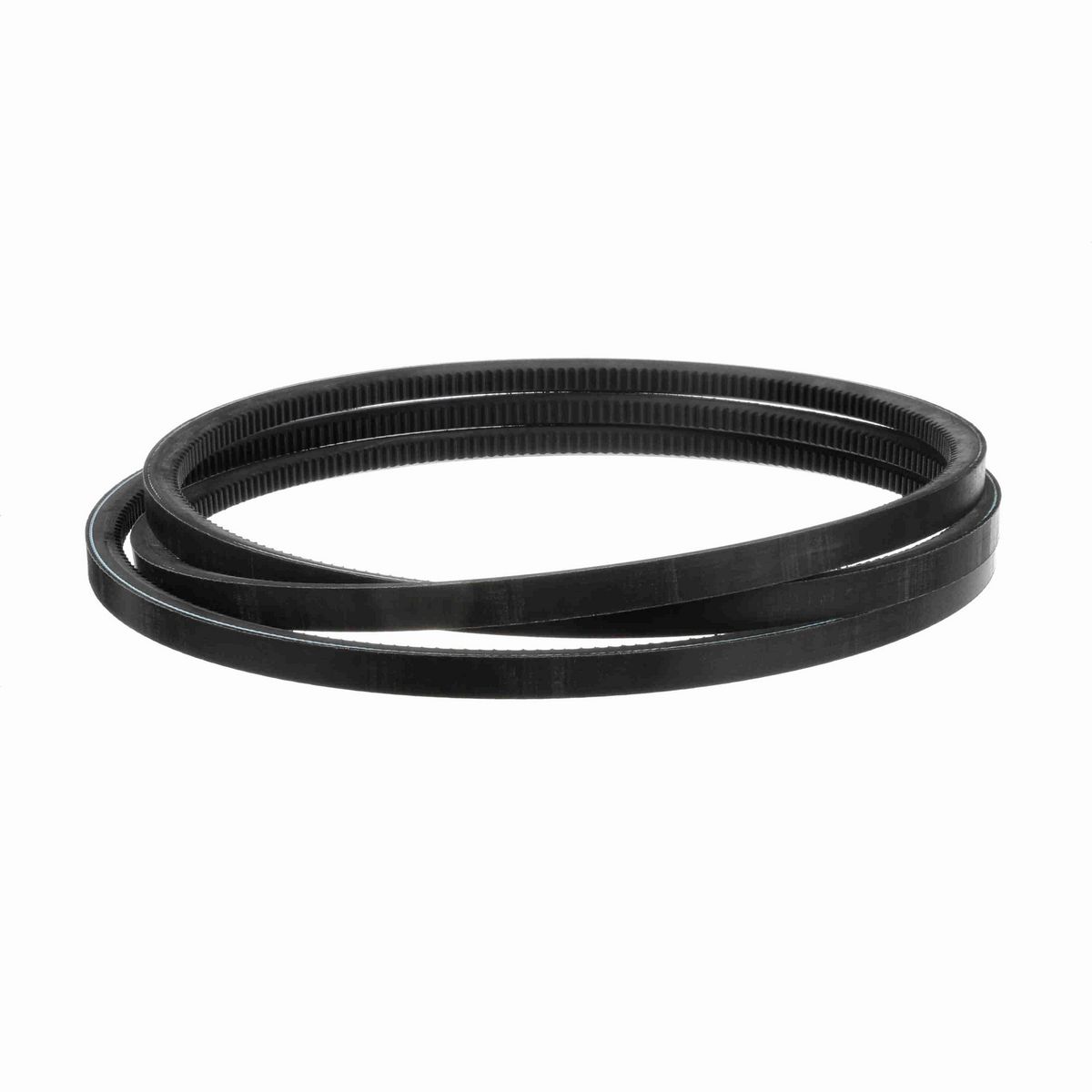

• Browning 358 Notched Belts are constructed of EPDM material wrapped top and botttom; increased operating temperature range of -60F to 250F degrees.
• More horsepower in less space - Browning 358 Belts provide more horsepower in the same span than conventional ABC Belts. This enables you to reduce drive cost.
• Greater Horsepower allows for smaller drive sheaves - Using 358 Belts can allow for smaller drive components while still meeting the drive requirements , thus lowering the overall drive cost.
• Close Belt tolerance - Browning Belts offer the "Code 1" Match belt system on all classical and "358" Belts, allowing easy selection of just one match number for each belt size. This ensures tighter than RMA standards.

Technical Specifications

Type	Gripnotch Notched V-Belts
Belt Section	8VX
Material	EPDM
Operating Temperature [Max] ºC	121 °C
Efficiency (%)	0.98
Product Type	Notched Belt
Operating Temperature [Max] ºF	250 °F
Reinforcing cord material	Polyester
Width (in)	1 in
Outside Length/Diameter (in)	200 in
Height	0.828
Belt Series	Narrow Series - Inch
Construction Type	Cogged
Number of Ribs	1
Section Size	8VX
Standards met	ARPM IP-22
Operating Temperature Range	-60 to +250 °F
Resistance Features	Oil & Chemical per ARPM IP-3-2, Static Dissipating per ARPM IP-3-3

General Specifications

UPC	662460346205
Weight	5.07 LB
Packaged Length	14.45 IN
Packaged Width	14.60 IN
Packaged Height	5.20 IN
HTC	4010.39.1000
Country of Origin	United States of America
