• Constant Speed - No slip; no creep; minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets.
• Light Weight - High horsepower-to-weight ratio makes Browning Gearbelt drives ideal for any application where weight is a factor.
• Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement.
• Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft; Split Taper and QD Bushing styles, as well as, finished and minimum plain bore.

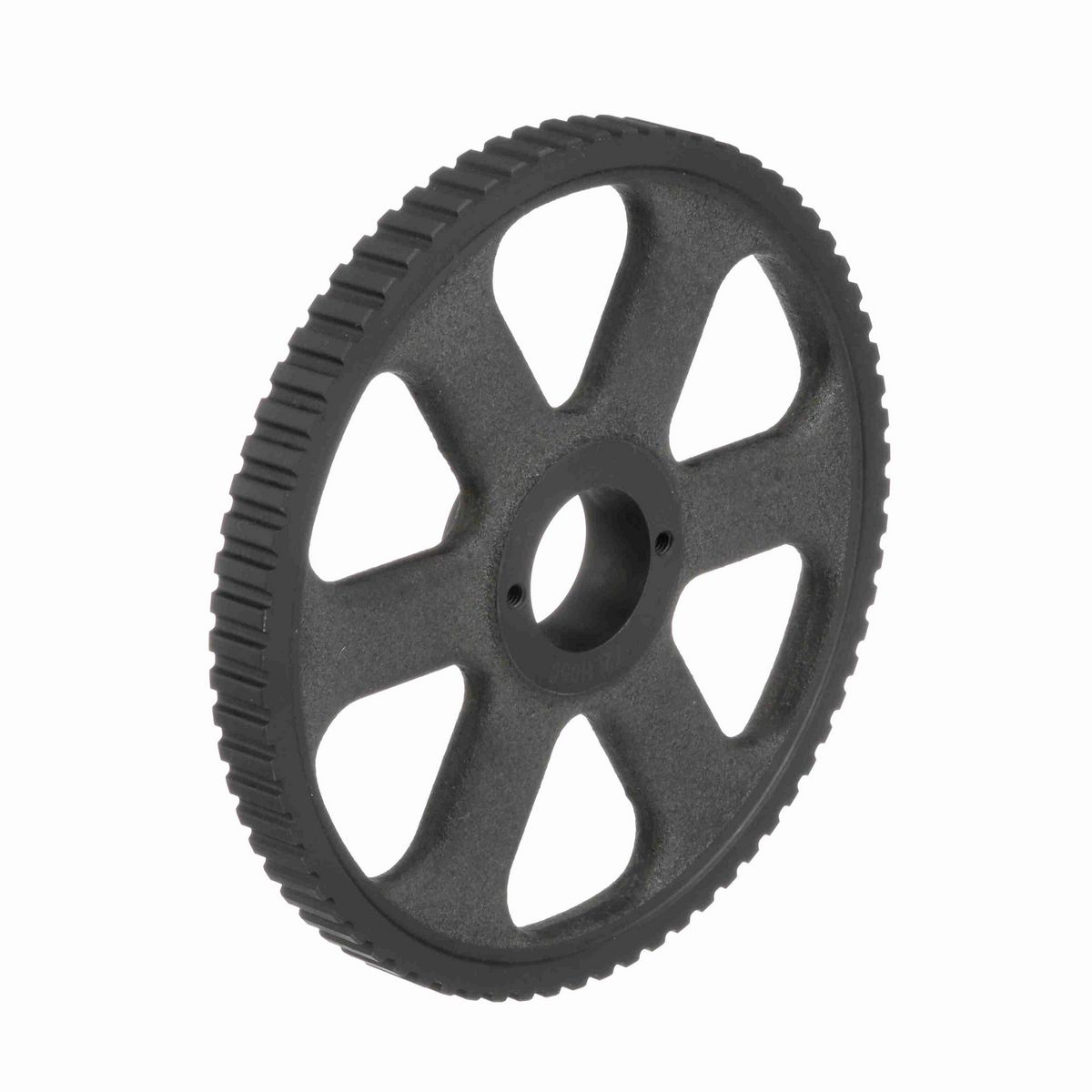

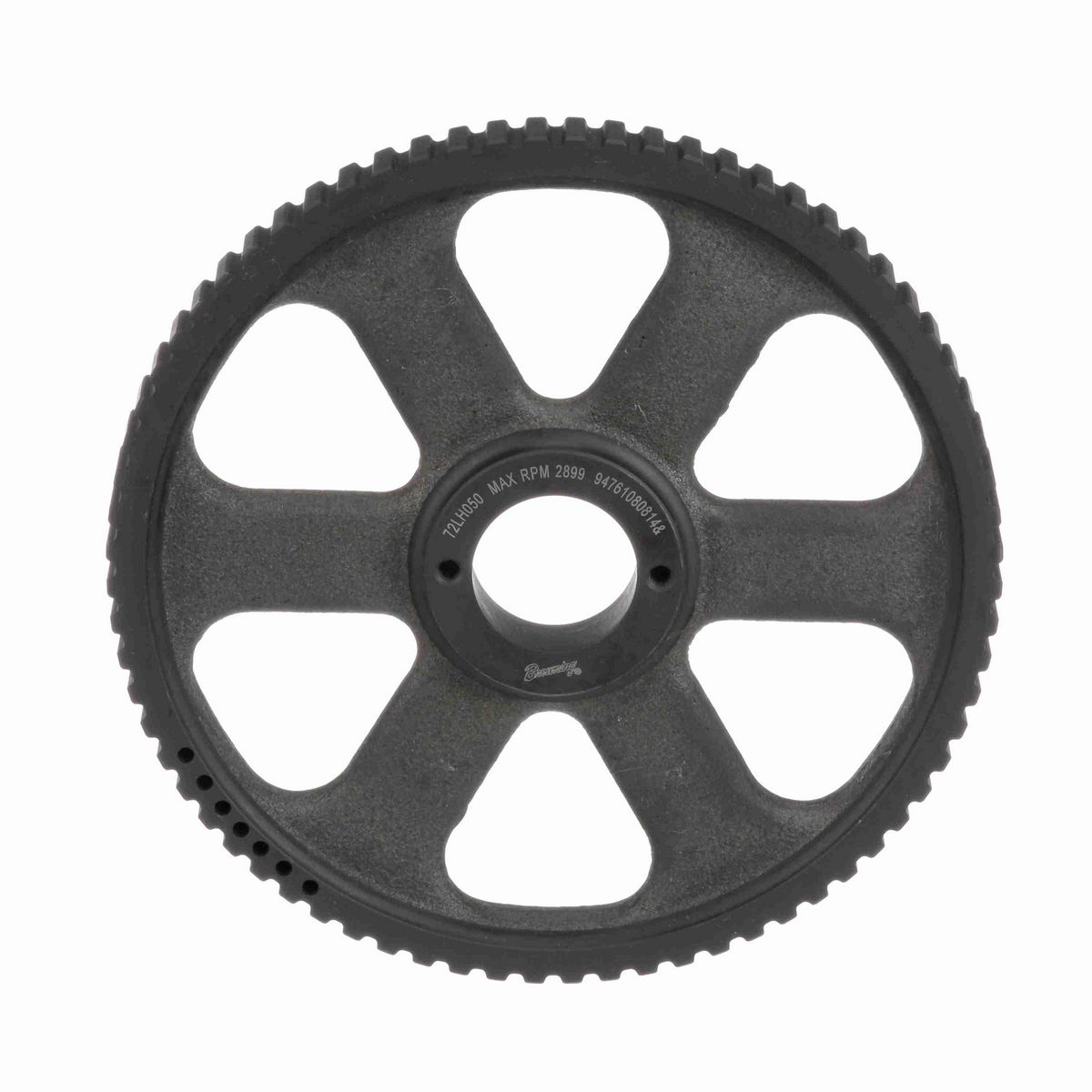

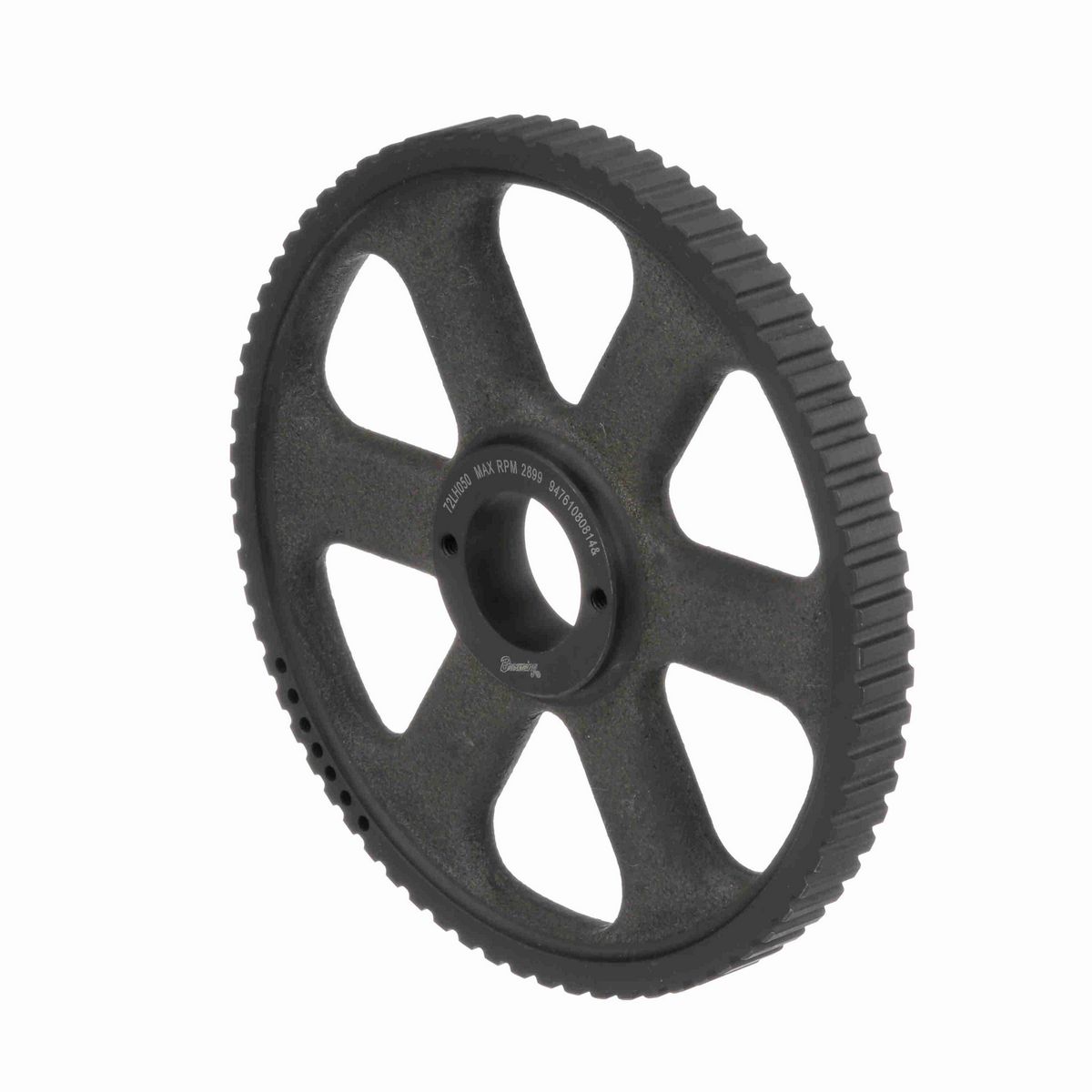

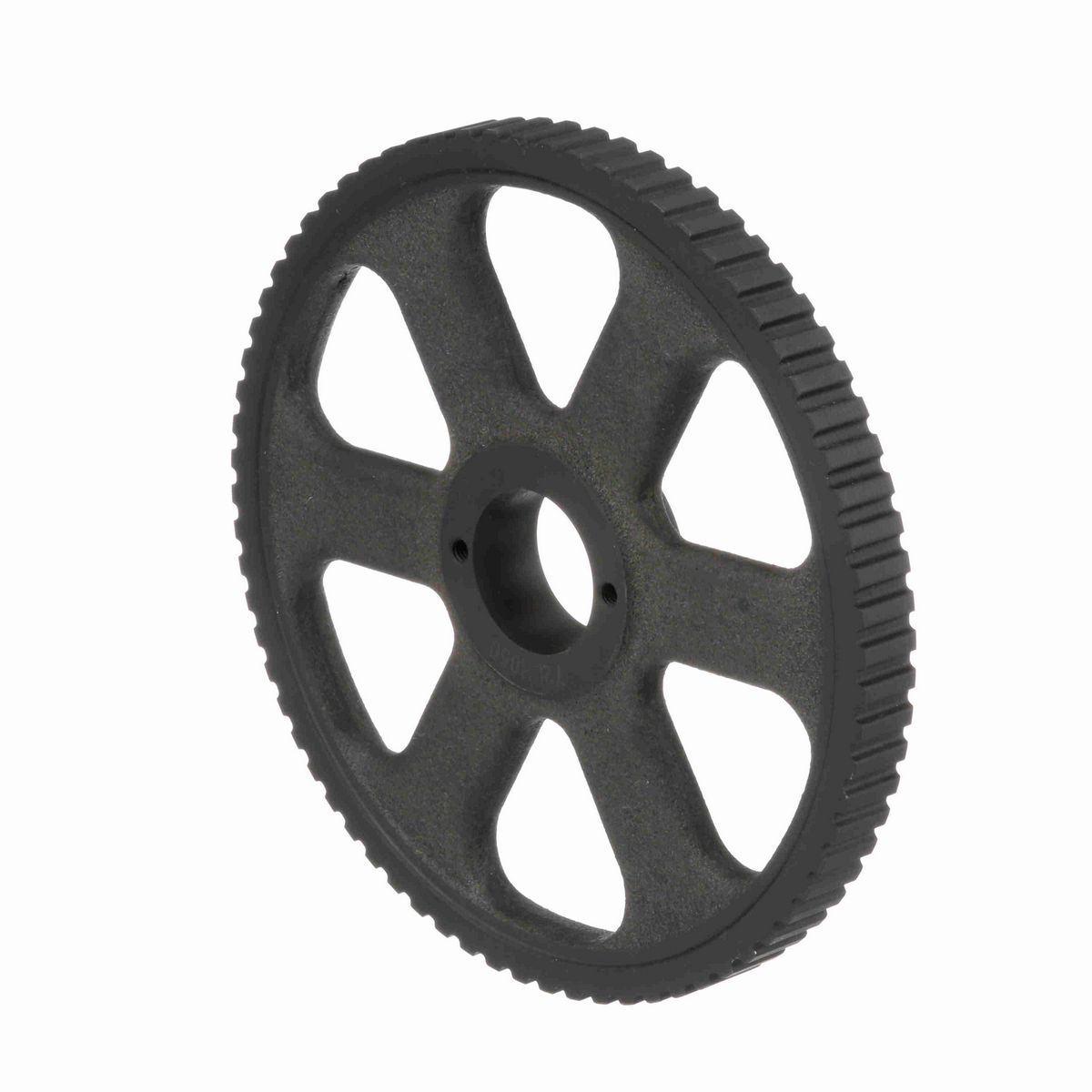

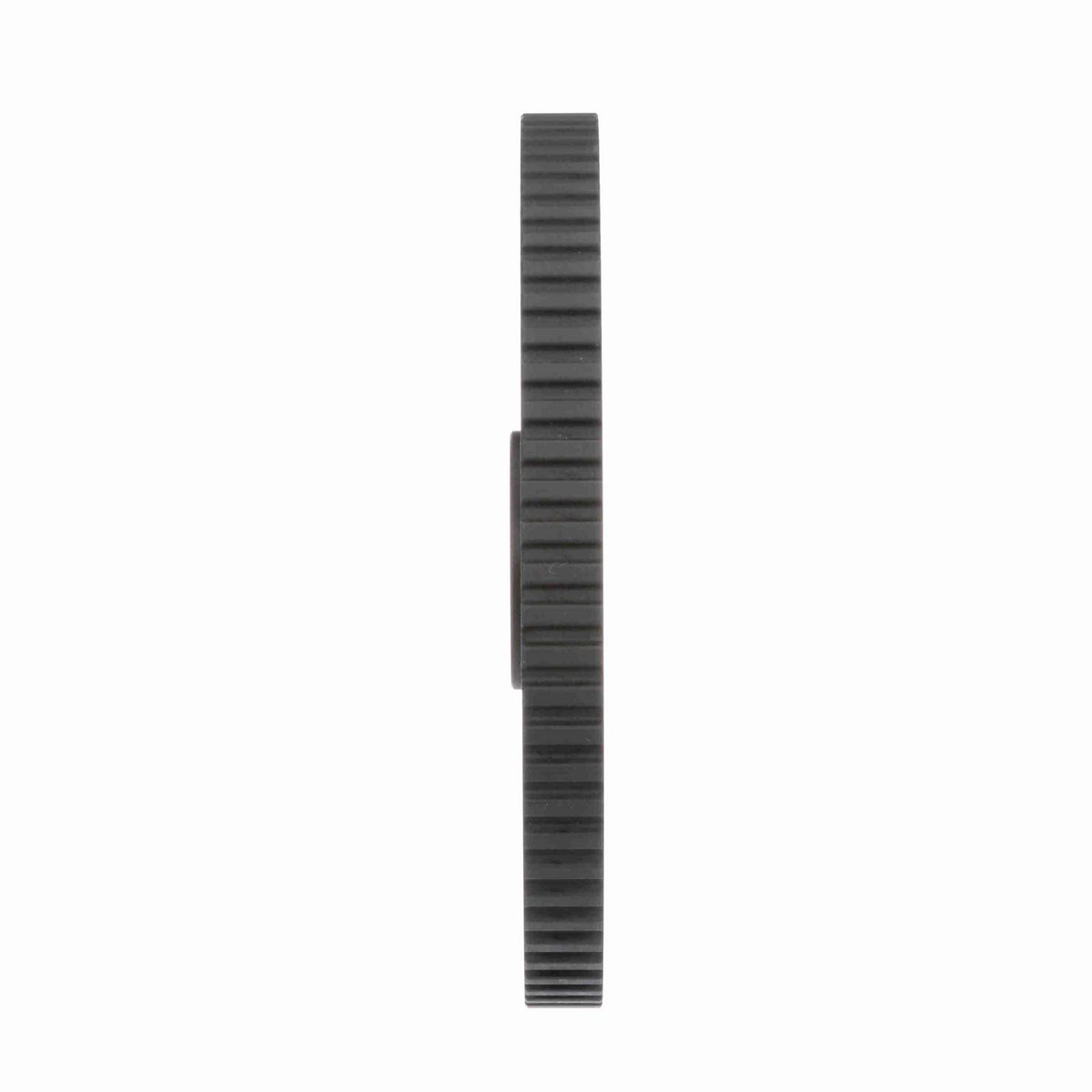

Technical Specifications

Number of teeth	72
Product Type	Gearbelt Pulley
Width (mm)	12.7 mm
Bore Range	3/8 to 1 1/2
Bore Type	Bushed Bore
Material	Cast Iron
Outside Diameter (in)	8.564 in
Width (in)	0.5 in
Belt Section	L
Outside Diameter (mm)	217.5256 mm
Inside Diameter (in)	7.8125 in
Pitch Diameter (in)	8.594 in
Face Width	0.75
Length Through Bore	1.276
With Flanges	No Flanges
Hub Projection	0.73525
Number of Hubs	1
Hub Diameter (in)	2.5 in
Pulley Construction	Arm
Overall Length (in)	1.57925 in

General Specifications

UPC	662289203109
Weight	5.64 LB
Packaged Length	9.70 IN
Packaged Width	9.50 IN
Packaged Height	2.10 IN
HTC	8483.50.9080
Country of Origin	United States of America
