• Constant Speed - No slip; no creep; minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets.
• Light Weight - High horsepower-to-weight ratio makes Browning Gearbelt drives ideal for any application where weight is a factor.
• Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement.
• Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft; Split Taper and QD Bushing styles, as well as, finished and minimum plain bore.

Technical Specifications

Model Name	GBPulley_Master5

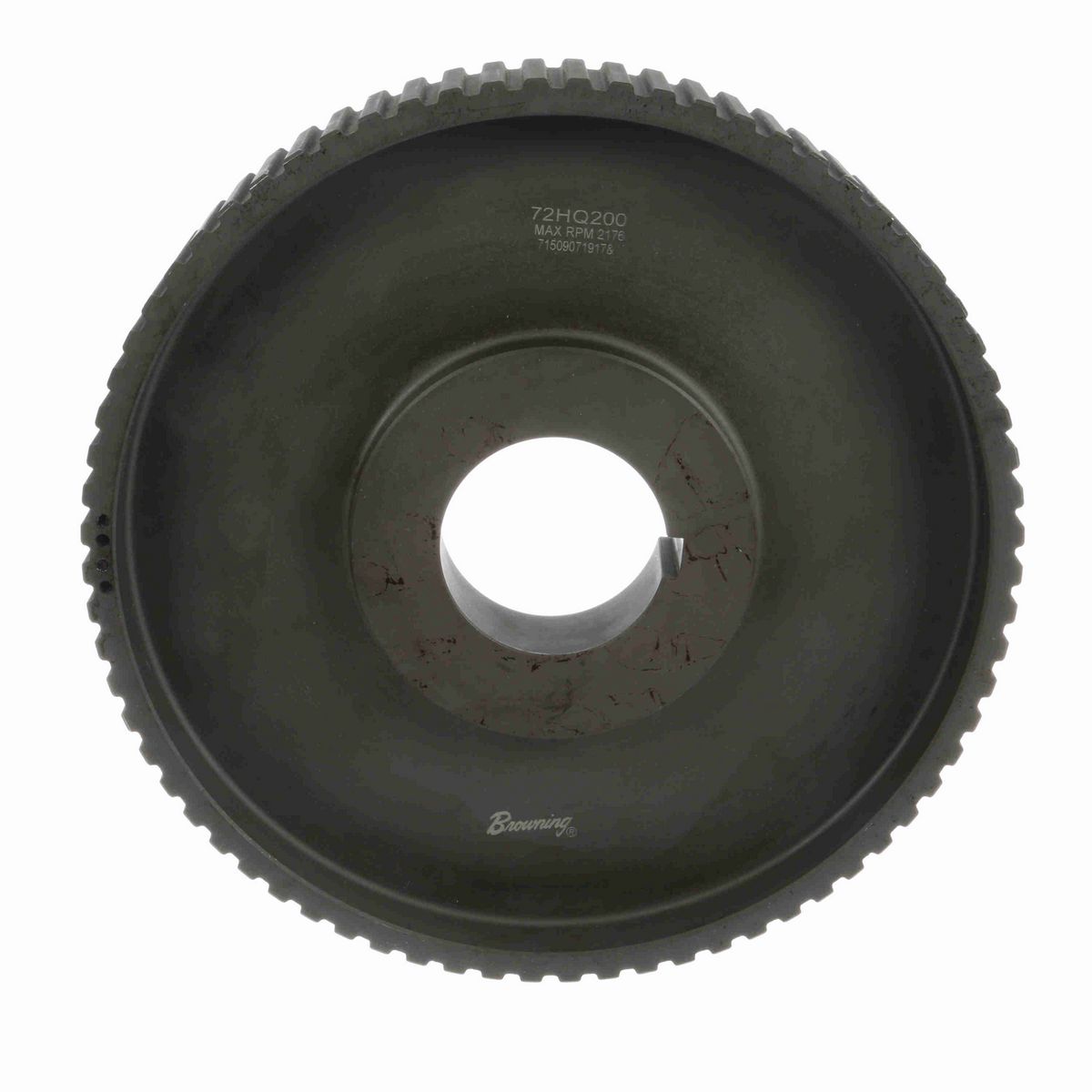

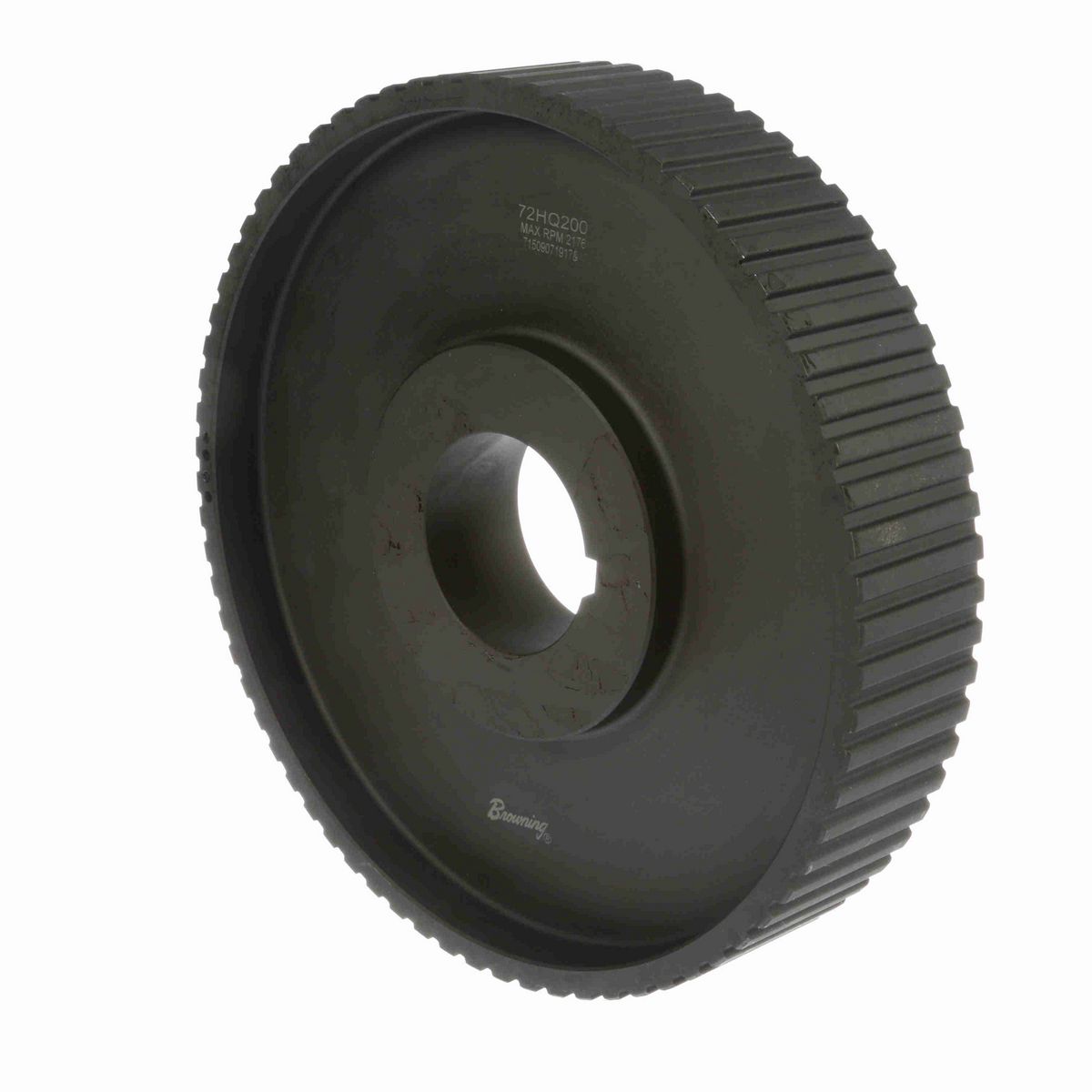

Product Type	Gearbelt Pulley
Bore Range	3/4 to 2 11/16
Width (mm)	50.8 mm
Number of teeth	72
Bore Type	Bushed Bore
Material	Cast Iron
Belt Section	H
Outside Diameter (in)	11.405 in
Width (in)	2 in
Outside Diameter (mm)	289.687 mm
Inside Diameter (in)	10.5625 in
Pitch Diameter (in)	11.459 in
Face Width	2.2813
With Flanges	No Flanges
Hub Diameter (in)	4.125 in
Number of Hubs	1
Overall Length (in)	3.01525 in
Pulley Construction	Arm
Hub Projection	0.7342
Length Through Bore	2.5

General Specifications

UPC	662289124190
Weight	25.22 LB
Packaged Length	12.30 IN
Packaged Width	12.20 IN
Packaged Height	3.60 IN
HTC	8483.50.9080
Country of Origin	United States of America
