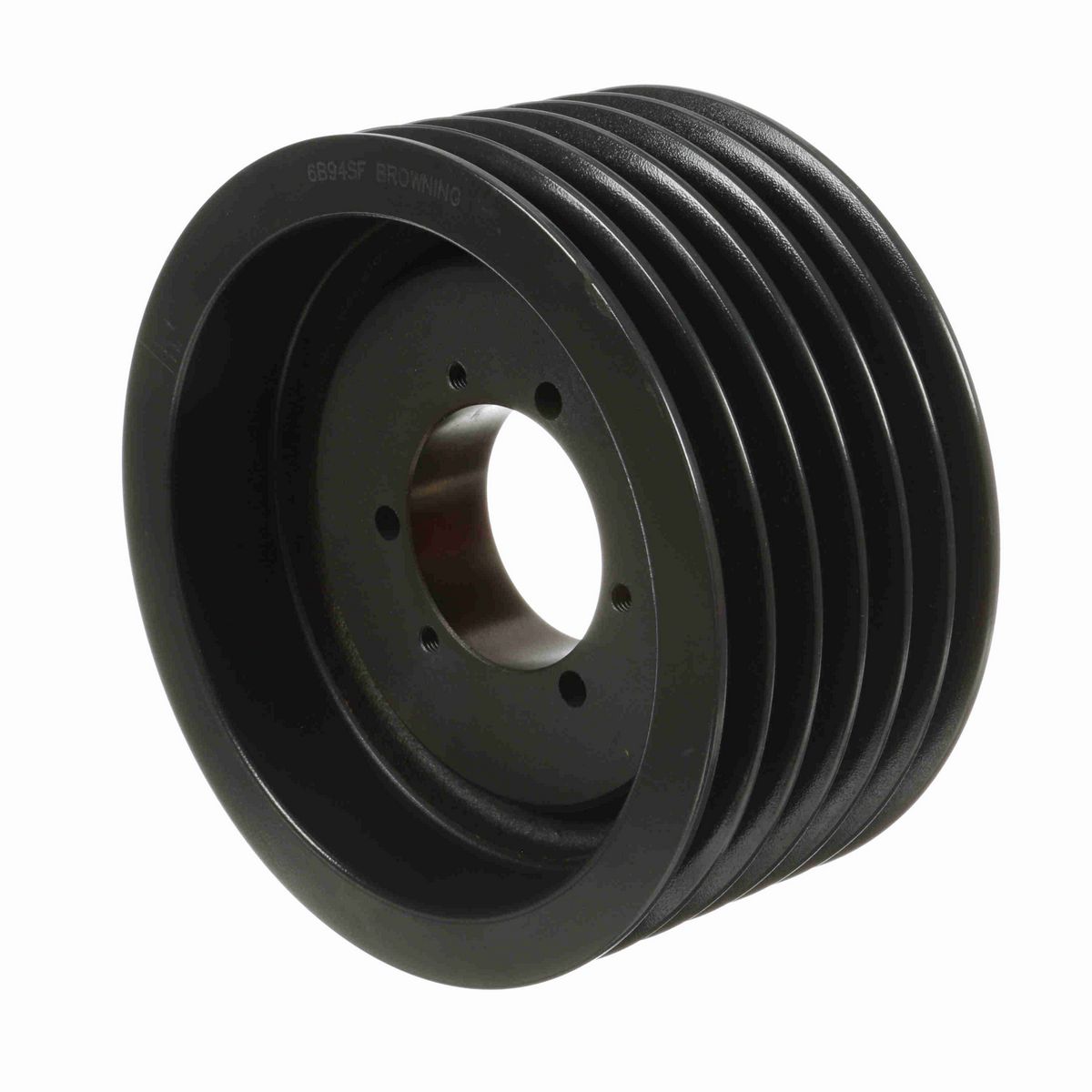

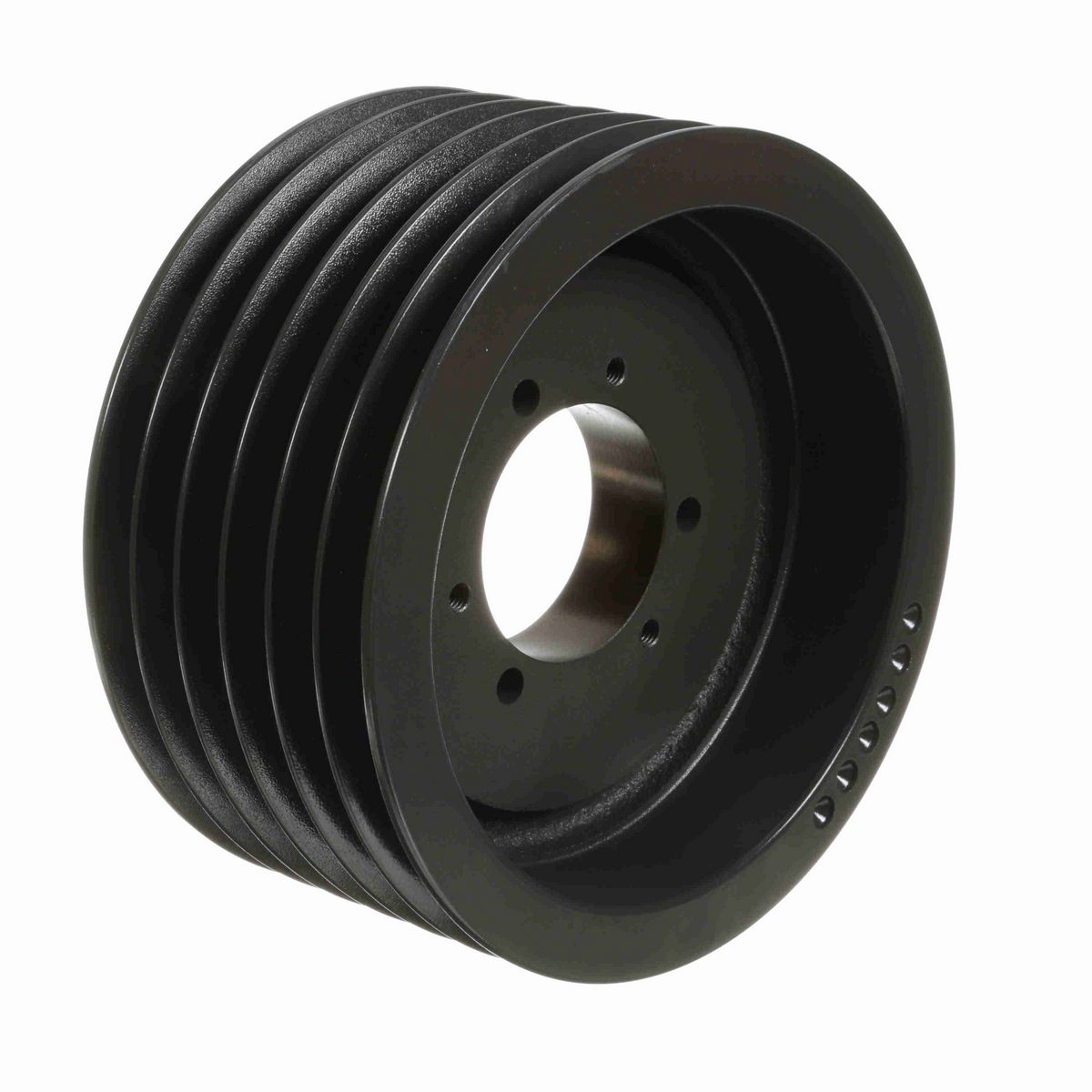

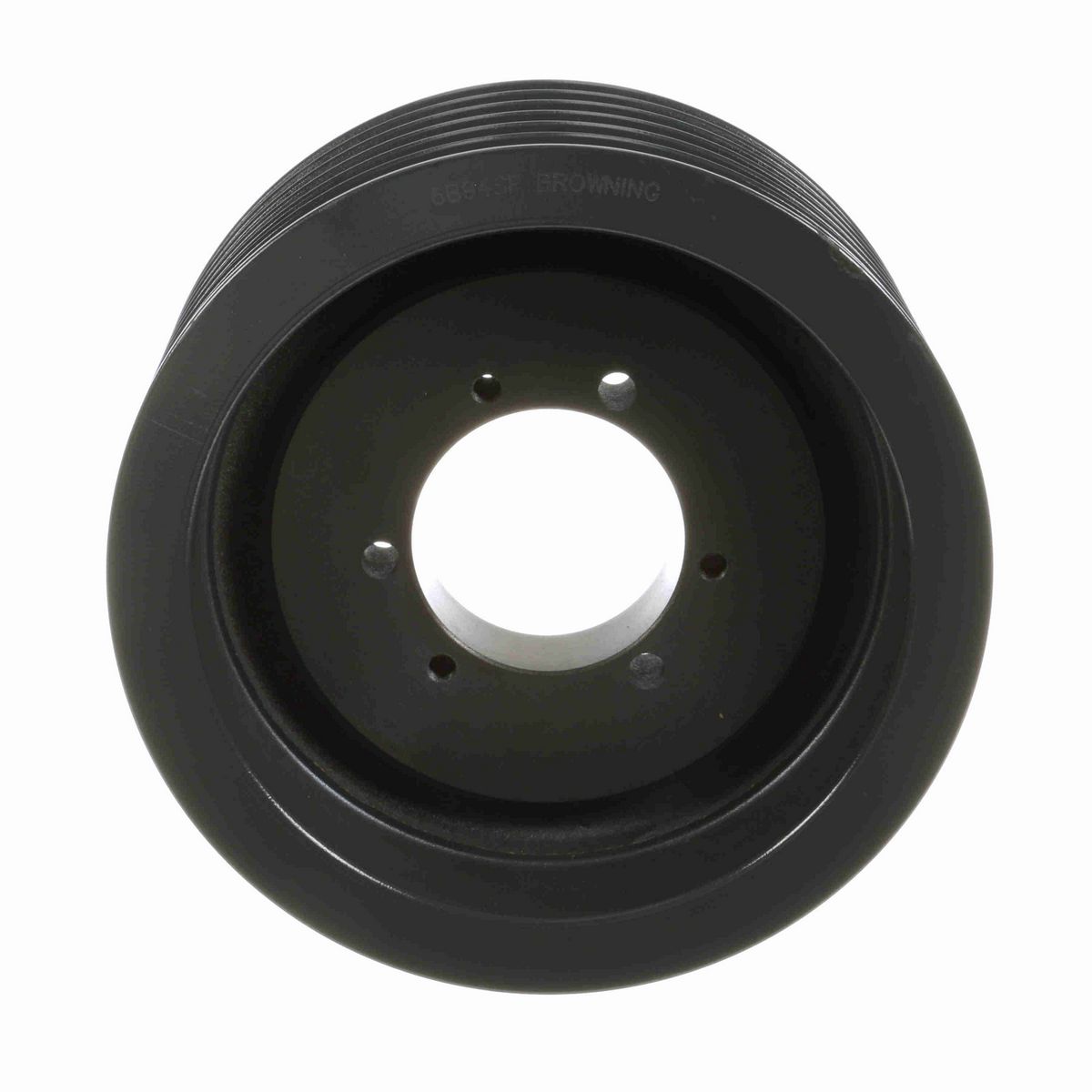

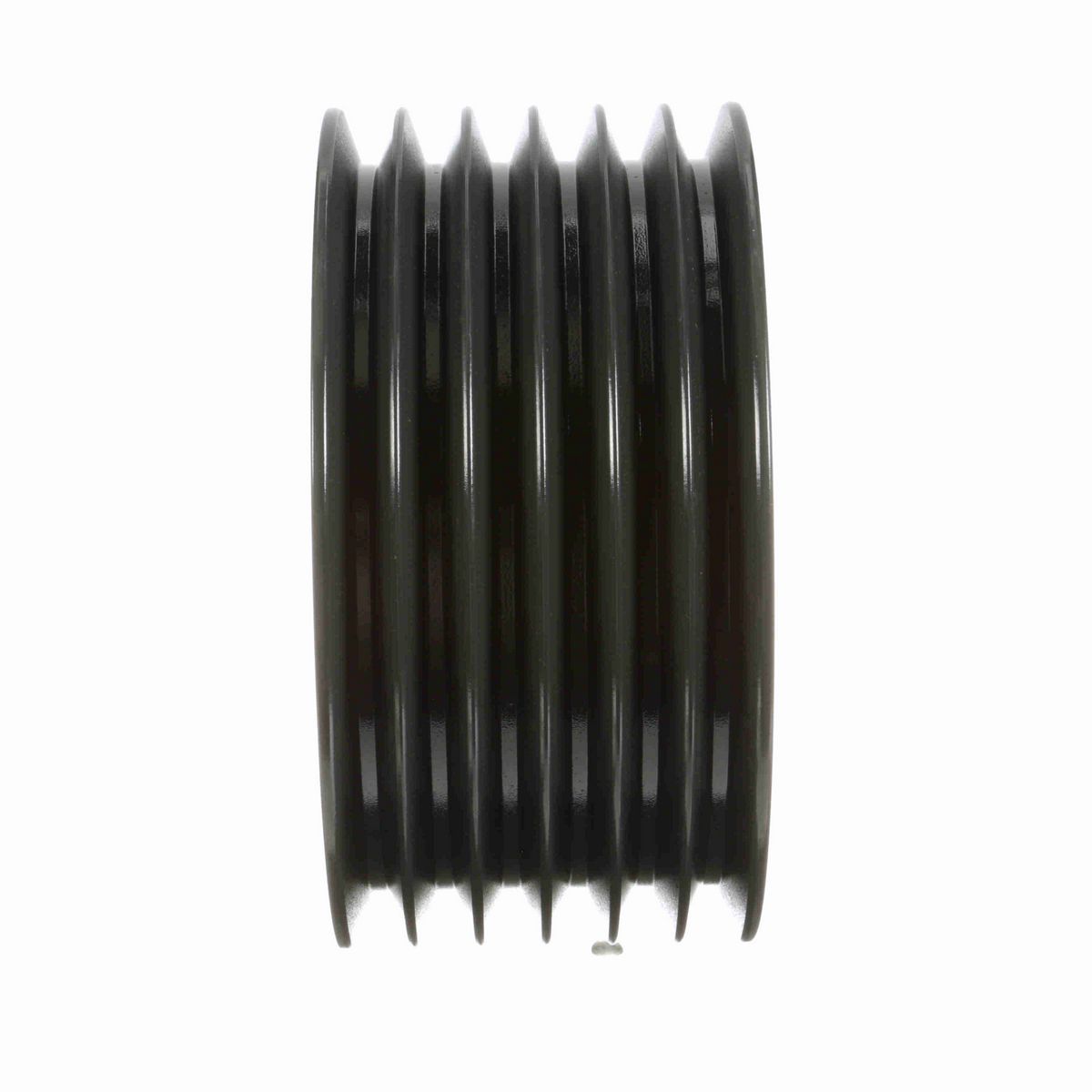

• Combination Groove - All Browning B Sheaves permit the running of A and B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
• Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.

Technical Specifications

Pitch Diameter (B)	9.7
Pitch Diameter (A)	9.2
Number of Grooves	6
Outside Diameter (in)	9.75 in
Datum Diameter (B)	9.4
Bushing Used	SF
Pulley Material	Cast Iron
Model Name	6AB_LG_Sheavemaster
Material	Cast Iron
Datum Diameter (A)	9
Belt Section	A, B
Bore (Min) (in)	0.5 in
Product Type	Multiple Sheaves
Bore Type	QD Bushed
Bushing Bore Range	0.500 - 2.938

General Specifications

UPC	662289366316
Weight	30.28 LB
Packaged Length	10.06 IN
Packaged Width	10.06 IN
Packaged Height	5.25 IN
HTC	8483.50.9040
Country of Origin	Mexico
