• Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
• Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
• Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
• New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material.

Technical Specifications

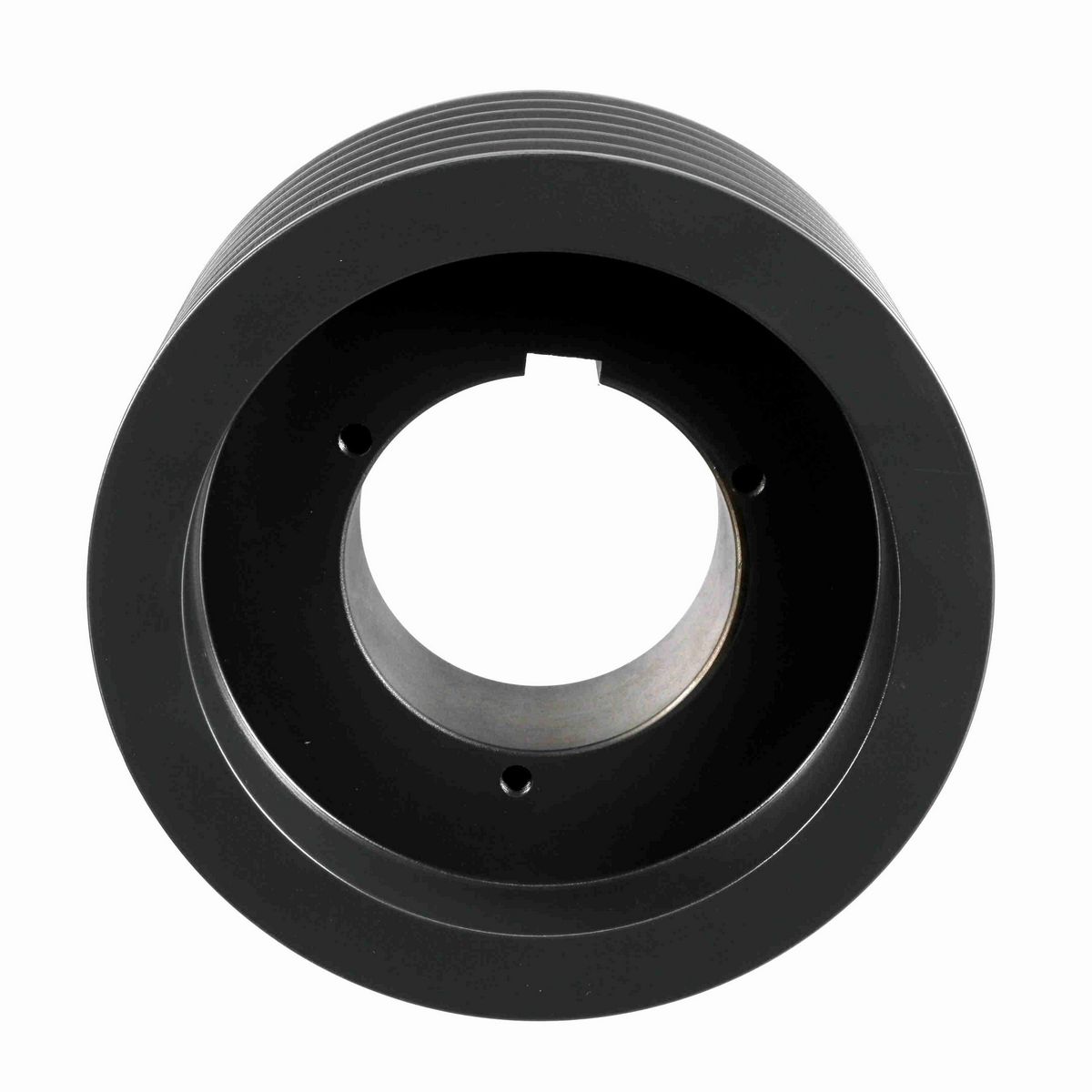

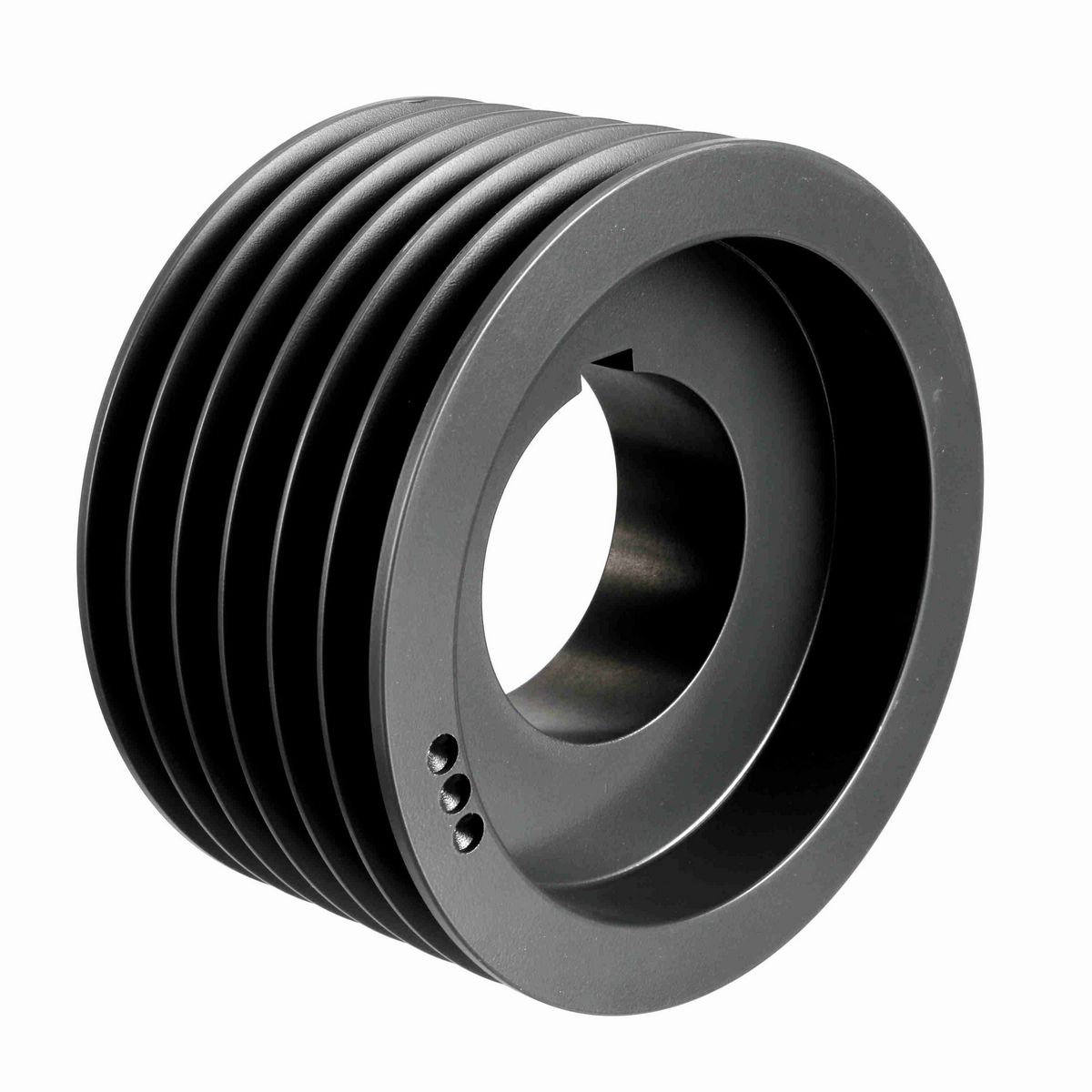

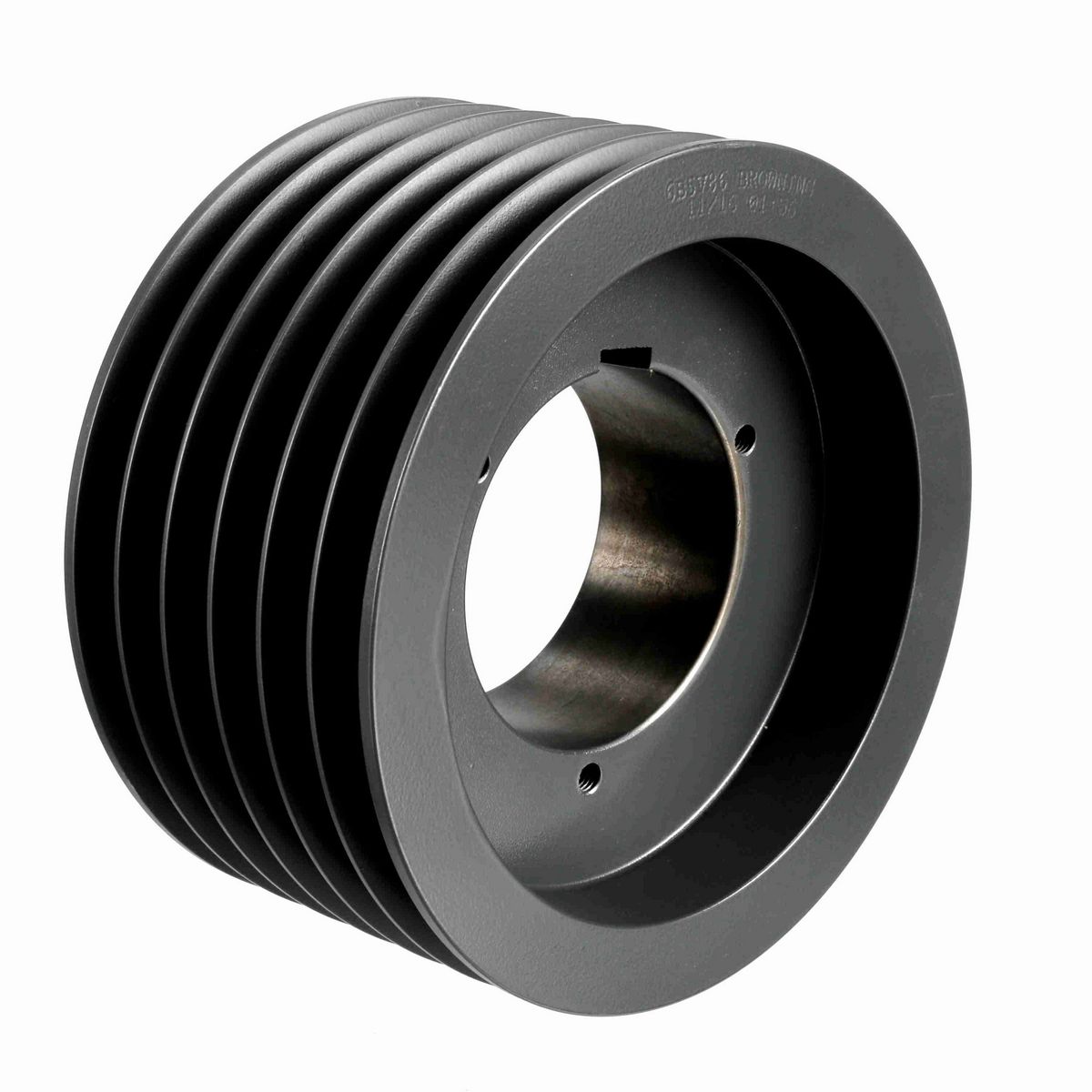

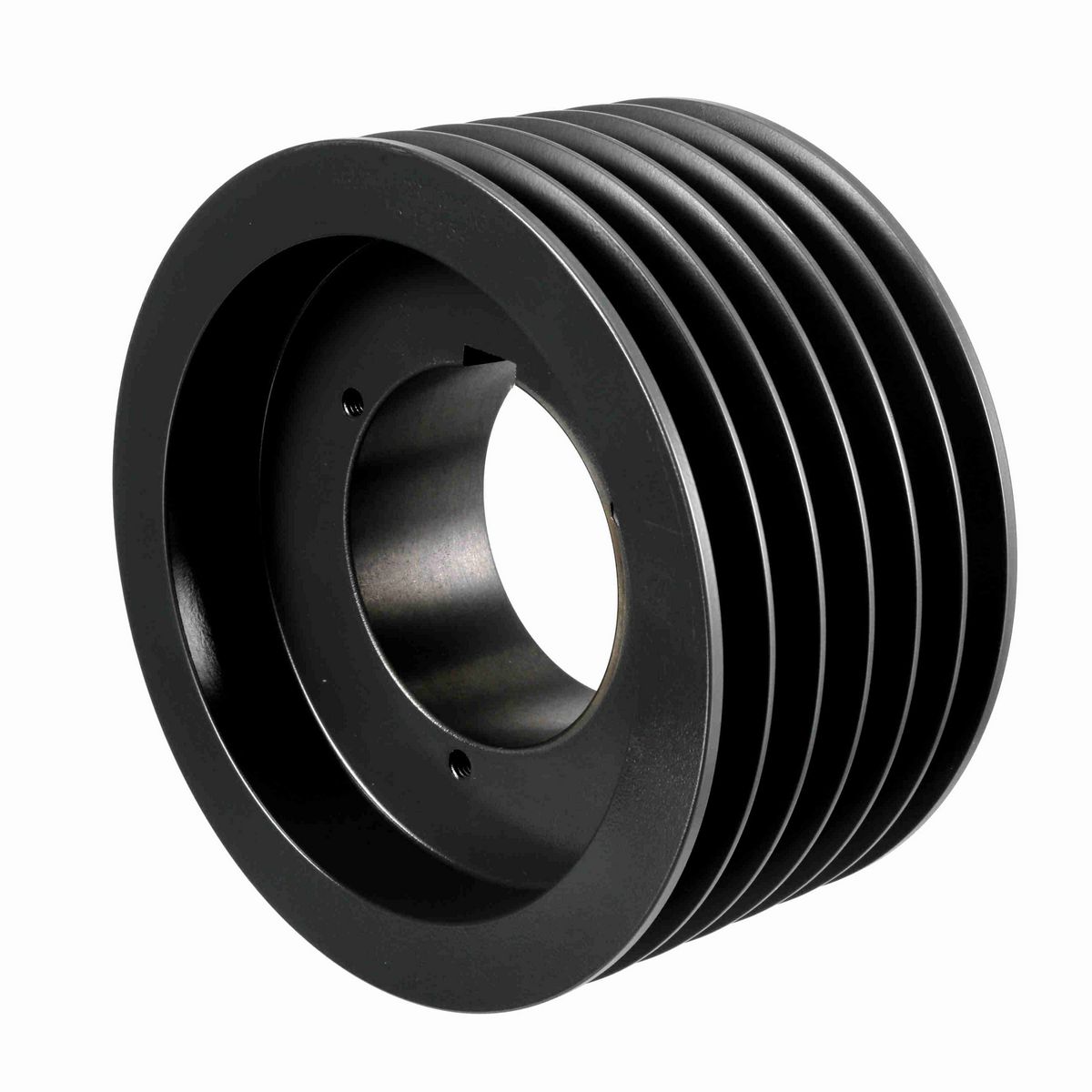

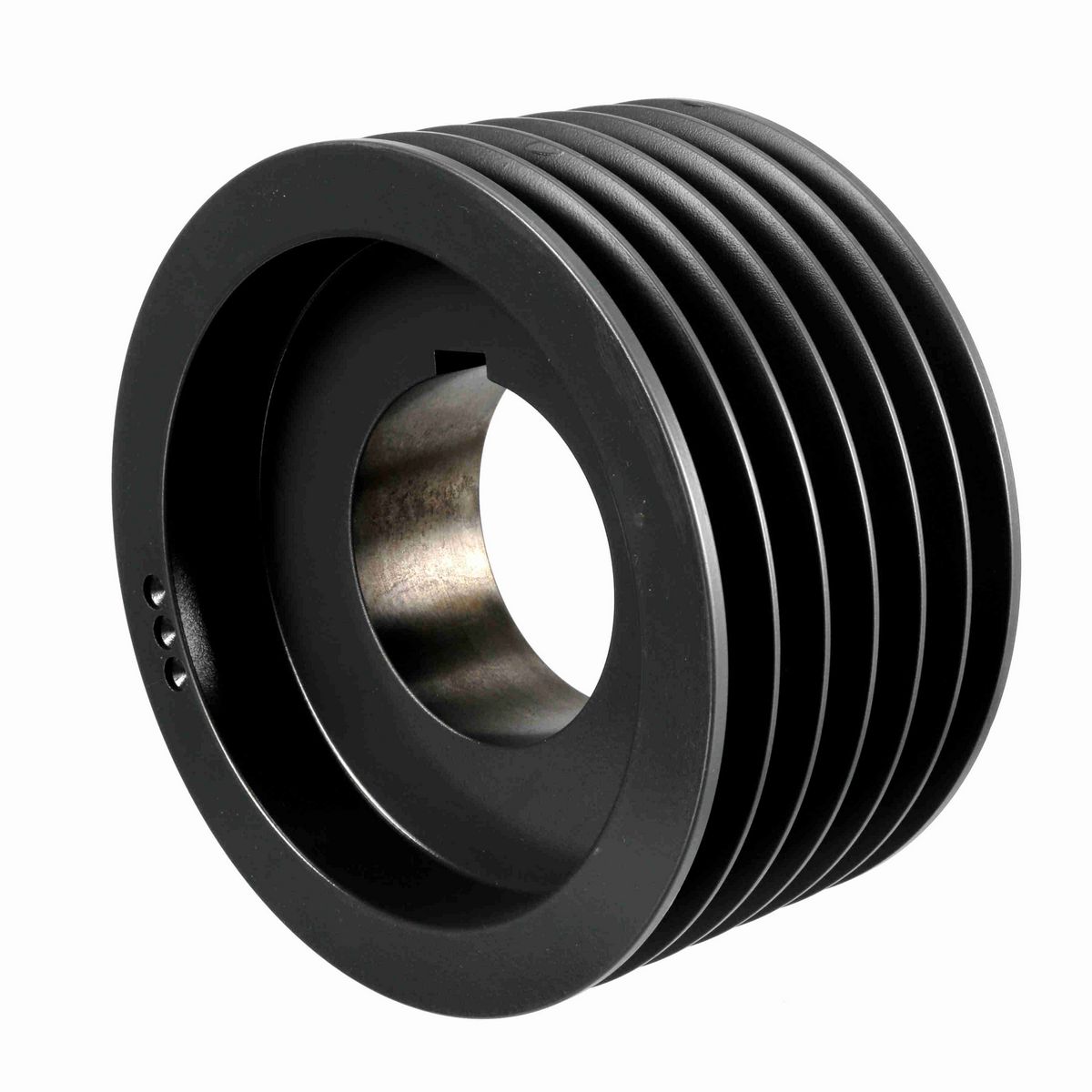

Model Name	6B5V-SheaveMaster
Number of Grooves	6
Material	Cast Iron
Pitch Diameter (5V)	8.7
Pulley Material	Cast Iron
Pitch Diameter (B)	8.9
Datum Diameter (A)	8.2
Outside Diameter (in)	8.88 in
Overall Length (in)	4.59375 in
Bushing Used	R1
Pitch Diameter (A)	8.4
Datum Diameter (B)	8.6
Bore (Min) (in)	1.125 in
Product Type	Multiple Sheaves
Belt Section	A, B, 5V
Bore Type	Split Taper Bushed
Pulley Construction	Webbed
Face Width (in)	4.5938
Overall Width (in)	4.59375
Bushing Bore Range	1.125 - 3.750
Keyway Size	.750

General Specifications

UPC	662460344829
Weight	31.03 LB
Packaged Length	10.40 IN
Packaged Width	10.20 IN
Packaged Height	4.90 IN
