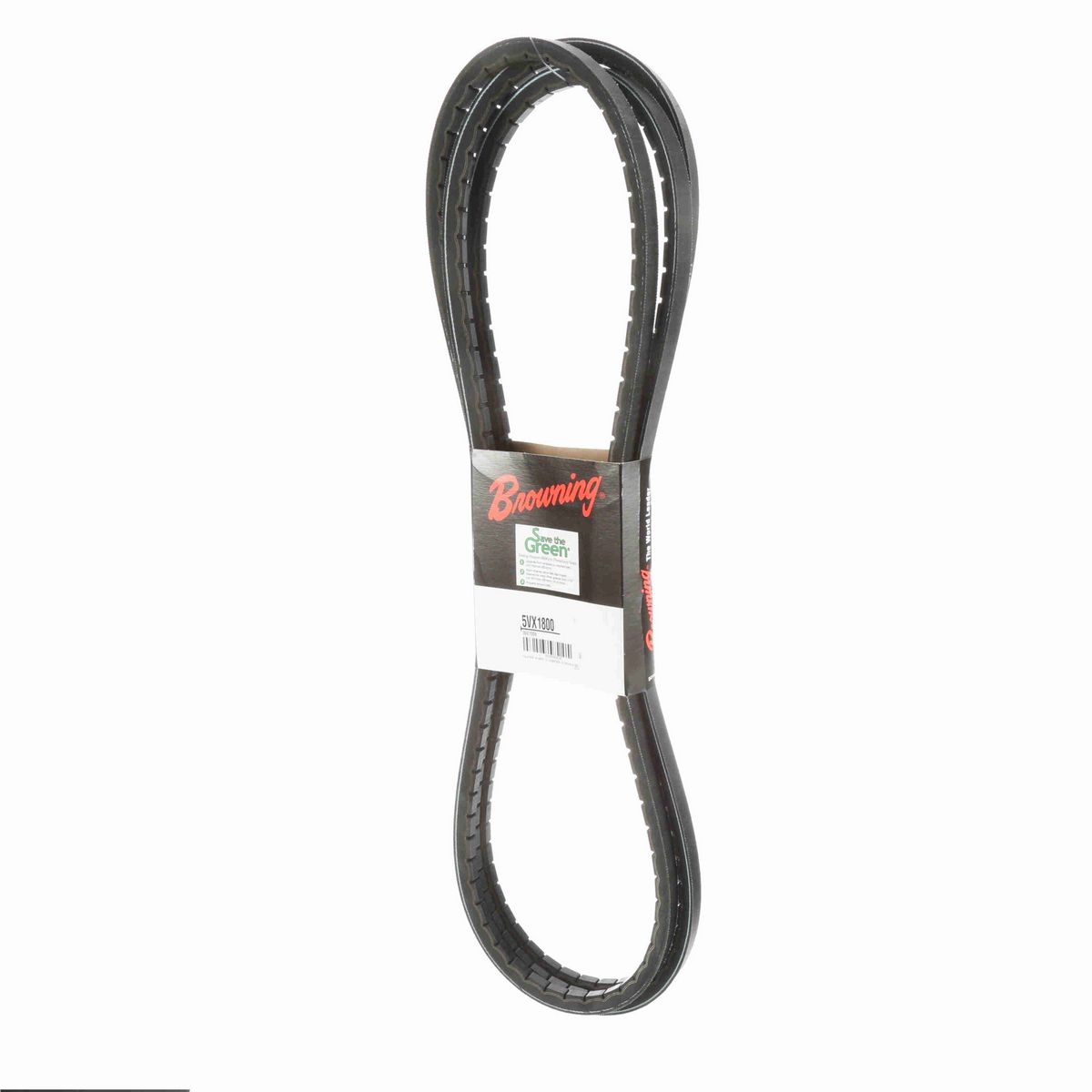

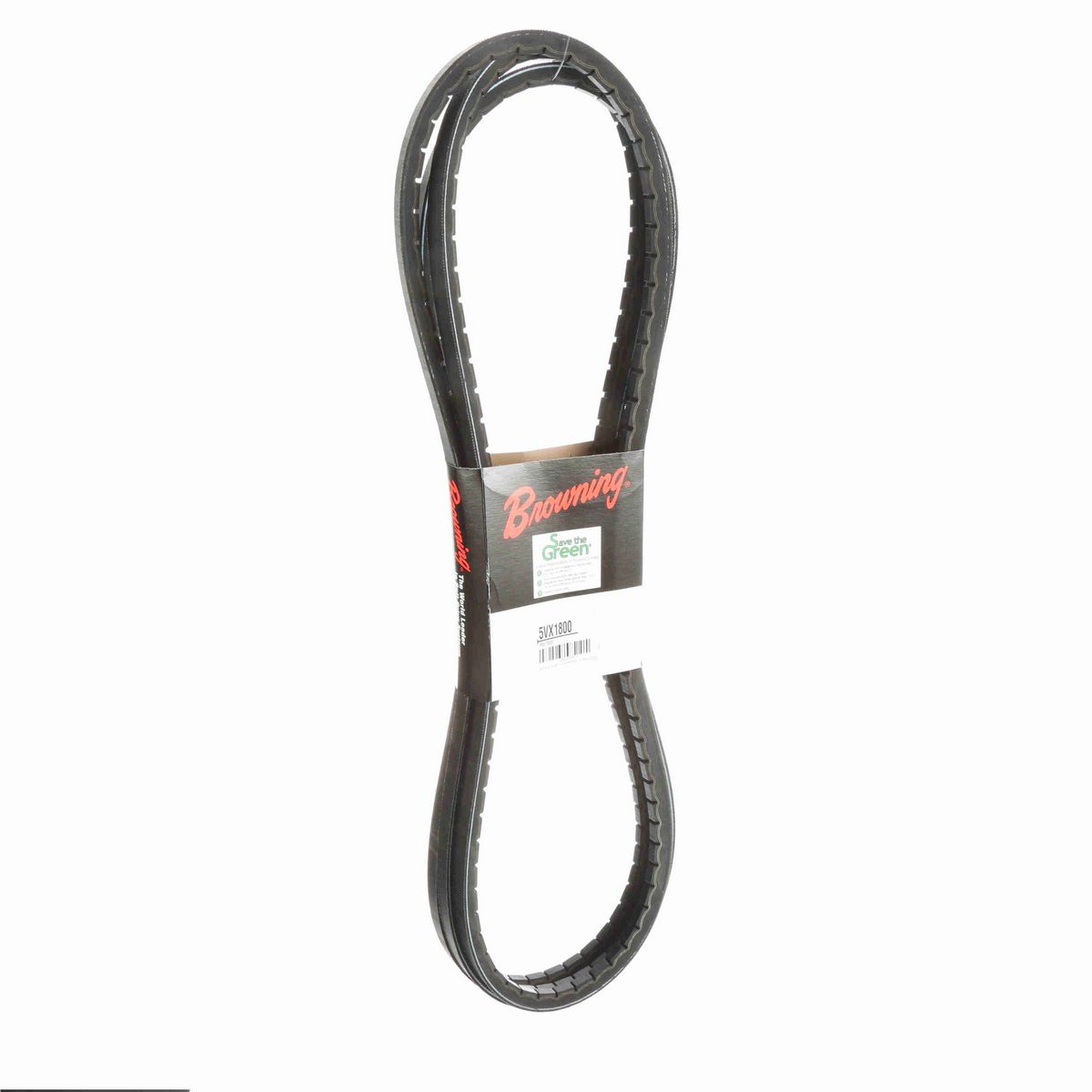

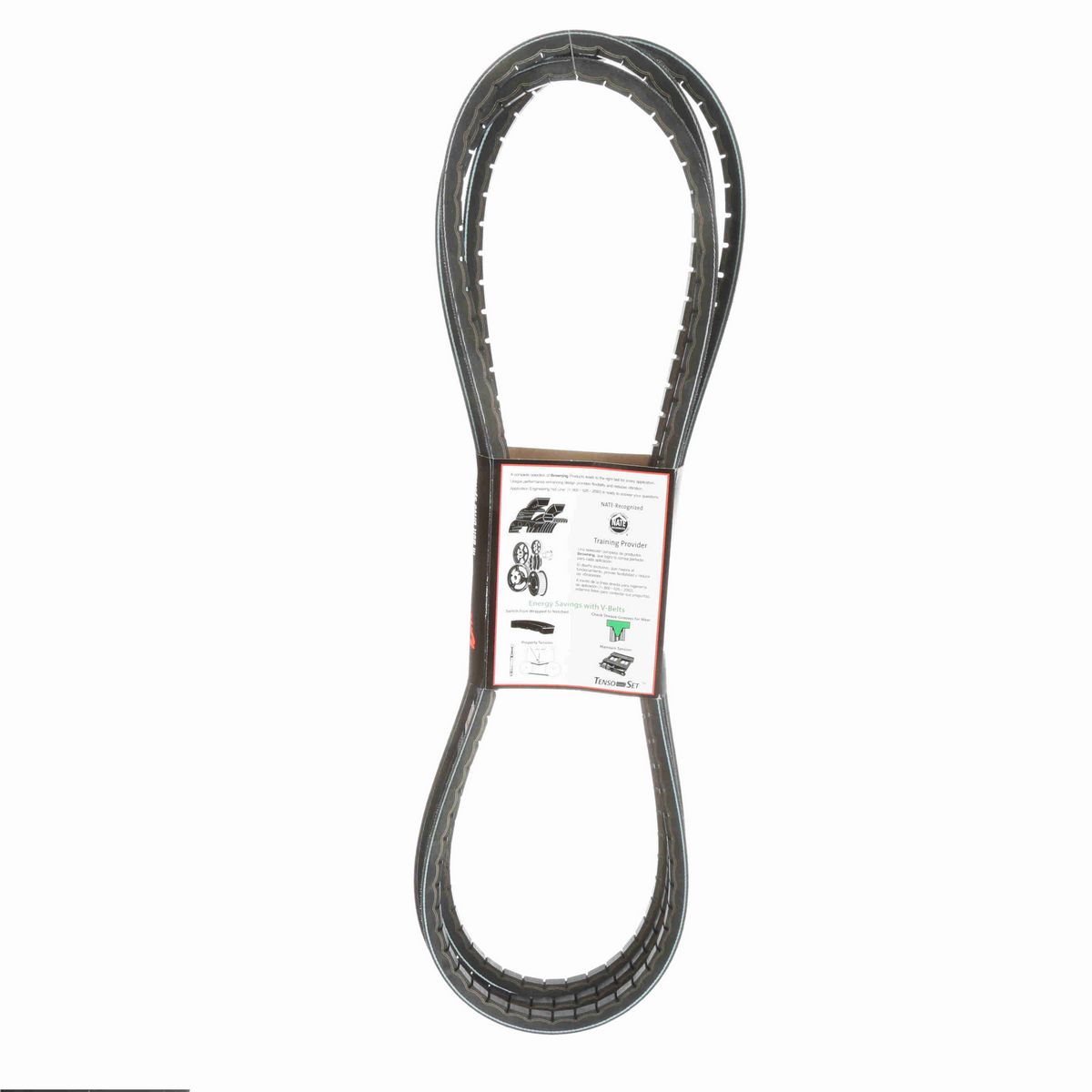

• Browning 358 Notched Belts are constructed of EPDM material wrapped top and botttom; increased operating temperature range of -60F to 250F degrees.
• More horsepower in less space - Browning 358 Belts provide more horsepower in the same span than conventional ABC Belts. This enables you to reduce drive cost.
• Greater Horsepower allows for smaller drive sheaves - Using 358 Belts can allow for smaller drive components while still meeting the drive requirements , thus lowering the overall drive cost.
• Close Belt tolerance - Browning Belts offer the "Code 1" Match belt system on all classical and "358" Belts, allowing easy selection of just one match number for each belt size. This ensures tighter than RMA standards.

Technical Specifications

Belt Section	5VX
Type	Gripnotch Notched V-Belts
Material	EPDM
Efficiency (%)	0.98
Outside Length/Diameter (in)	180 in
Operating Temperature [Max] ºF	250 °F
Outside Diameter (in)	180 in
Product Type	Notched Belt
Operating Temperature [Max] ºC	121 °C
Section Size	5V
Width (in)	0.625 in
Height	0.5313
Band Type	Belt with Ends Joined
Pitch Length	180
Construction Type	Cogged
Standards met	MPTA IP-20;RMA
Operating Temperature Range	-60 to +230 °F

General Specifications

UPC	662289339747
Weight	1.60 LB
Packaged Length	7.85 IN
Packaged Width	26.95 IN
Packaged Height	1.65 IN
HTC	4010.39.1000
Country of Origin	United States of America
