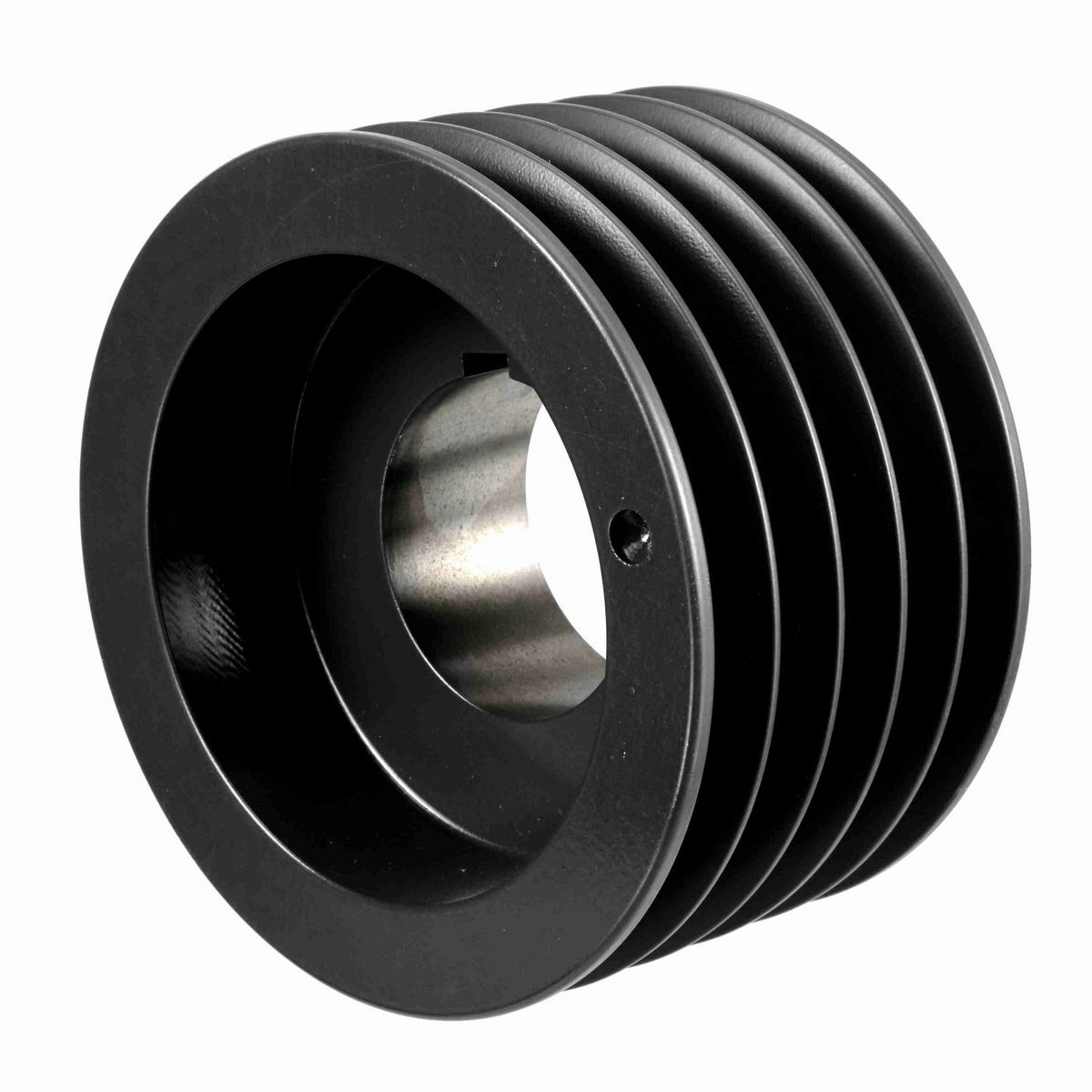

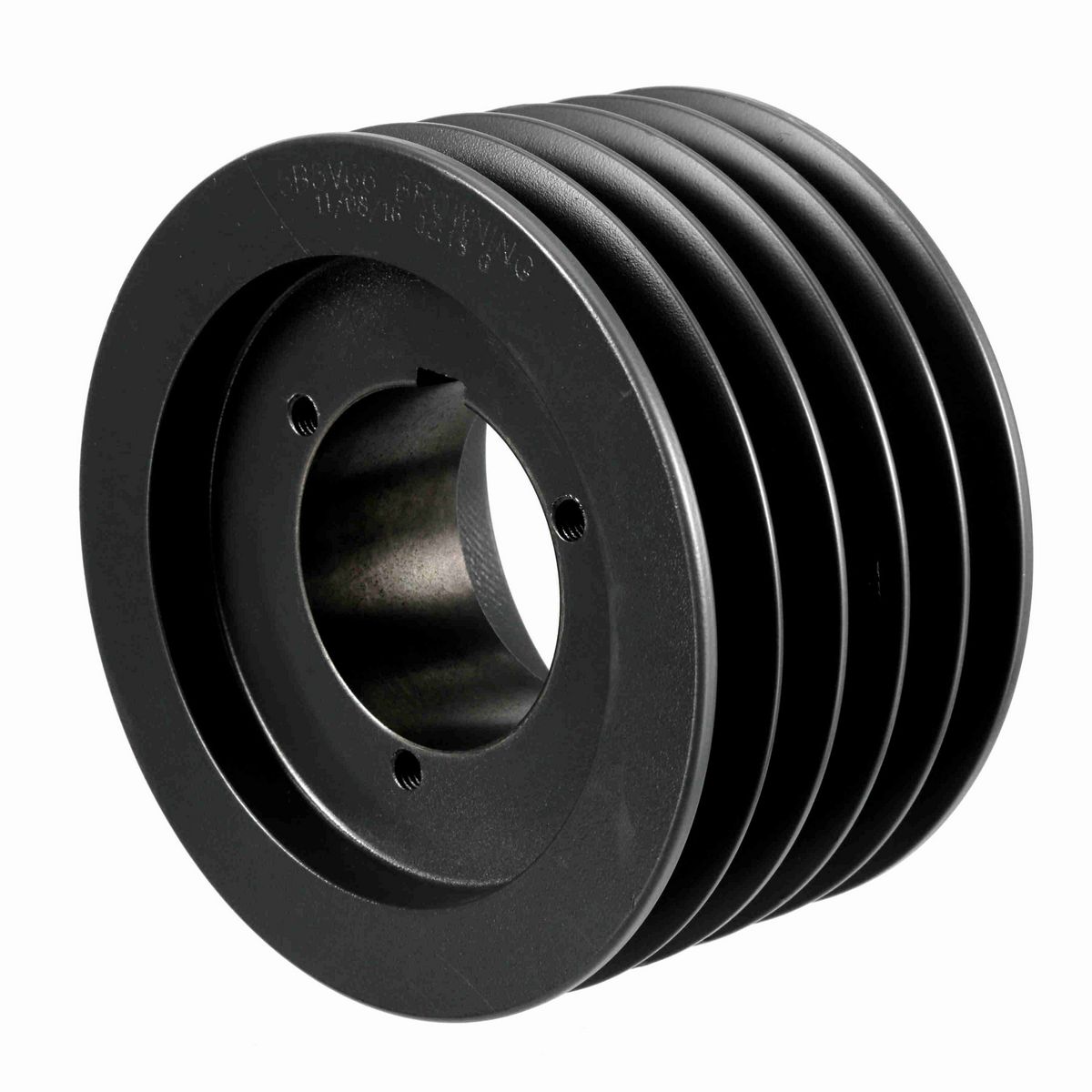

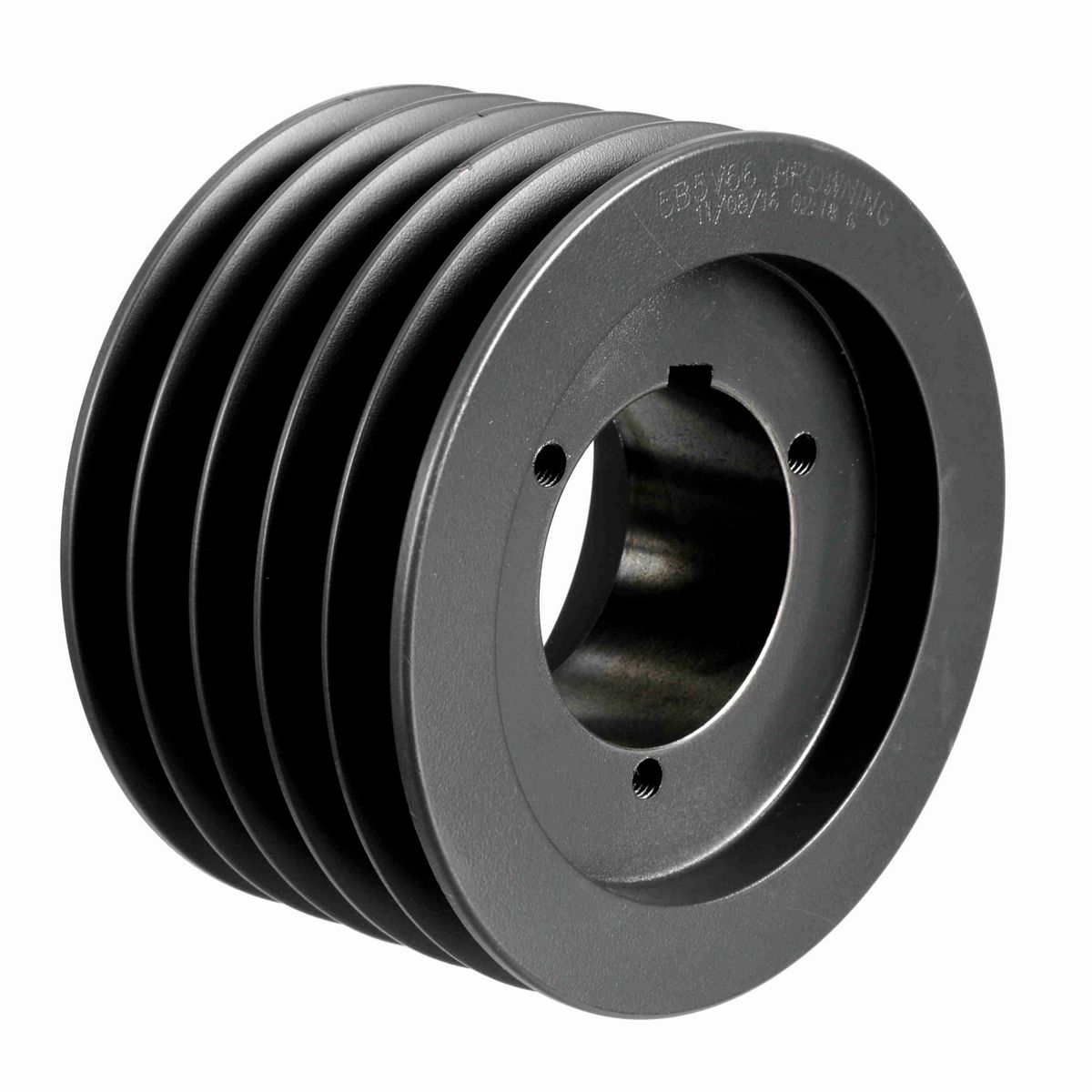

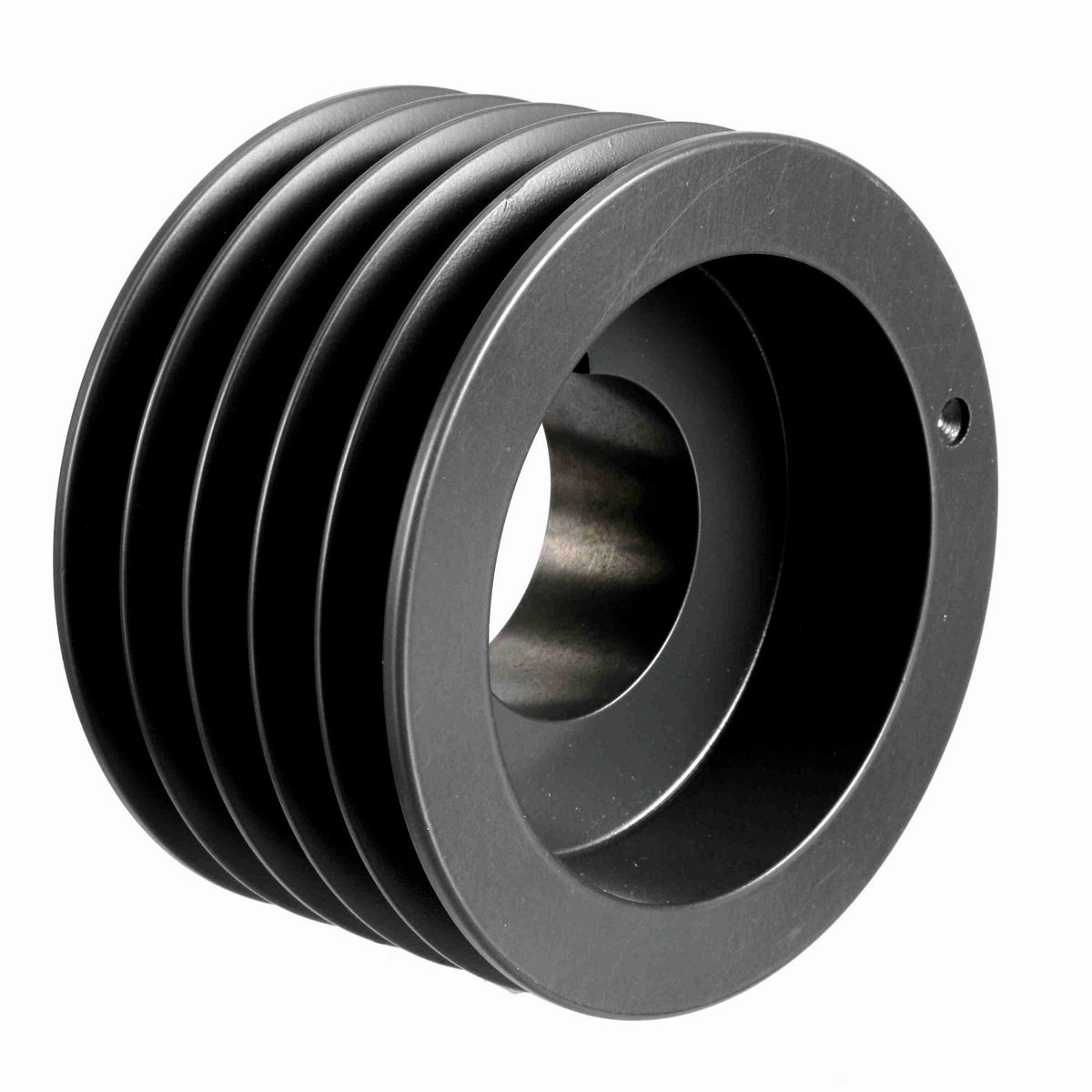

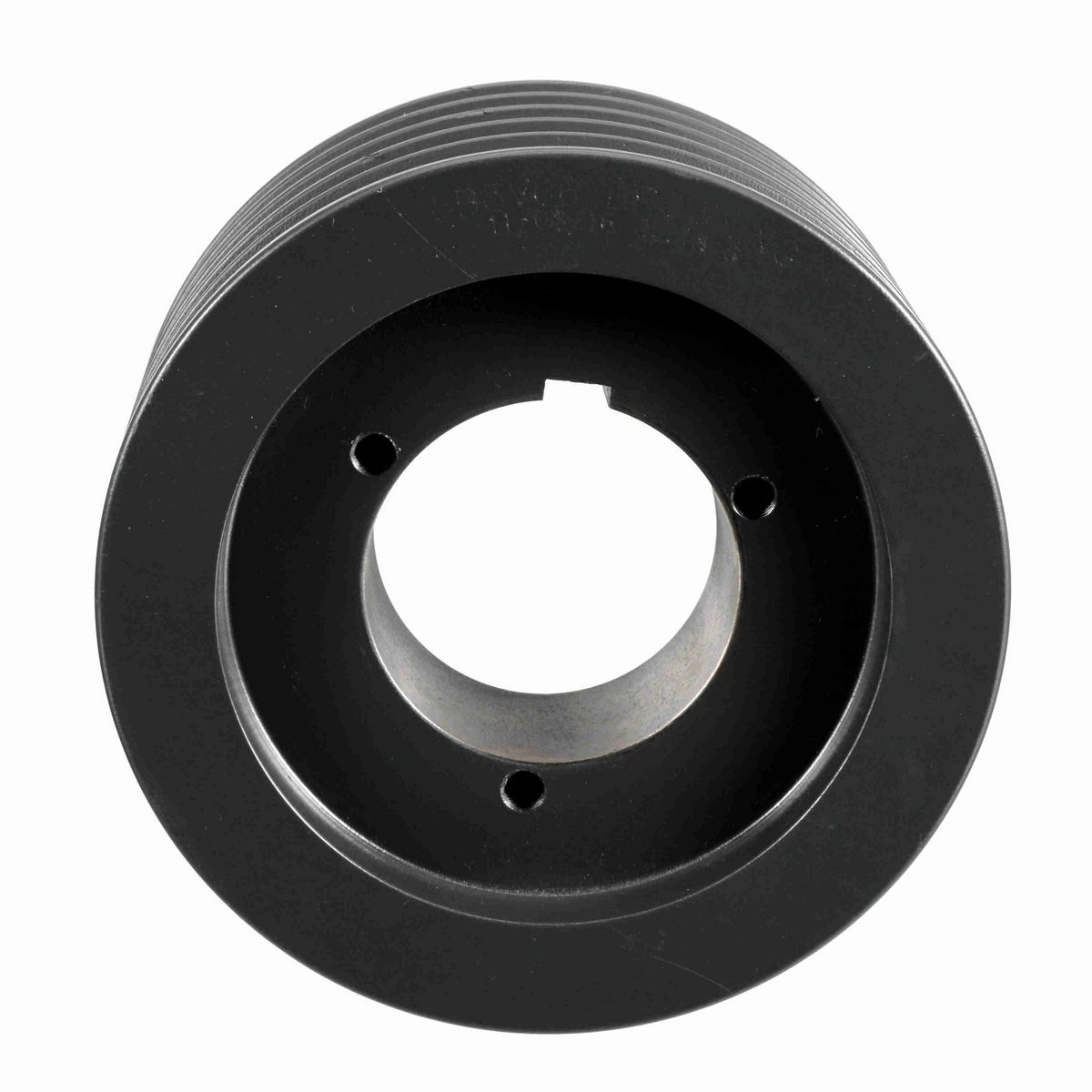

• Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
• Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
• Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
• New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material.

Technical Specifications

Datum Diameter (A)	6.2
Number of Grooves	5
Pulley Material	Cast Iron
Number of Hubs	1
Number of Flanges	6
Datum Diameter (B)	6.6
Pitch Diameter (B)	6.9
Bushing Used	Q1
Outside Diameter (in)	6.88 in
Pitch Diameter (5V)	6.7
Belt Type	Classic or 358
Model Name	5B5V-SheaveMaster
Overall Length (in)	4.328125 in
Pitch Diameter (A)	6.4
Material	Cast Iron
Bore (Min) (in)	0.75 in
Product Type	Multiple Sheaves
Belt Section	A, B, 5V
Bore Type	Split Taper Bushed
Keyway Size	.500
Bushing Bore Range	2.6875 - 2.6875
Face Width (in)	3.875

General Specifications

UPC	662460344492
Weight	16.60 LB
Packaged Length	7.60 IN
Packaged Width	7.60 IN
Packaged Height	5.00 IN
