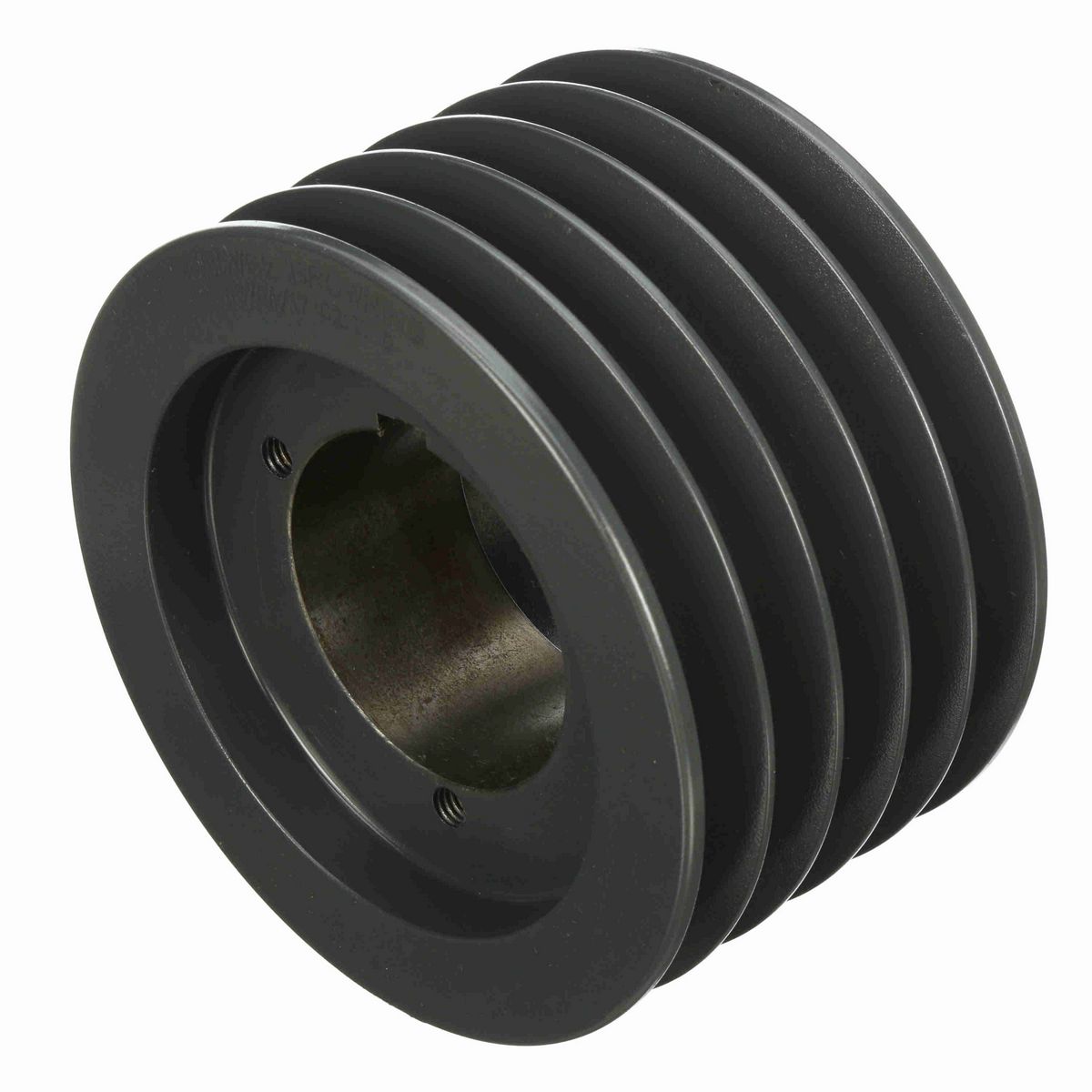

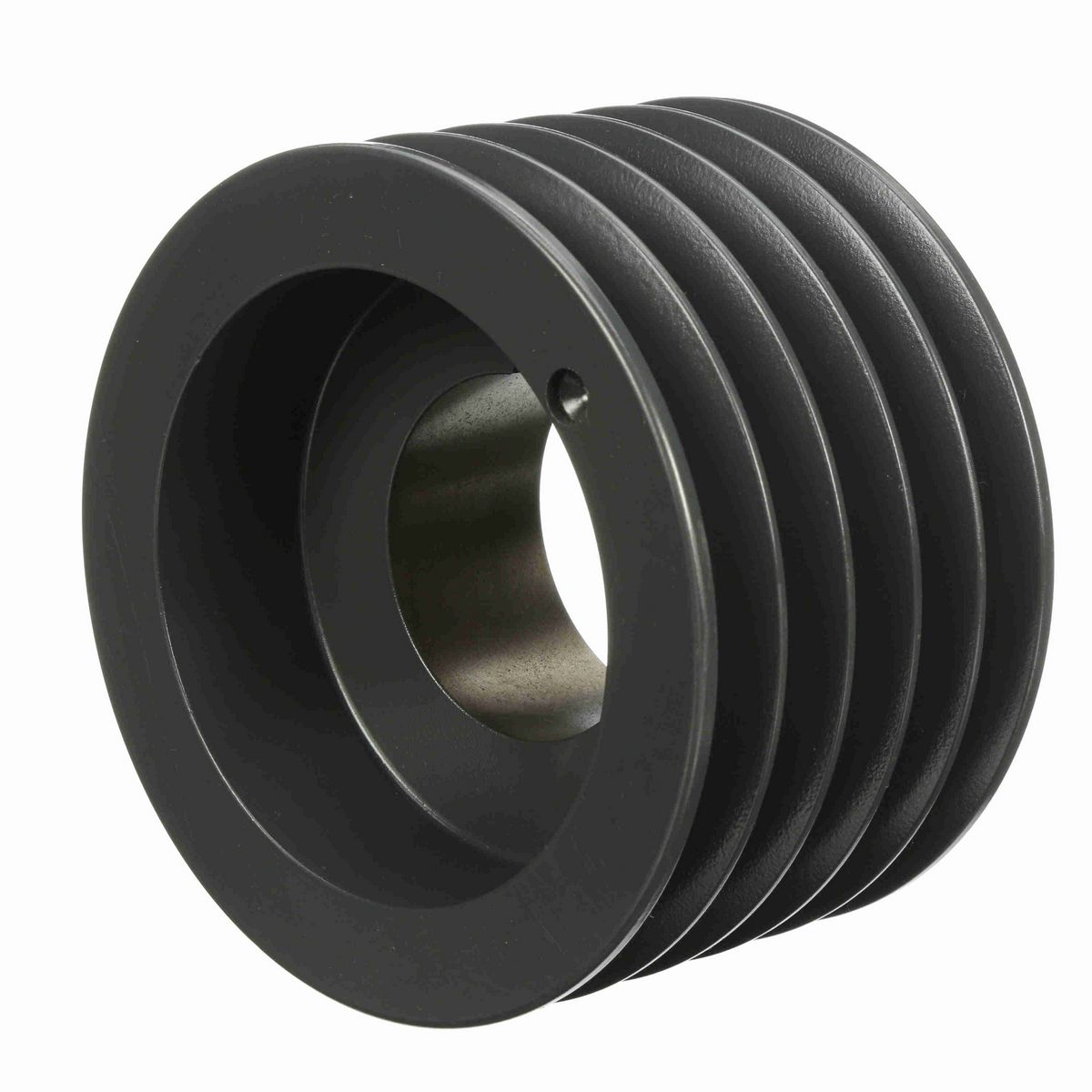

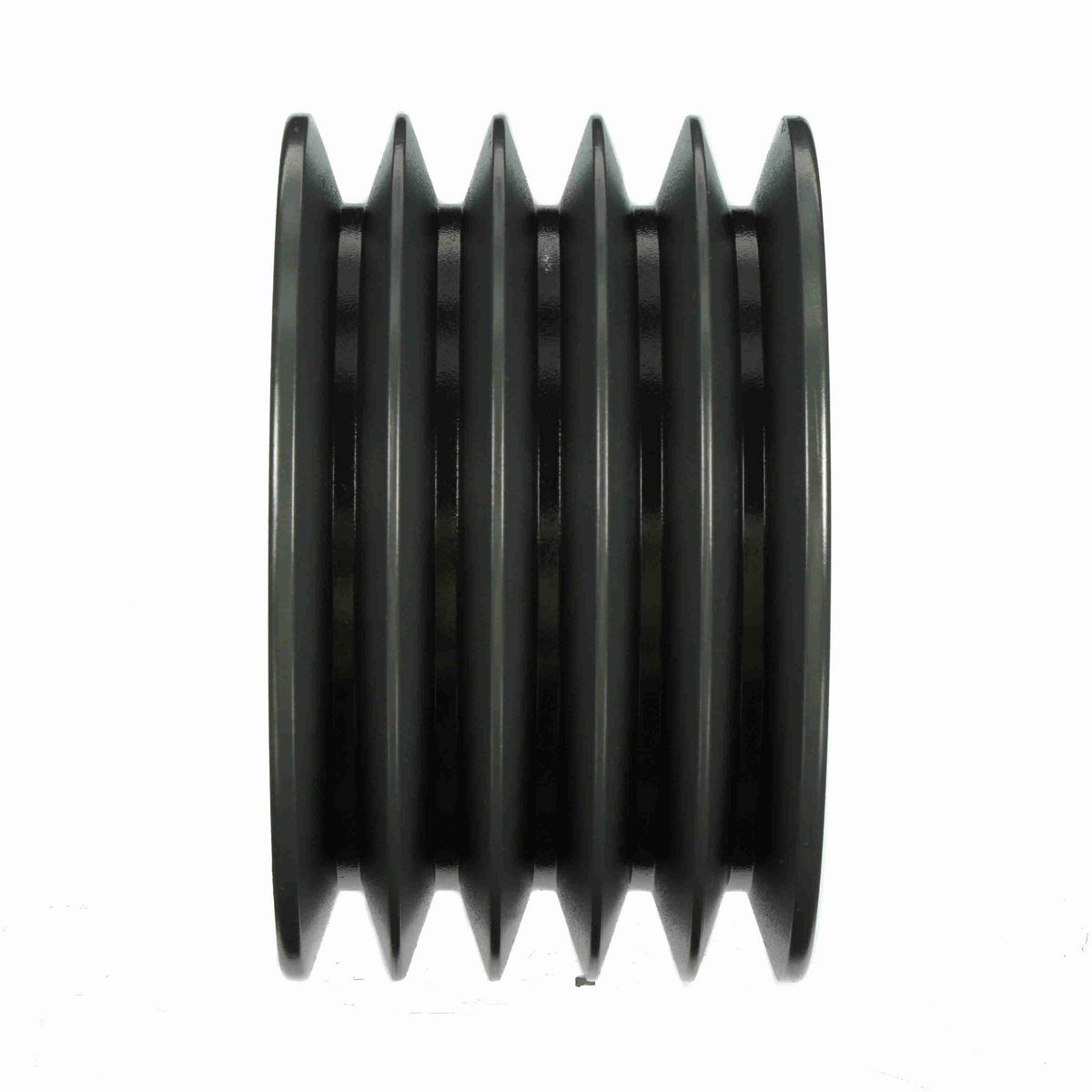

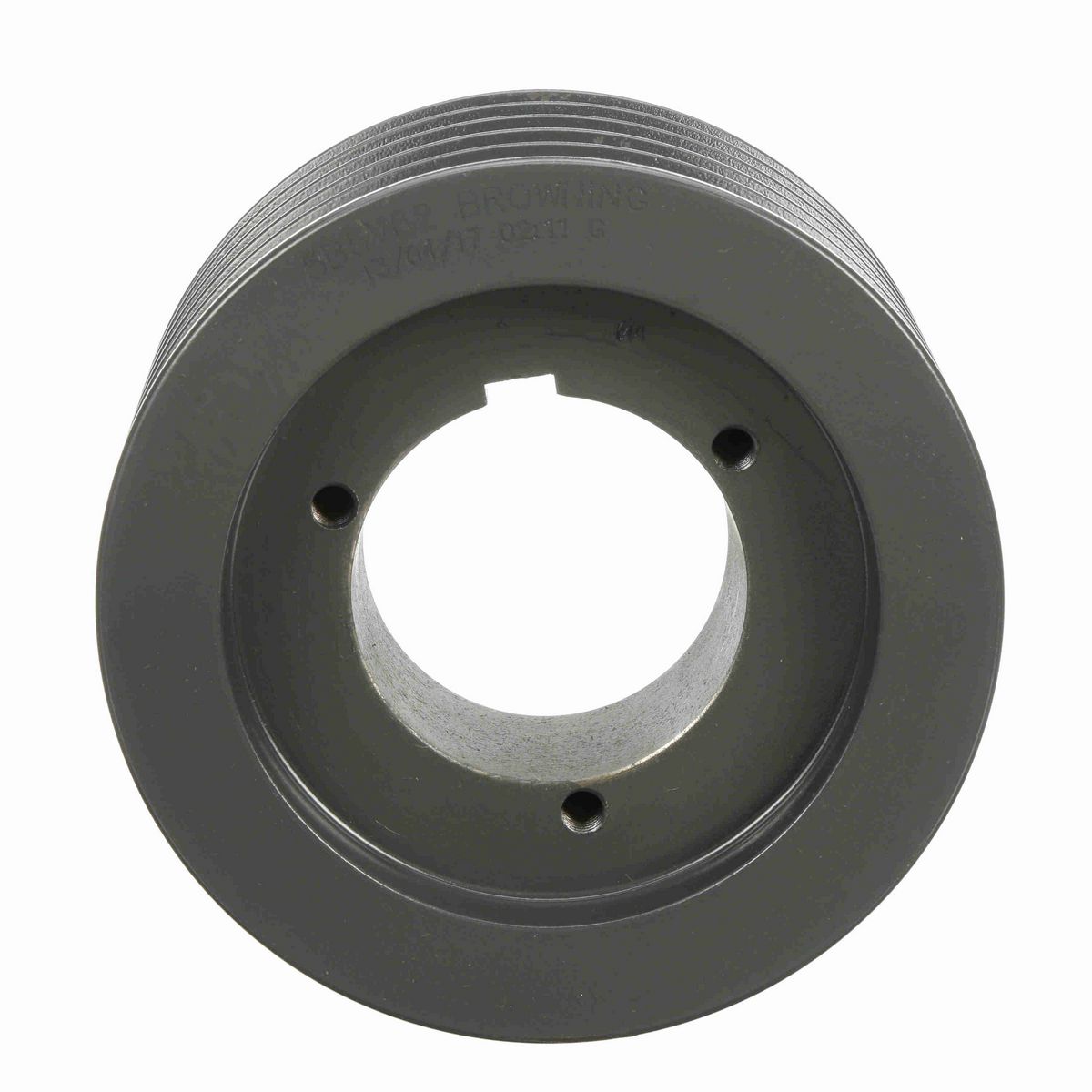

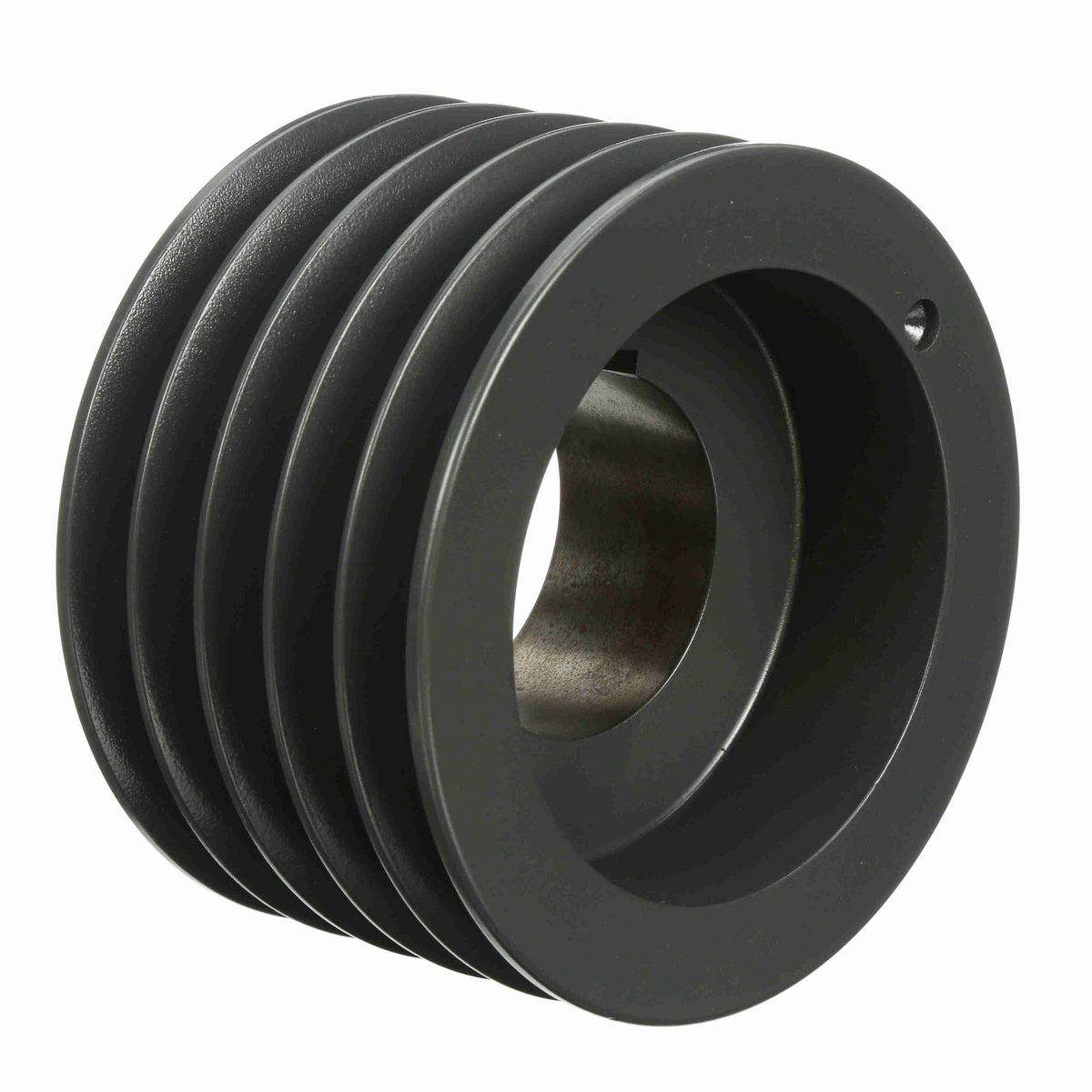

• Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
• Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
• Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
• New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material.

Technical Specifications

Model Name	5B5V-SheaveMaster
Number of Hubs	1
Pitch Diameter (5V)	6.3
Number of Flanges	6
Pulley Material	Cast Iron
Belt Type	Classic or 358
Bushing Used	Q1
Material	Cast Iron
Number of Grooves	5
Datum Diameter (A)	5.8
Datum Diameter (B)	6.2
Outside Diameter (in)	6.48 in
Overall Length (in)	4.328125 in
Pitch Diameter (B)	6.5
Pitch Diameter (A)	6
Belt Section	A, B, 5V
Product Type	Multiple Sheaves
Bore (Min) (in)	0.75 in
Bore Type	Split Taper Bushed
Face Width (in)	3.875
Bushing Bore Range	2.6875 - 2.6875
Keyway Size	.500

General Specifications

UPC	662460344478
Weight	14.28 LB
Packaged Length	7.60 IN
Packaged Width	7.60 IN
Packaged Height	4.20 IN
