• Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
• Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
• Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
• New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material.

Technical Specifications

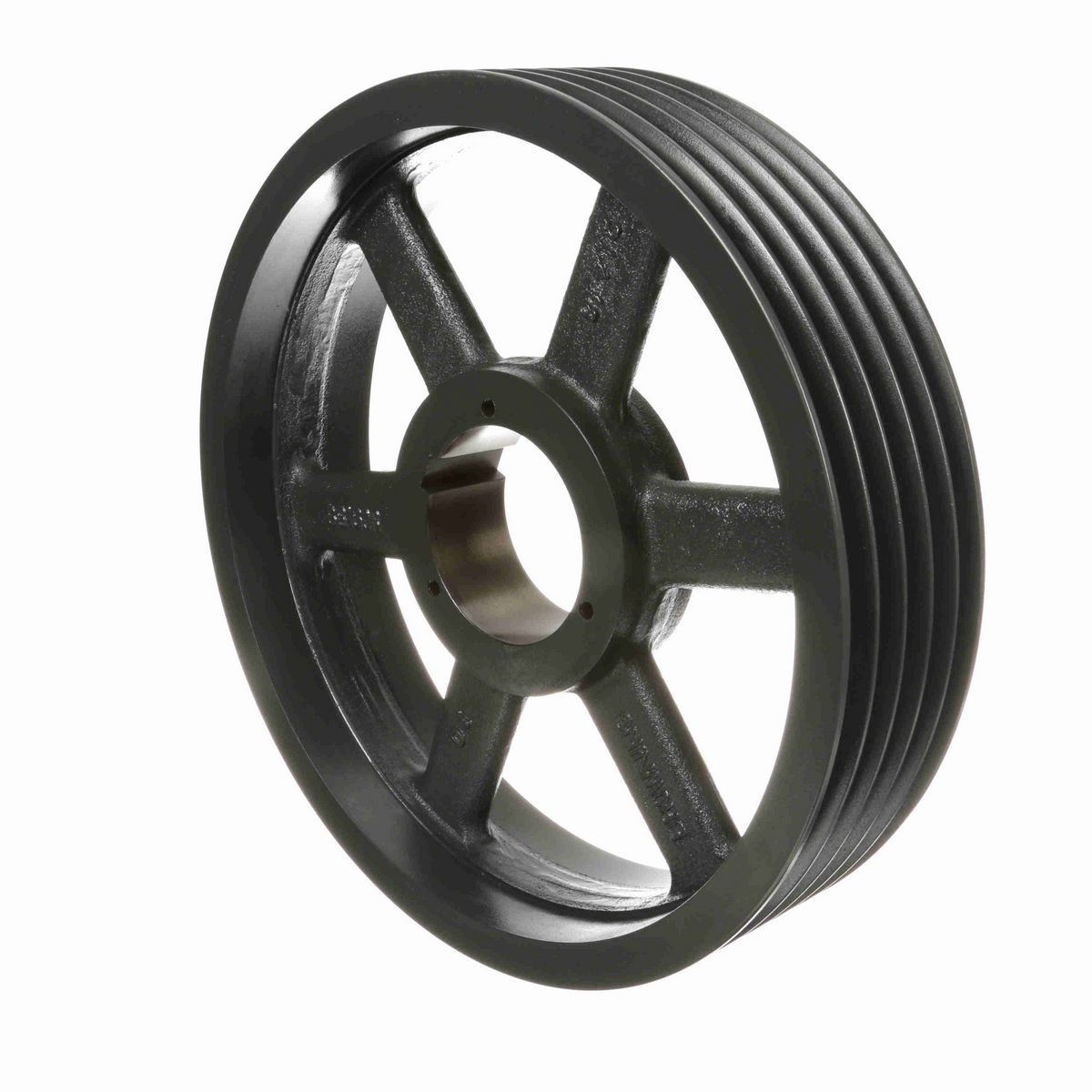

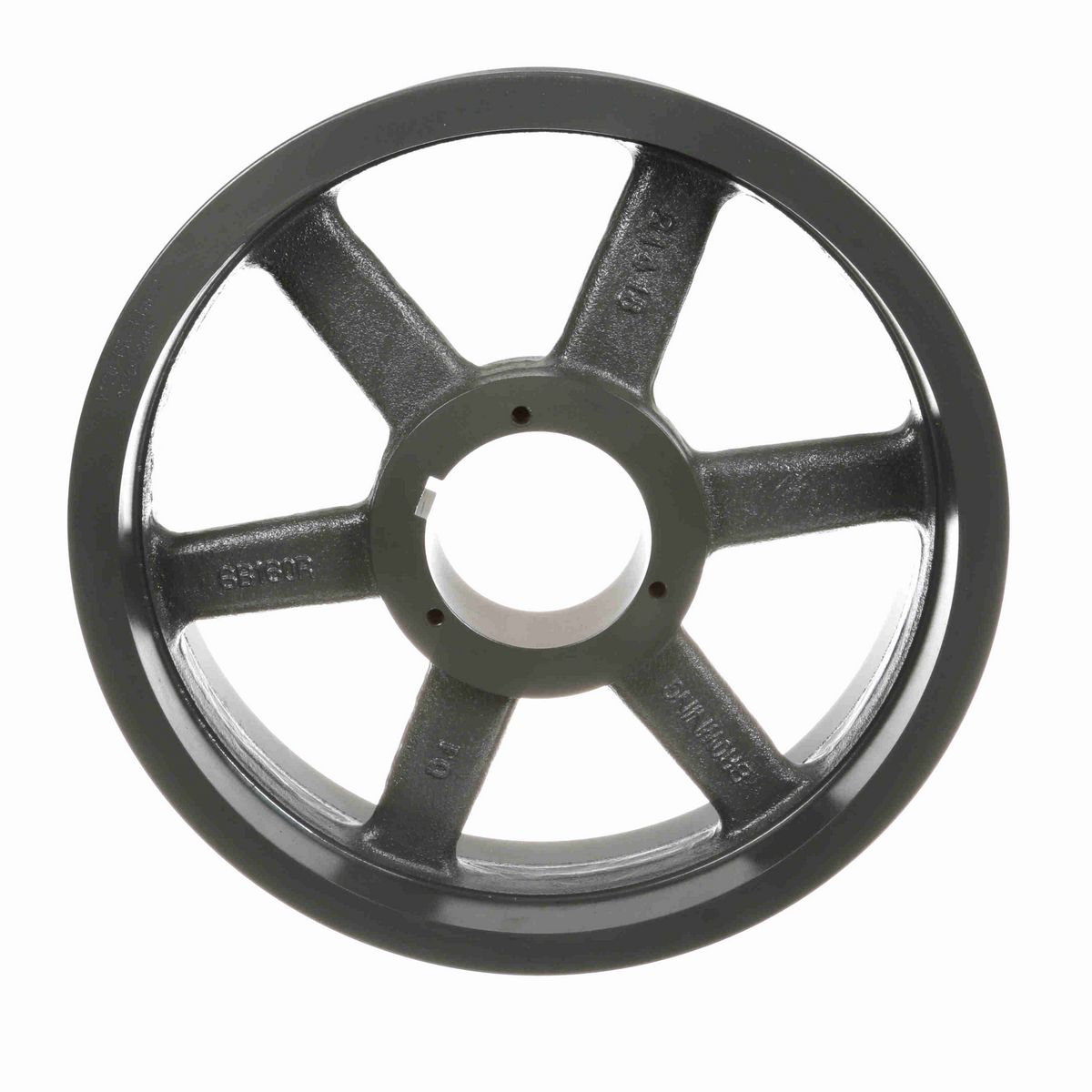

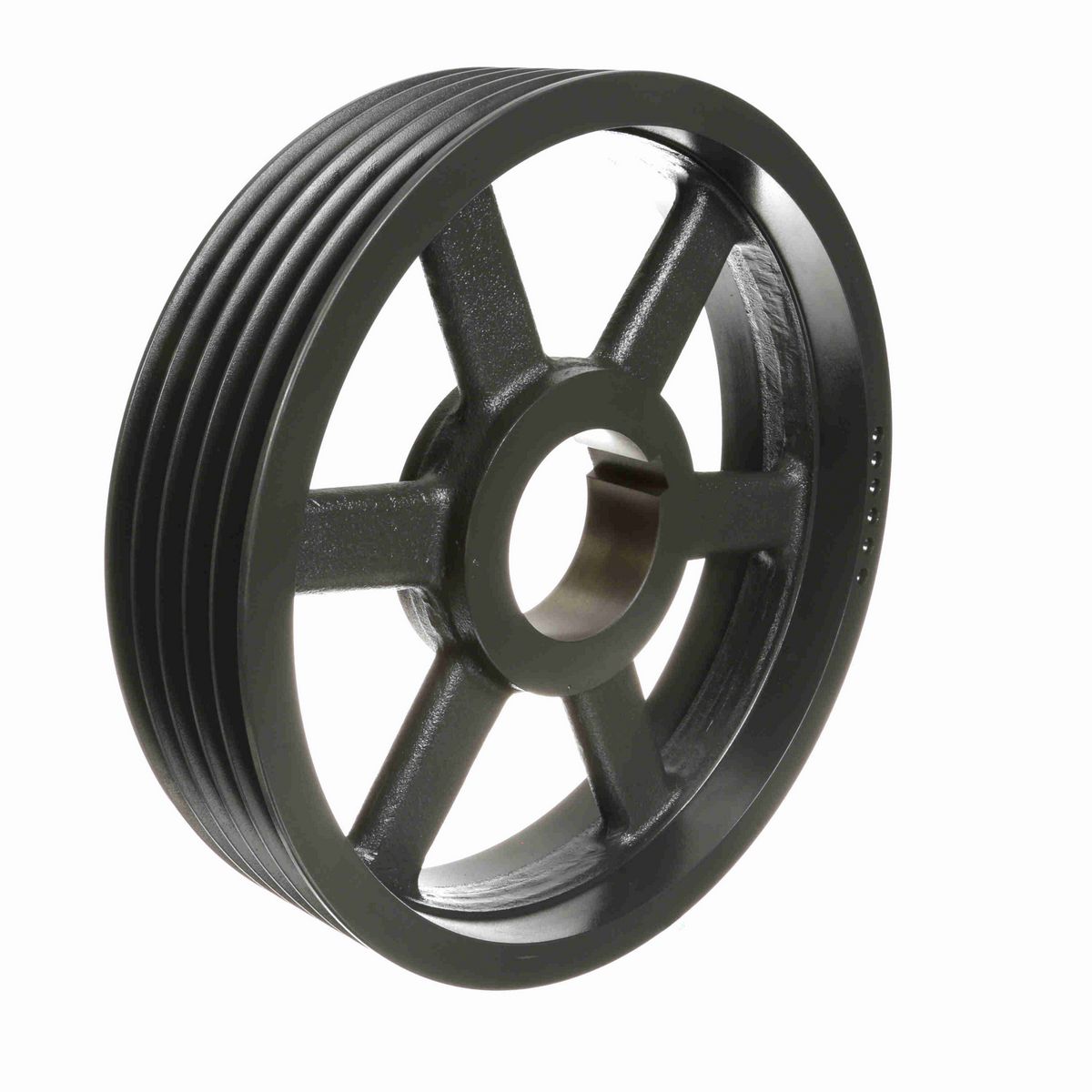

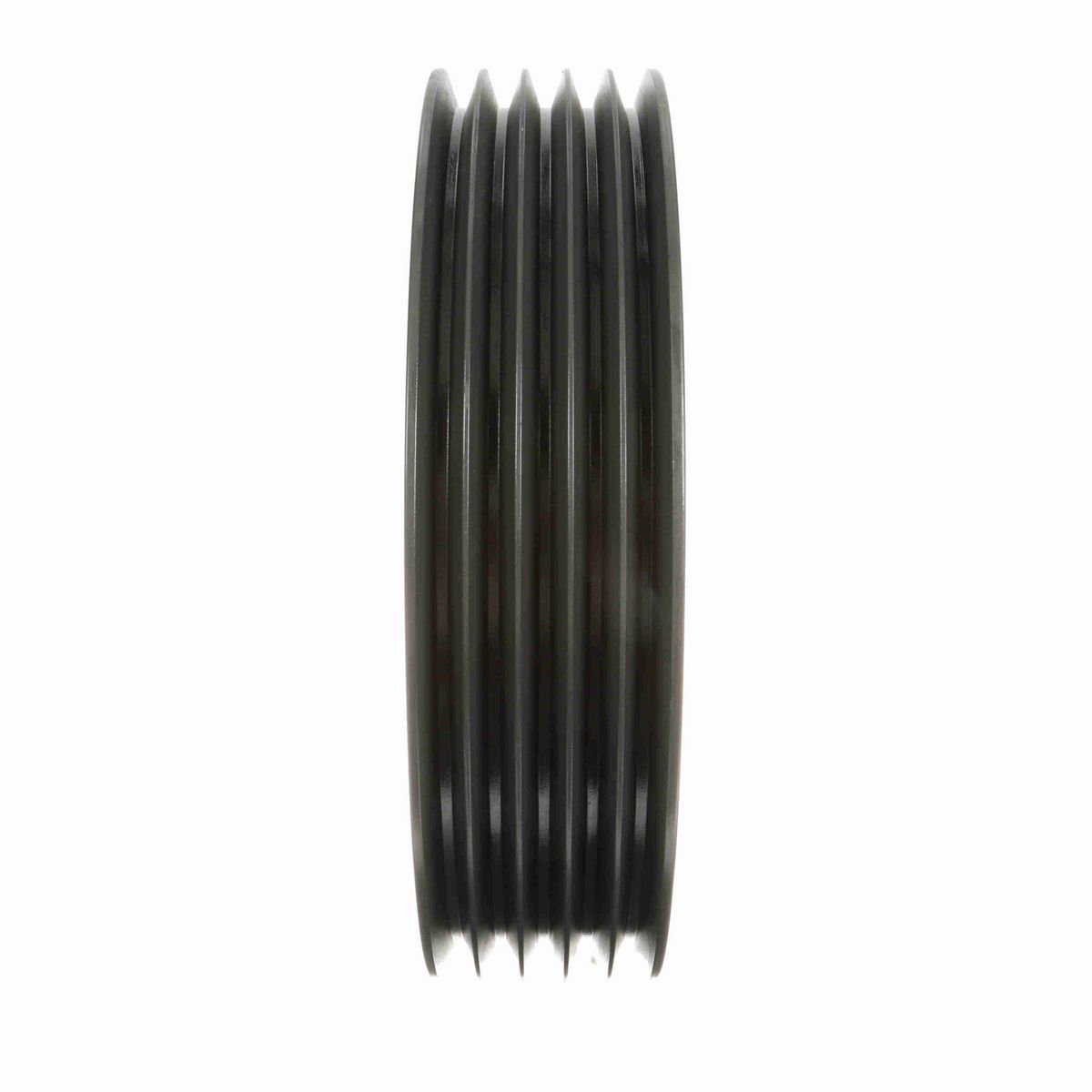

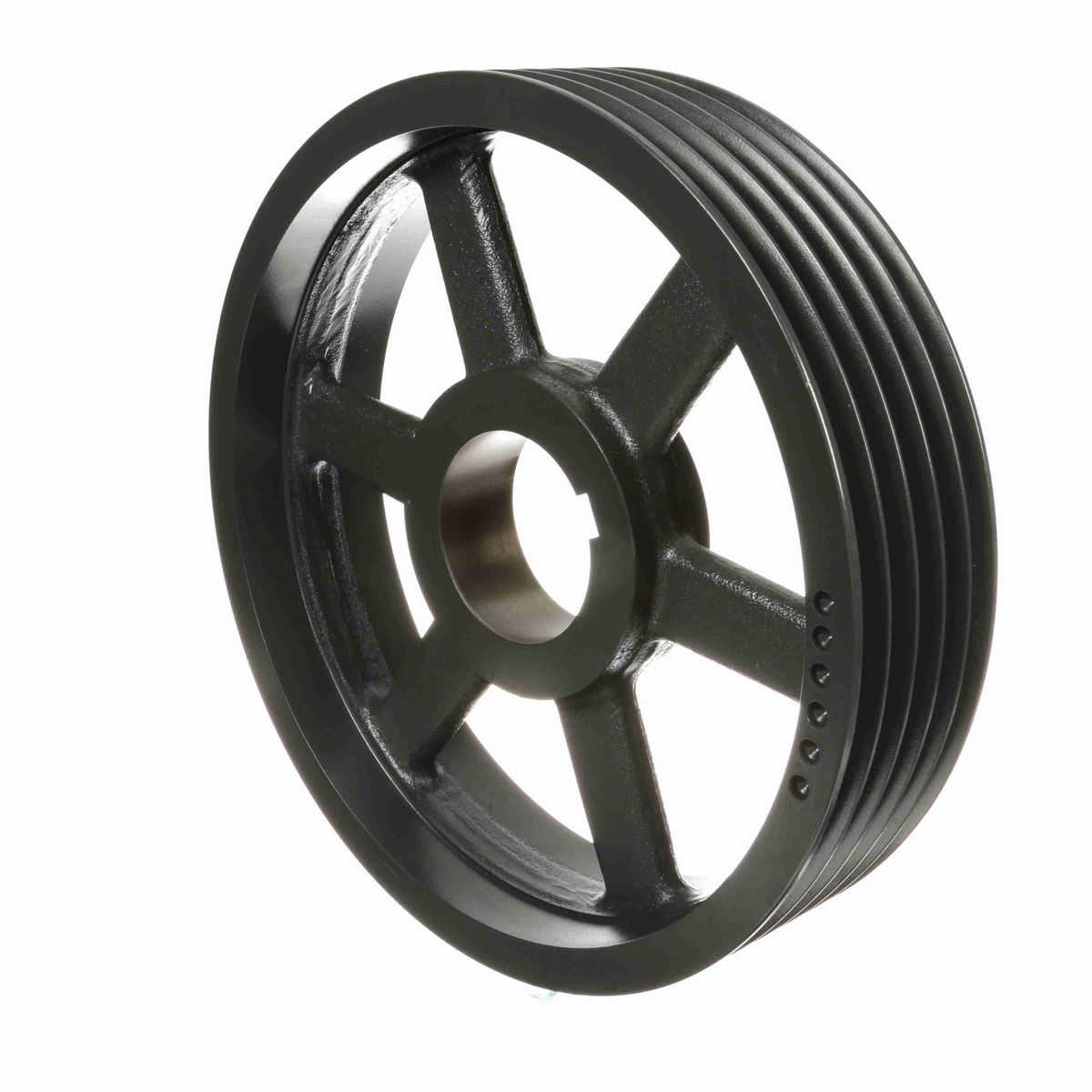

Model Name	5B5V-SheaveMaster
Datum Diameter (B)	16
Number of Grooves	5
Pitch Diameter (A)	15.8
Outside Diameter (in)	16.28 in
Bushing Used	R1
Pitch Diameter (B)	16.3
Datum Diameter (A)	15.6
Overall Length (in)	4.109375 in
Material	Cast Iron
Pitch Diameter (5V)	16.1
Pulley Material	Cast Iron
Belt Section	A, B, 5V
Bore (Min) (in)	1.125 in
Product Type	Multiple Sheaves
Bore Type	Split Taper Bushed
Bushing Bore Range	1.125 - 3.750
Keyway Size	.750
Face Width (in)	3.875
Pulley Construction	Spoked
Overall Width (in)	4.09375

General Specifications

UPC	662460344331
Weight	45.00 LB
Packaged Length	16.63 IN
Packaged Width	16.63 IN
Packaged Height	4.25 IN
