• Large Selection - MVP companion sheaves are offered in A/B, C, 5Vand 8V belt sections and from 3-10 grooves giving Browning the largest selection of MVP Companion Sheaves in the industry.
• Statically Balanced - All MVP companion sheaves are statically balanced to assure smooth, vibration free performance.

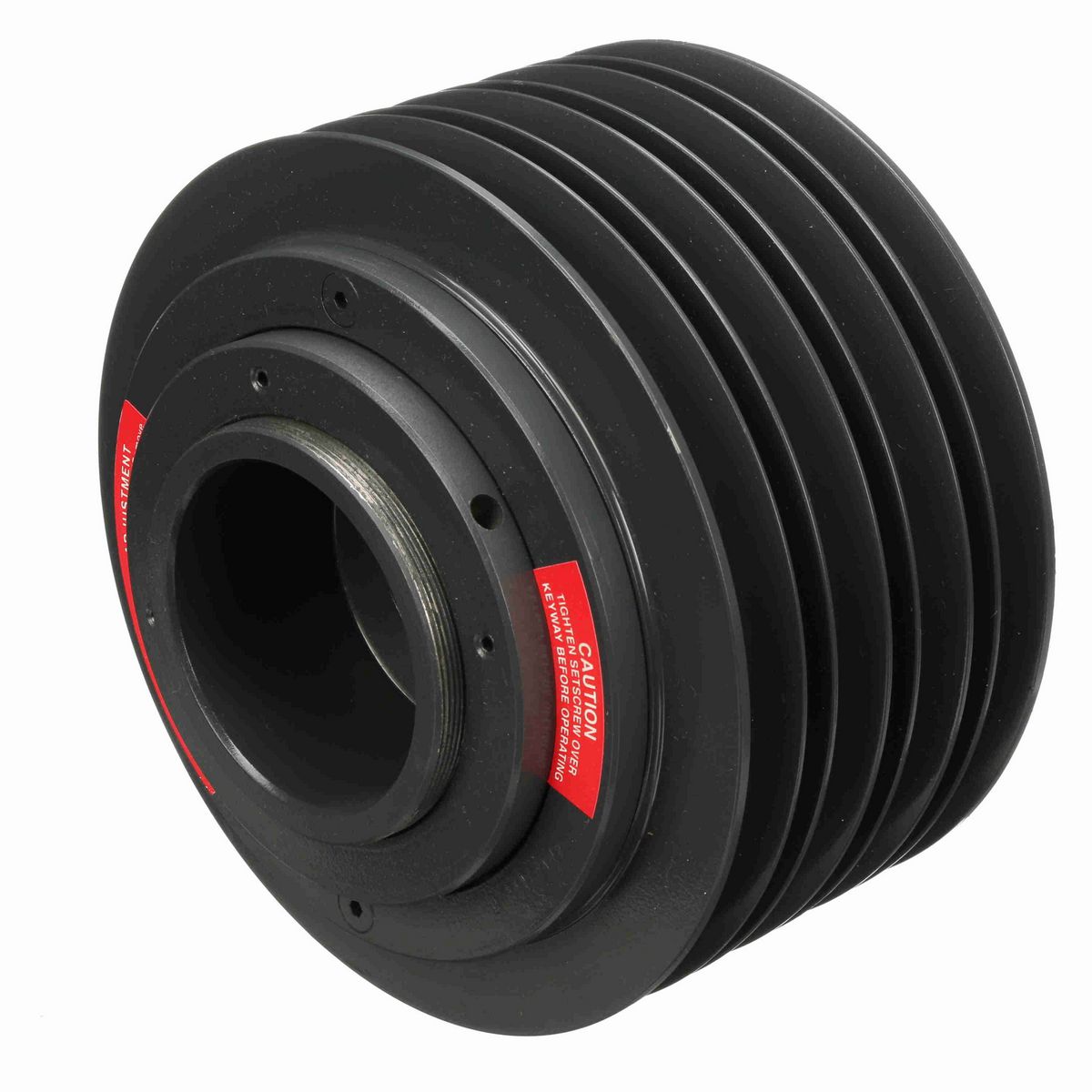

• VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore.
• The male section with threaded barrel has flat surfaces at 180 degree increments that allow a flat surface for the setscrew to mate with.

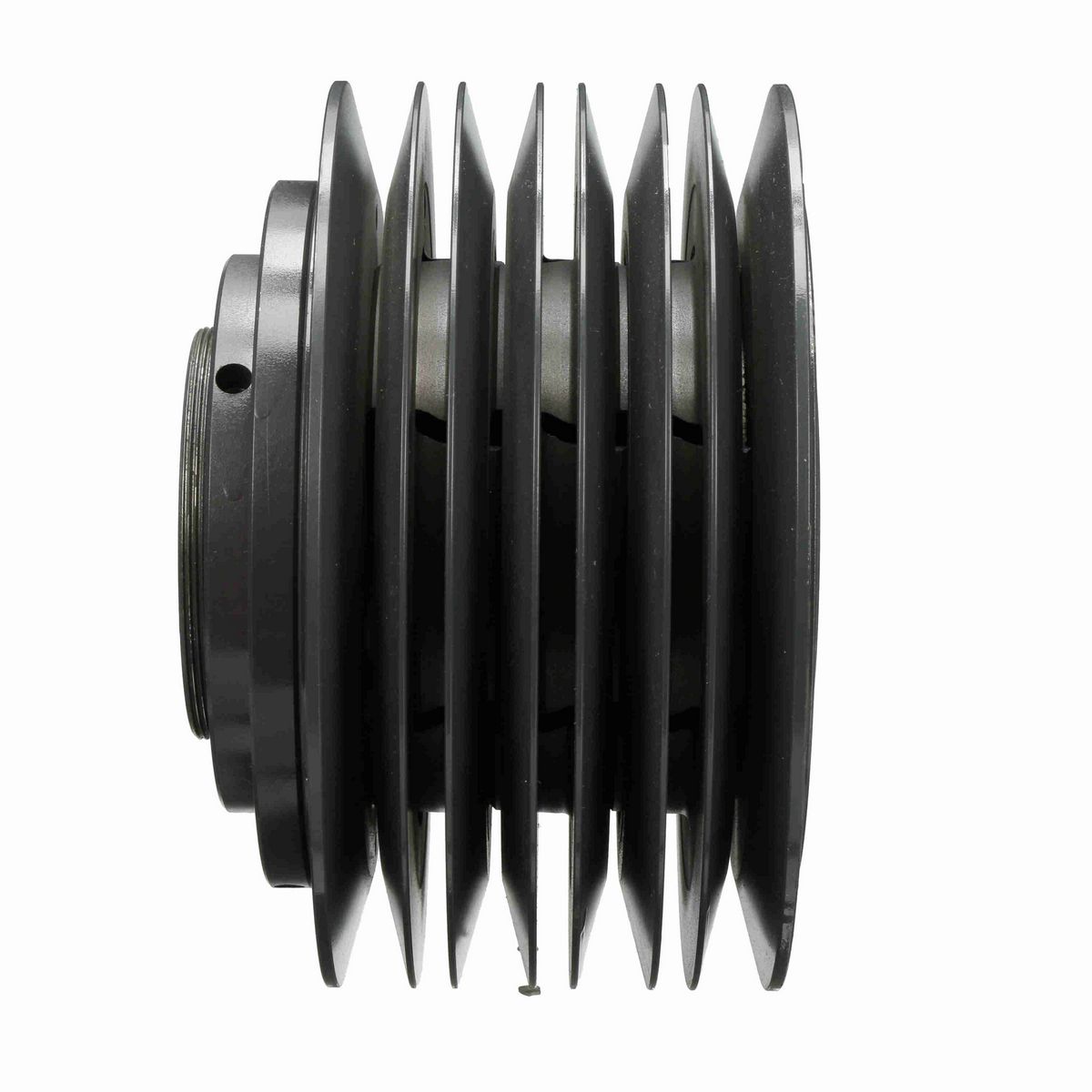

• When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed.
• When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed.

Technical Specifications

Material	Cast Iron
Face Width (Max) (in)	4.5625 in
Face Width (Min) (in)	4.1875 in
Outside Diameter (in)	8.68 in
Bore (Min) (in)	1.125 in
Type of Bore	Bushed
Ring	5.375
Outside Length (in)	5.875 in
Pitch Diameter Range (B)	8.7 - 7.3
Number of Grooves	4
Product Type	MVP Sheaves
Pitch Diameter Range (A)	8.2 - 7.1
Belt Section	A, B
Bore Type	Split Taper Bushed
Bore (Max) (in)	1.625 in
Keyway Size	.375
Bushing Bore Range	1.125 - 1.625

General Specifications

UPC	662289184781
Weight	46.09 LB
Packaged Length	9.20 IN
Packaged Width	9.80 IN
Packaged Height	6.60 IN
HTC	8483.50.9040
Country of Origin	United States of America
