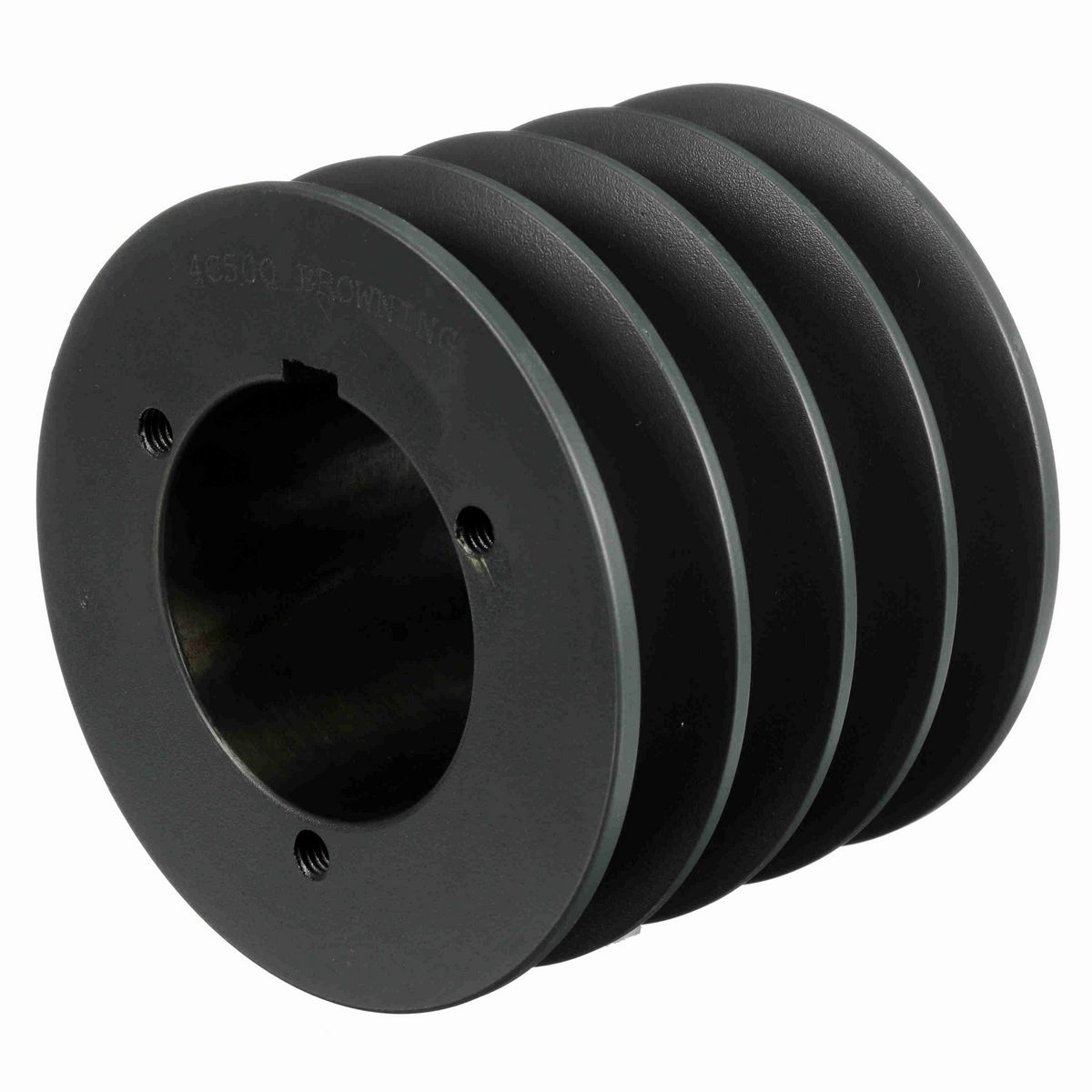

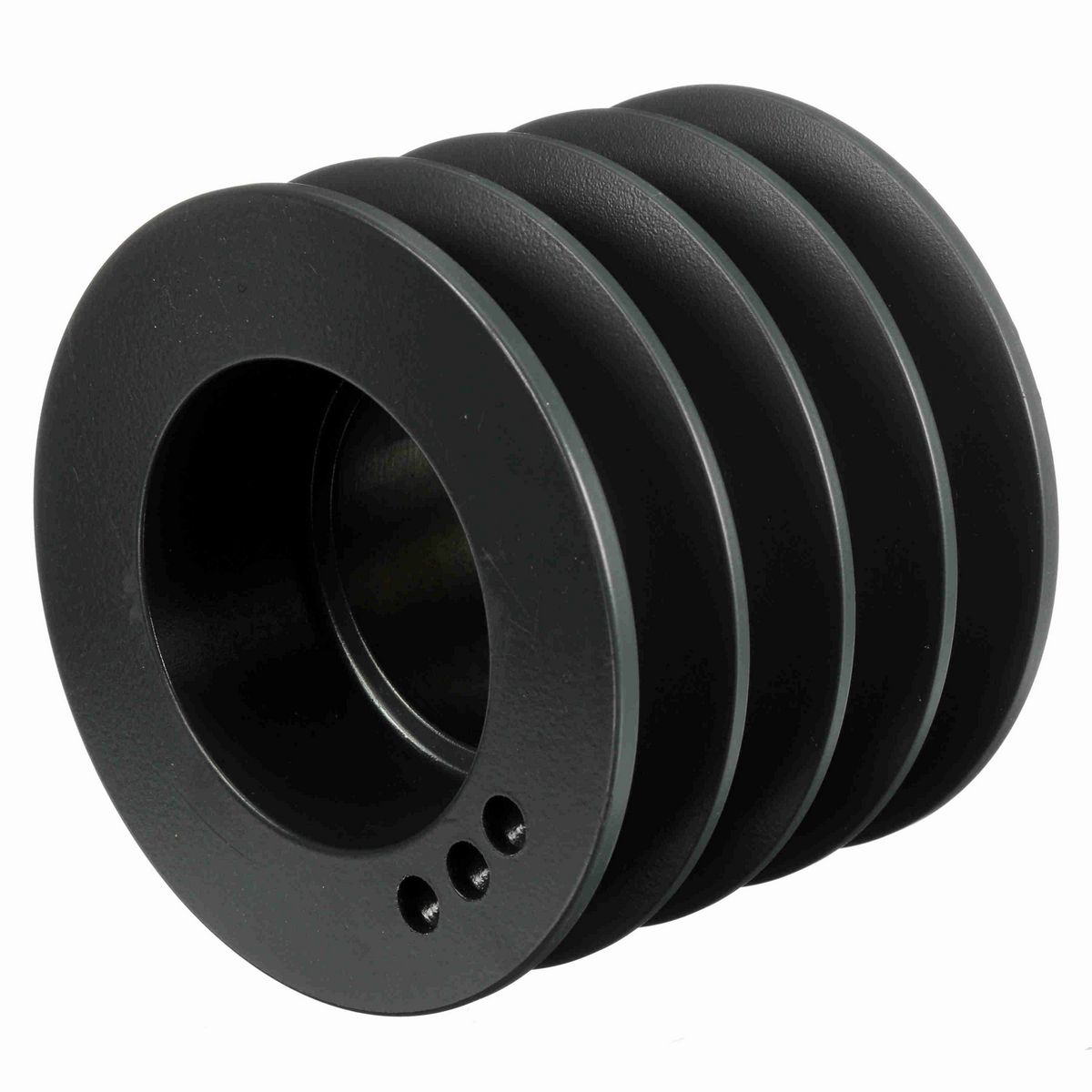

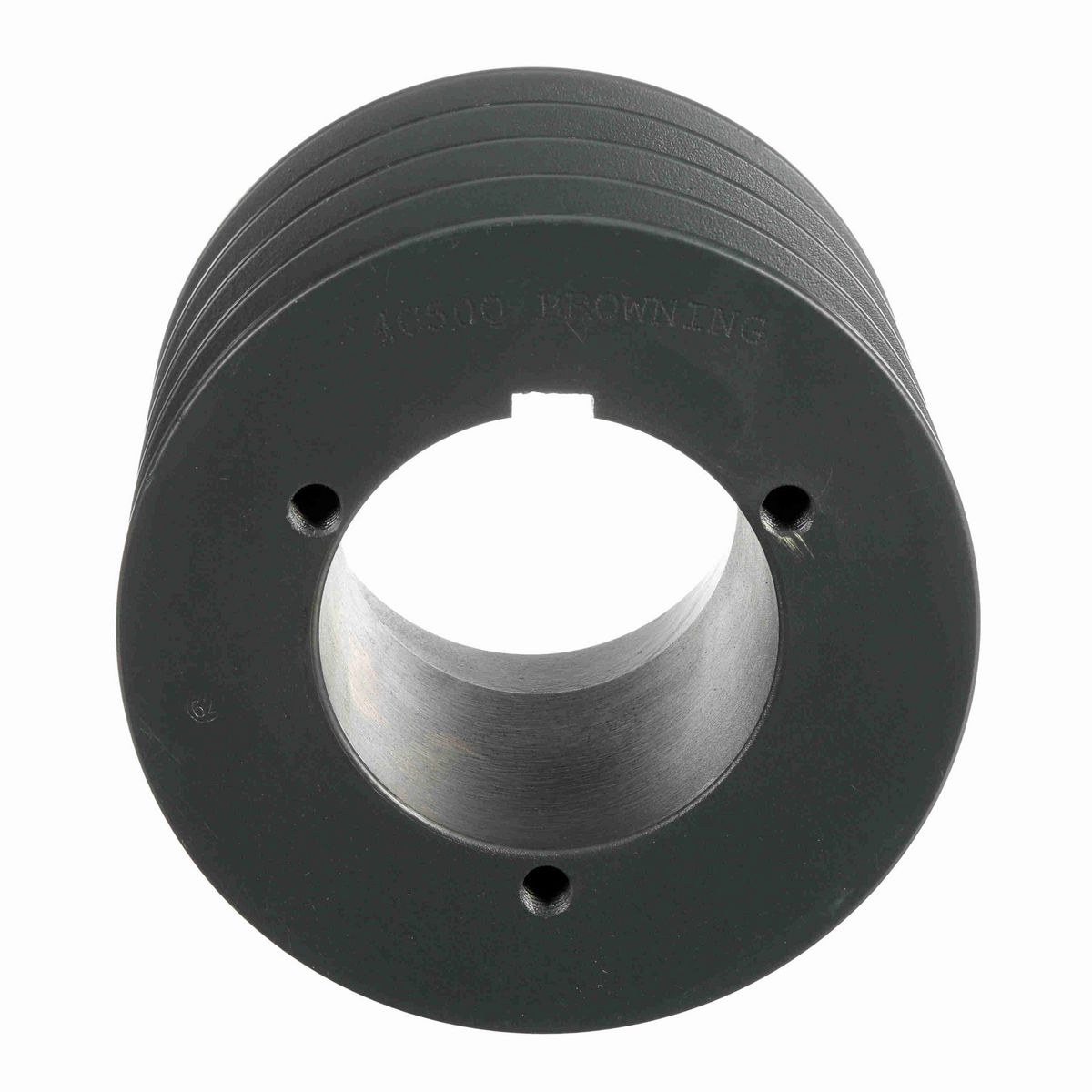

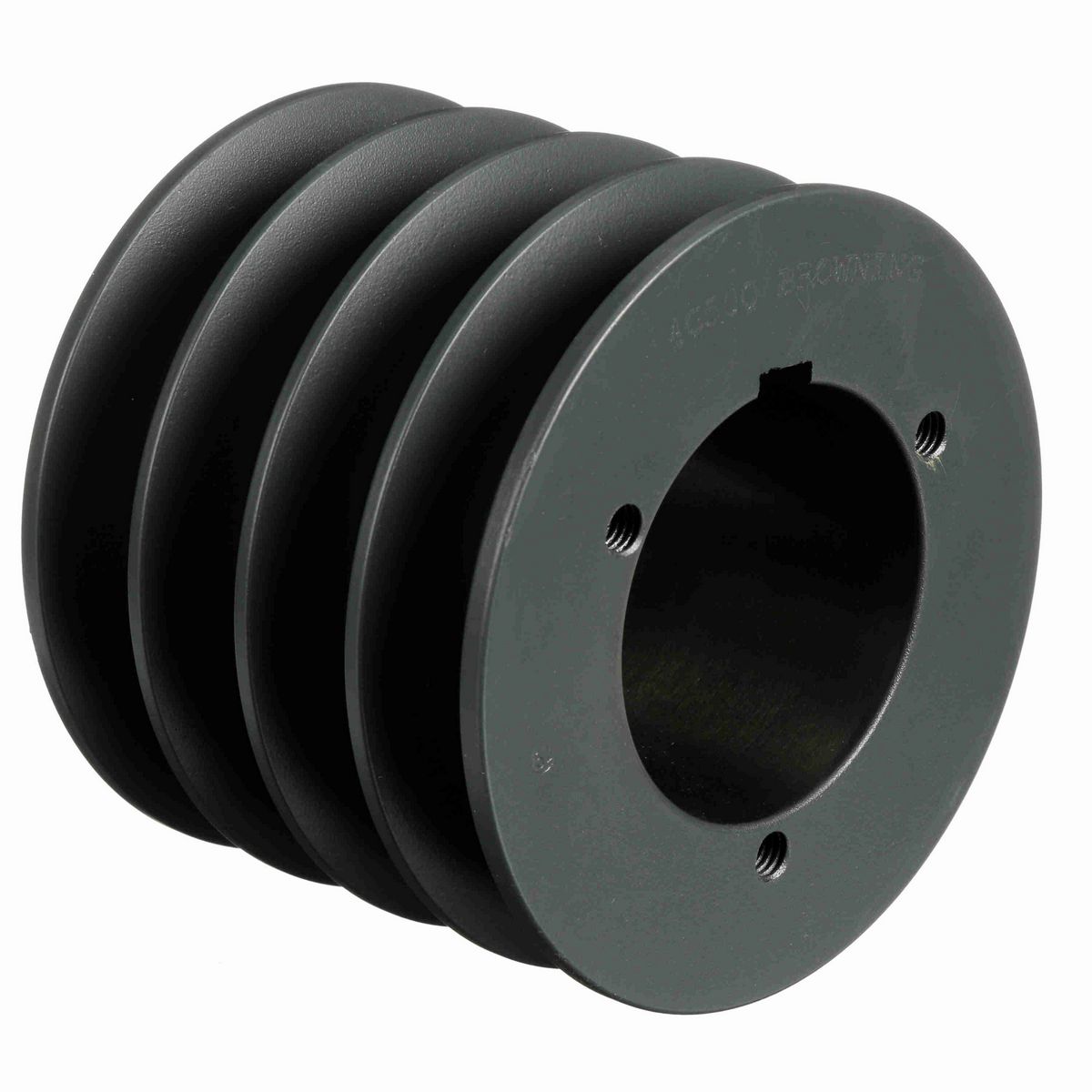

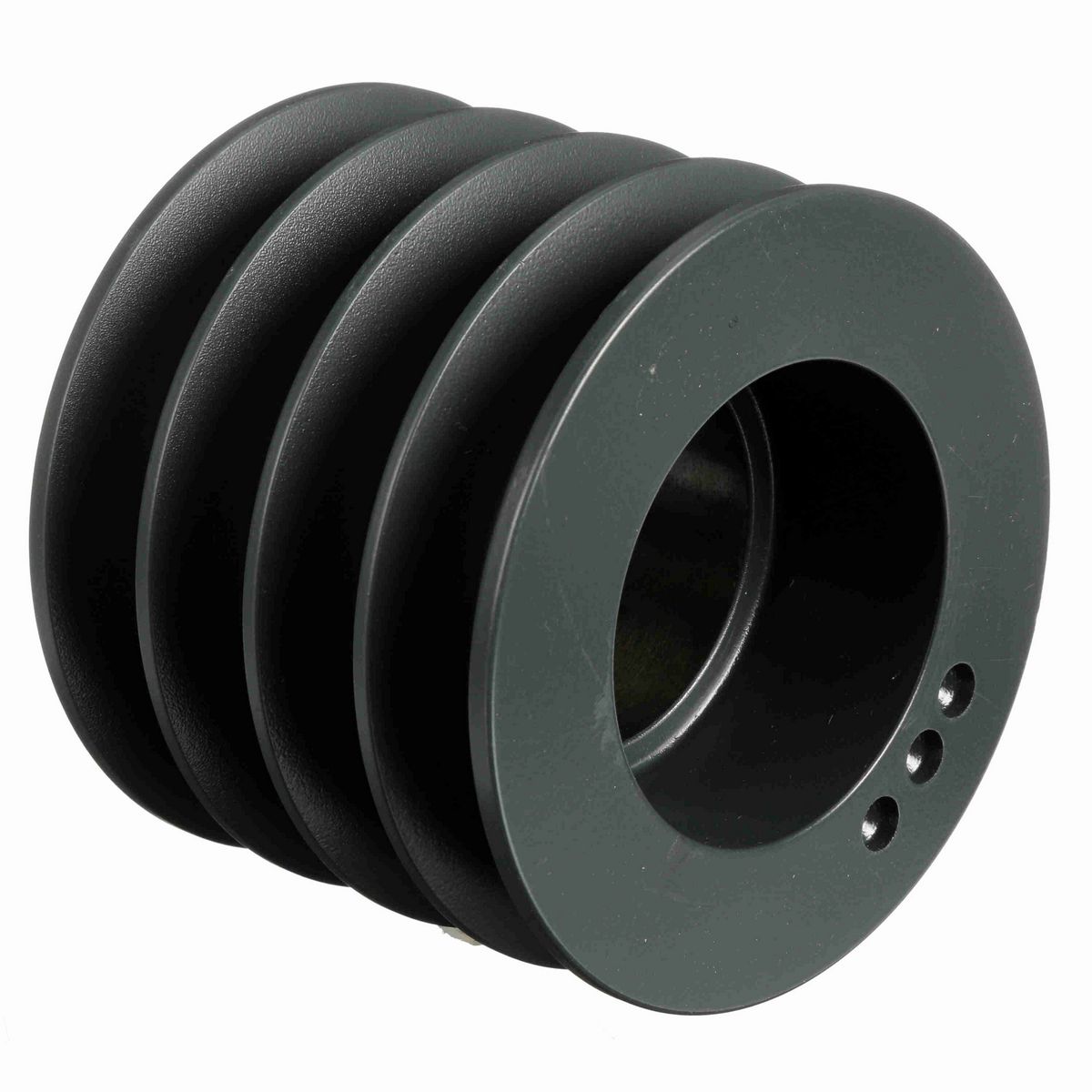

• Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
• Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance.
• Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.

Technical Specifications

Overall Length (in)	5.328125 in
Pulley Material	Cast Iron
Bushing Used	Q2
Number of Grooves	4
Pitch Diameter (C)	5.4
Outside Diameter (in)	5.4 in
Material	Cast Iron
Datum Diameter (C)	5
Product Type	Multiple Sheaves
Bore (Min) (in)	1 in
Belt Section	C
Bore Type	Split Taper Bushed
Face Width (in)	4.25
Overall Width (in)	5.28125
Keyway Size	.500
Pulley Construction	Plain
Bushing Bore Range	1.000 - 2.625

General Specifications

UPC	662289169320
Weight	10.12 LB
Packaged Length	6.70 IN
Packaged Width	6.70 IN
Packaged Height	4.80 IN
