• Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
• Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
• Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
• New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material.

Technical Specifications

Bushing Used	B
Material	Cast Iron
Pitch Diameter (B)	8.9

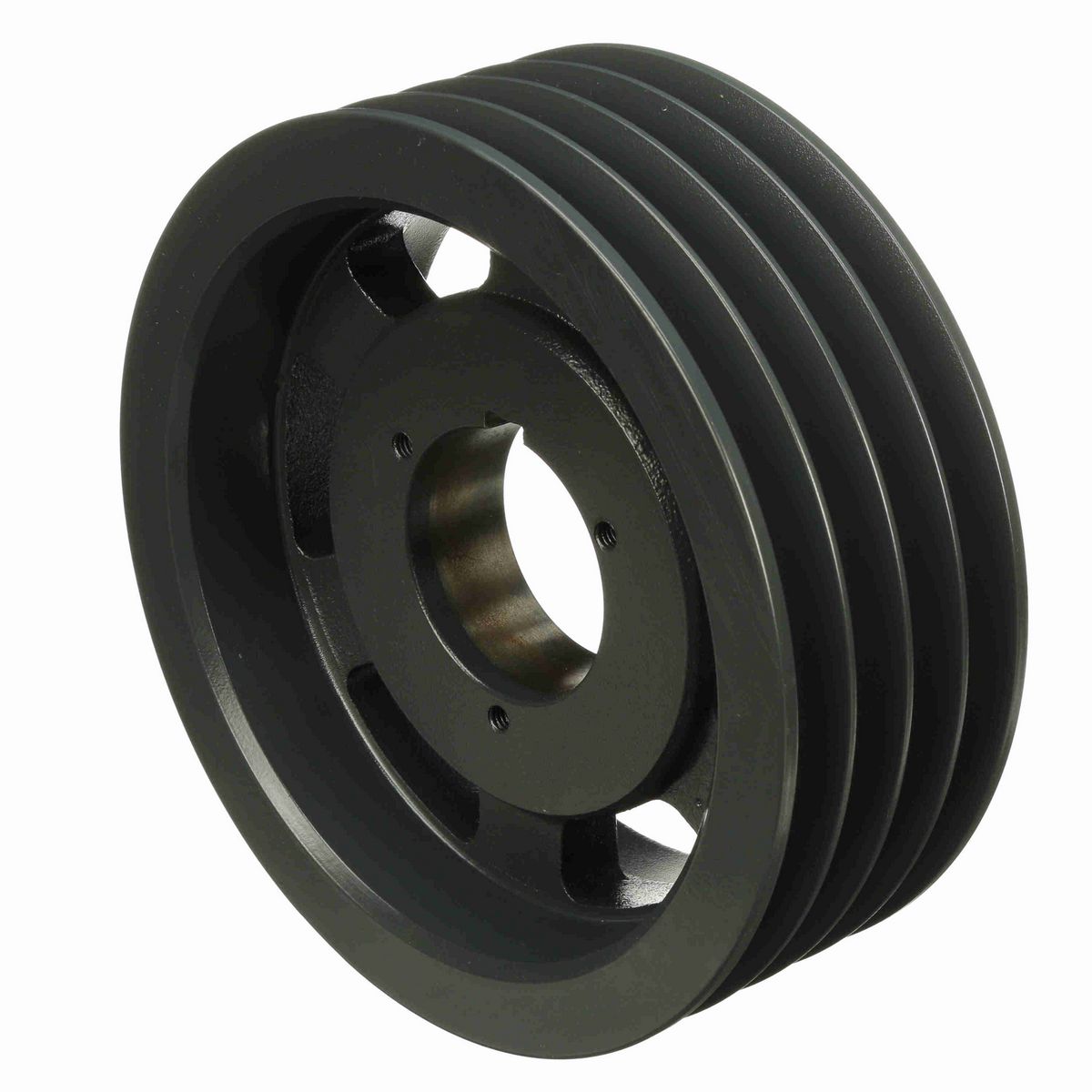

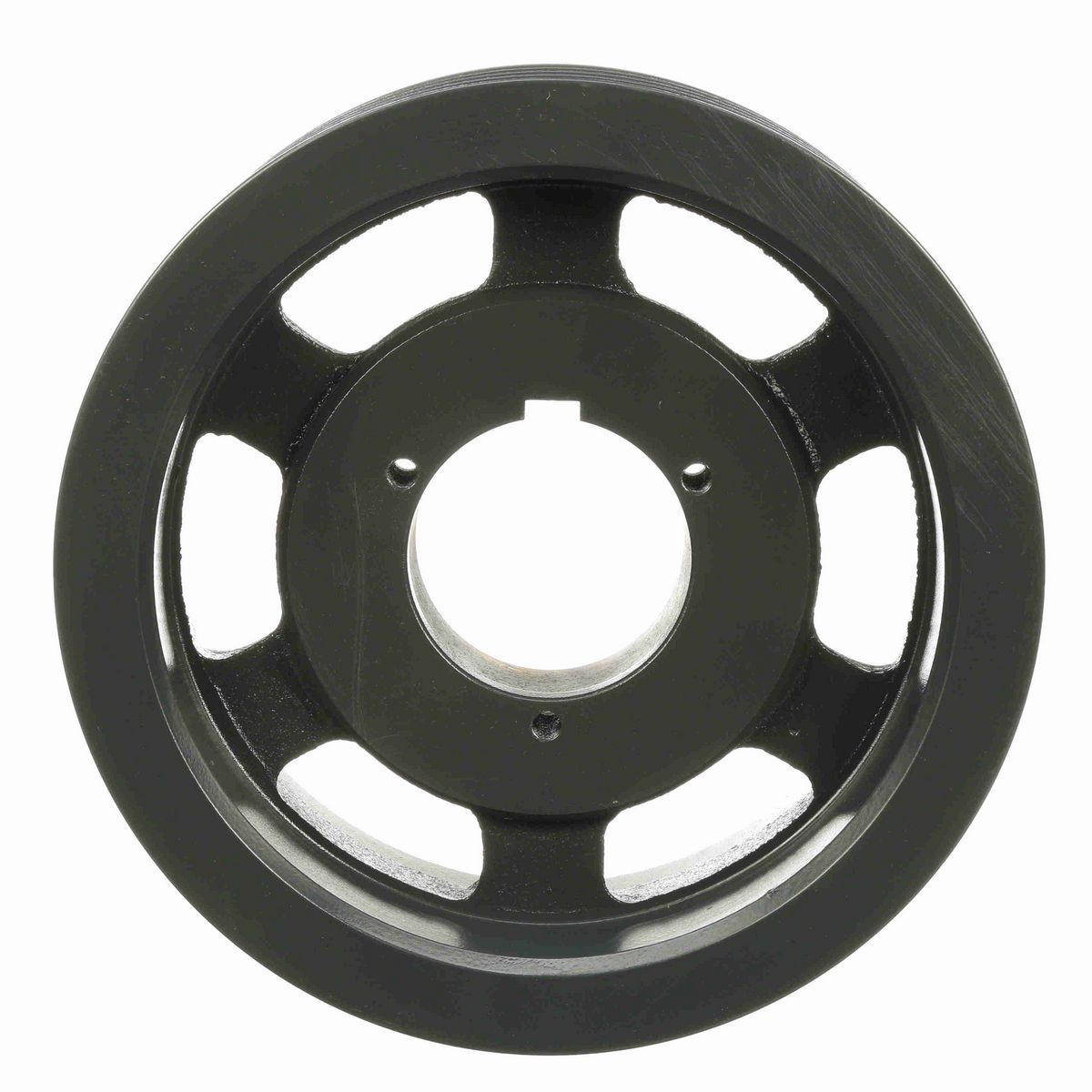

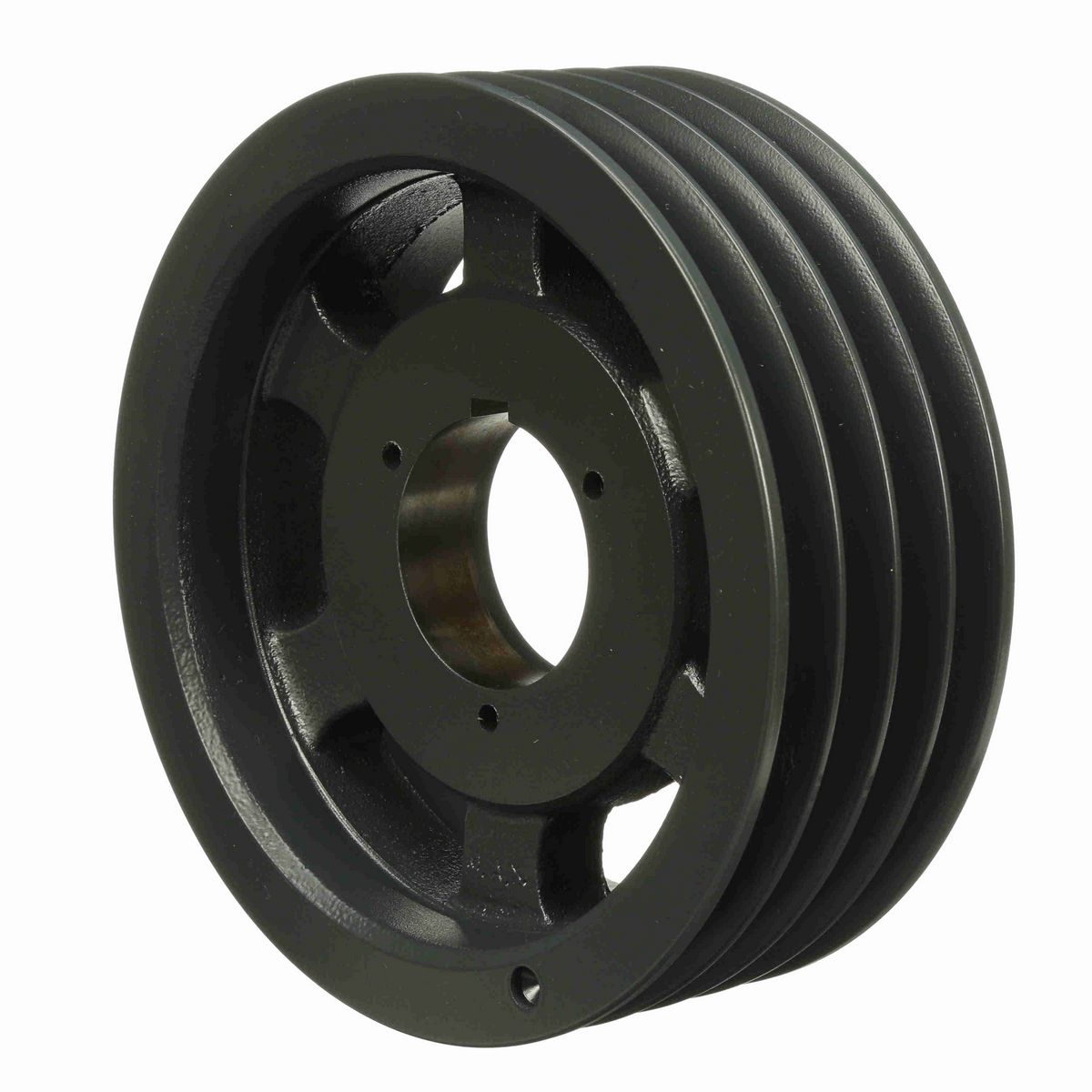

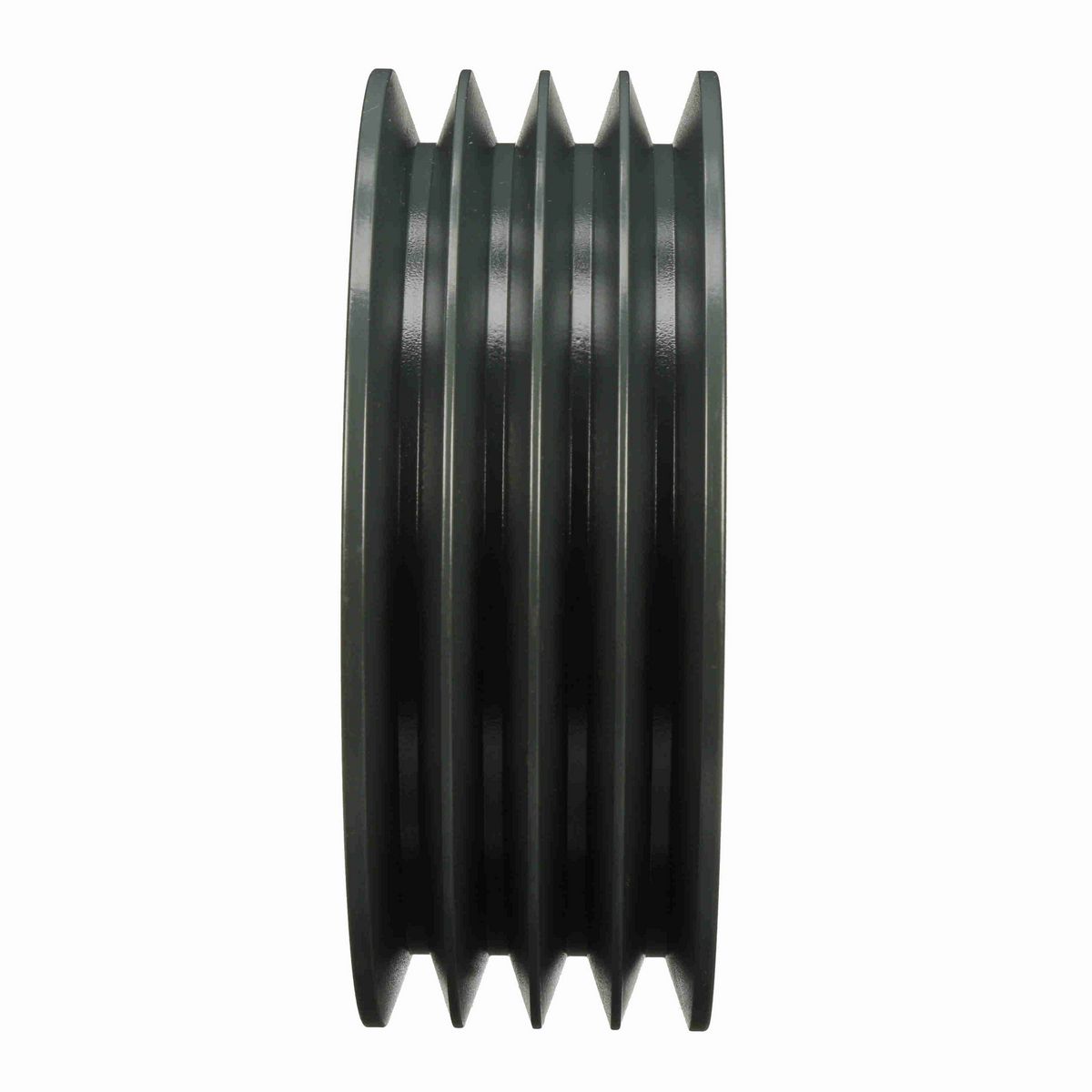

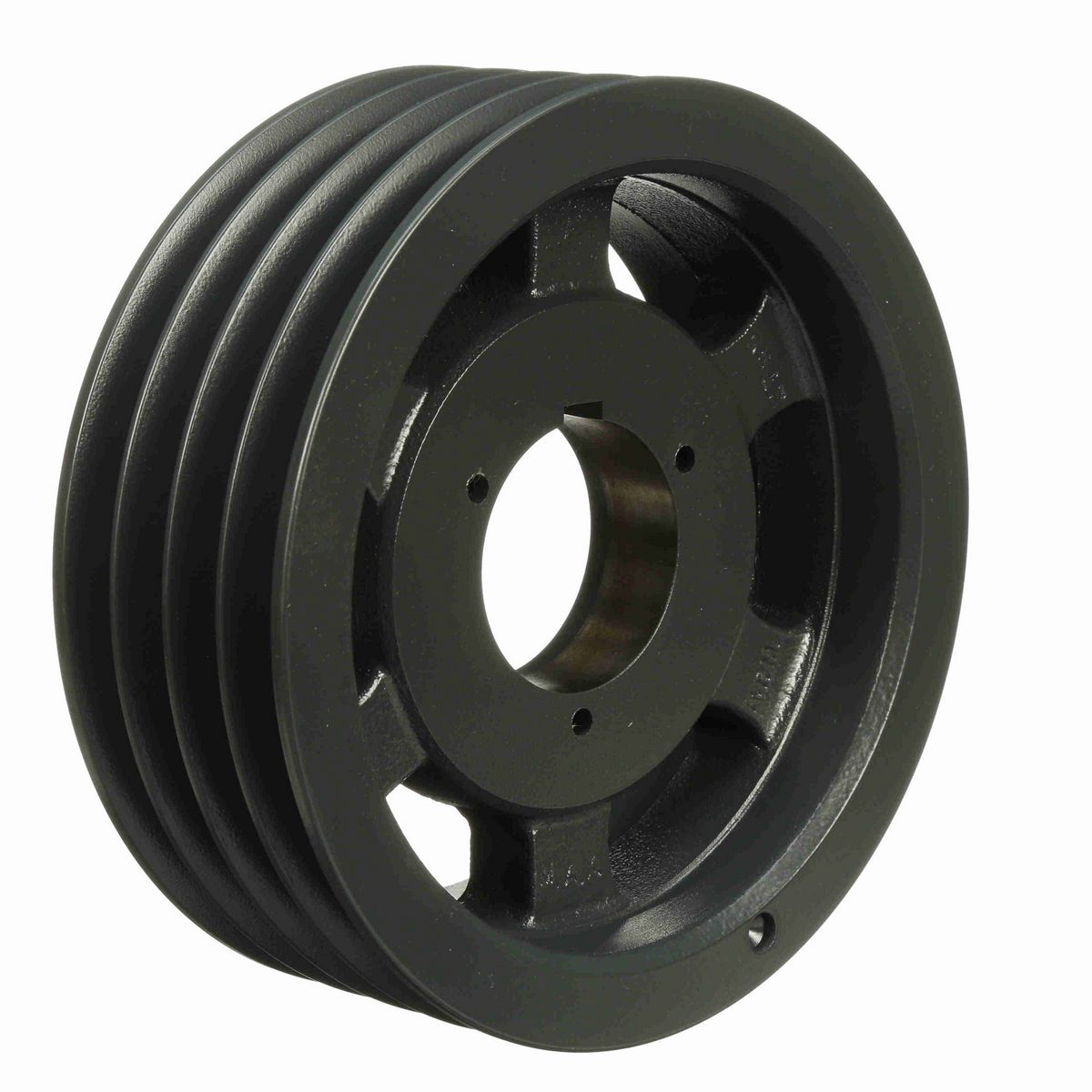

Model Name	4B5V-SheaveMaster
Datum Diameter (A)	8.2
Outside Diameter (in)	8.88 in
Overall Length (in)	3.265625 in
Pitch Diameter (A)	8.4
Pitch Diameter (5V)	8.7
Datum Diameter (B)	8.6
Number of Grooves	4
Pulley Material	Cast Iron
Belt Section	A, B, 5V
Product Type	Multiple Sheaves
Bore (Min) (in)	0.5 in
Bore Type	Split Taper Bushed
Pulley Construction	Spoked
Bushing Bore Range	0.500 - 2.4375
Overall Width (in)	3.203125
Keyway Size	.500
Face Width (in)	3.1563

General Specifications

UPC	662289037490
Weight	17.56 LB
Packaged Length	9.60 IN
Packaged Width	9.60 IN
Packaged Height	3.80 IN
