• Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
• Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
• Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
• New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material.

Technical Specifications

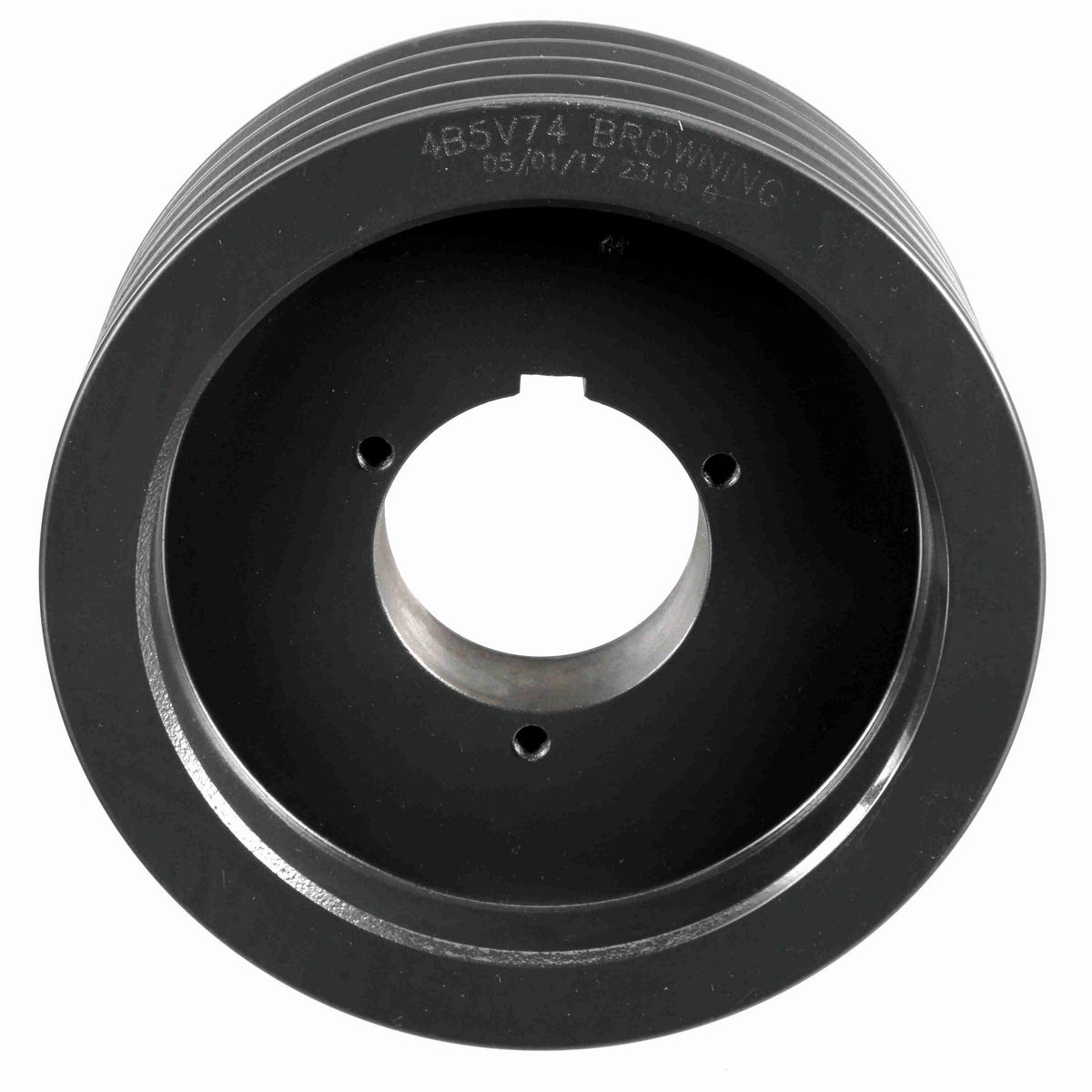

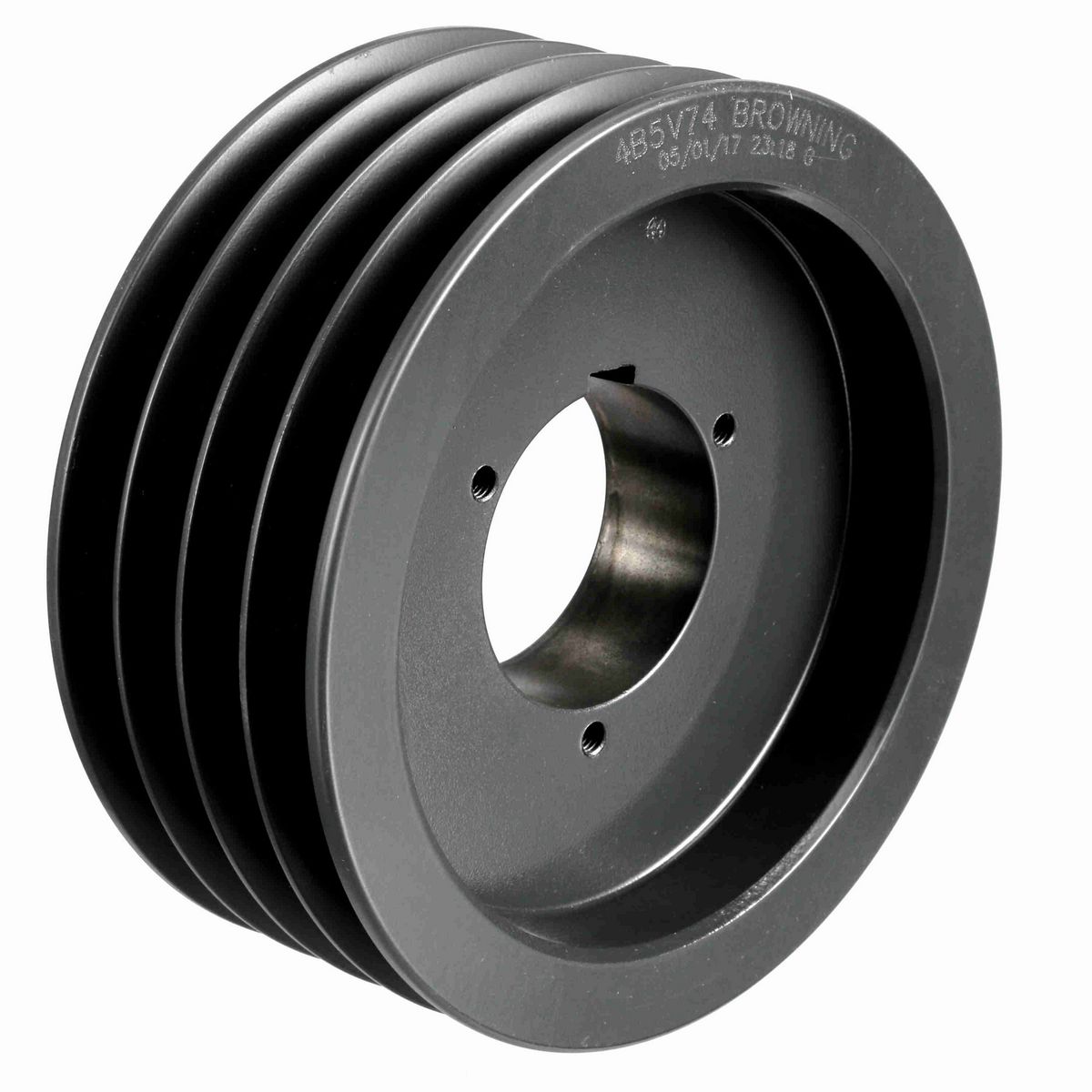

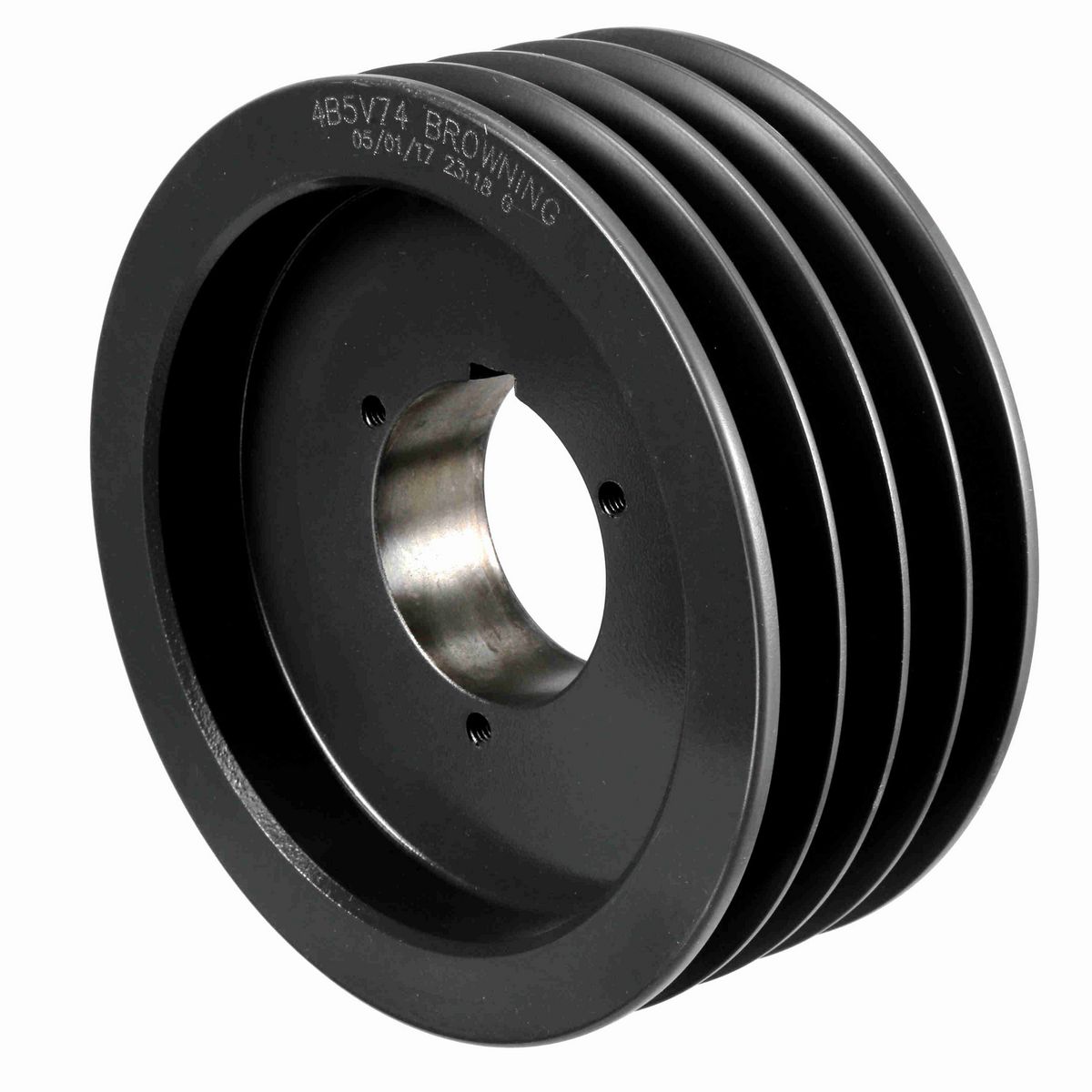

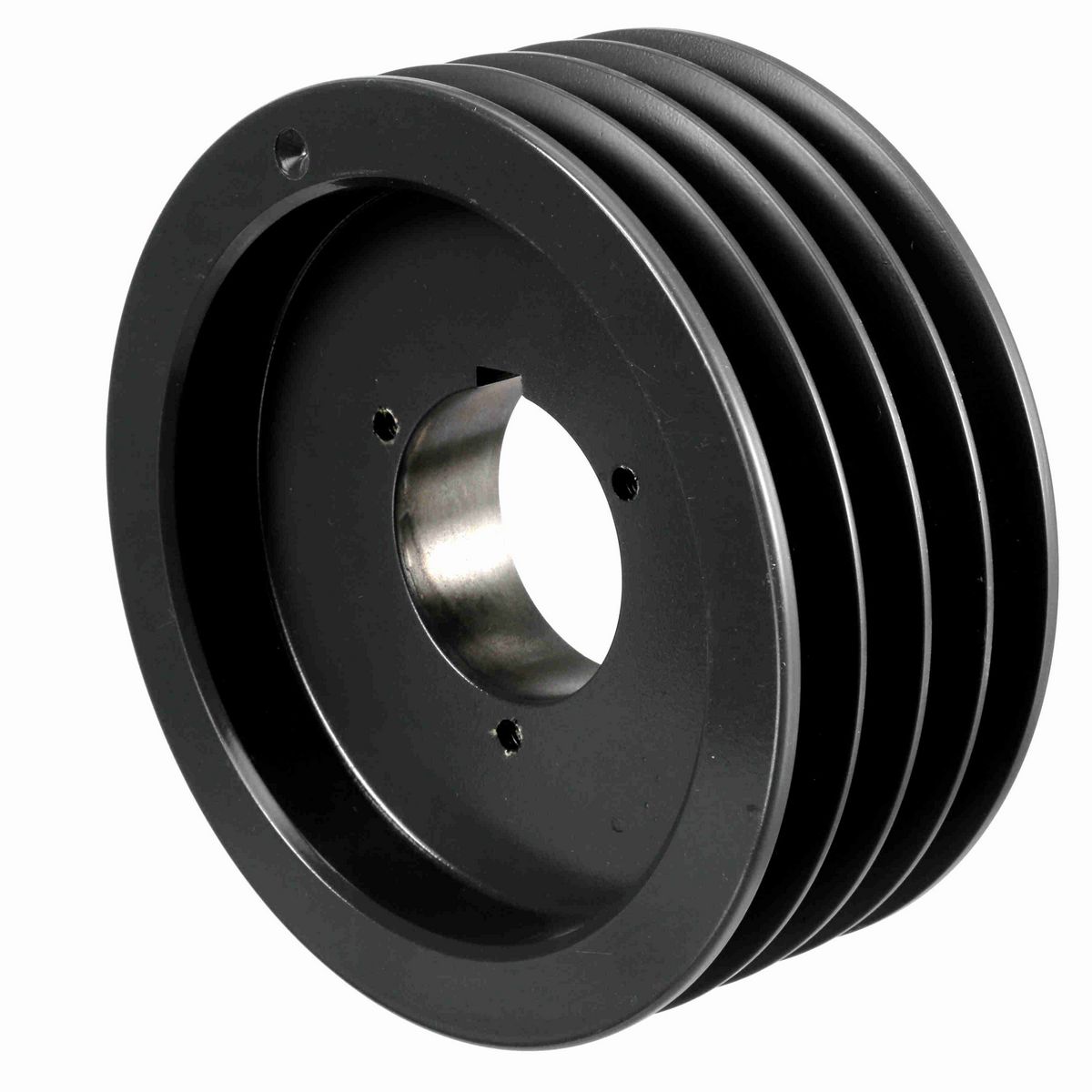

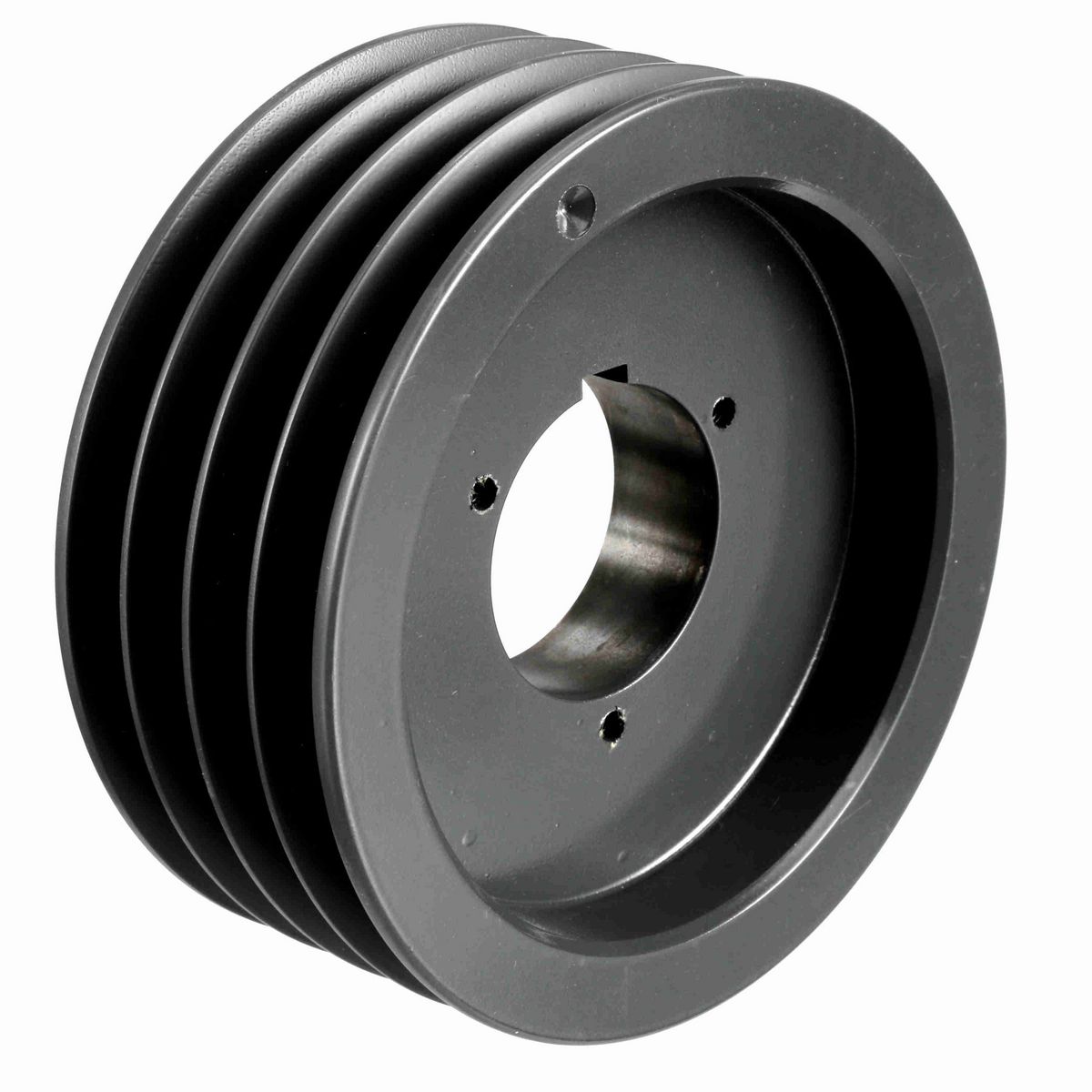

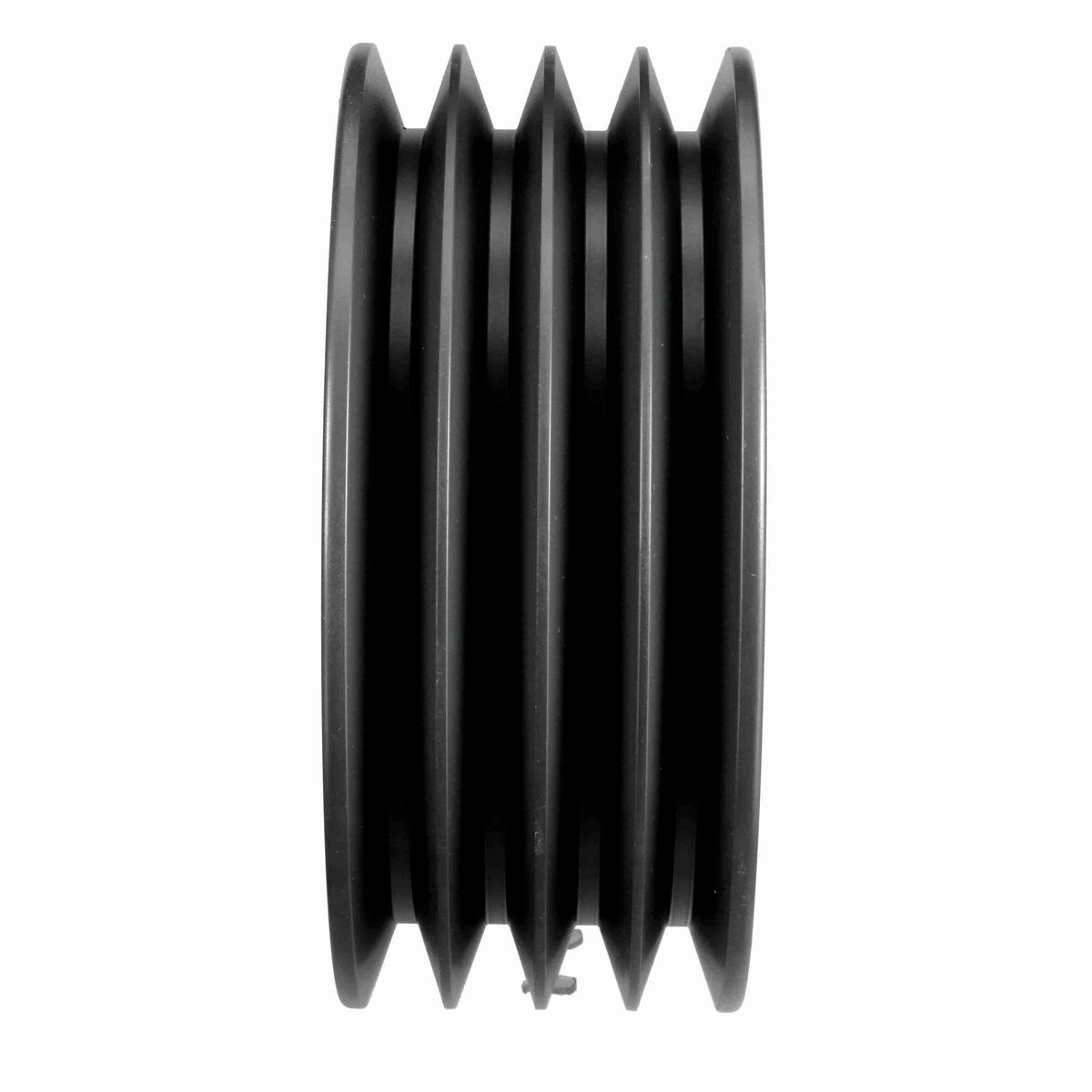

Model Name	4B5V-SheaveMaster
Datum Diameter (A)	7
Bushing Used	B
Number of Grooves	4
Material	Cast Iron
Pitch Diameter (A)	7.2
Pitch Diameter (B)	7.7
Outside Diameter (in)	7.68 in
Pitch Diameter (5V)	7.5
Pulley Material	Cast Iron
Datum Diameter (B)	7.4
Overall Length (in)	3.265625 in
Product Type	Multiple Sheaves
Bore (Min) (in)	0.5 in
Belt Section	A, B, 5V
Bore Type	Split Taper Bushed
Keyway Size	.500
Pulley Construction	Webbed
Bushing Bore Range	0.500 - 2.4375
Face Width (in)	3.1563
Overall Width (in)	3.203125

General Specifications

UPC	662289037476
Weight	16.35 LB
Packaged Length	7.88 IN
Packaged Width	7.88 IN
Packaged Height	3.25 IN
