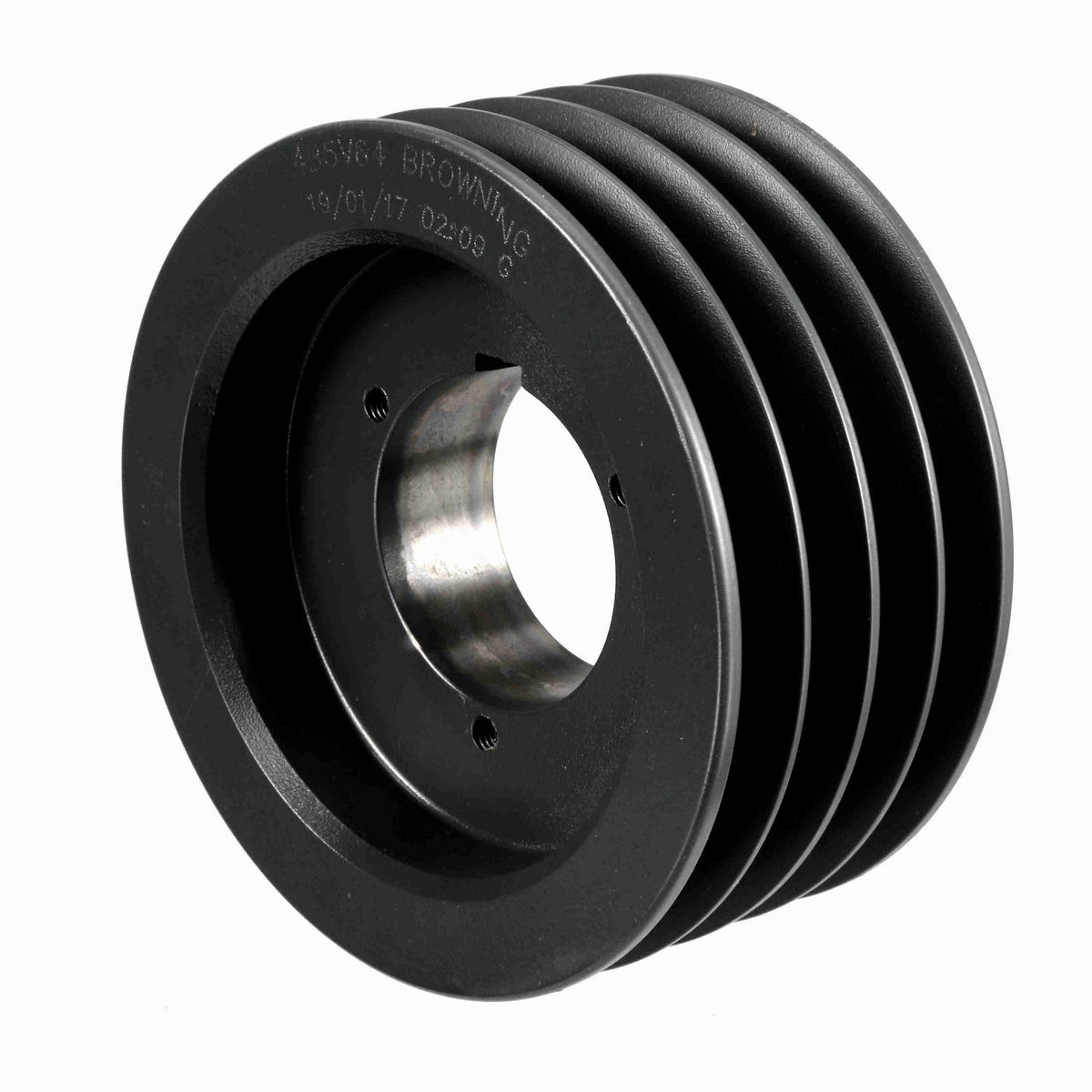

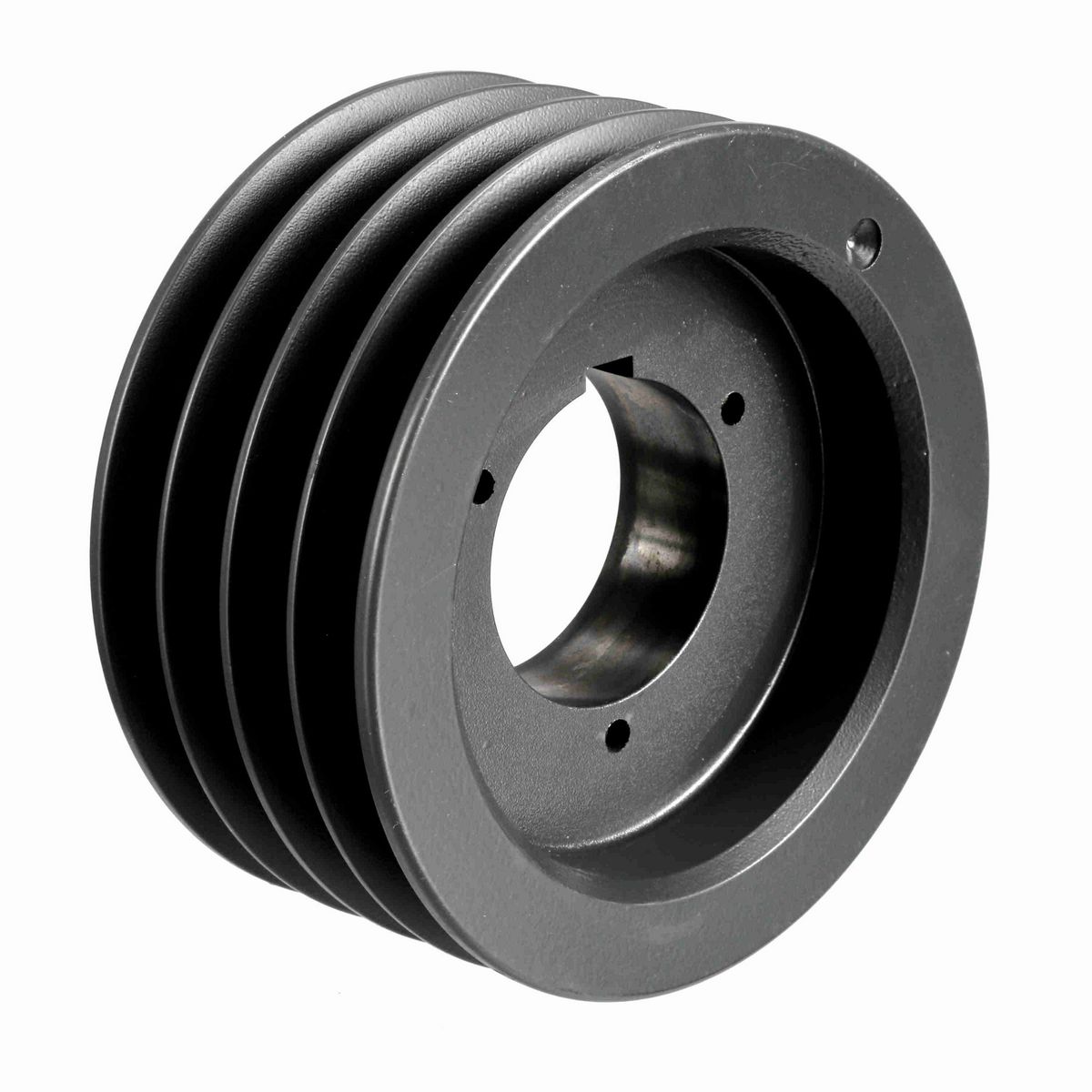

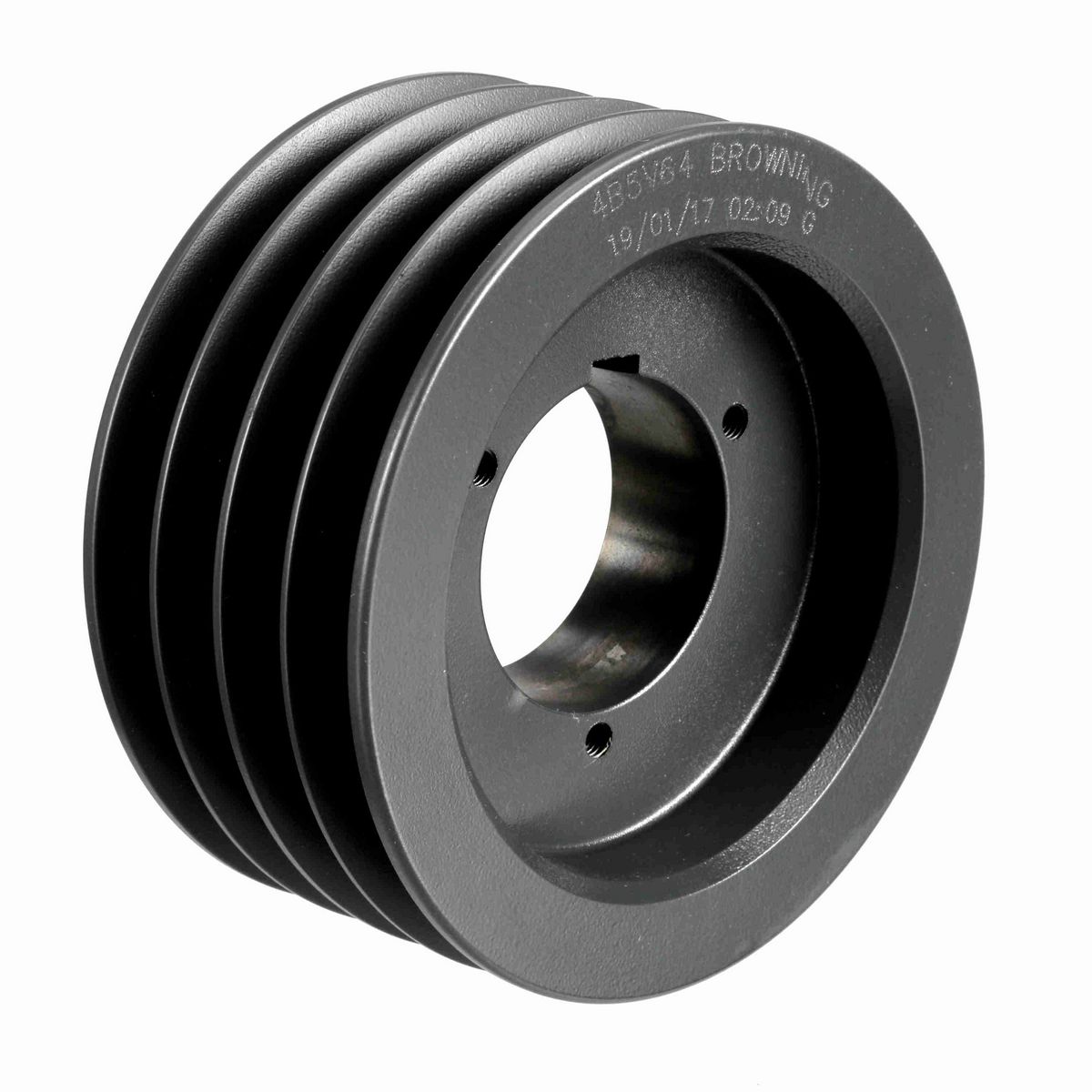

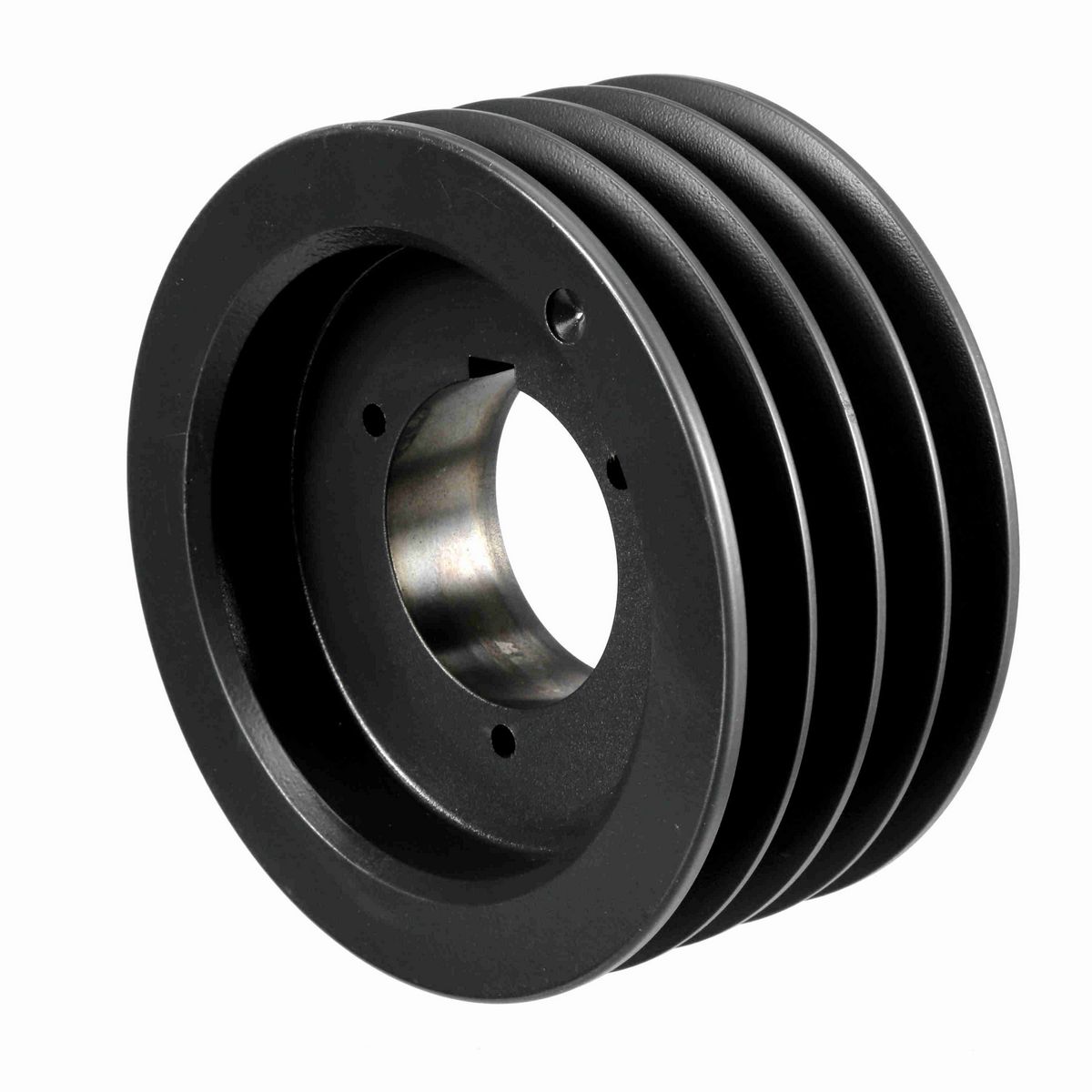

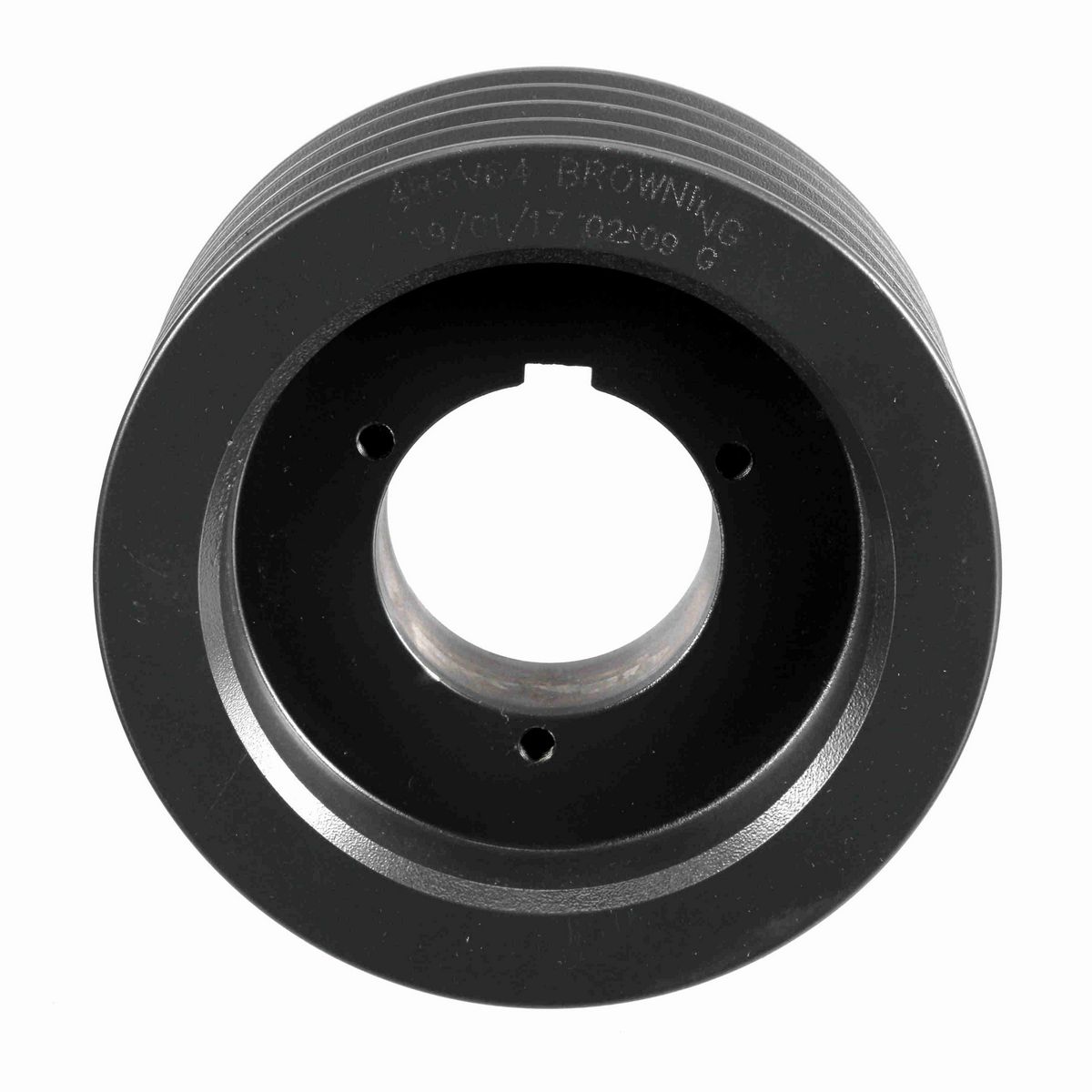

• Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
• Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
• Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
• New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material.

Technical Specifications

Pulley Material	Cast Iron
Material	Cast Iron
Datum Diameter (A)	6
Model Name	4B5V-SheaveMaster
Overall Length (in)	3.265625 in
Number of Grooves	4
Pitch Diameter (5V)	6.5
Pitch Diameter (A)	6.2
Bushing Used	B
Outside Diameter (in)	6.68 in
Datum Diameter (B)	6.4
Pitch Diameter (B)	6.7
Product Type	Multiple Sheaves
Belt Section	A, B, 5V
Bore (Min) (in)	0.5 in
Bore Type	Split Taper Bushed
Keyway Size	.500
Overall Width (in)	3.203125
Bushing Bore Range	0.500 - 2.4375
Face Width (in)	3.1563
Pulley Construction	Plain

General Specifications

UPC	662289037438
Weight	12.51 LB
Packaged Length	7.90 IN
Packaged Width	7.70 IN
Packaged Height	3.40 IN
