• Constant Speed - No slip; no creep; minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets.
• Light Weight - High horsepower-to-weight ratio makes Browning Gearbelt drives ideal for any application where weight is a factor.
• Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement.
• Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft; Split Taper and QD Bushing styles, as well as, finished and minimum plain bore.

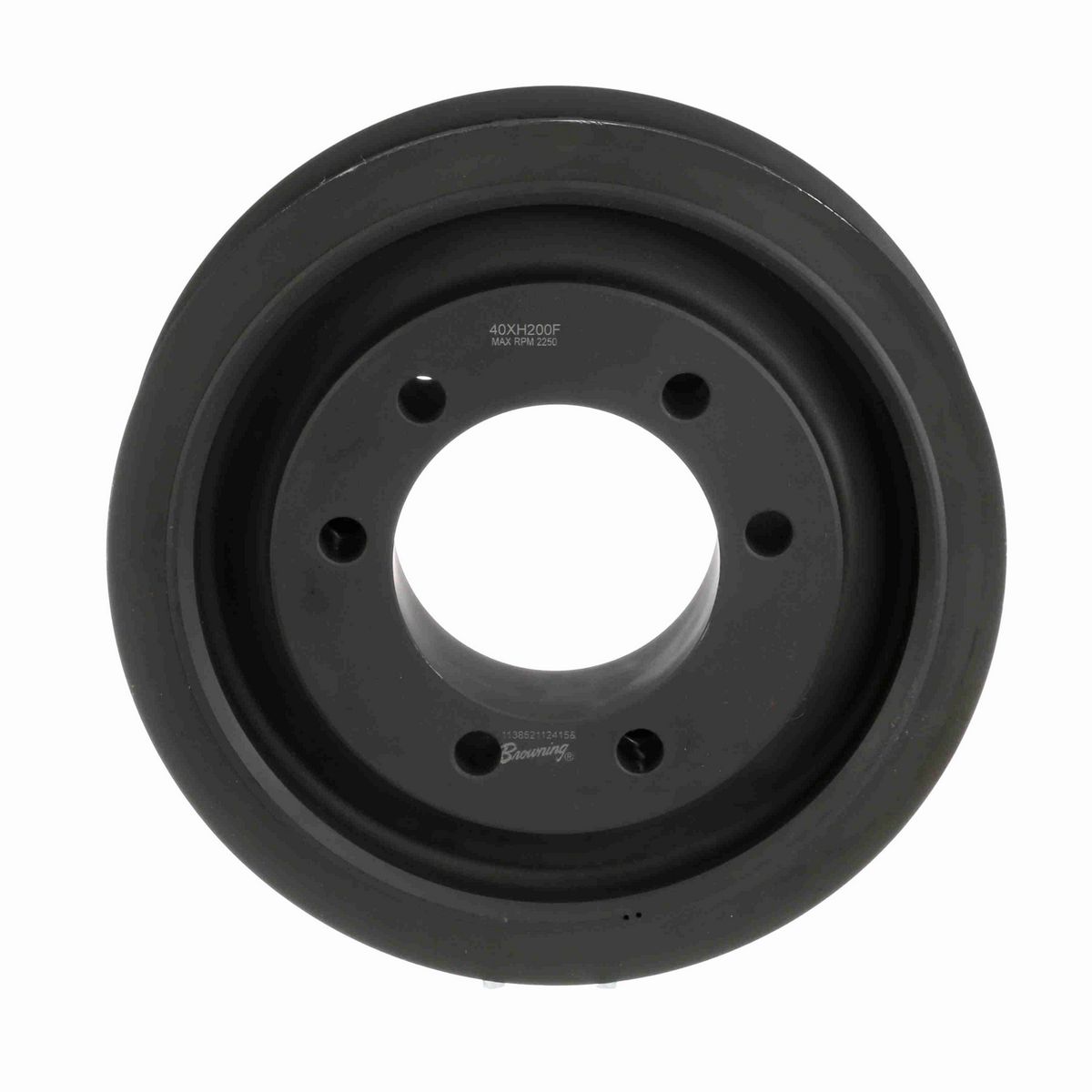

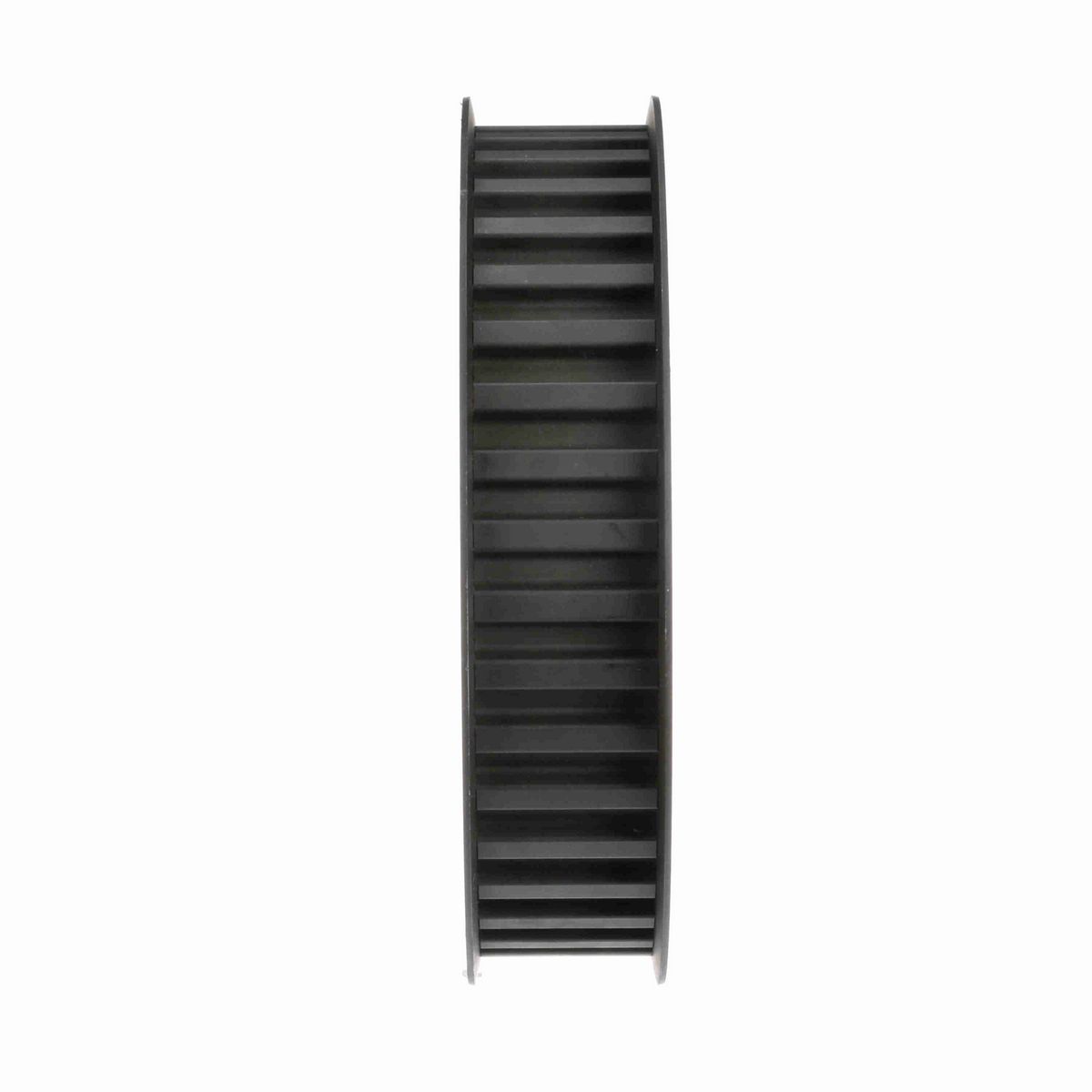

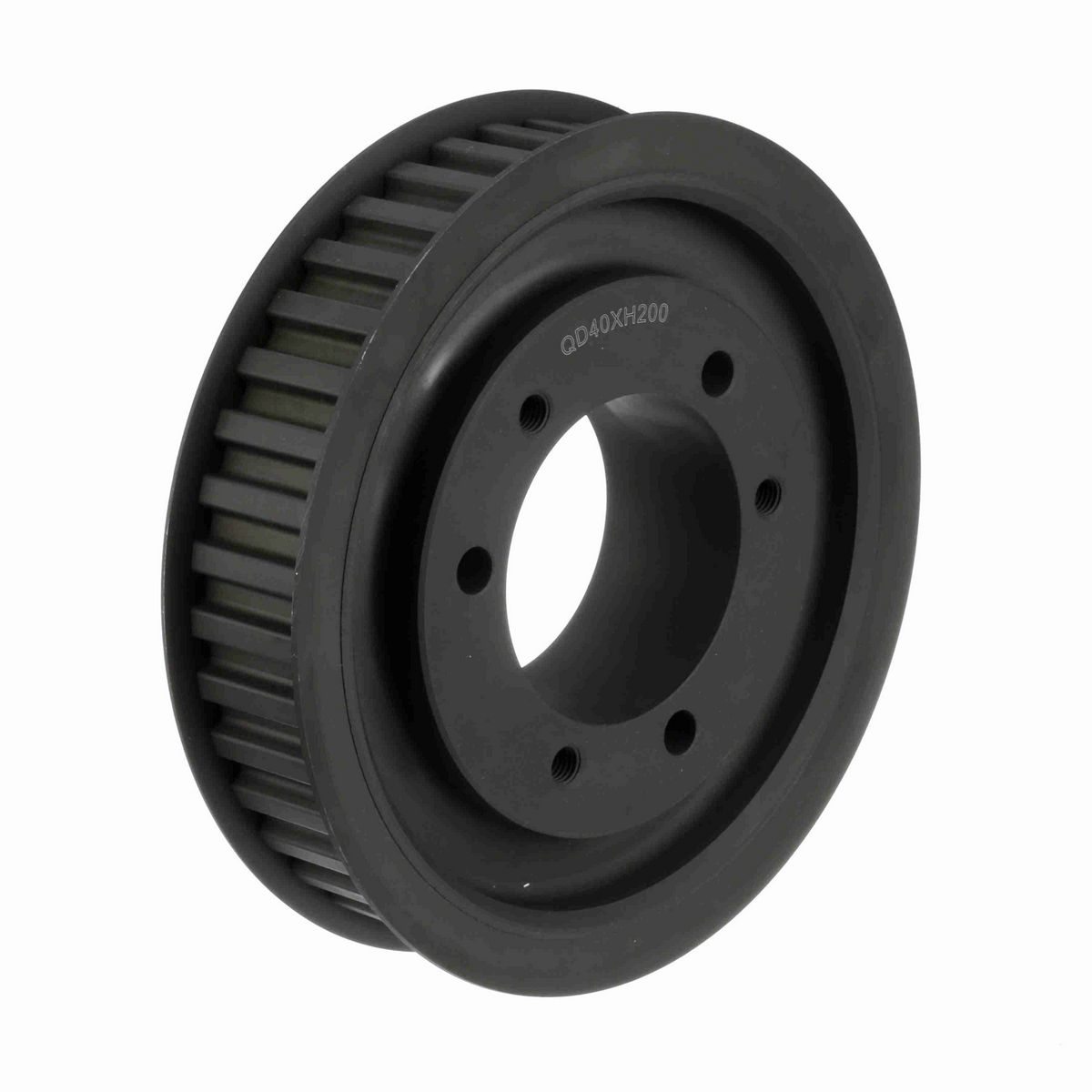

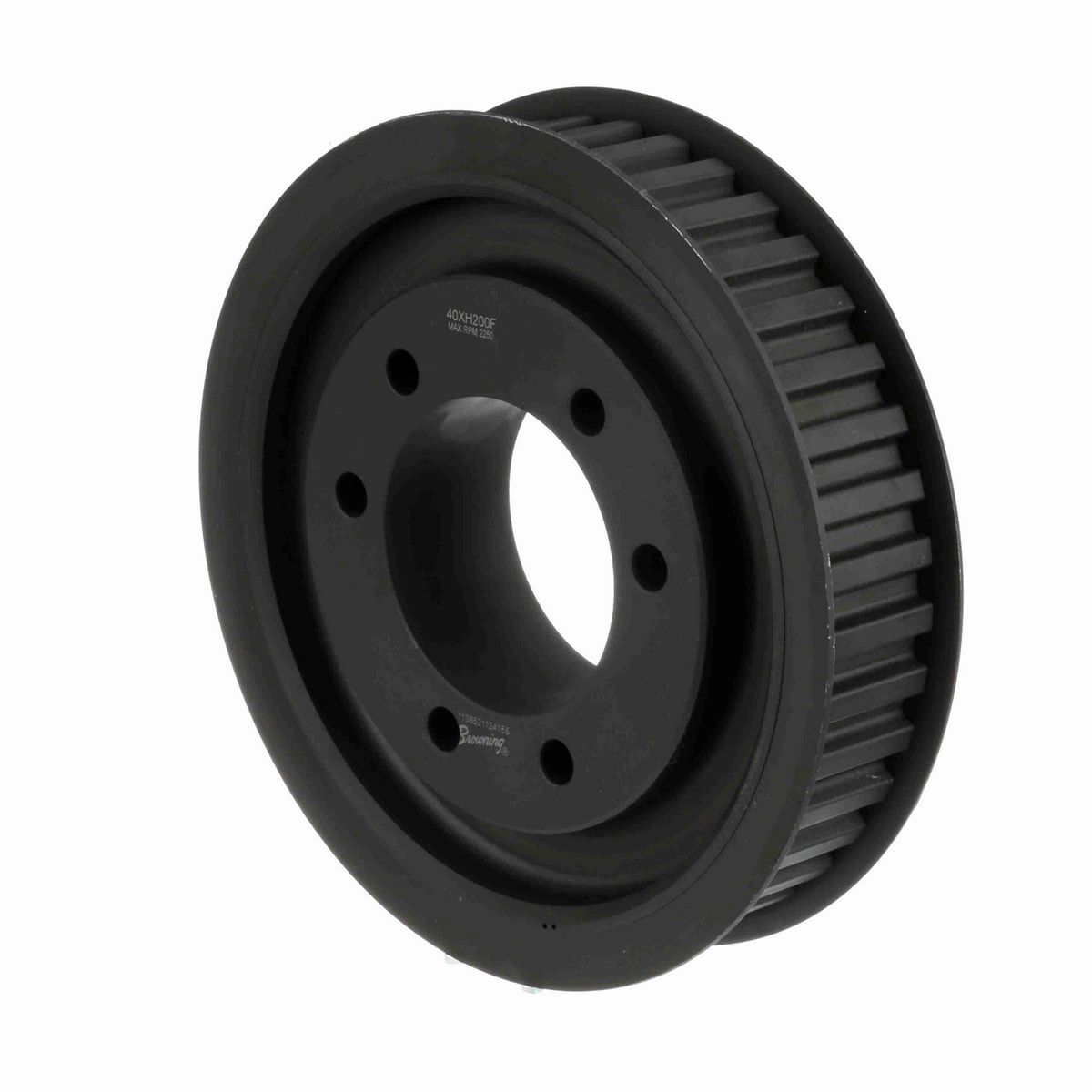

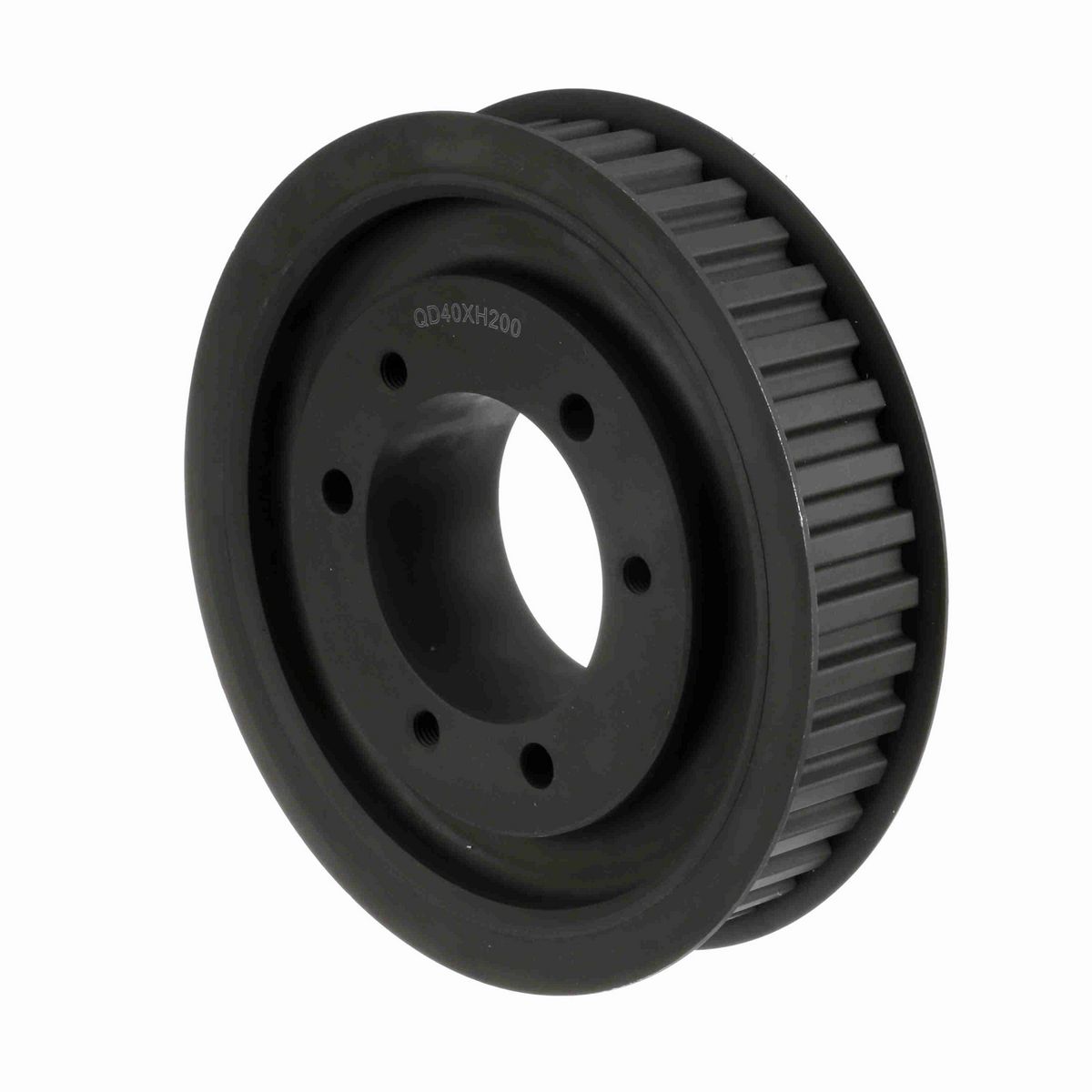

Technical Specifications

Model Name	GBPulley_Master6
Product Type	Gearbelt Pulley
Number of teeth	40
Bore Range	1 to 4
Width (mm)	50.8 mm
Material	Cast Iron
Bore Type	Bushed Bore
Flange (in)	11.6540 in
Outside Diameter (mm)	280.1874 mm
Belt Section	XH
Outside Diameter (in)	11.031 in
Width (in)	2 in
Inside Diameter (in)	9.25 in
Pitch Diameter (in)	11.141 in
Face Width	2.5625
Hub Projection	1.55525
Overall Length (in)	4.11825 in
Hub Diameter (in)	6.625 in
Pulley Construction	Solid
With Flanges	With Flanges
Number of Hubs	1
Length Through Bore	3.68

General Specifications

UPC	662289351671
Weight	38.13 LB
Packaged Length	12.20 IN
Packaged Width	12.30 IN
Packaged Height	3.40 IN
HTC	8483.50.9080
Country of Origin	United States of America
