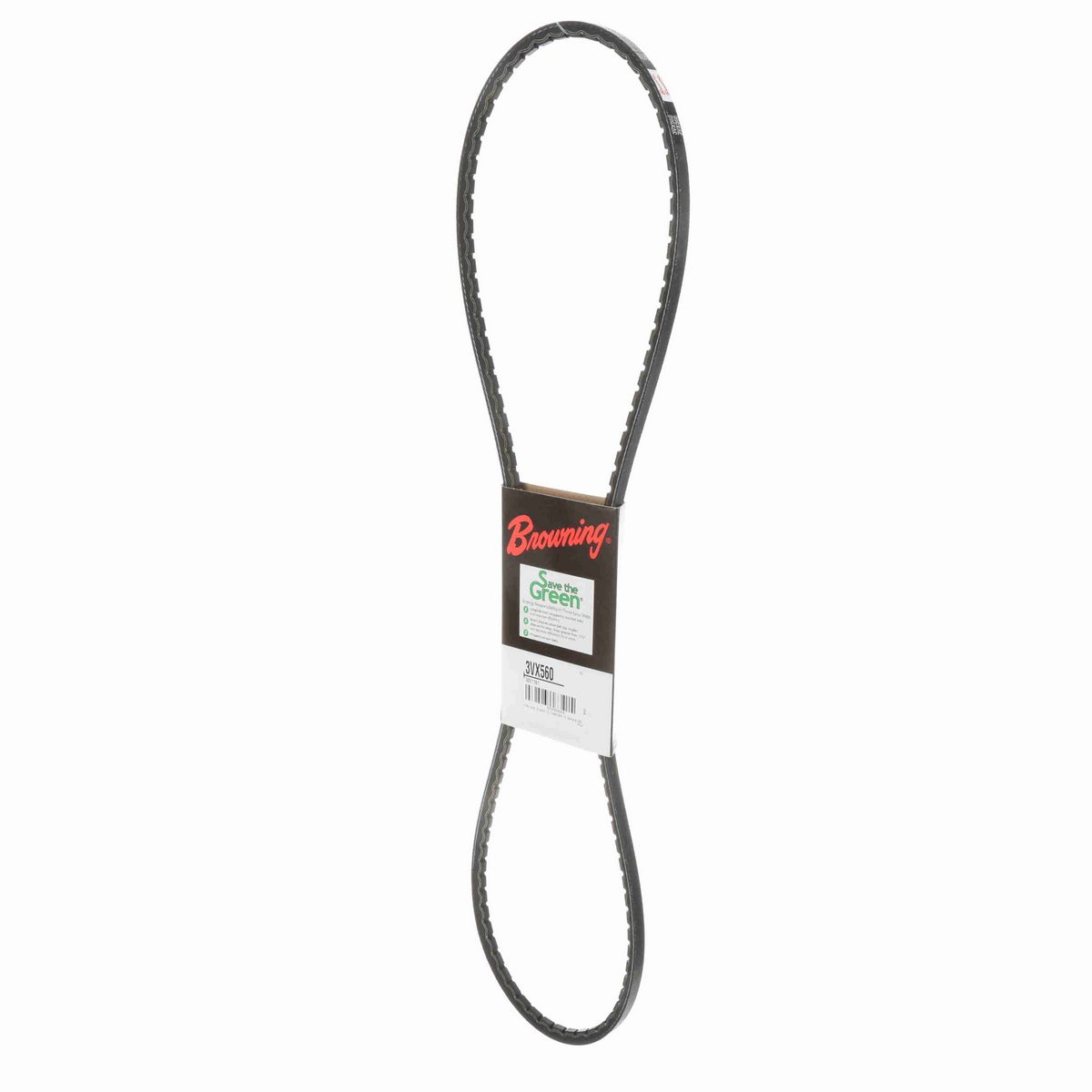

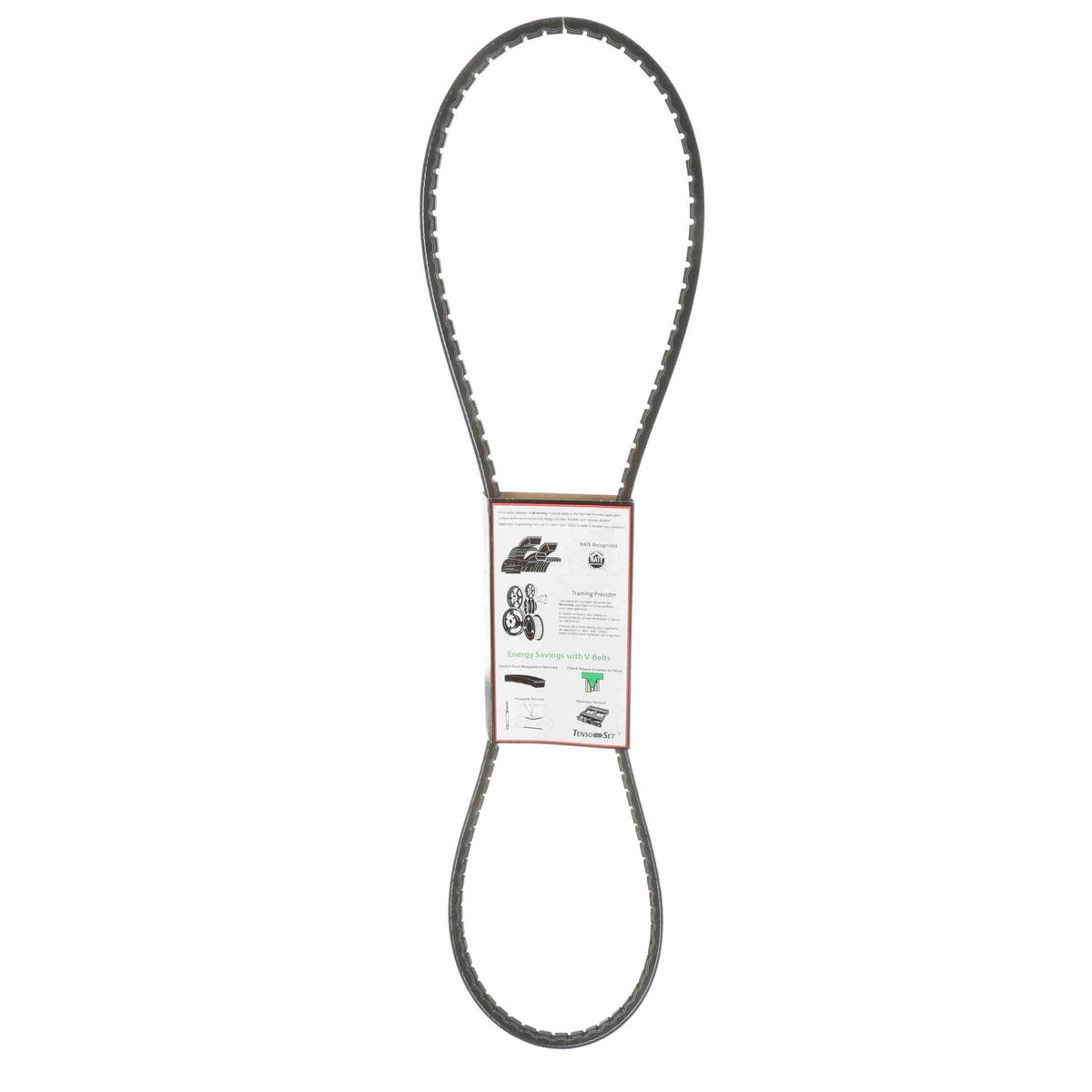

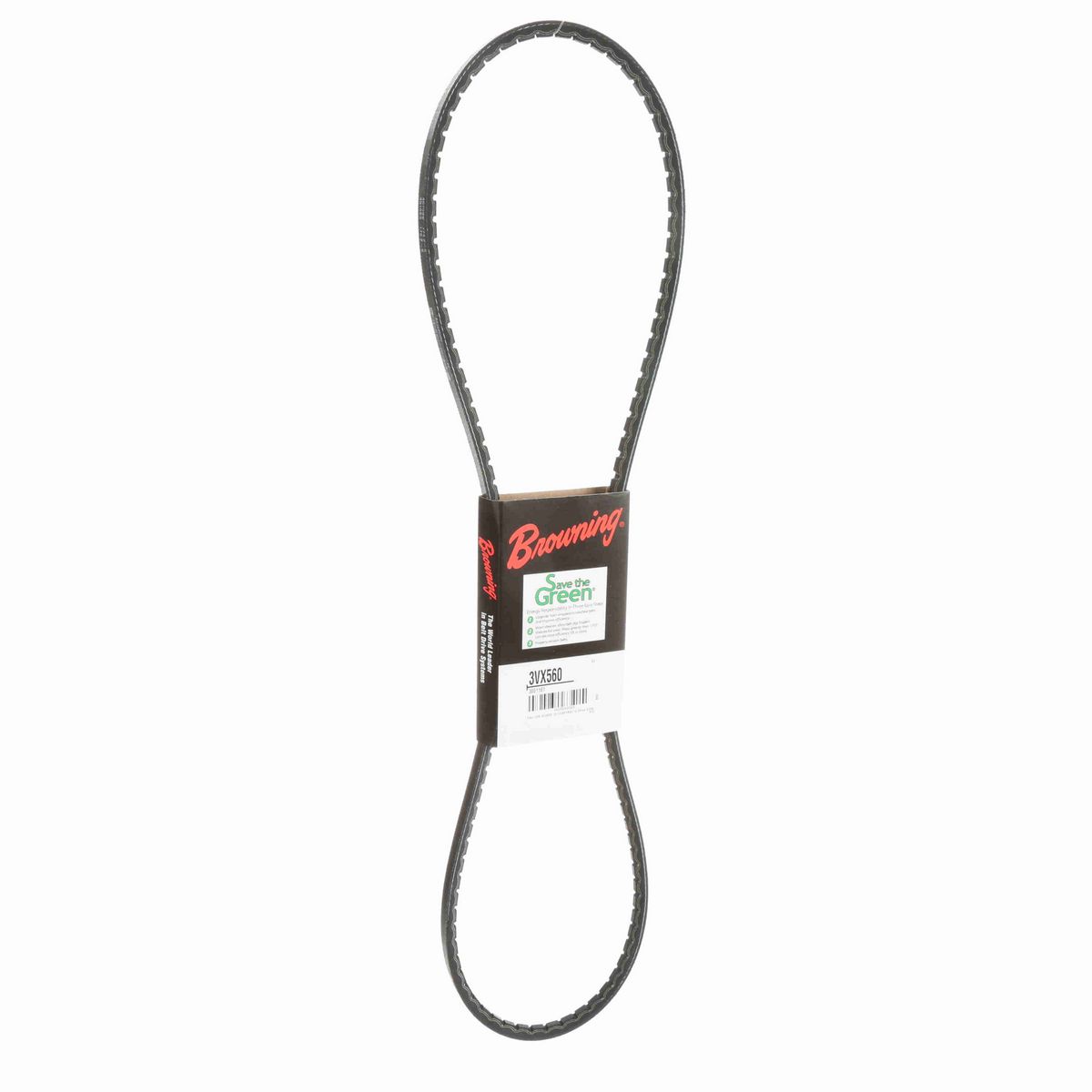

• Browning 358 Notched Belts are constructed of EPDM material wrapped top and botttom; increased operating temperature range of -60F to 250F degrees.
• More horsepower in less space - Browning 358 Belts provide more horsepower in the same span than conventional ABC Belts. This enables you to reduce drive cost.
• Greater Horsepower allows for smaller drive sheaves - Using 358 Belts can allow for smaller drive components while still meeting the drive requirements , thus lowering the overall drive cost.
• Close Belt tolerance - Browning Belts offer the "Code 1" Match belt system on all classical and "358" Belts, allowing easy selection of just one match number for each belt size. This ensures tighter than RMA standards.

Technical Specifications

Type	Gripnotch Notched V-Belts
Belt Section	3VX
Material	EPDM
Outside Length/Diameter (in)	56 in
Operating Temperature [Max] ºF	250 °F
Product Type	Notched Belt
Efficiency (%)	0.98
Outside Diameter (in)	56 in
Operating Temperature [Max] ºC	121 °C
Standards met	MPTA IP-20;RMA
Construction Type	Cogged
Height	0.9375
Pitch Length	56
Width (in)	0.375 in
Section Size	3V
Band Type	Belt with Ends Joined
Operating Temperature Range	-60 to +230 °F

General Specifications

UPC	662289336968
Weight	0.22 LB
Packaged Length	5.80 IN
Packaged Width	24.45 IN
Packaged Height	0.65 IN
HTC	4010.32.3000
Country of Origin	United States of America
