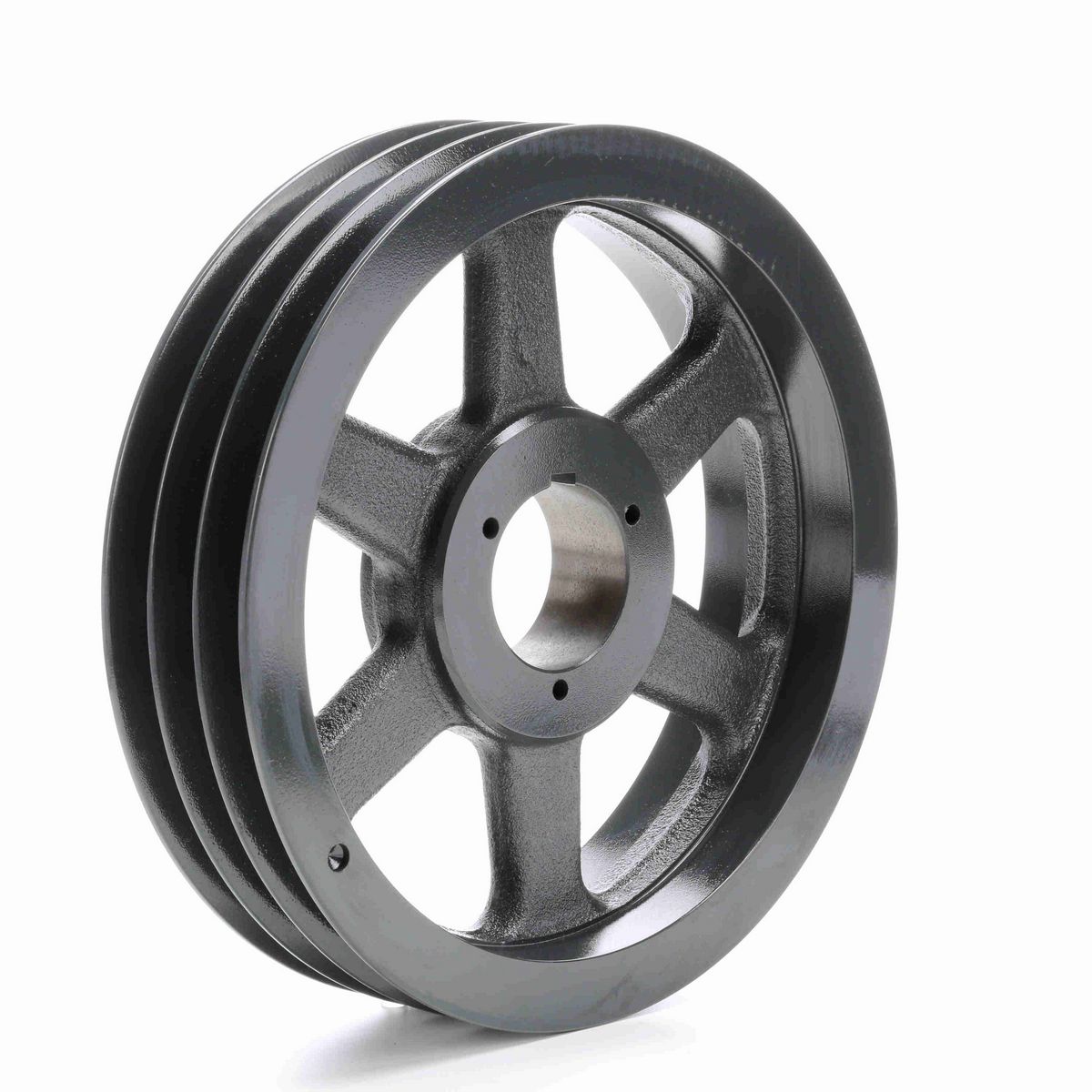

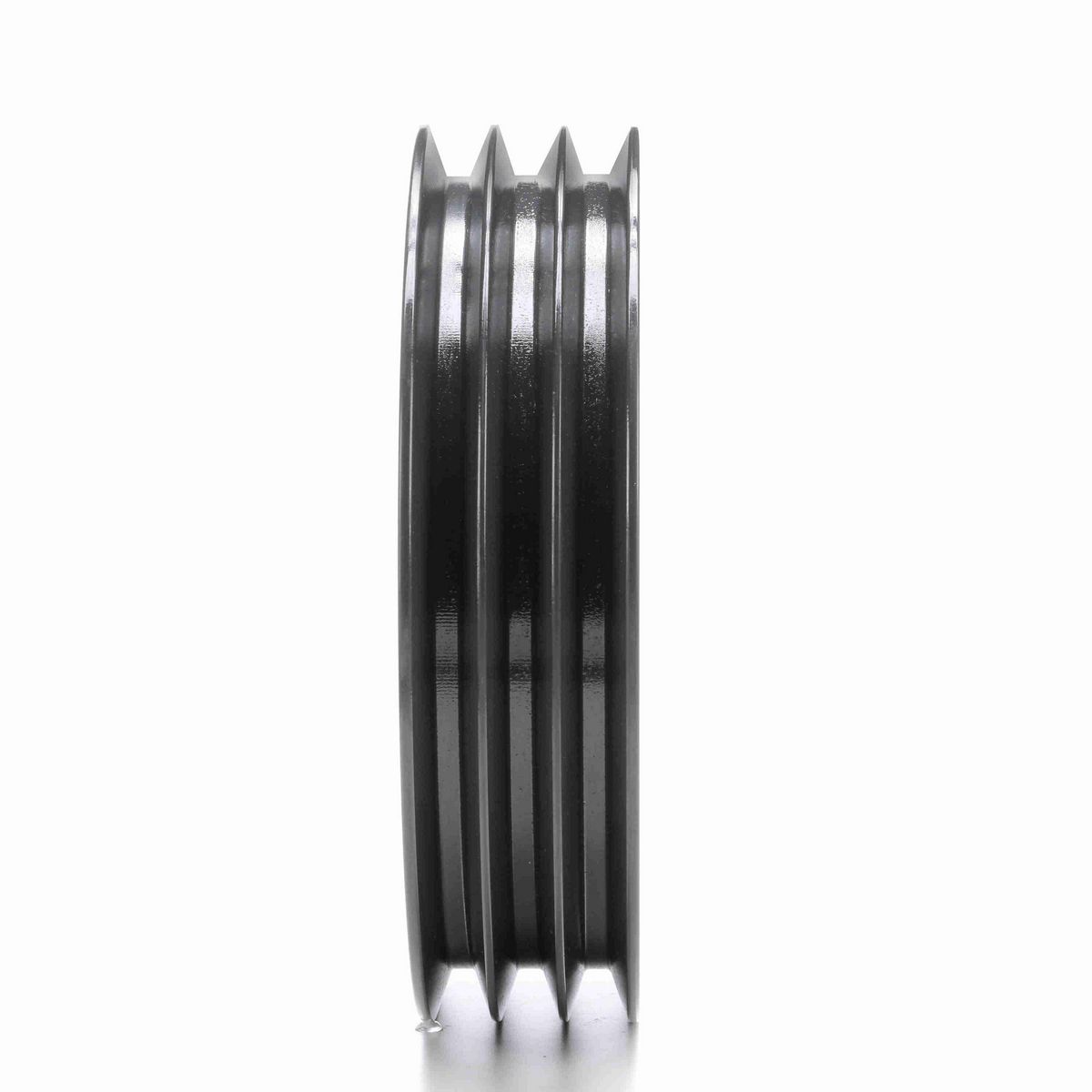

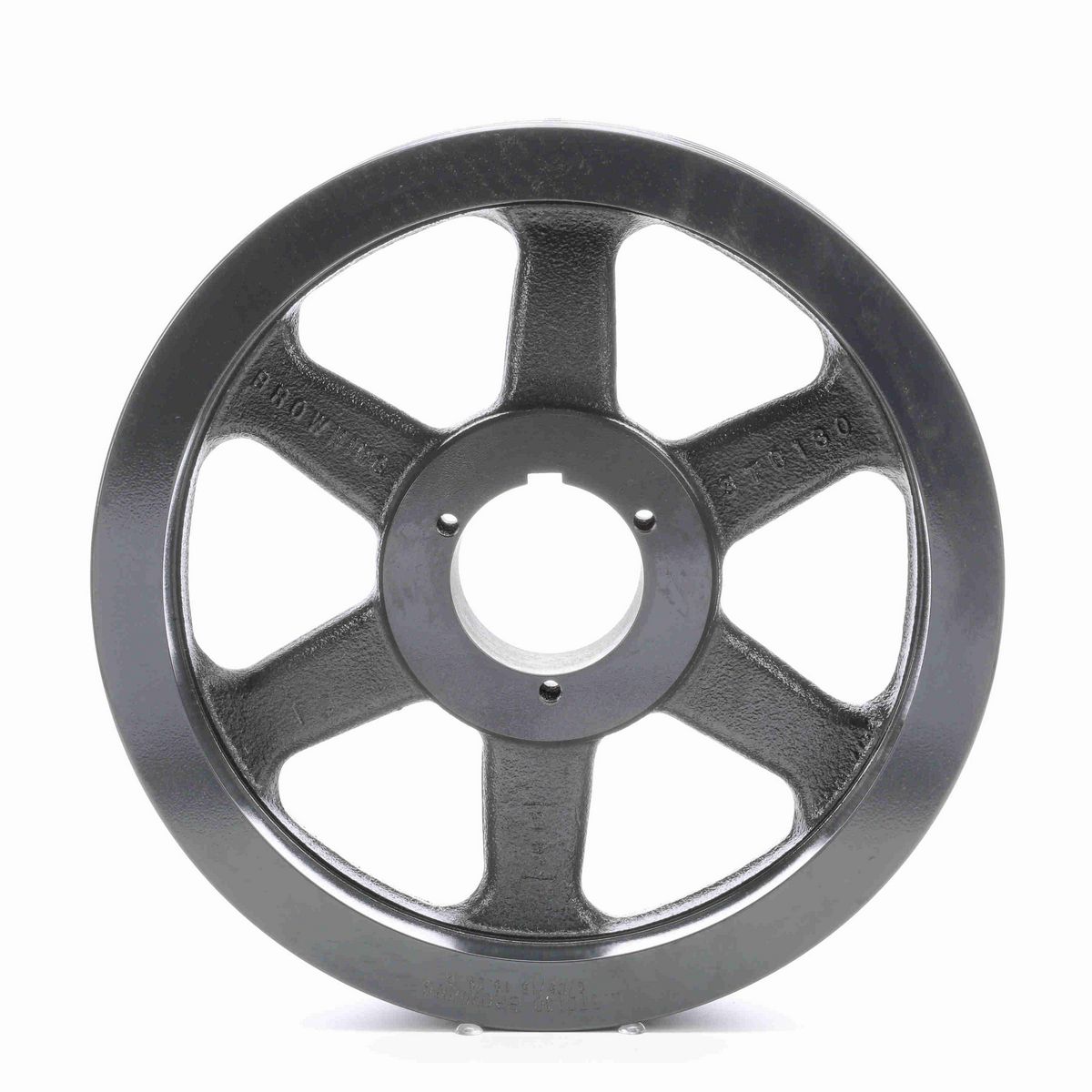

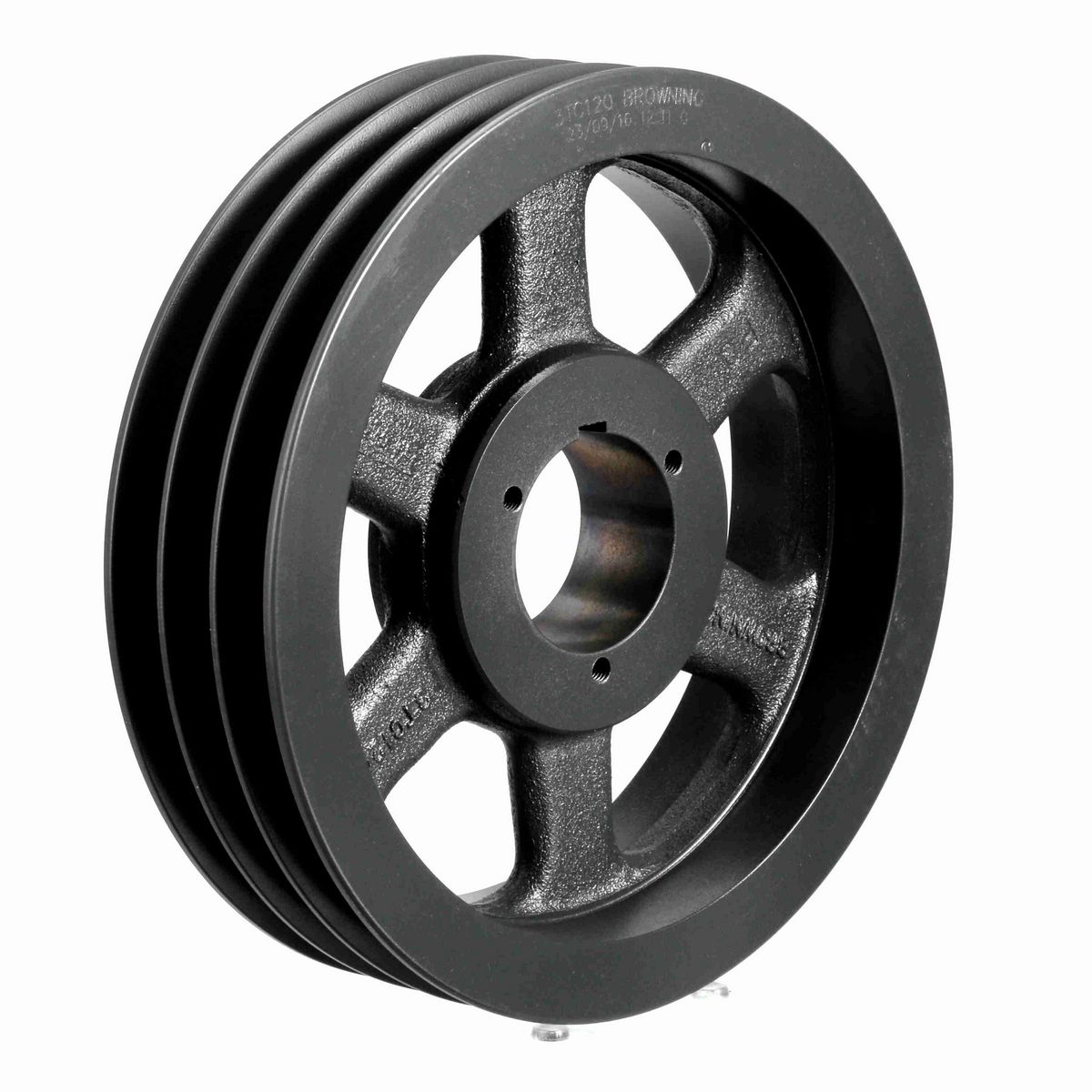

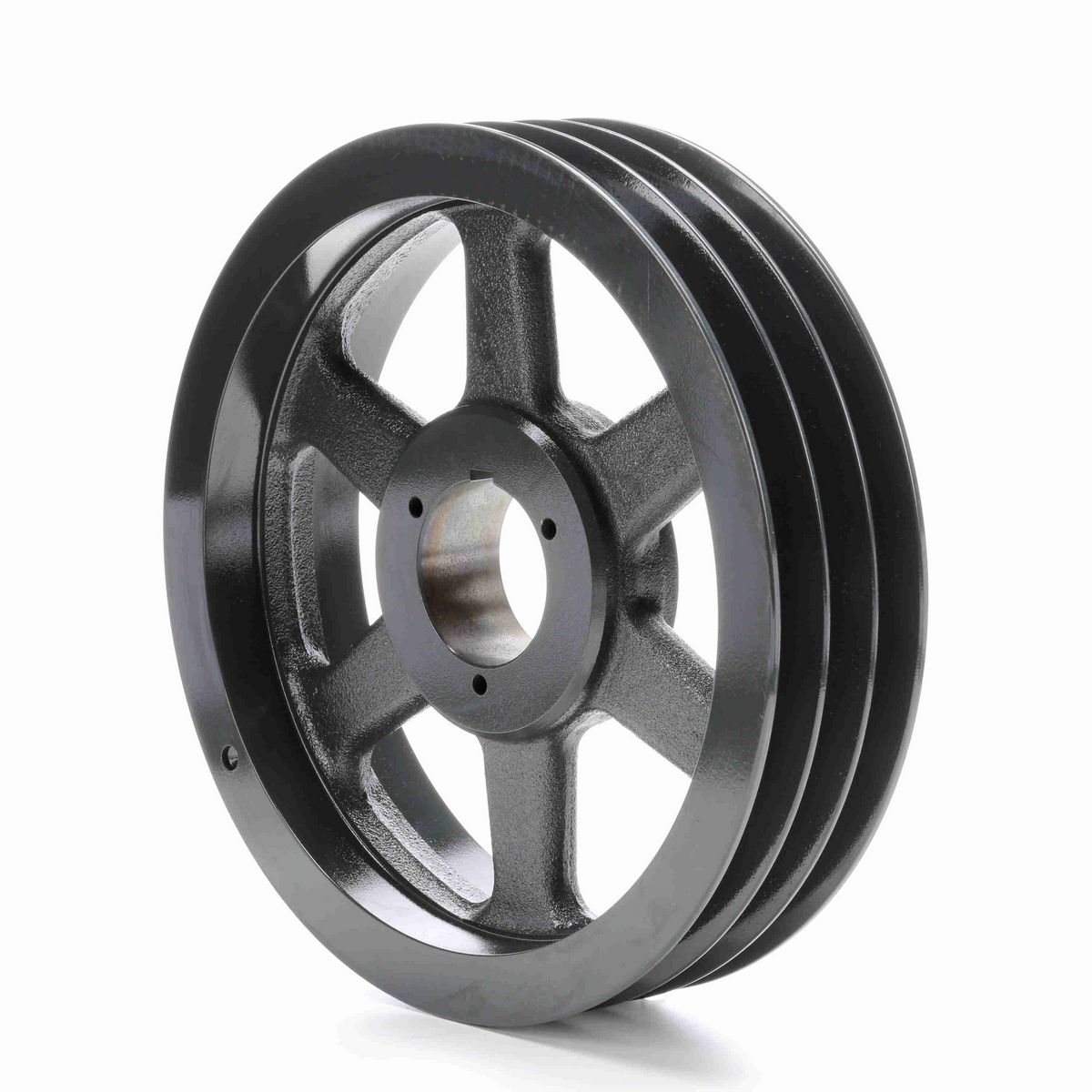

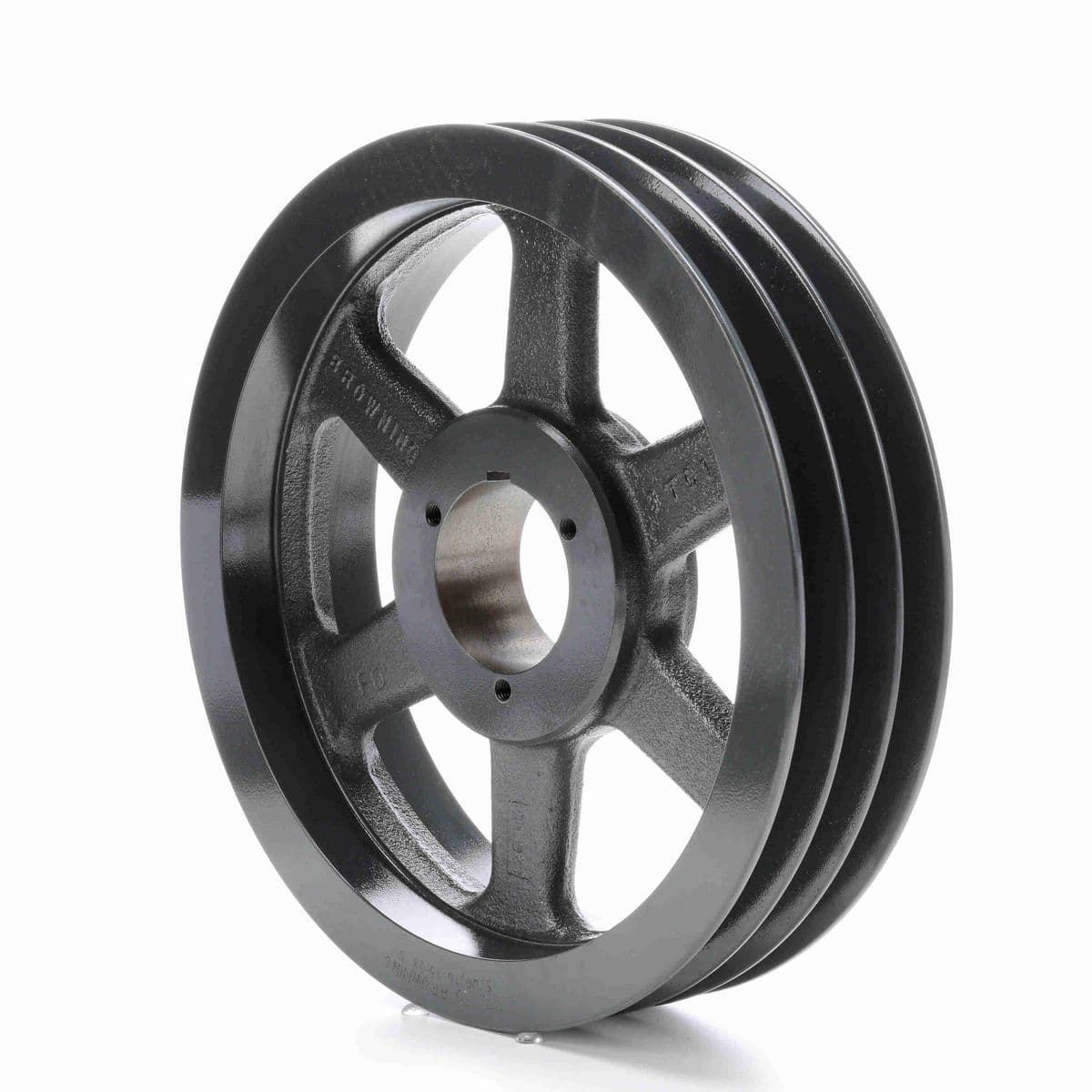

• Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
• Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance.
• Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.

Technical Specifications

Model Name	3TC-L_Sheave_Master
Overall Length (in)	3.578125 in
Bushing Used	Q1
Outside Diameter (in)	13.4 in
Material	Cast Iron
Pulley Material	Cast Iron
Number of Grooves	3
Datum Diameter (C)	13
Pitch Diameter (C)	13.4
Belt Section	C
Product Type	Multiple Sheaves
Bore (Min) (in)	0.75 in
Bore Type	Split Taper Bushed
Pulley Construction	Spoked
Overall Width (in)	3.53125
Bushing Bore Range	2.6875 - 2.6875
Keyway Size	.500
Face Width (in)	3.25

General Specifications

UPC	662289243792
Weight	33.98 LB
Packaged Length	14.30 IN
Packaged Width	14.50 IN
Packaged Height	3.60 IN
