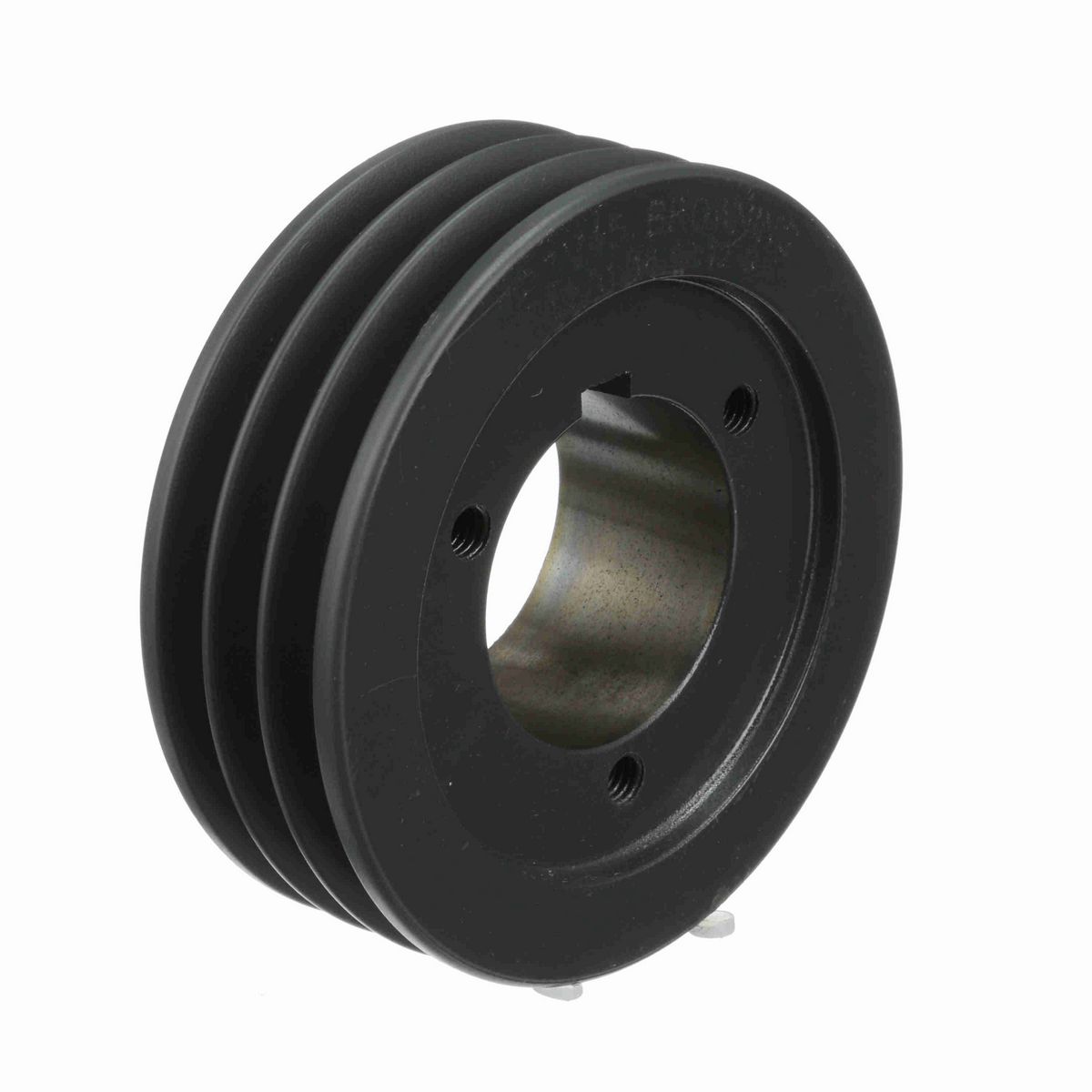

• Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
• Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance.
• Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.

Technical Specifications

Outside Diameter (in)	5 in
Overall Length (in)	2.140625 in
Number of Grooves	3
Pitch Diameter (3V)	4.95
Pulley Material	Cast Iron
Bushing Used	P1
Material	Cast Iron
Product Type	Multiple Sheaves
Bore (Min) (in)	0.5 in
Belt Section	3V
Bore Type	Split Taper Bushed
Keyway Size	.375
Bushing Bore Range	0.500 - 1.750
Overall Width (in)	2.1875
Face Width (in)	1.5
Pulley Construction	Plain

General Specifications

UPC	662289159598
Weight	5.40 LB
Packaged Length	6.06 IN
Packaged Width	6.06 IN
Packaged Height	1.56 IN
