• Large Selection - MVP companion sheaves are offered in A/B, C, 5Vand 8V belt sections and from 3-10 grooves giving Browning the largest selection of MVP Companion Sheaves in the industry.
• Statically Balanced - All MVP companion sheaves are statically balanced to assure smooth, vibration free performance.
• VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore.
• The male section with threaded barrel has flat surfaces at 180 degree increments that allow a flat surface for the setscrew to mate with.
• When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed.
• When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed.

Technical Specifications

Outside Length (in)	3.796875 in
Outside Diameter (in)	20.35 in
Bore (Min) (in)	1.125 in
Material	Cast Iron
Type of Bore	Bushed
Product Type	MVP Sheaves
Pitch Diameter Range (A)	19.8
Pitch Diameter Range (B)	20.3
Number of Grooves	3
Belt Section	A, B
Bore (Max) (in)	3.75 in

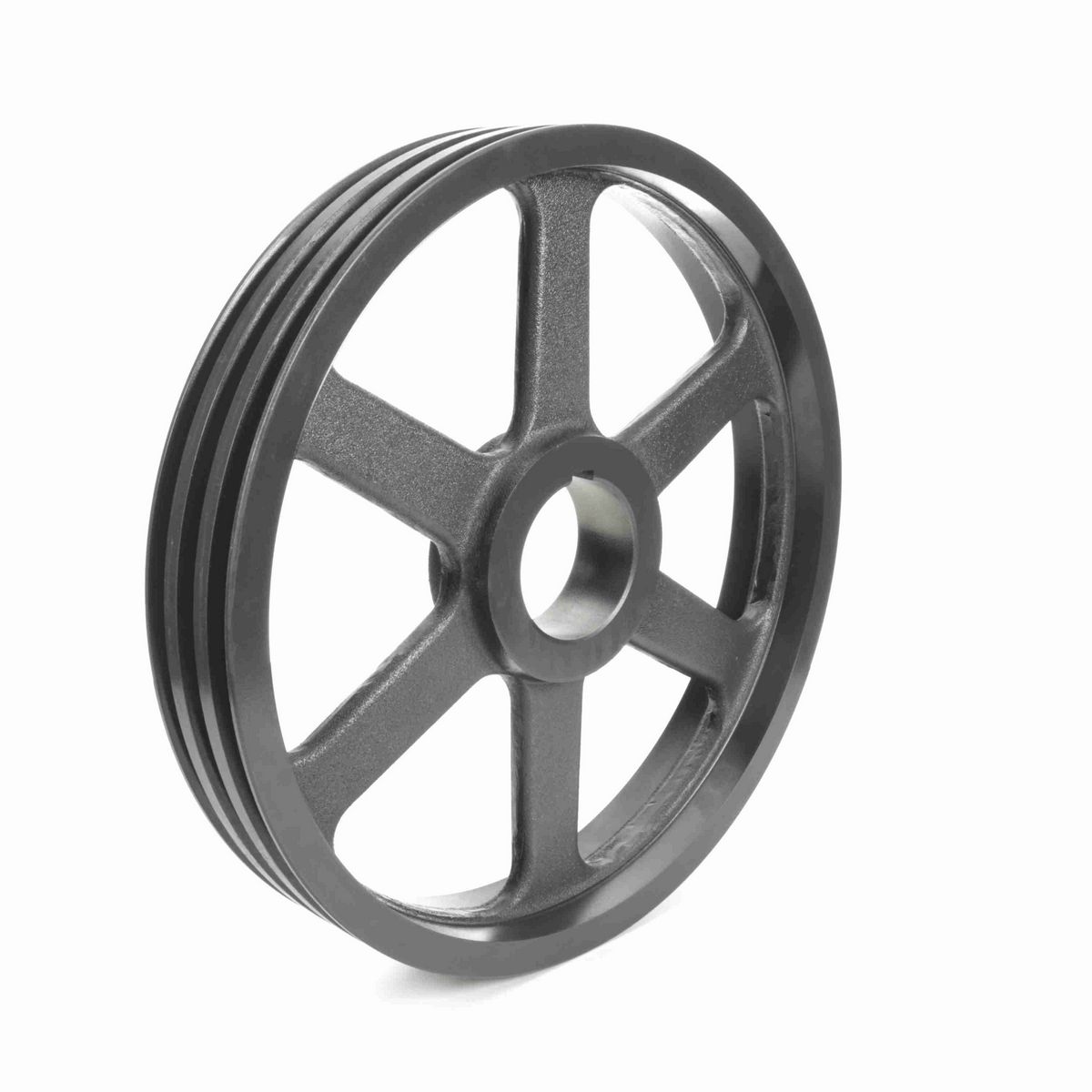

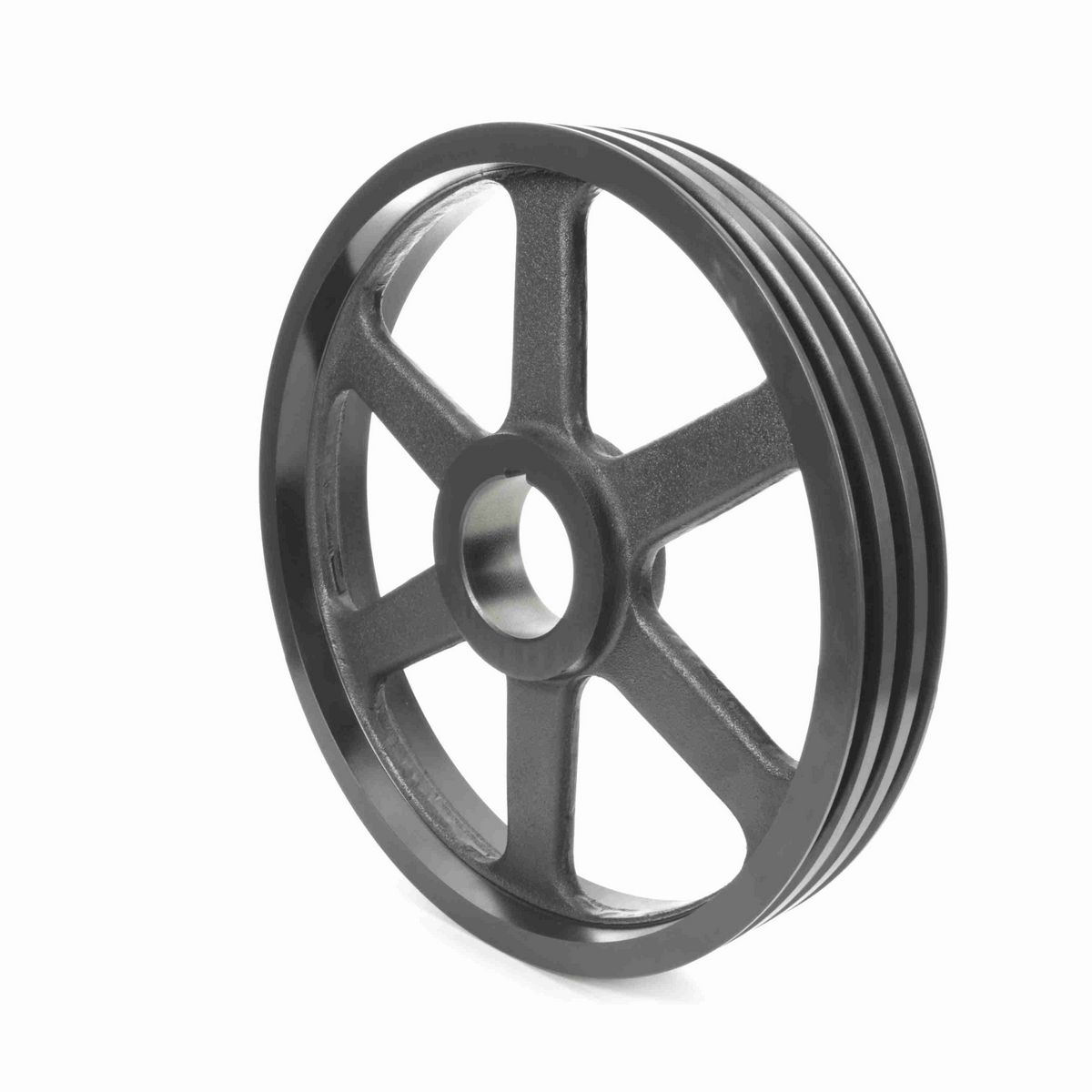

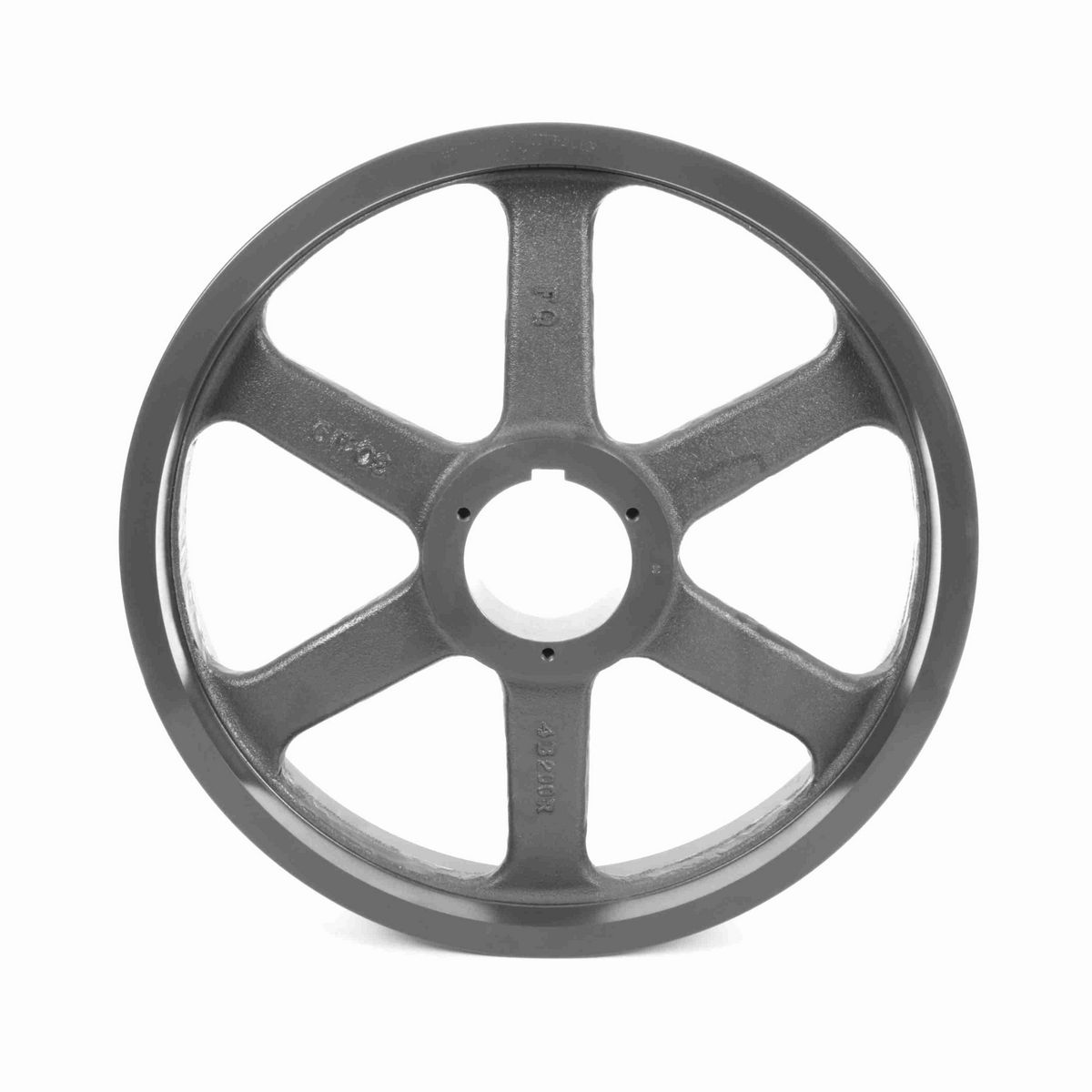

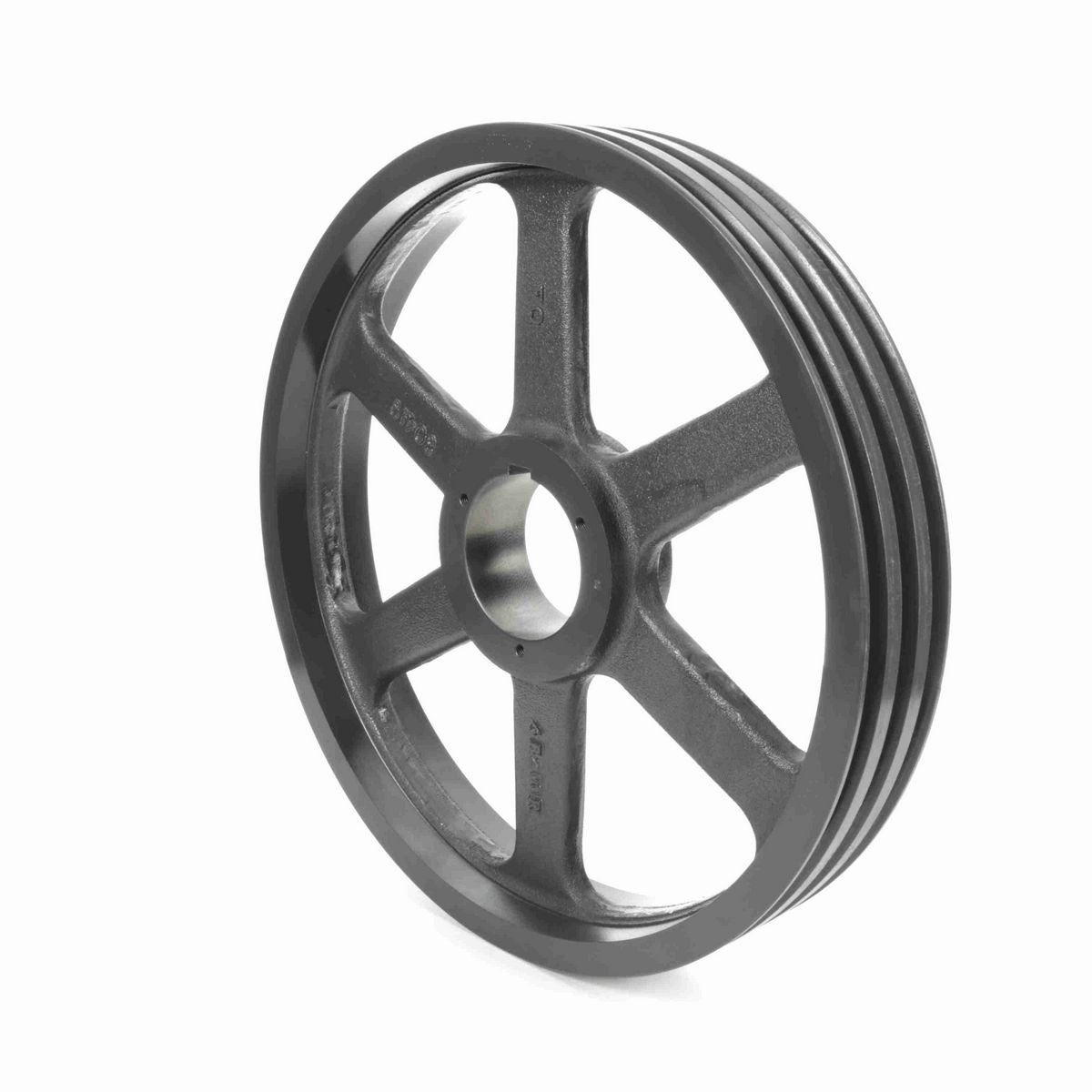

Pulley Construction	Spoked
Face Width (in)	3.25 in
Bore Type	Split Taper Bushed
Bushing Used	R1
Bushing Bore Range	1.125 - 3.750
Keyway Size	.750

General Specifications

UPC	662289115983
Weight	62.00 LB
Packaged Length	20.38 IN
Packaged Width	20.38 IN
Packaged Height	3.25 IN
HTC	8483.50.9040
Country of Origin	Mexico
