• Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
• Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
• Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
• New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material.

Technical Specifications

Pulley Material	Cast Iron
Pitch Diameter (B)	6.5
Number of Grooves	3
Pitch Diameter (5V)	6.3
Bushing Used	B
Pitch Diameter (A)	6

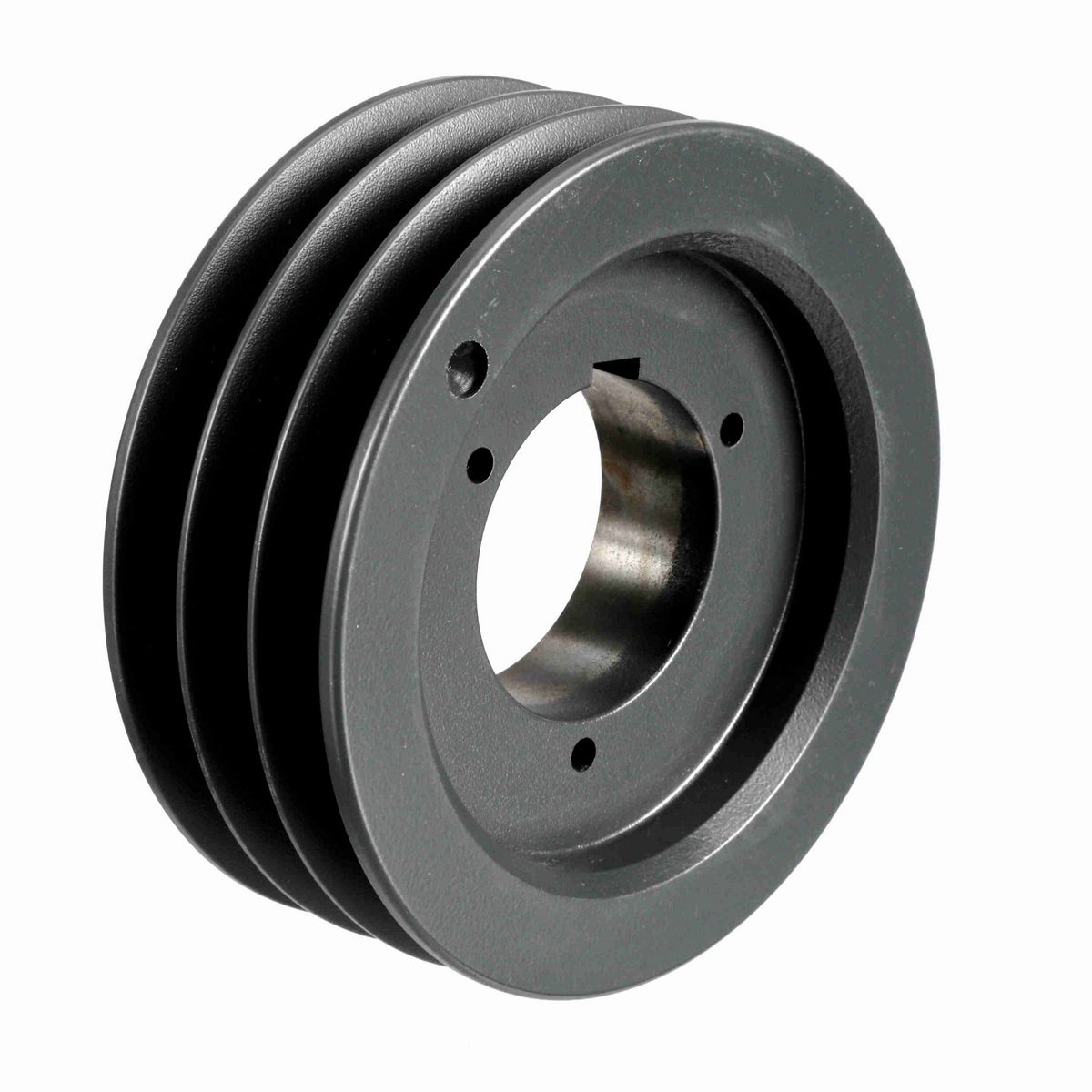

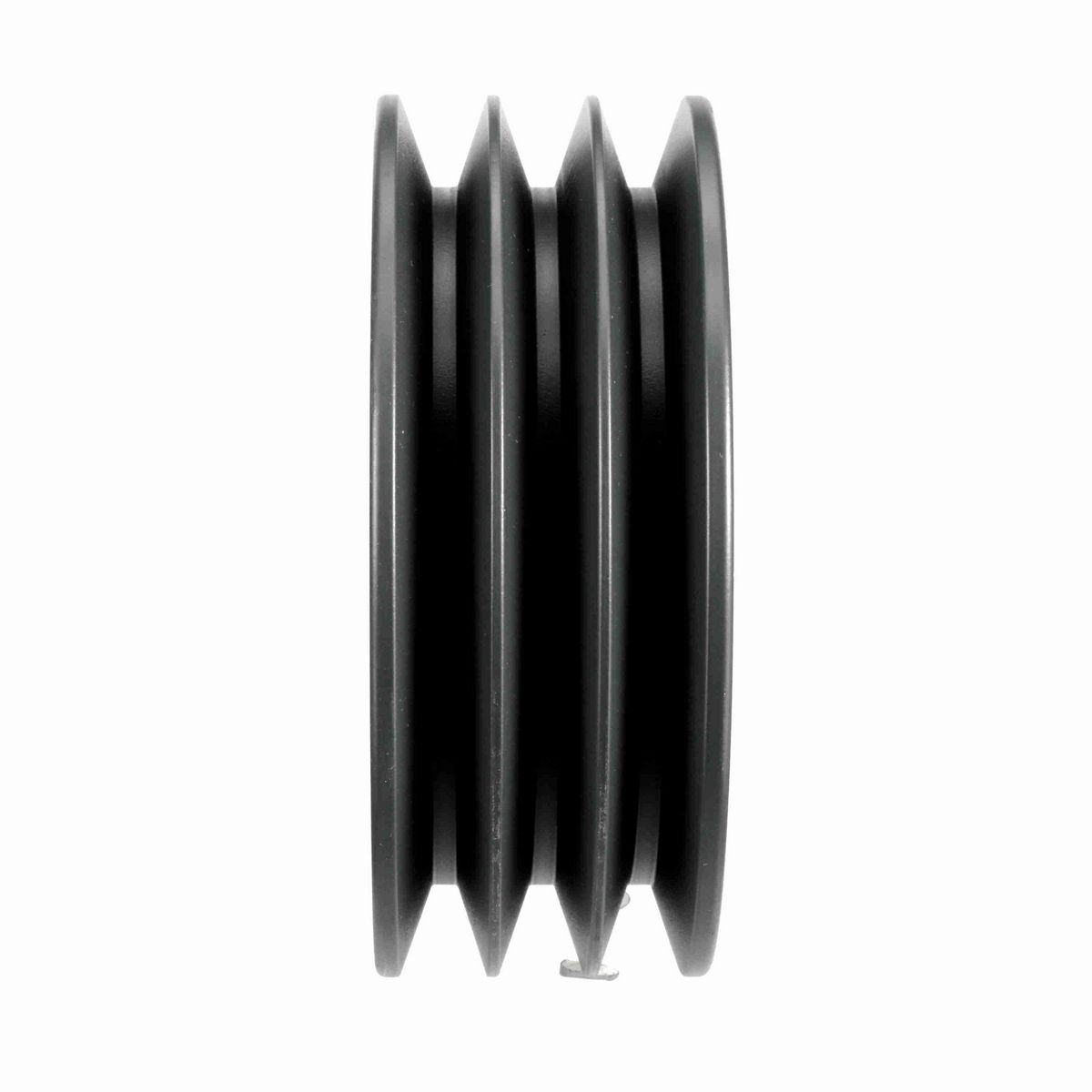

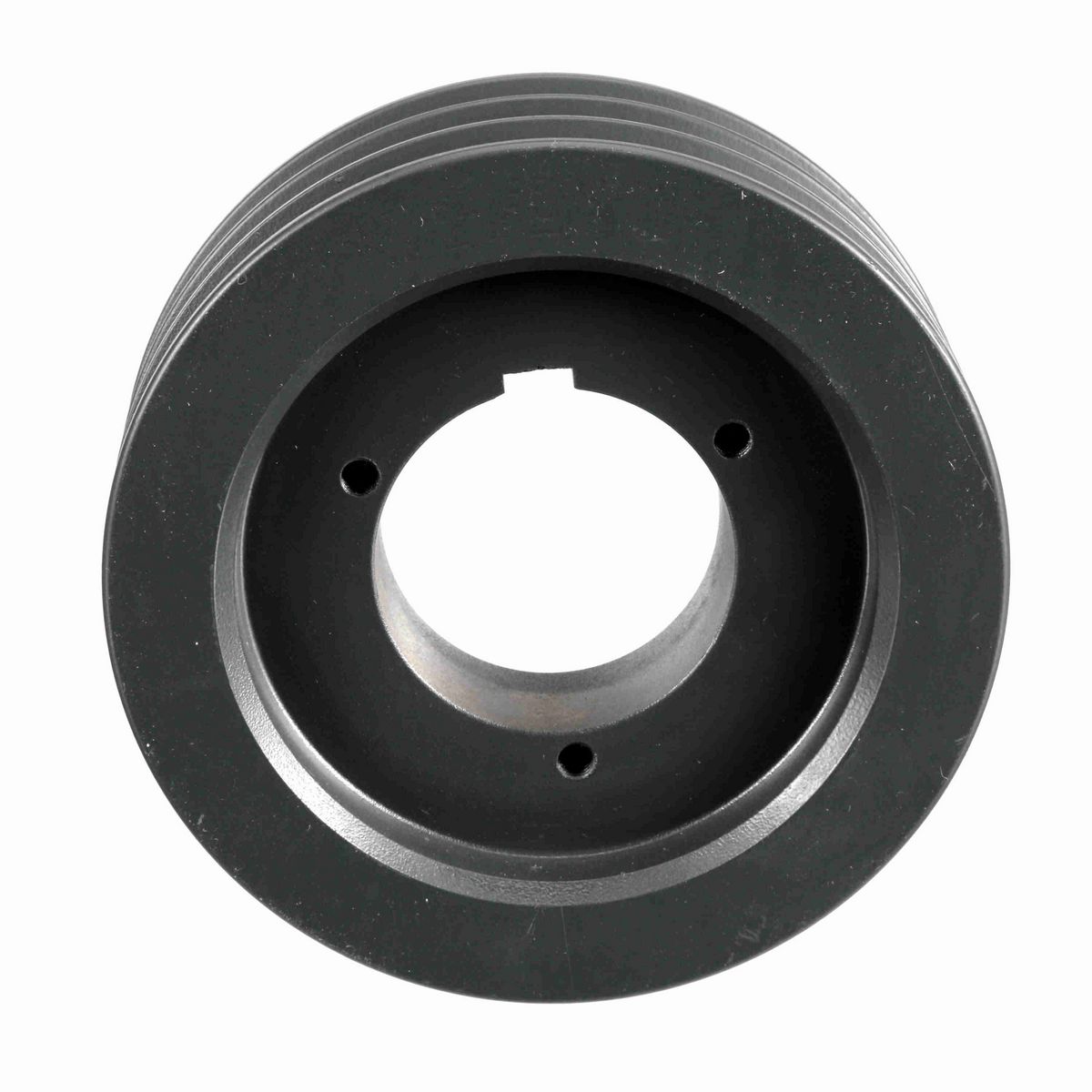

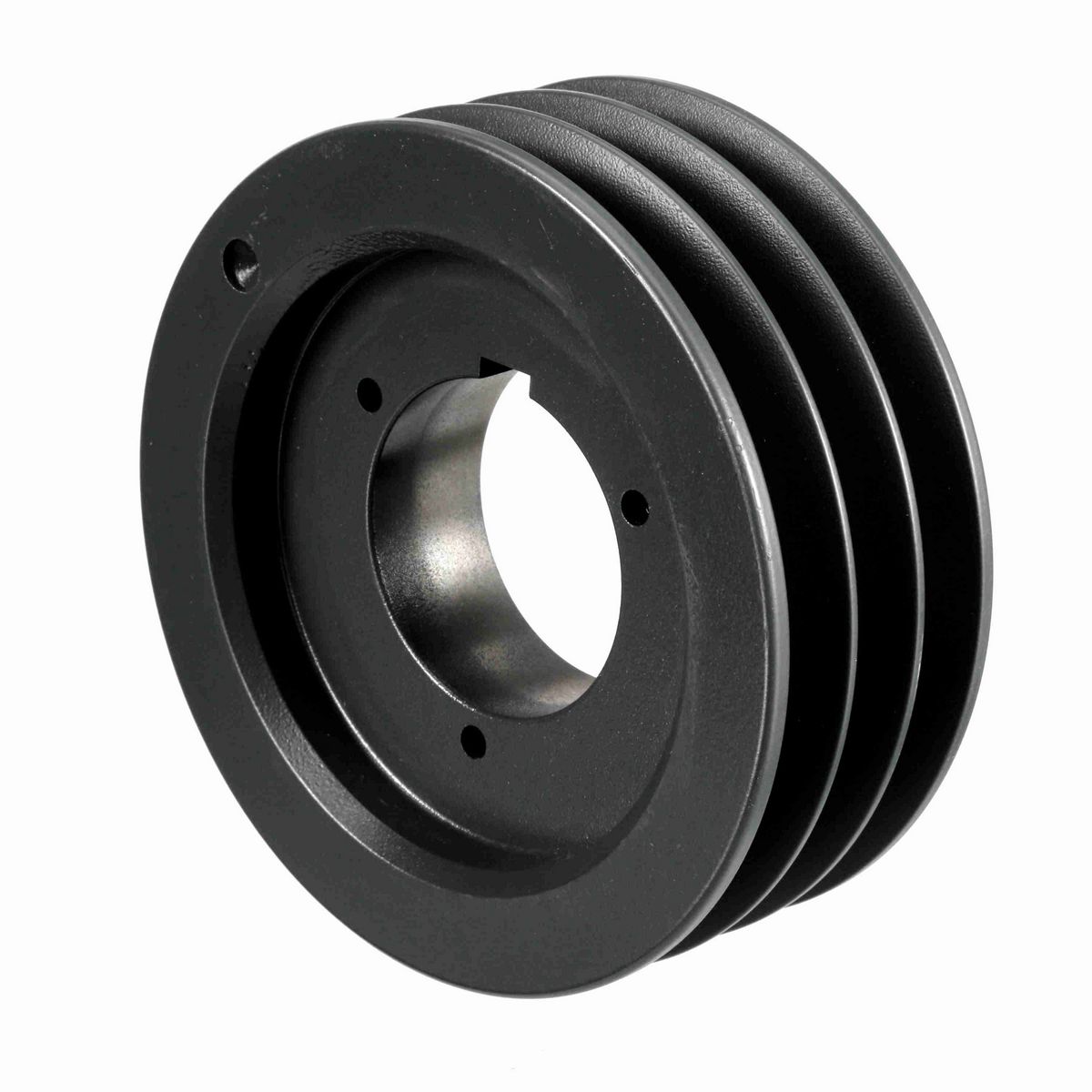

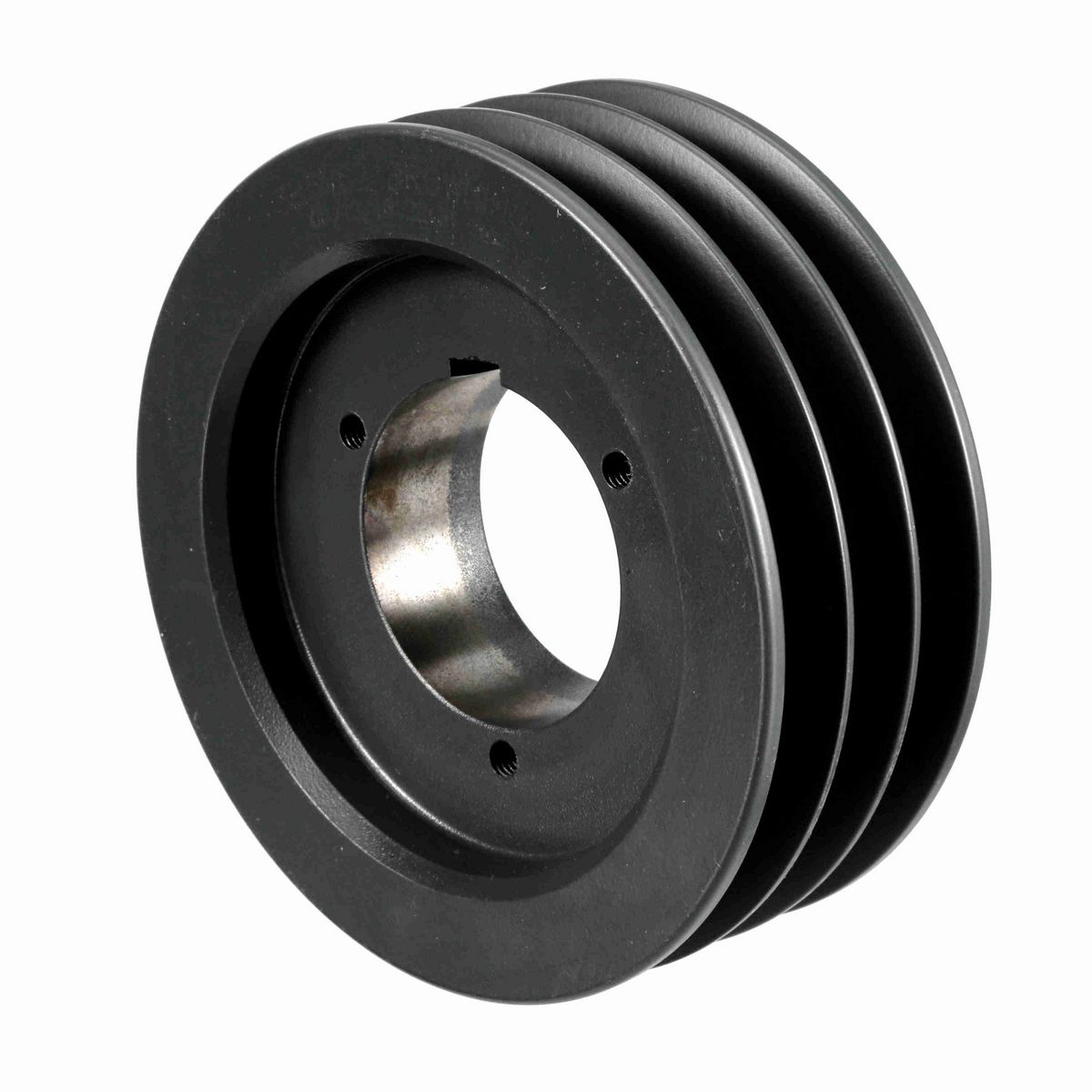

Model Name	3B5V-SheaveMaster
Datum Diameter (B)	6.2
Datum Diameter (A)	5.8
Overall Length (in)	2.90625 in
Outside Diameter (in)	6.48 in
Material	Cast Iron
Product Type	Multiple Sheaves
Belt Section	A, B, 5V
Bore (Min) (in)	0.5 in
Bore Type	Split Taper Bushed
Pulley Construction	Plain
Bushing Bore Range	0.500 - 2.4375
Overall Width (in)	2.84375
Face Width (in)	2.4375
Keyway Size	.500

General Specifications

UPC	662289035168
Weight	10.08 LB
Packaged Length	7.30 IN
Packaged Width	7.20 IN
Packaged Height	2.80 IN
