• Exclusive Taper Bushing: Single TorqTaper Bushing installs from either side of the unit for easy on - easy off mounting, with stabilizer ring.
• Standard Bearings: Commercially available Tapered Roller Bearings provide maximum overhung load capacity.

Technical Specifications

Bore Size (in)	2.6875 in
Model Name	315TBP
Material	Ductile Iron
Outside Diameter (in)	7.13 in
Length Through Bore (in)	7.9375 in

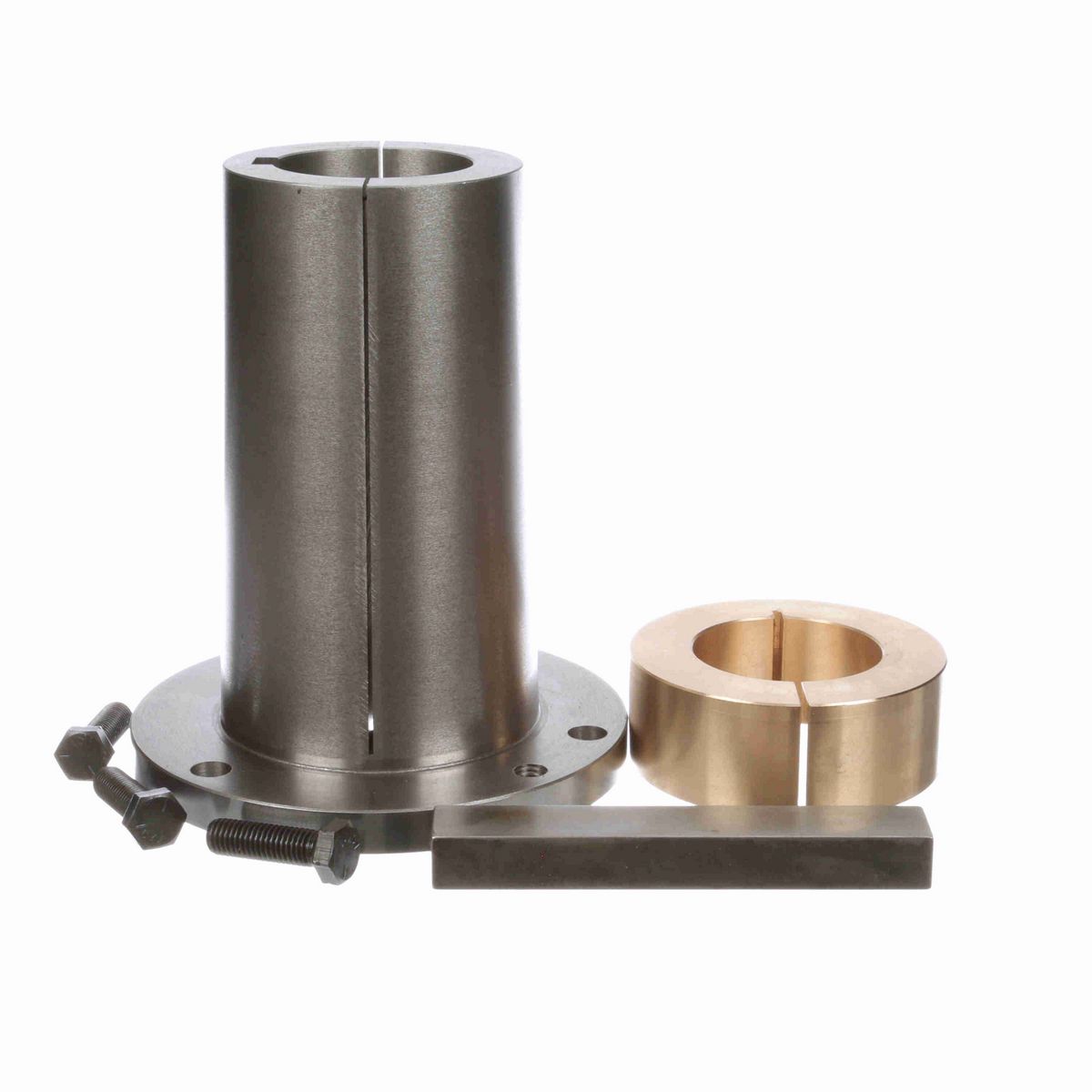

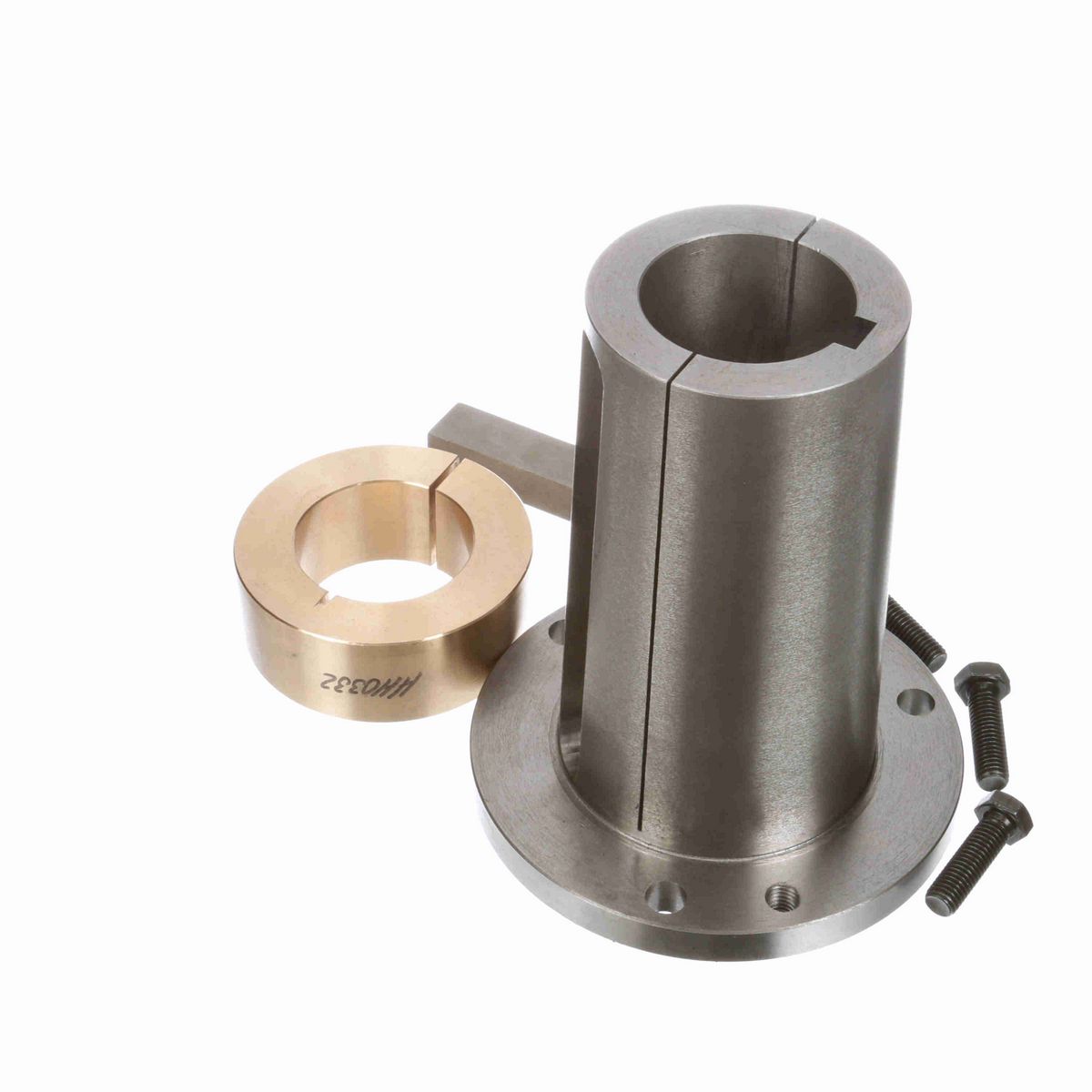

Product Type	TorqTaper Plus Bushing Kit
Shaft keyseat	5/8 x 5/16 x 7 15/16
Total Length (in)	7.9375 in
Compatible Bore Size [Max] (in)	2.6875 in
Bore Type	Inch
Bushing Type	Tapered Bushing
Includes	Bushing, Key, Capscrews, stablizer ring

General Specifications

UPC	662460502441
Weight	28.10 LB
Packaged Length	7.38 IN
Packaged Width	7.38 IN
Packaged Height	3.88 IN
