• Exclusive Taper Bushing: Single TorqTaper Bushing installs from either side of the unit for easy on - easy off mounting, with stabilizer ring.
• Standard Bearings: Commercially available Tapered Roller Bearings provide maximum overhung load capacity.

Technical Specifications

Material	Ductile Iron
Model Name	307TBP
Total Length (in)	6.75 in
Bore Size (in)	3 in
Compatible Bore Size [Max] (in)	3 in

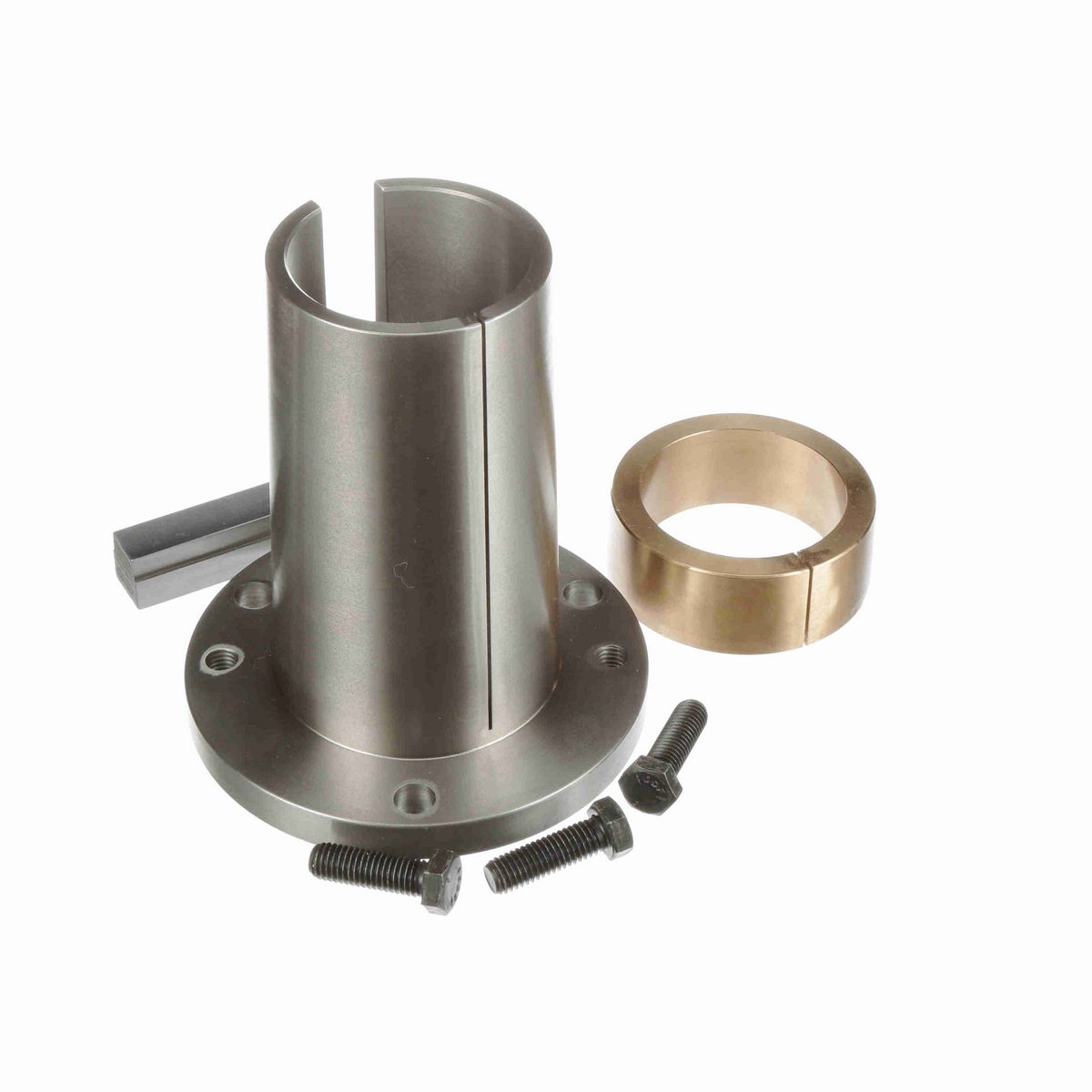

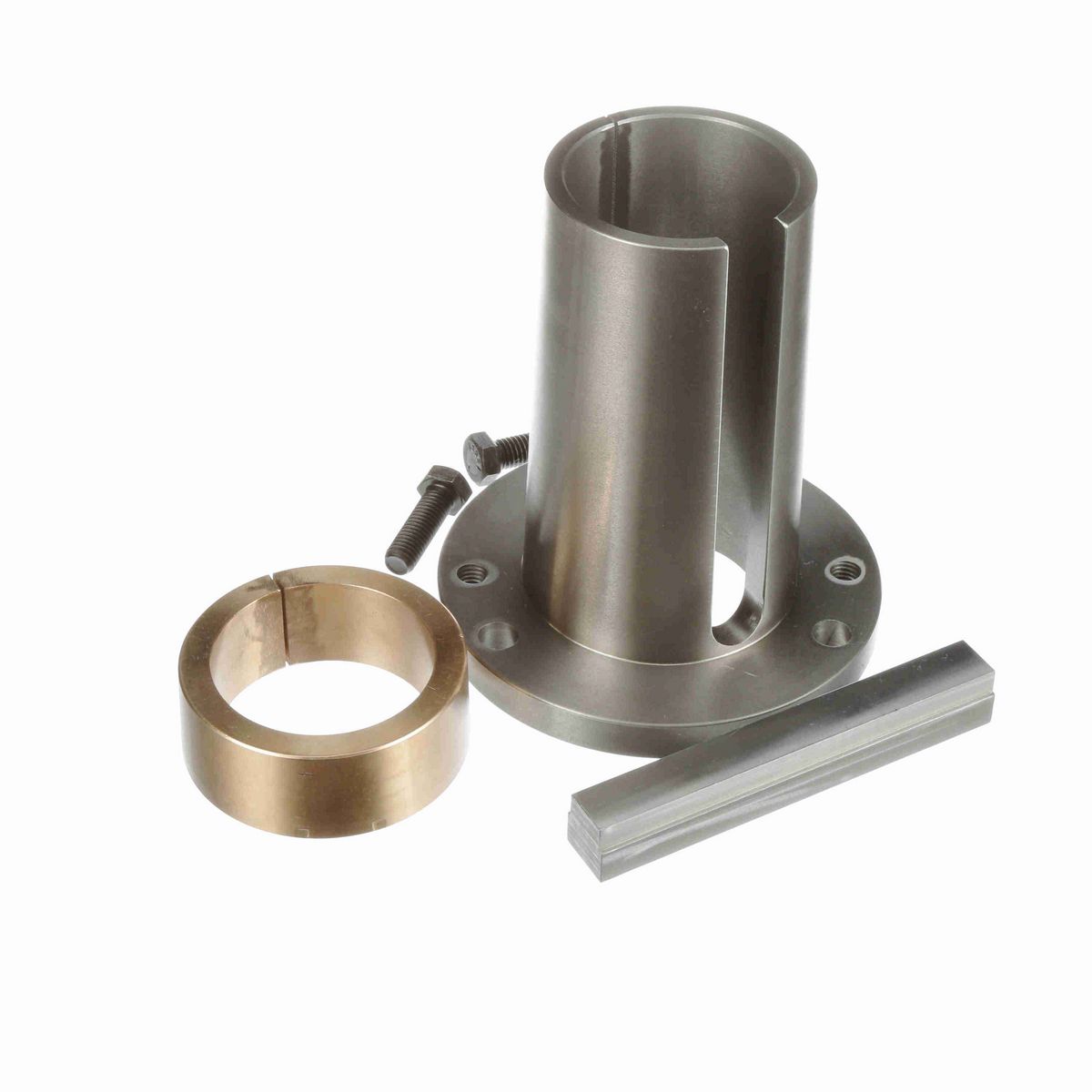

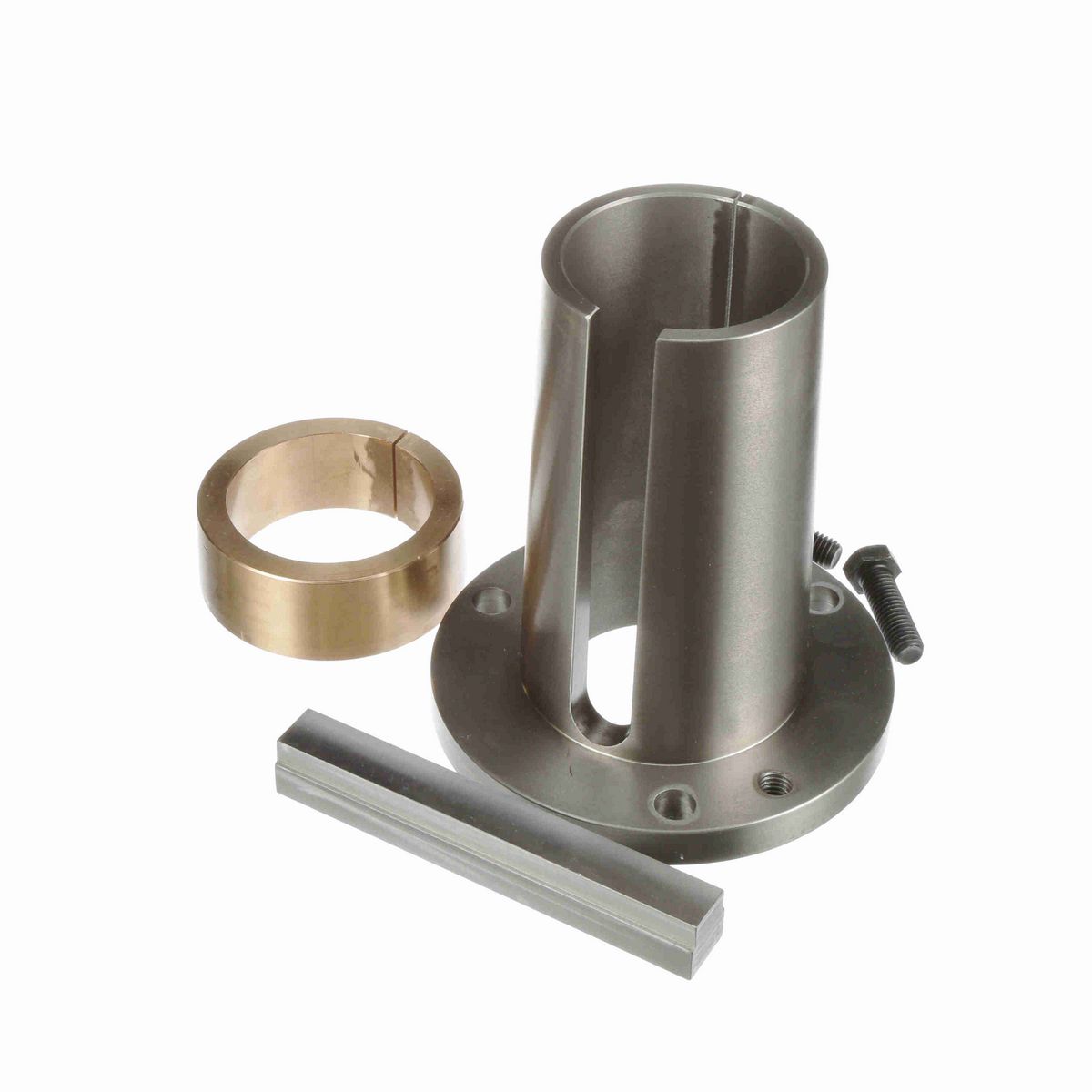

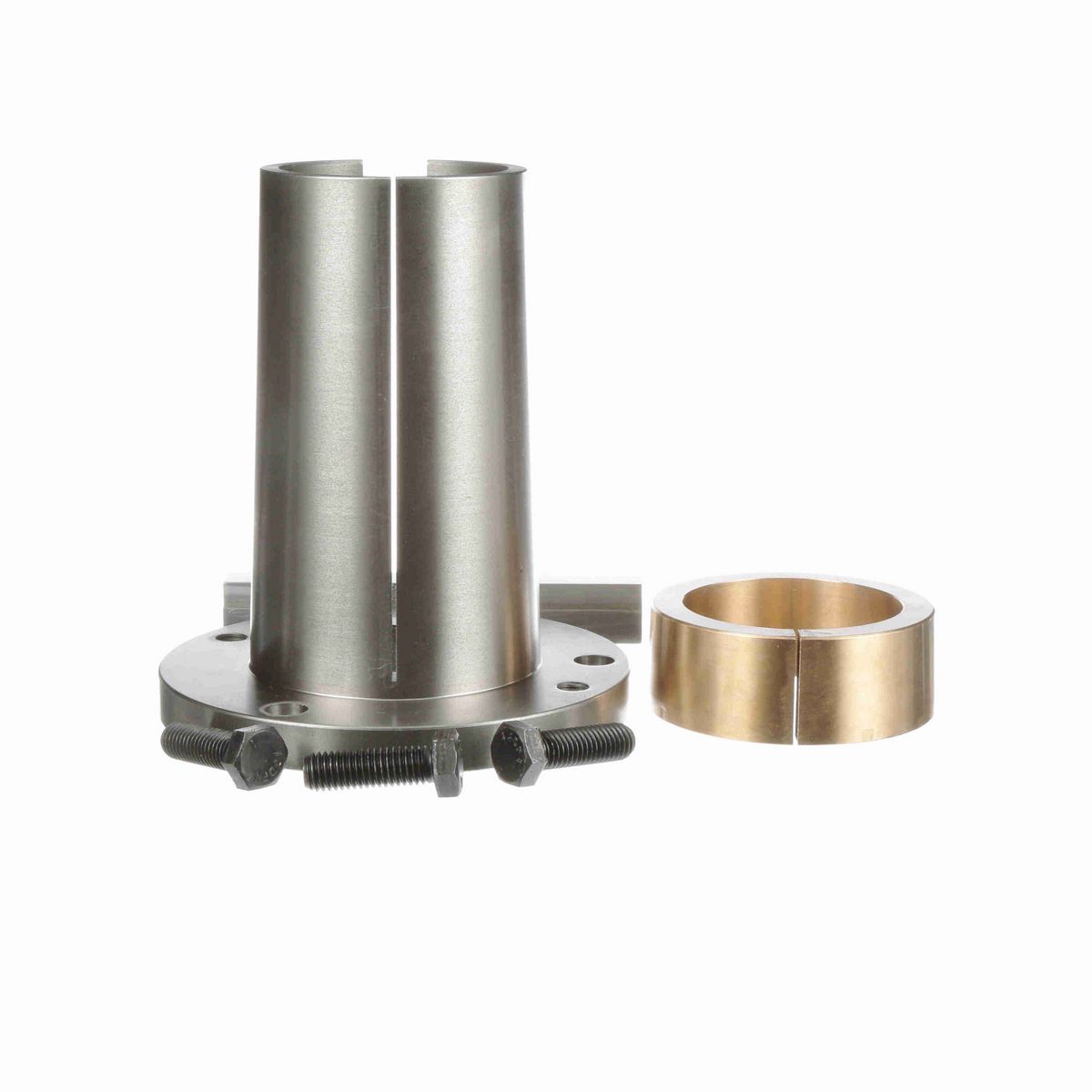

Product Type	TorqTaper Plus Bushing Kit
Length Through Bore (in)	6.75 in
Shaft keyseat	3/4 x 3/8 x 6 3/4
Outside Diameter (in)	6.44 in
Bore Type	Inch
Bushing Type	Tapered Bushing Kit
Includes	Bushing, Key, Capscrews, stablizer ring

General Specifications

UPC	662460502243
Weight	14.67 LB
Packaged Length	7.40 IN
Packaged Width	7.30 IN
Packaged Height	8.00 IN
HTC	8483.90.5090
Country of Origin	Mexico
