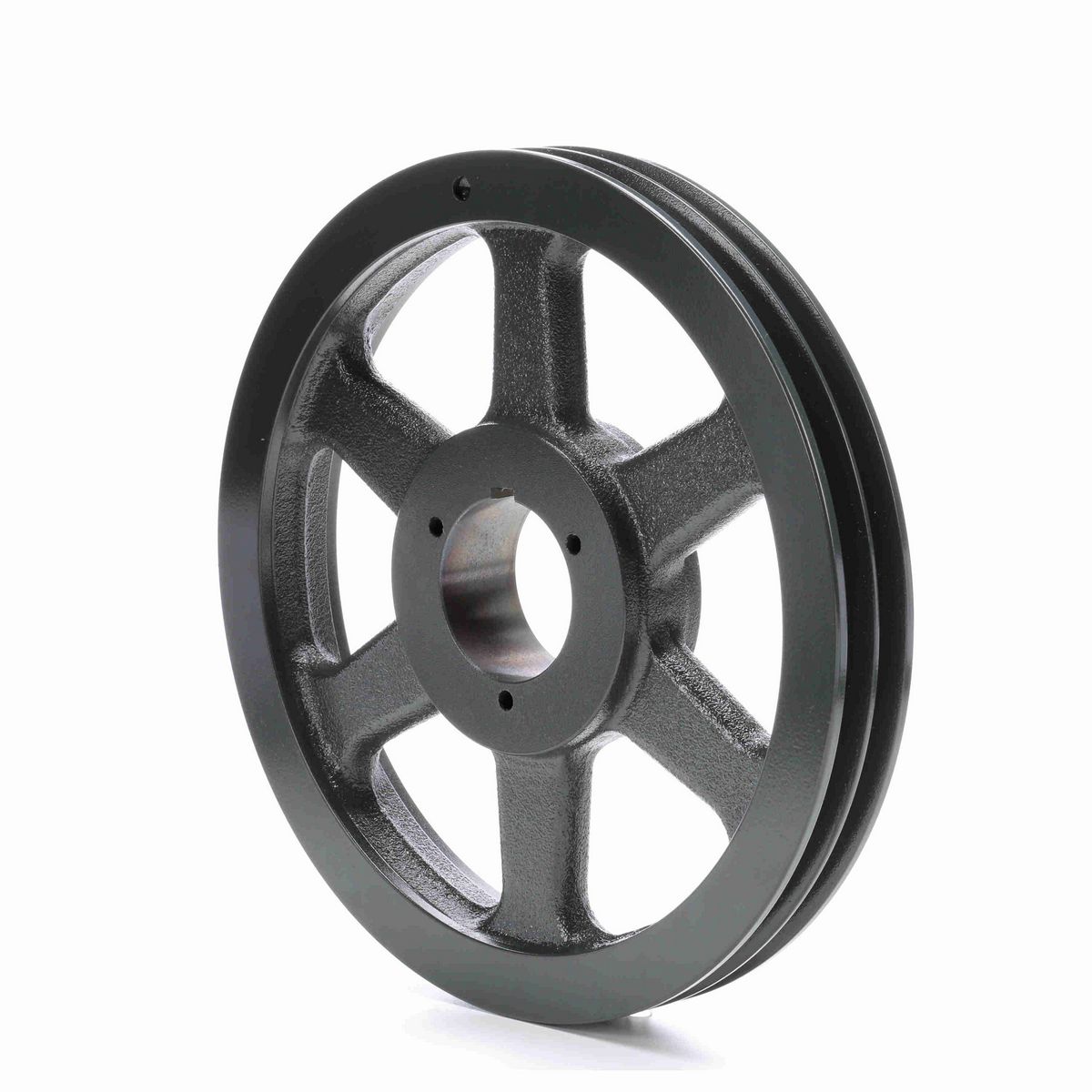

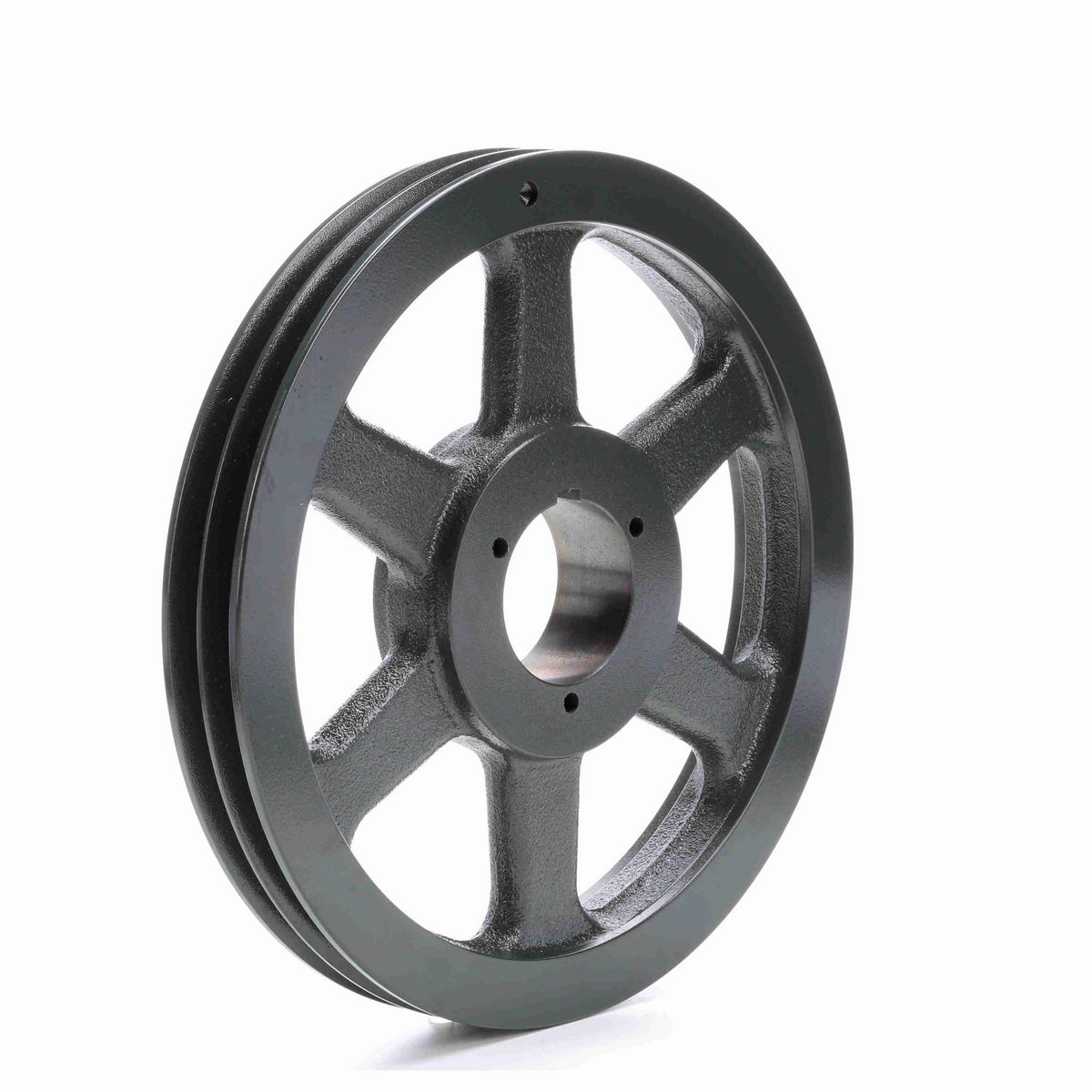

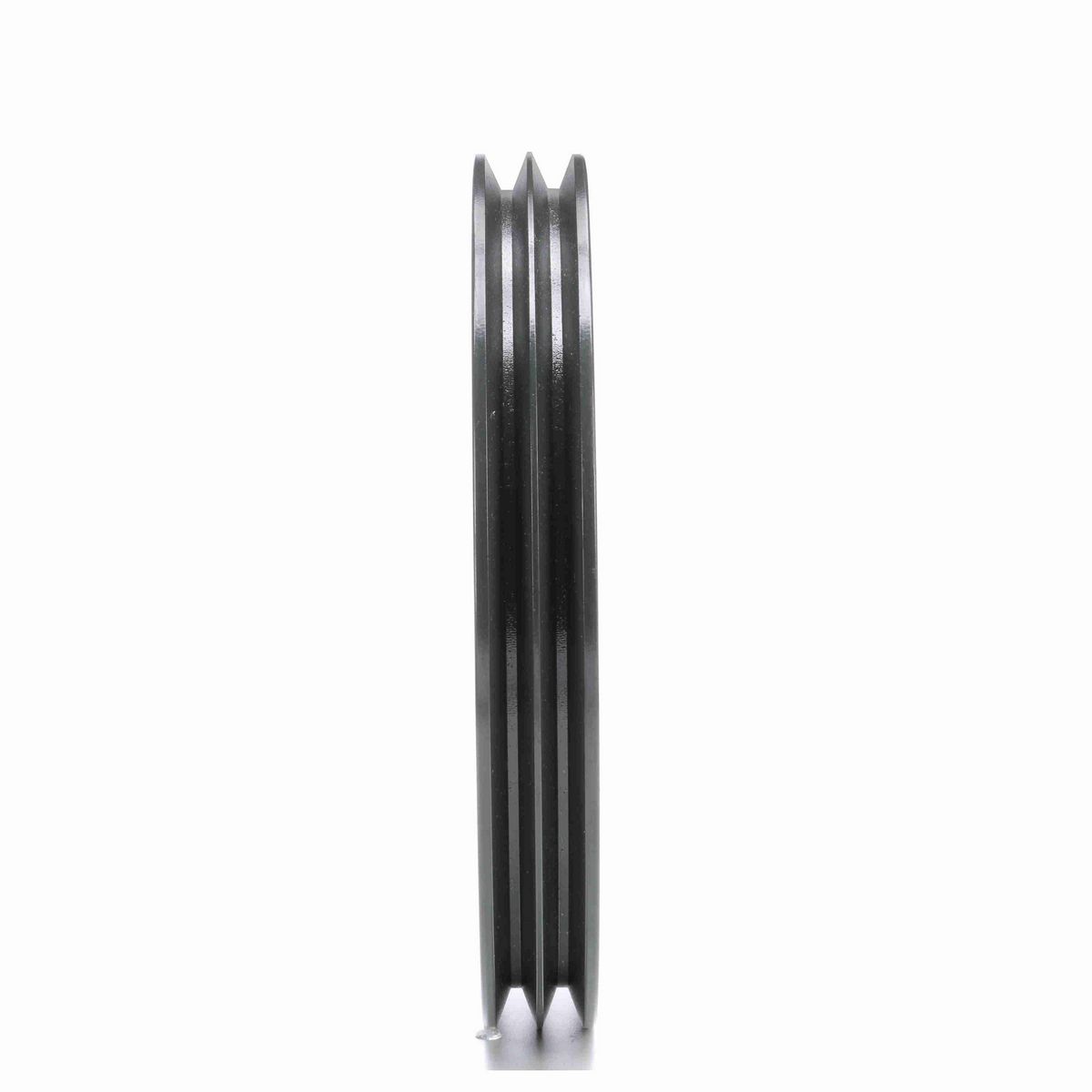

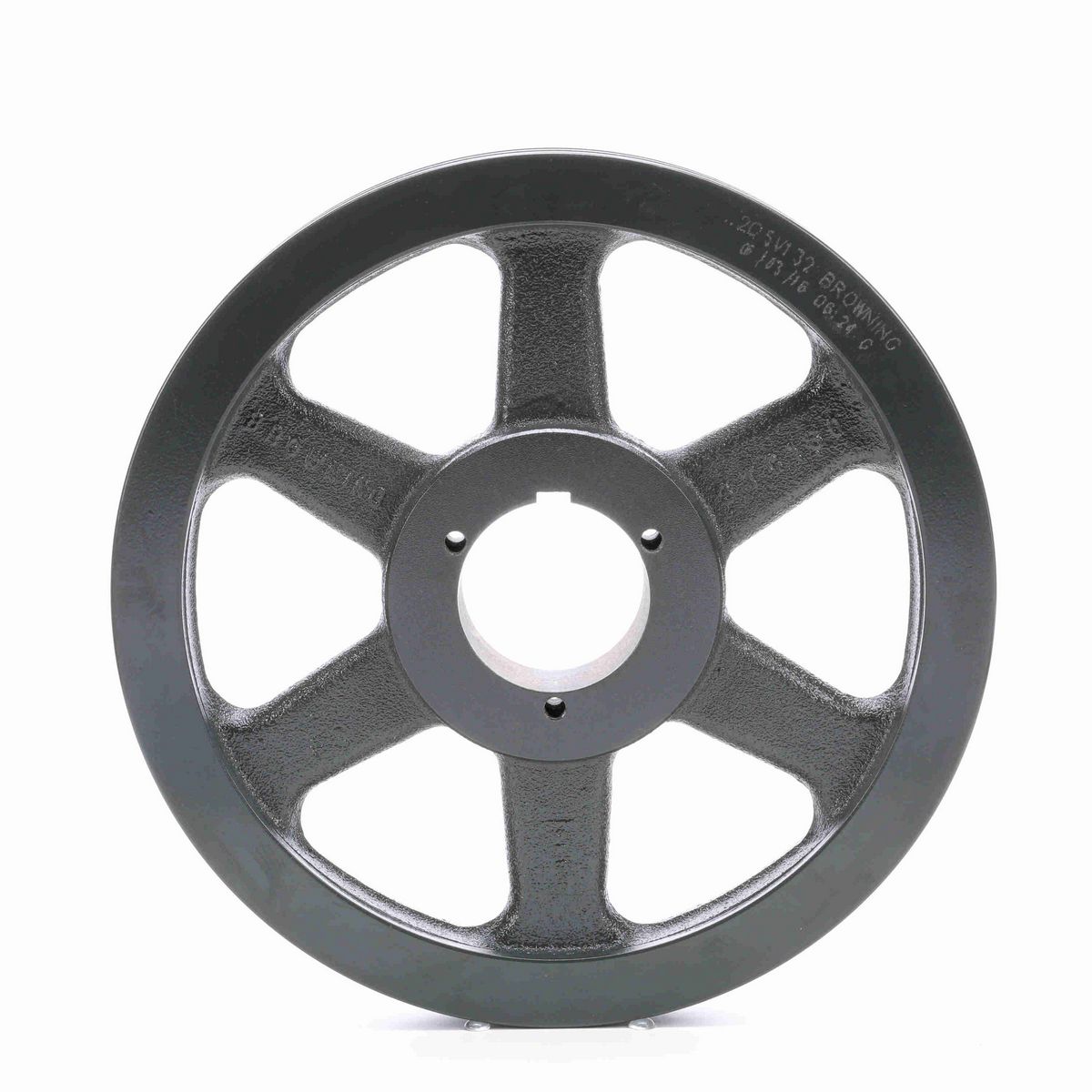

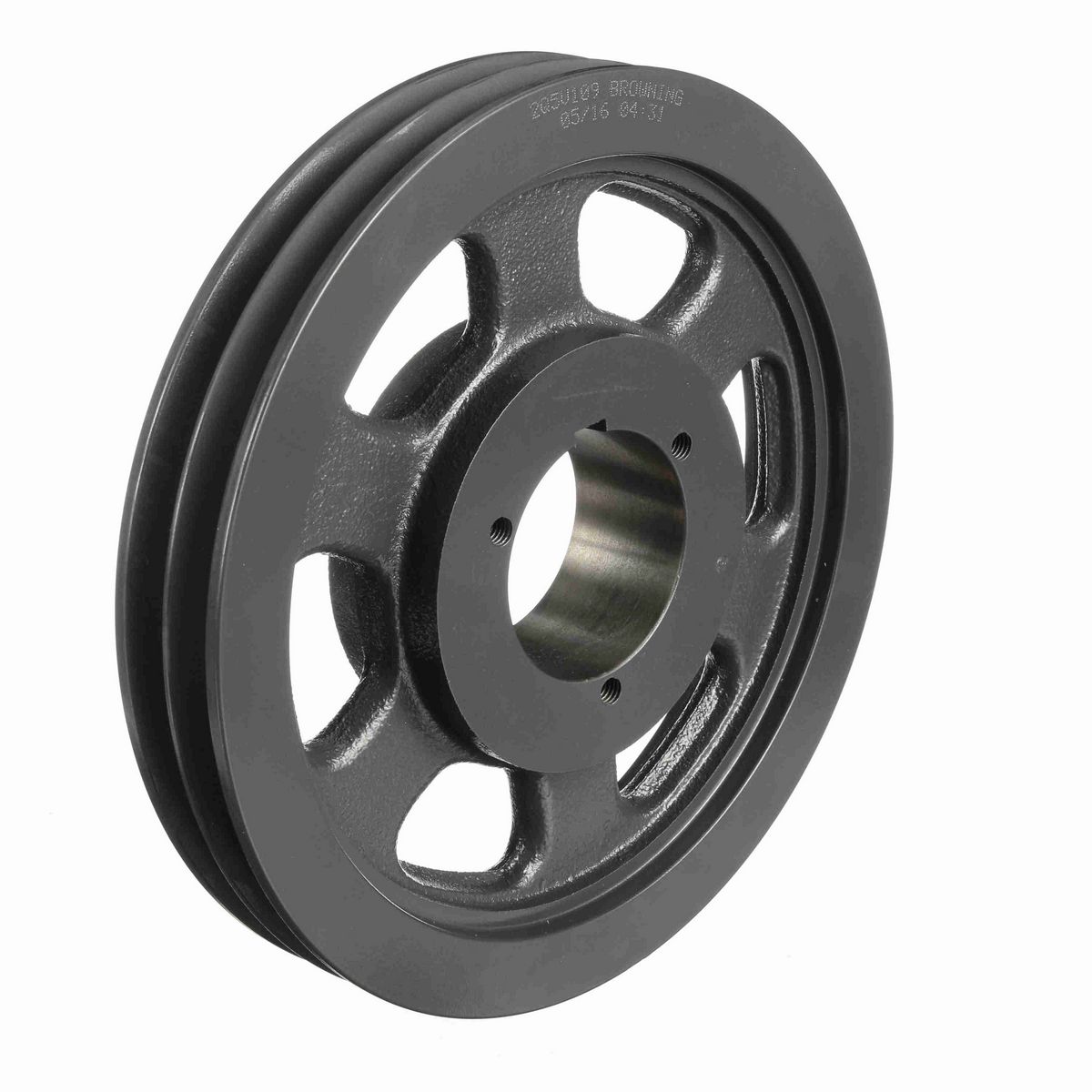

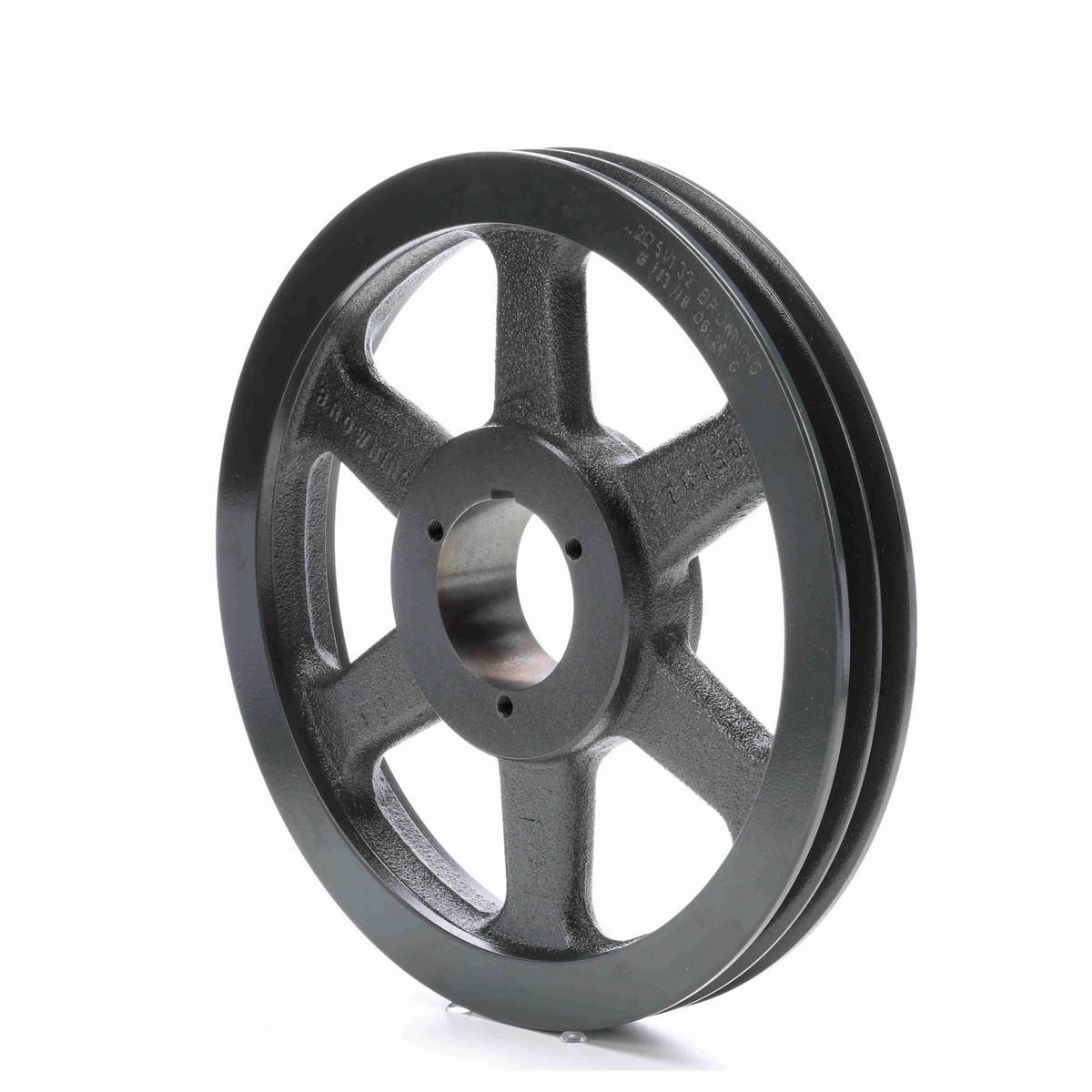

• Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
• Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance.
• Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.

Technical Specifications

Overall Length (in)	2.828125 in
Number of Grooves	2
Outside Diameter (in)	13.2 in
Pitch Diameter (5V)	13.1
Bushing Used	Q1
Material	Cast Iron
Pulley Material	Cast Iron
Bore (Min) (in)	0.75 in
Belt Section	5V
Product Type	Multiple Sheaves
Bore Type	Split Taper Bushed
Bushing Bore Range	2.6875 - 2.6875
Face Width (in)	1.6875
Keyway Size	.500
Overall Width (in)	2.78125
Pulley Construction	Spoked

General Specifications

UPC	662289281039
Weight	25.35 LB
Packaged Length	14.00 IN
Packaged Width	14.00 IN
Packaged Height	1.75 IN
