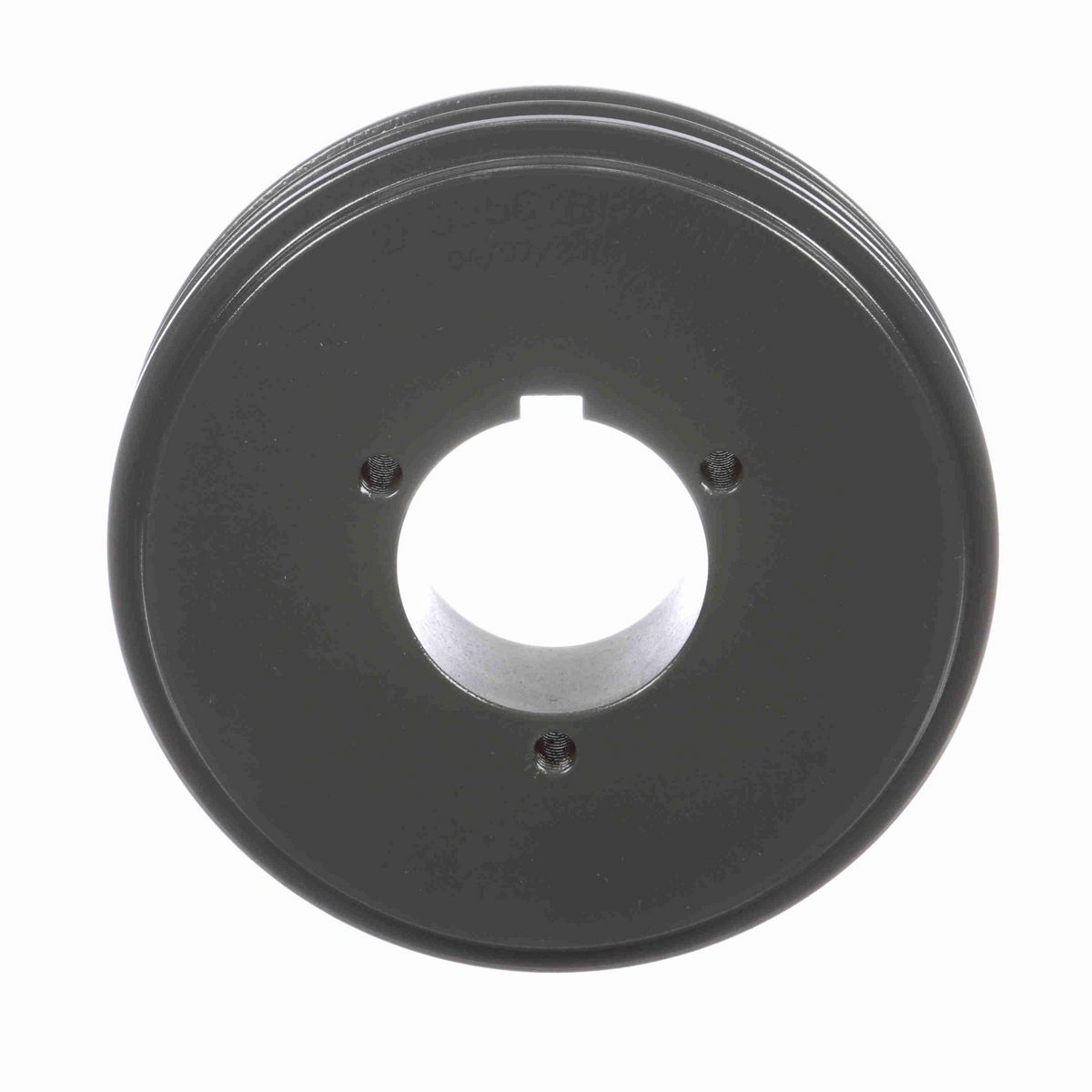

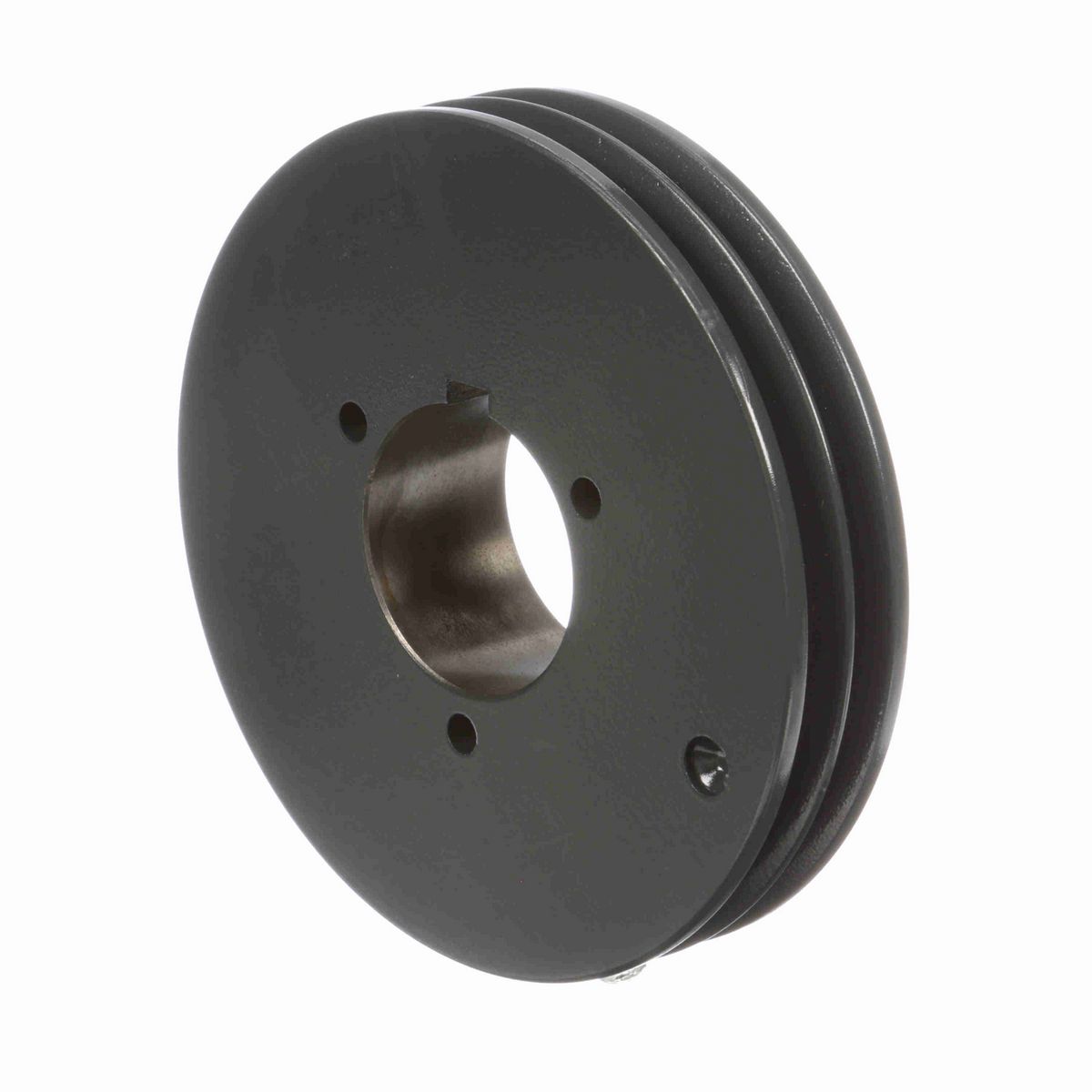

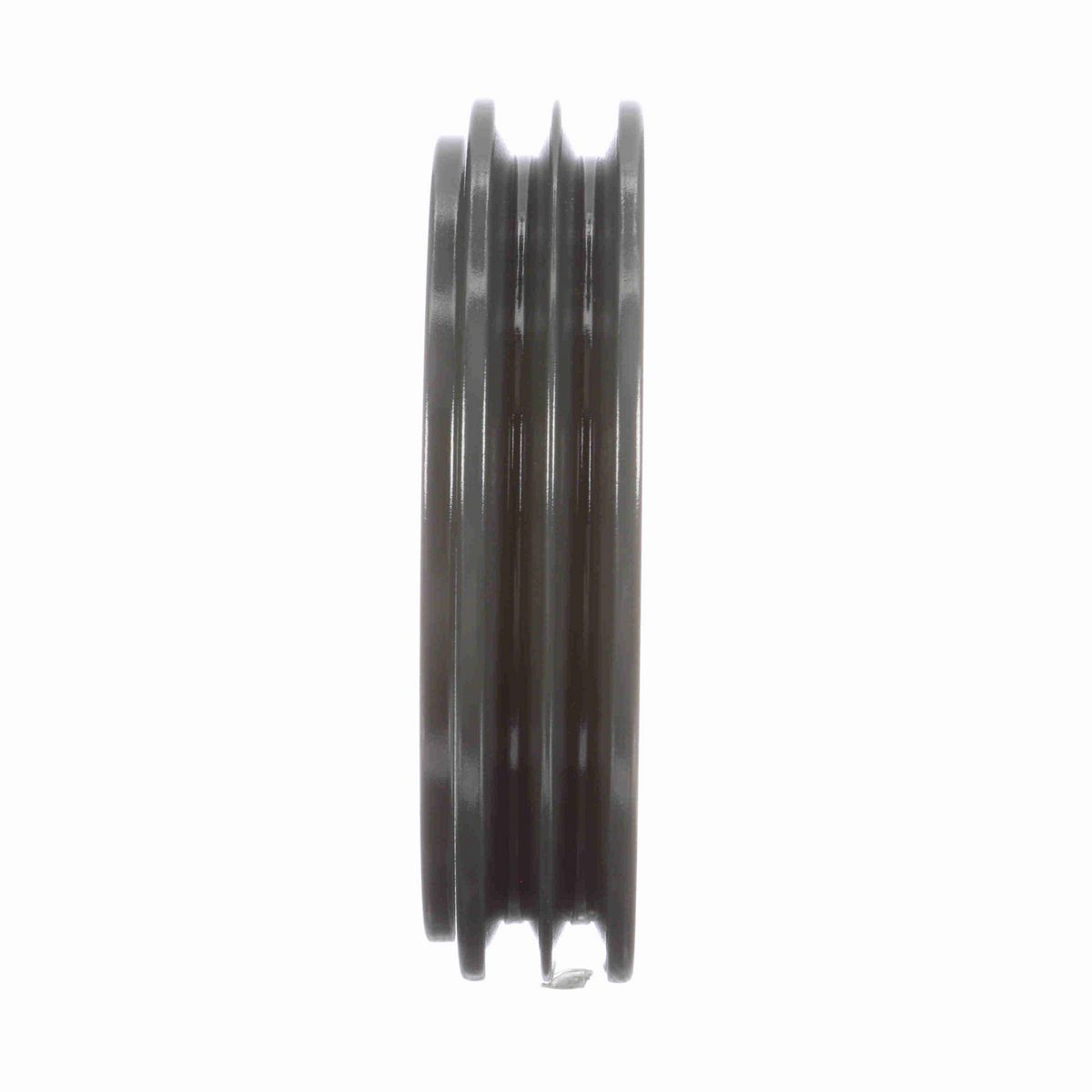

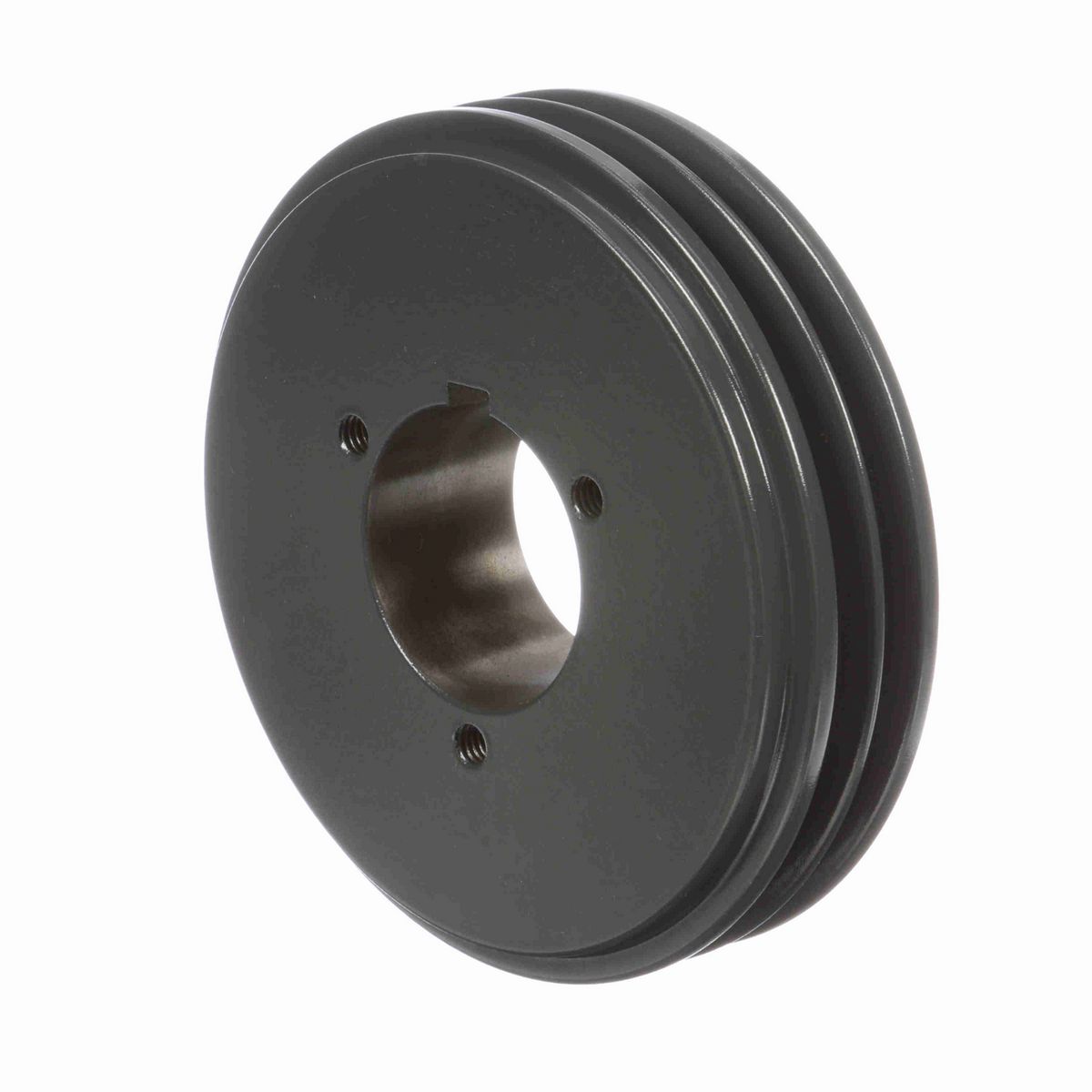

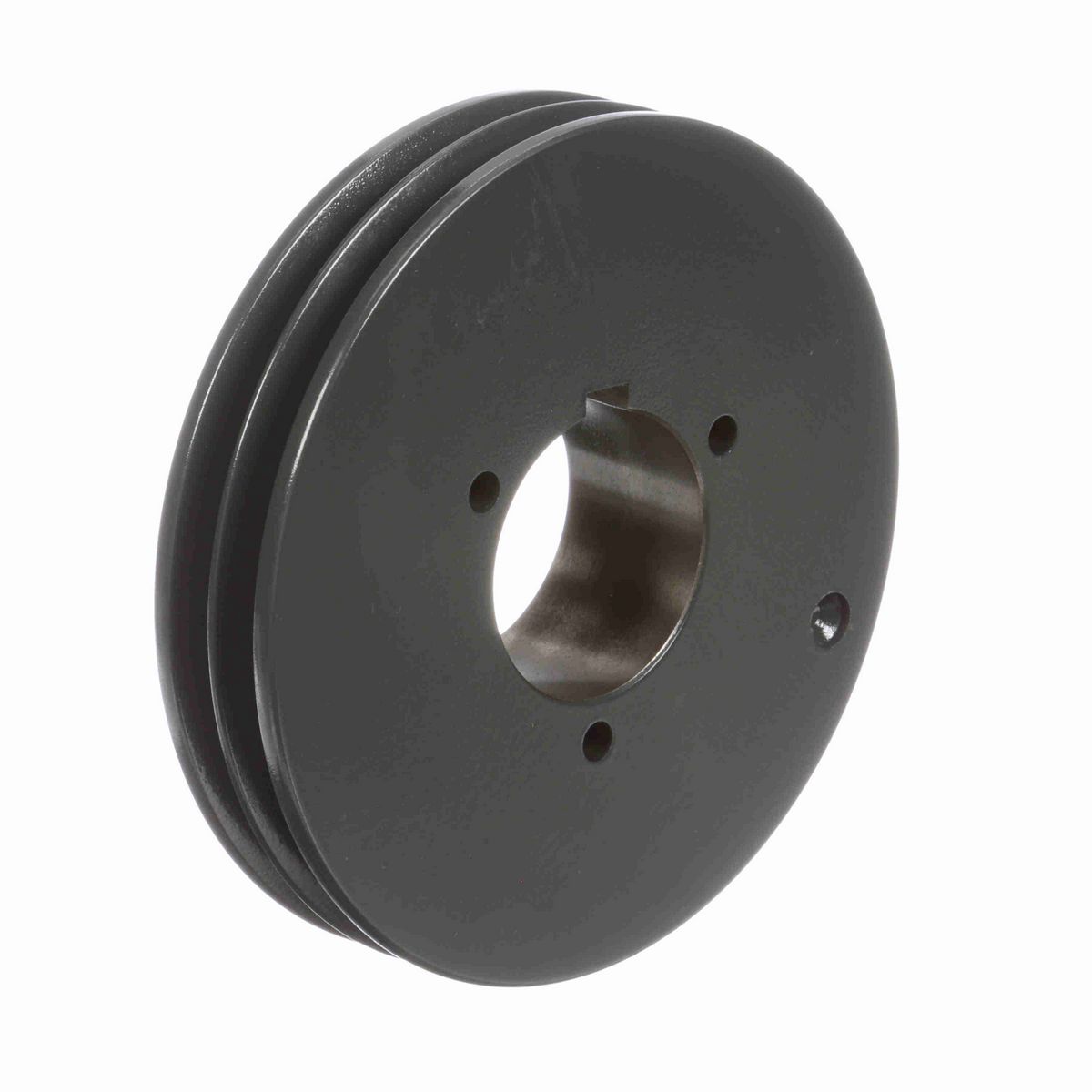

• Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
• Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance.
• Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.

Technical Specifications

Pitch Diameter (3V)	5.55
Overall Length (in)	2.140625 in
Pulley Material	Cast Iron
Number of Grooves	2
Bushing Used	P1
Outside Diameter (in)	5.6 in
Material	Cast Iron
Bore (Min) (in)	0.5 in
Belt Section	3V
Product Type	Multiple Sheaves
Bore Type	Split Taper Bushed
Face Width (in)	1.0938
Overall Width (in)	2.1875
Bushing Bore Range	0.500 - 1.750
Pulley Construction	Plain
Keyway Size	.375

General Specifications

UPC	662289311866
Weight	6.55 LB
Packaged Length	6.06 IN
Packaged Width	6.06 IN
Packaged Height	1.56 IN
HTC	8483.50.9040
Country of Origin	Mexico
