• Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
• Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
• Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
• New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material.

Technical Specifications

Material	Cast Iron
Outside Diameter (in)	4.48 in
Overall Length (in)	2.546875 in
Pitch Diameter (B)	4.5
Datum Diameter (B)	4.2
Pitch Diameter (A)	4
Pulley Material	Cast Iron
Datum Diameter (A)	3.8
Bushing Used	P1
Pitch Diameter (5V)	4.3

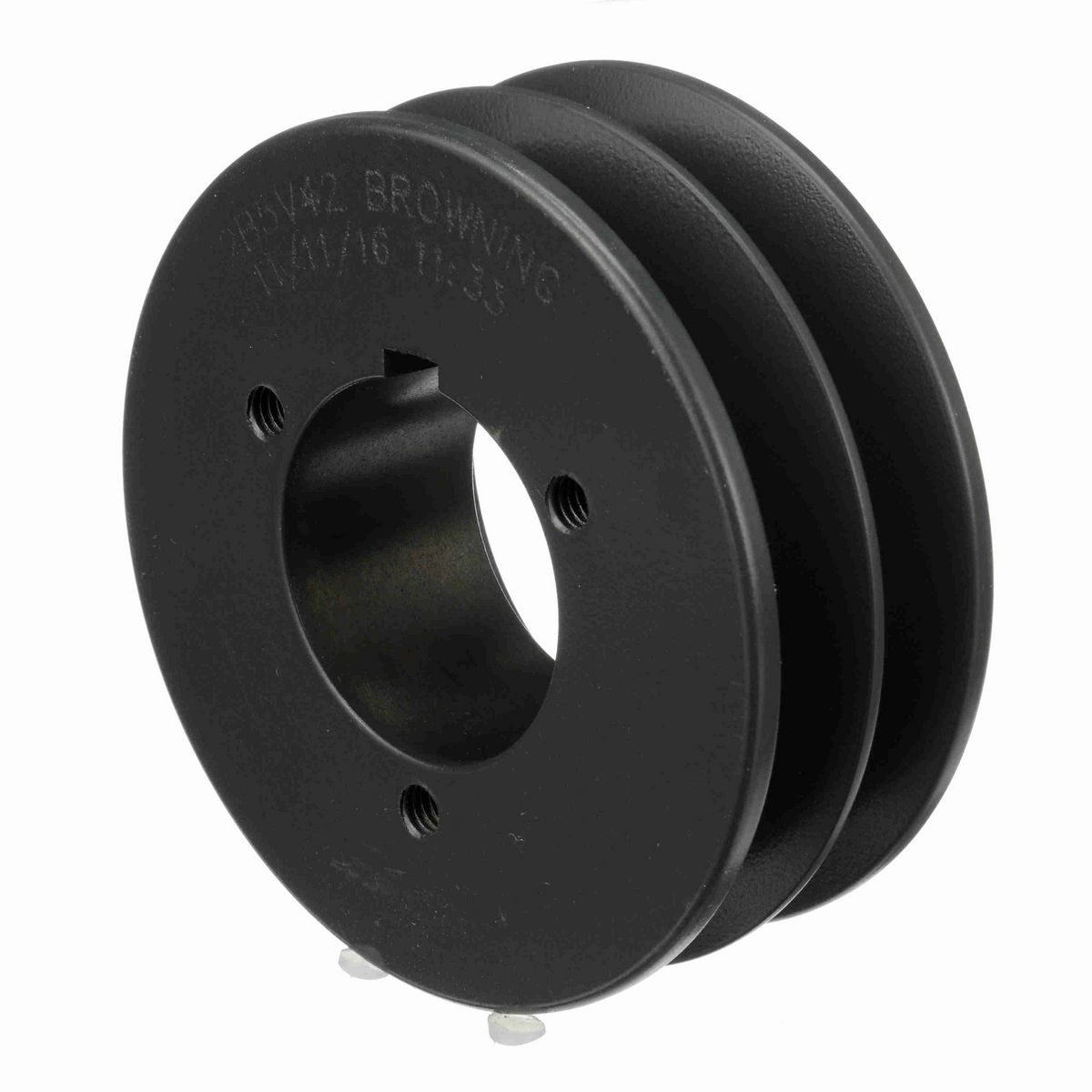

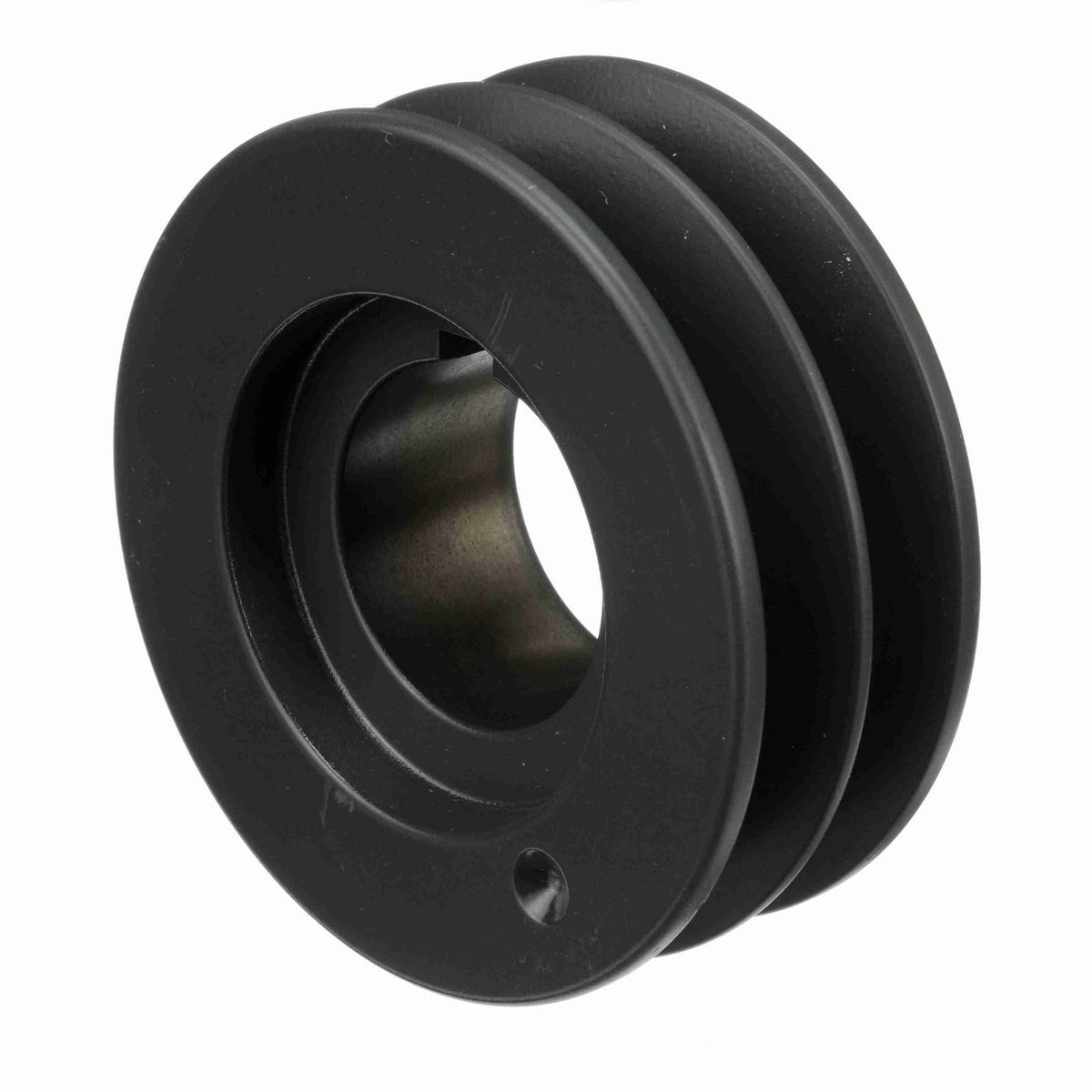

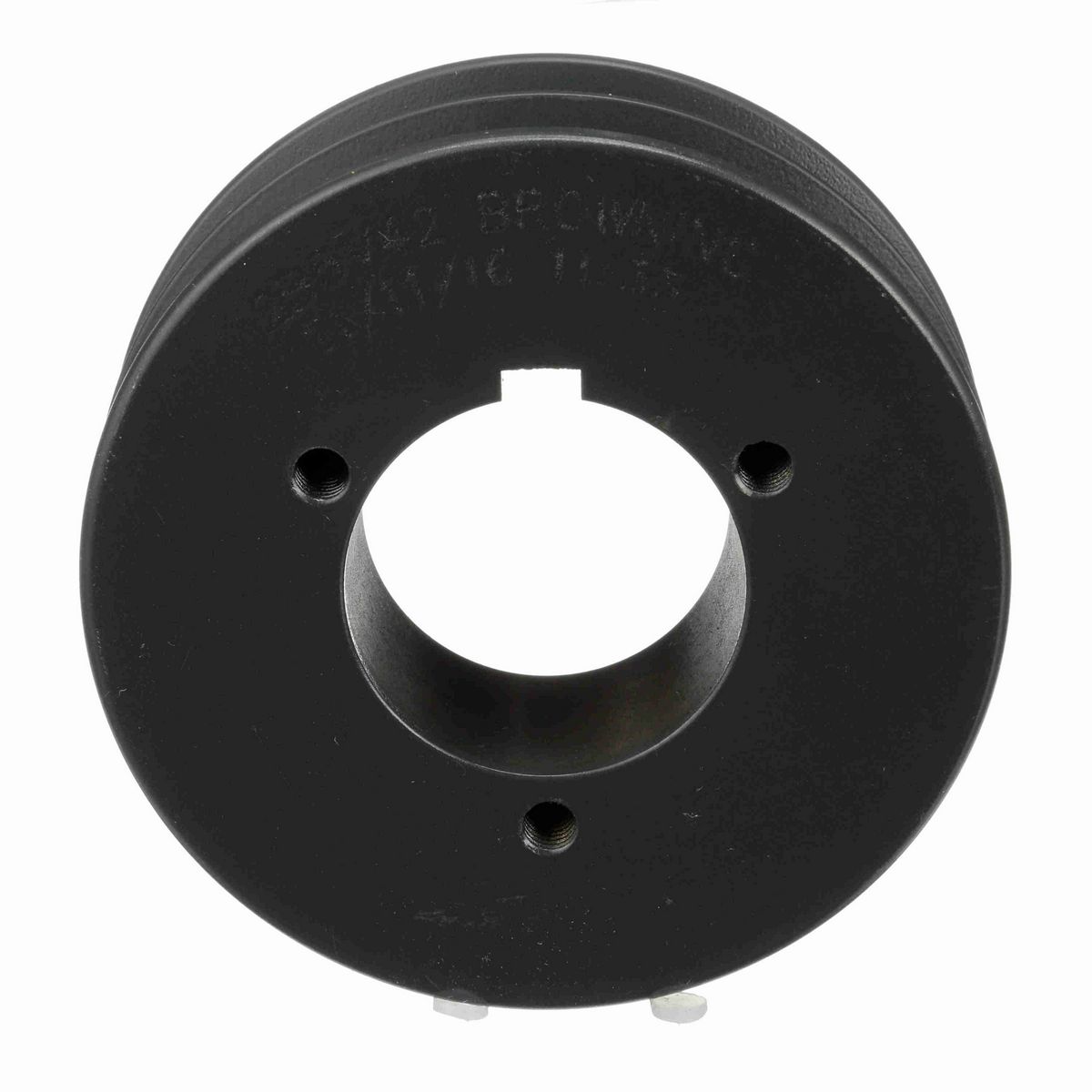

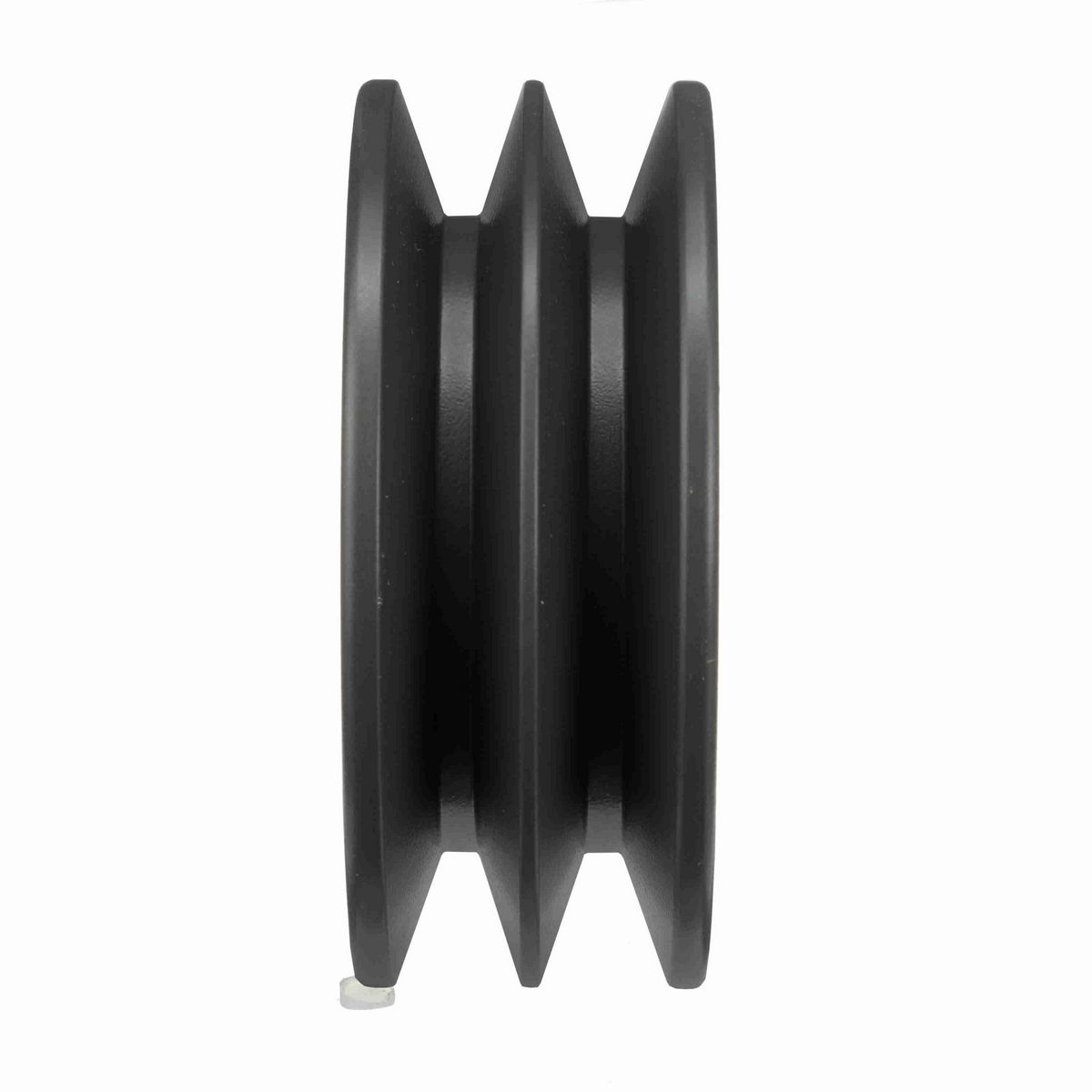

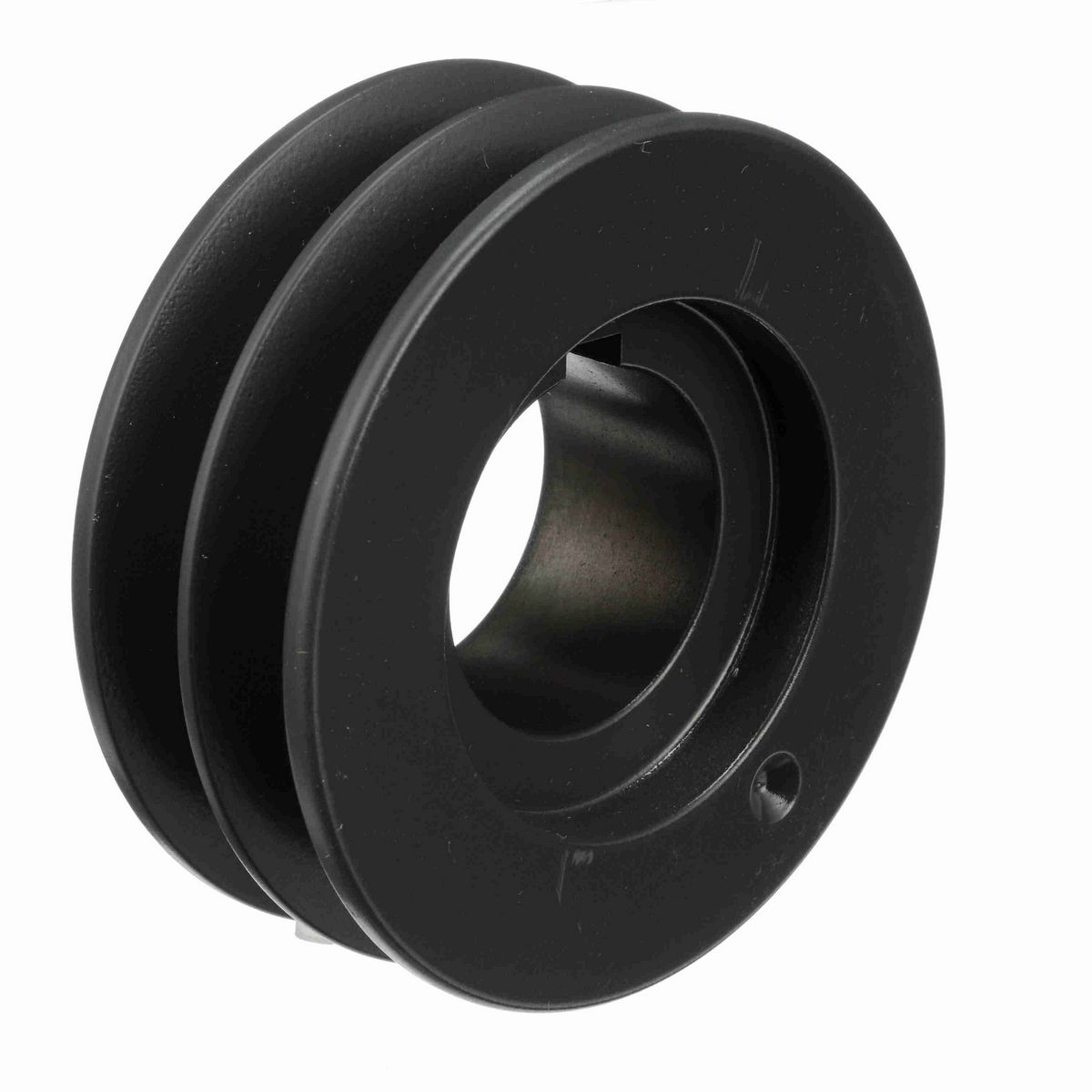

Model Name	2B5V-SheaveMaster
Number of Grooves	2
Product Type	Multiple Sheaves
Belt Section	A, B, 5V
Bore (Min) (in)	0.5 in
Bore Type	Split Taper Bushed
Pulley Construction	Plain
Bushing Bore Range	0.500 - 1.750
Overall Width (in)	2.59375
Keyway Size	0.375
Face Width (in)	1.7188

General Specifications

UPC	662289034444
Weight	3.00 LB
Packaged Length	4.70 IN
Packaged Width	5.00 IN
Packaged Height	2.40 IN
