• Largest Selection of H Bushed sheaves of any other manufacturer - Browning offers bushed sheaves in both A and B Combination (A/B) configuration. 1 and 2 Grooves are available to meet any fractional horsepower requirement.
• Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance.
• Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.

Technical Specifications

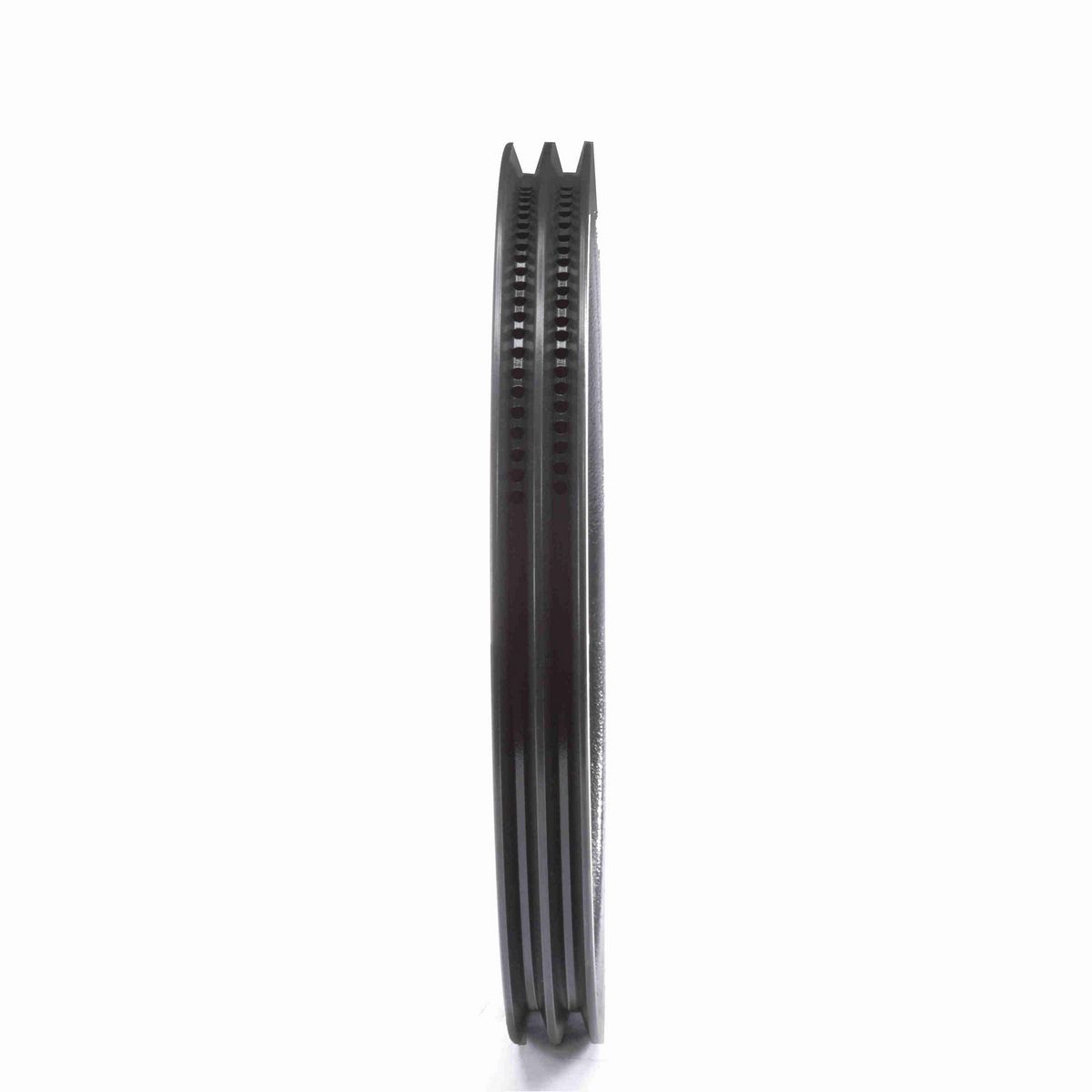

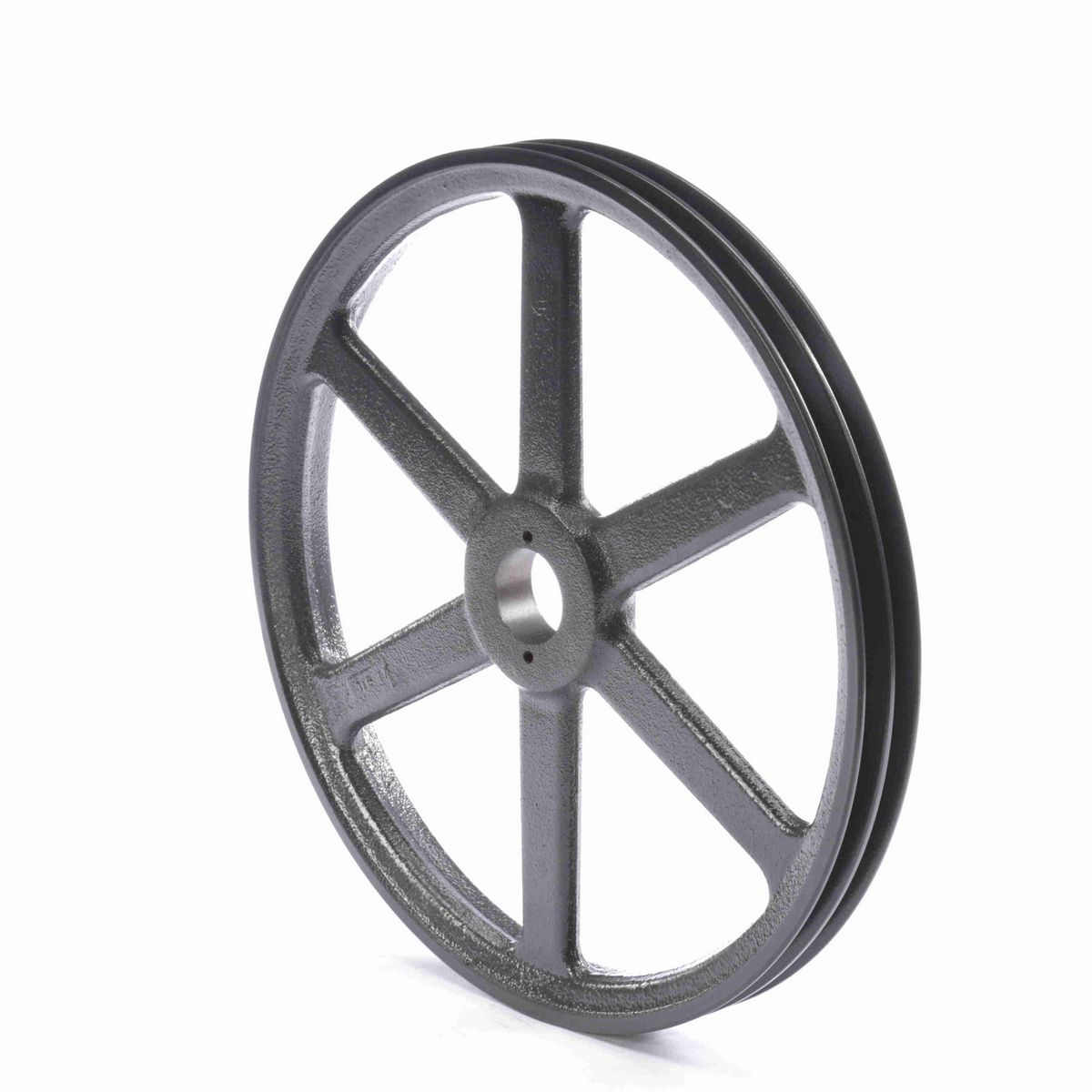

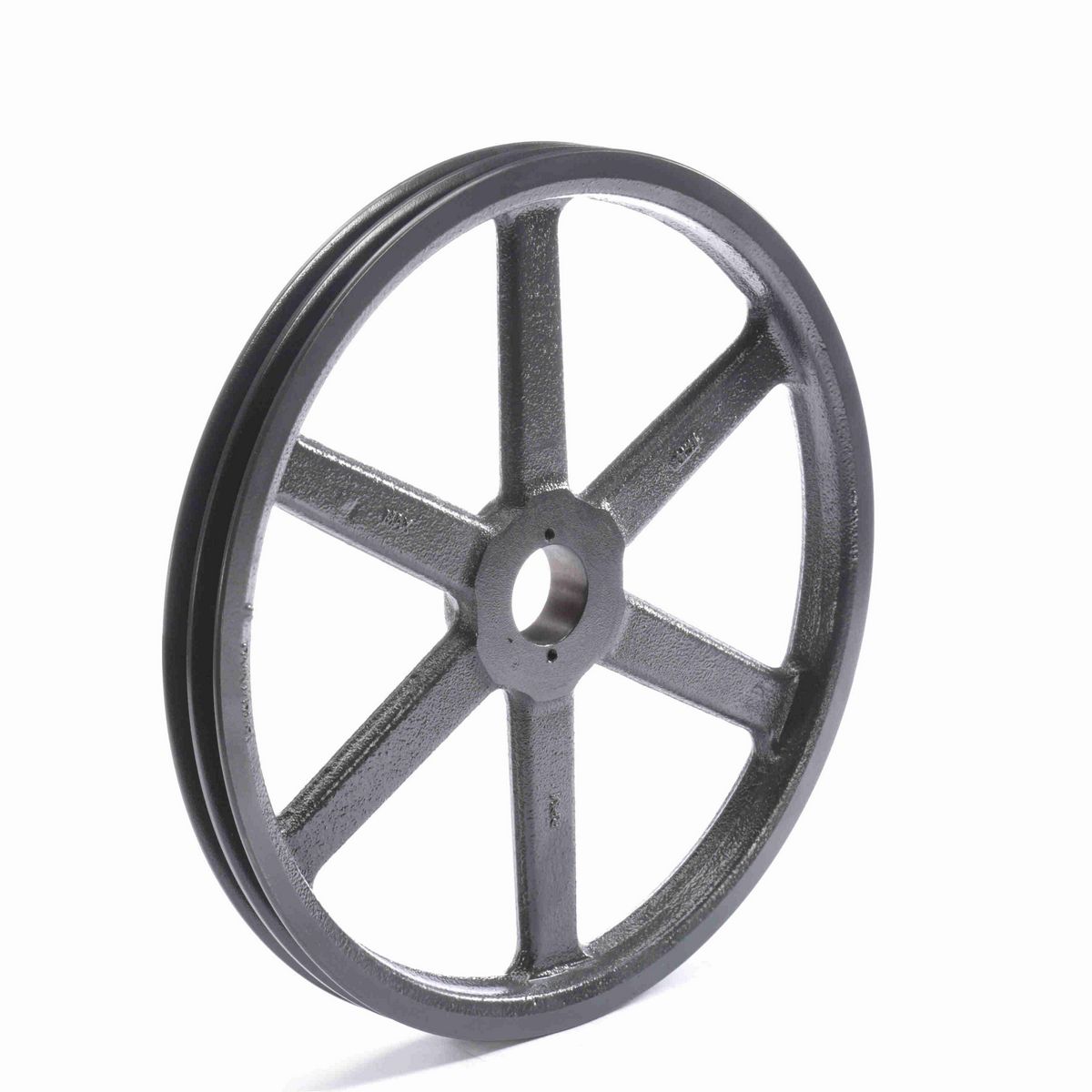

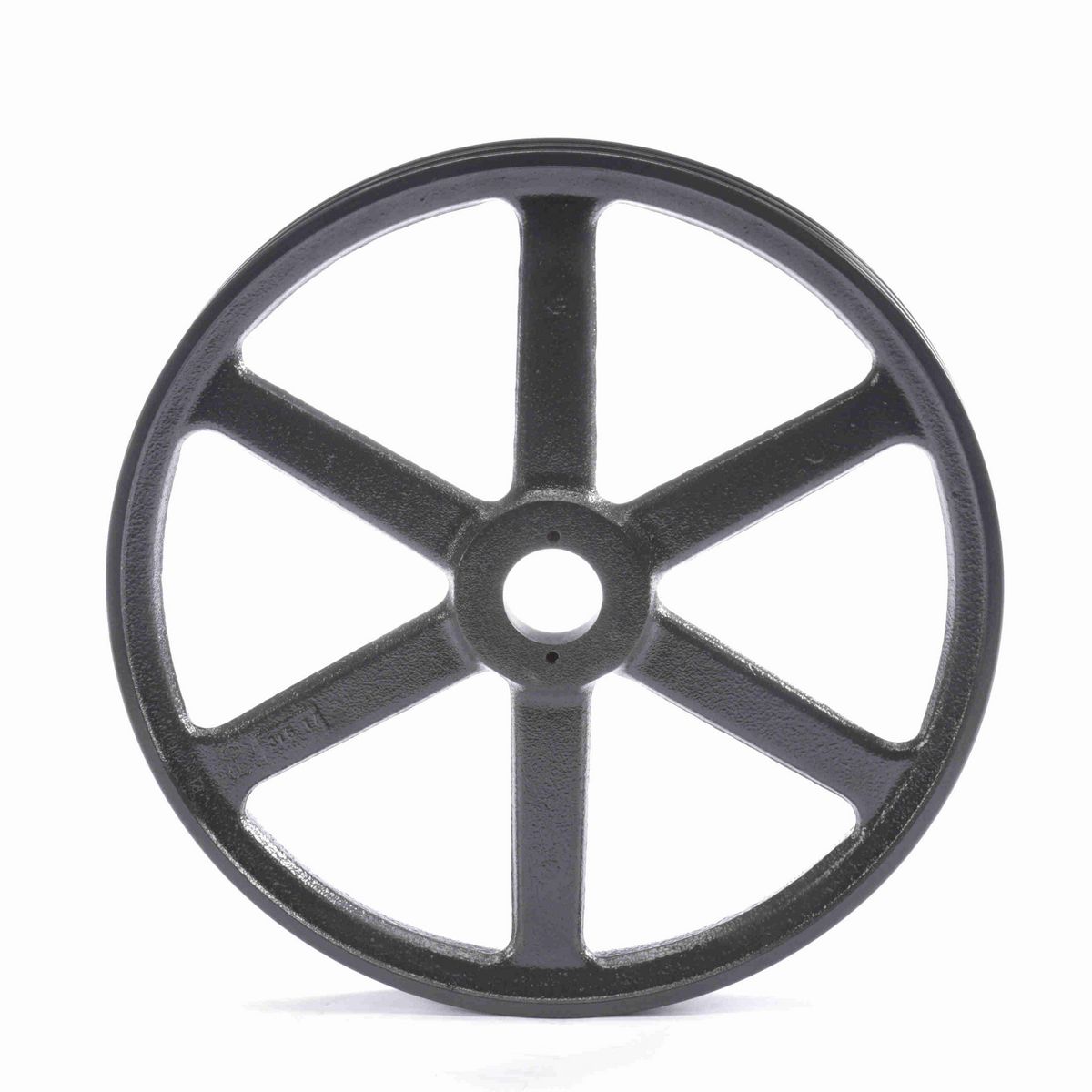

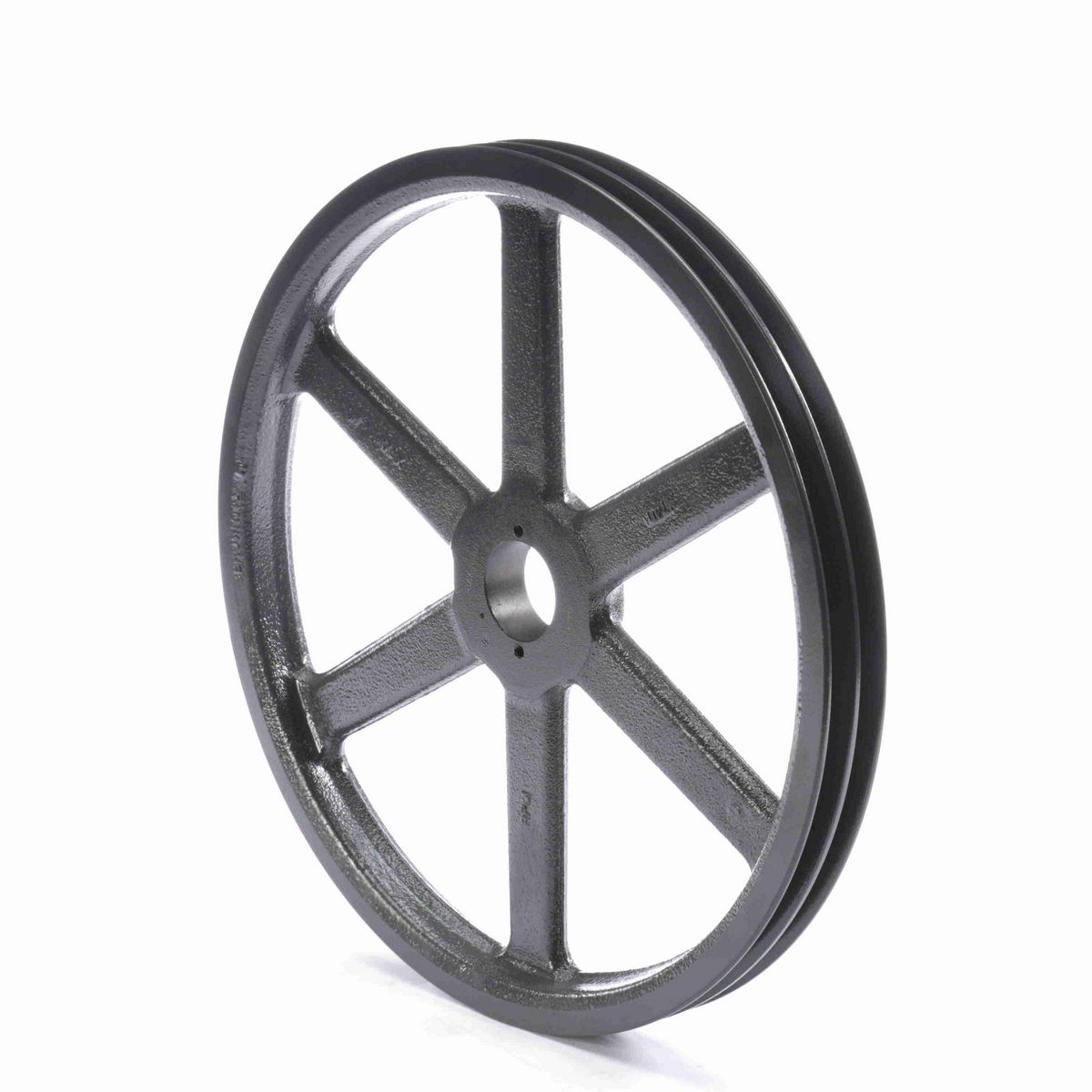

Model Name	2AKH_Sheave_Master
Material	Cast Iron
Number of Grooves	2
Pitch Diameter (3L)	13.66
Datum Diameter (A)	14
Pitch Diameter (A)	14.2
Type of Bore	Bushed
Bore (Min) (in)	0.375 in
Belt Section	4L or A, 3L
Product Type	FHP - Bushed
Outside Length (in)	1.5 in
Outside Diameter (in)	14.25 in
Bore Type	Split Taper Bushed
Face Width (in)	1.375
Overall Width (in)	1.5
Bushing Bore Range	0.375 - 1.500
Pulley Construction	Plain

General Specifications

UPC	662289102631
Weight	12.66 LB
Packaged Length	14.31 IN
Packaged Width	14.31 IN
Packaged Height	1.56 IN
HTC	8483.50.9040
Country of Origin	Mexico
