• Constant Speed - No slip; no creep; minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets.
• Light Weight - High horsepower-to-weight ratio makes Browning Gearbelt drives ideal for any application where weight is a factor.
• Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement.
• Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft; Split Taper and QD Bushing styles, as well as, finished and minimum plain bore.

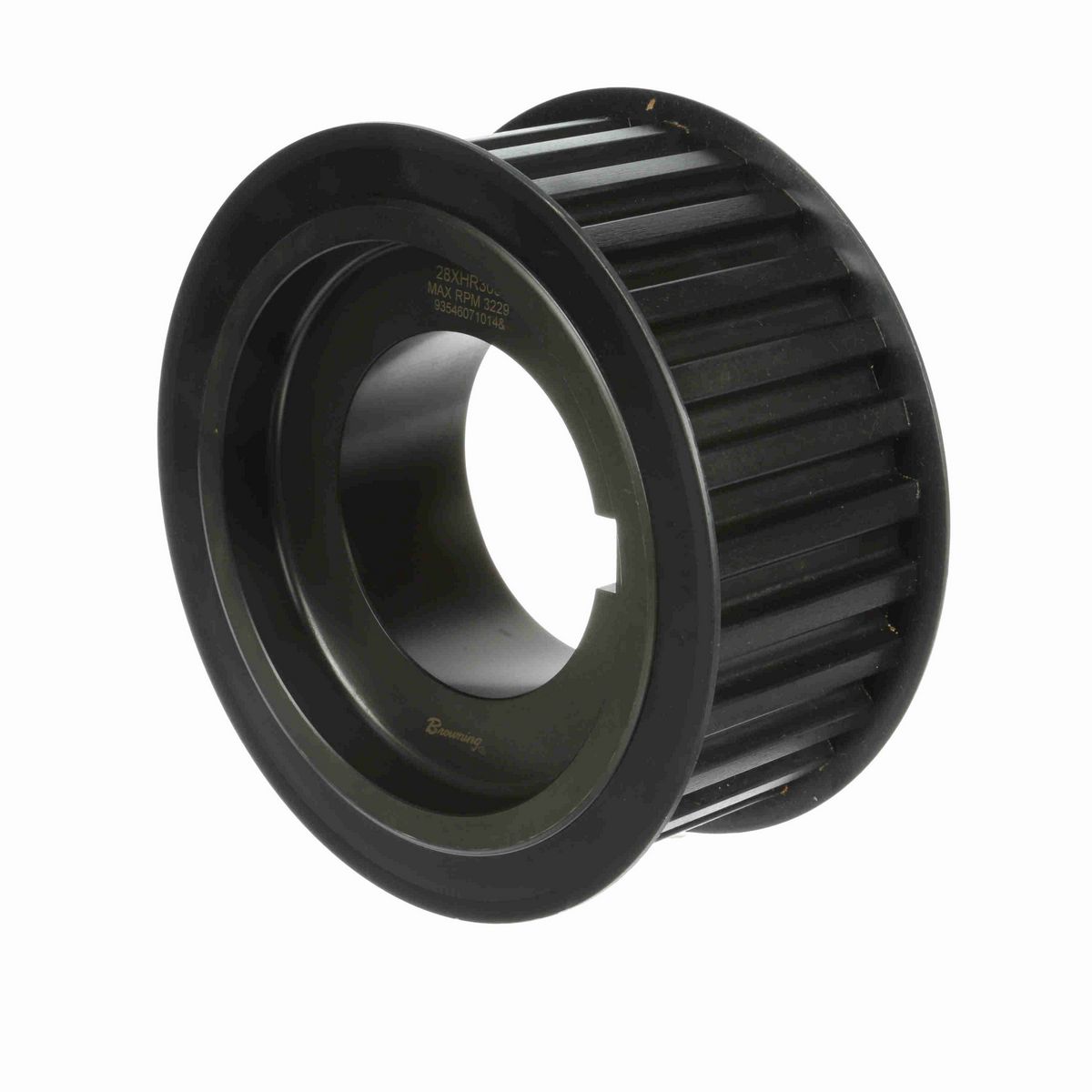

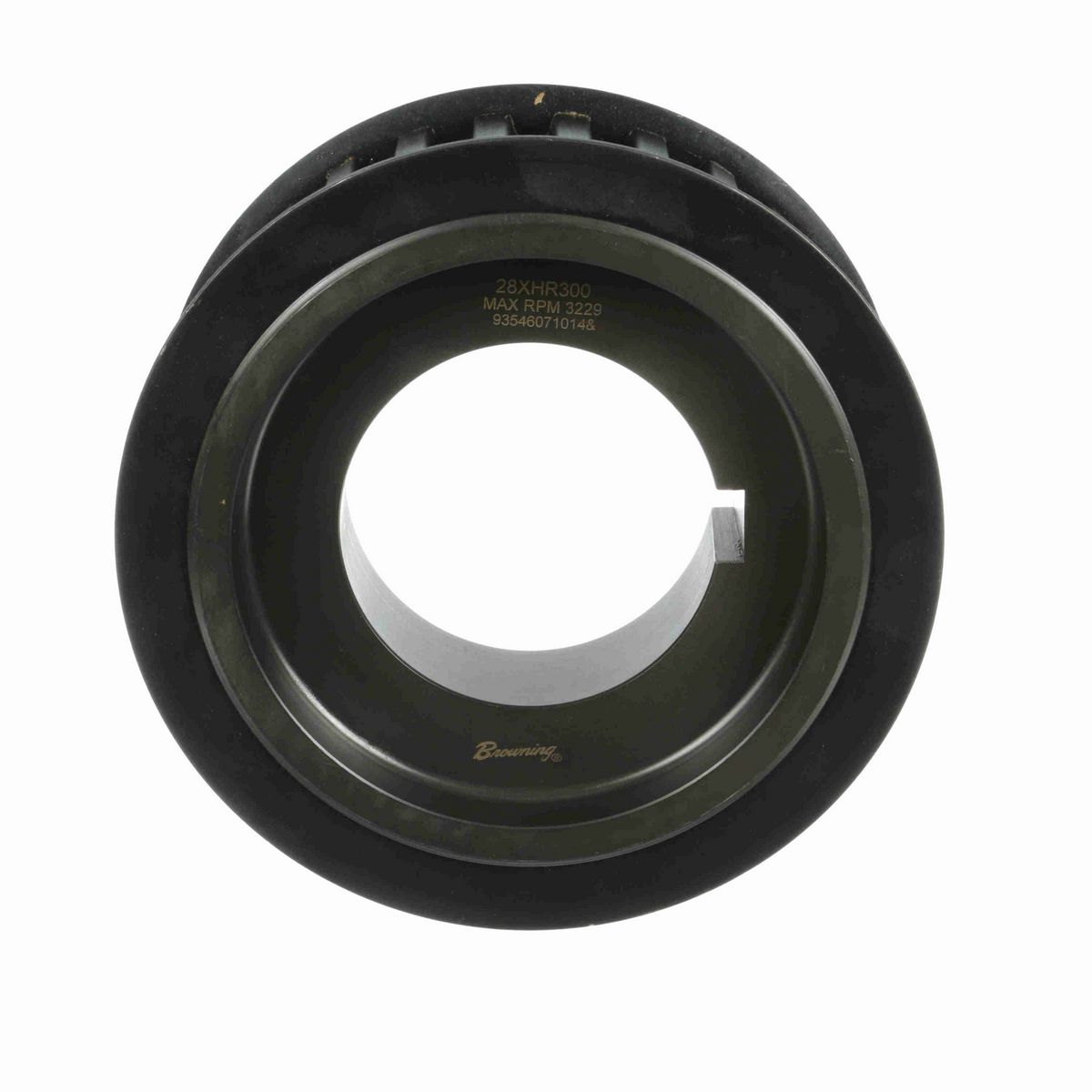

Technical Specifications

Number of teeth	28
Bore Range	1 1/8 to 3 3/4
Width (mm)	76.2 mm
Product Type	Gearbelt Pulley
Bore Type	Bushed Bore
Material	Steel
Belt Section	XH
Width (in)	3 in
Outside Diameter (in)	7.689 in
Inside Diameter (in)	5.9375 in
Pitch Diameter (in)	7.799 in
Outside Diameter (mm)	195.3006 mm
Flange (in)	8.3750 in
Face Width	3.625
Length Through Bore	2.875
Pulley Construction	Solid
Overall Length (in)	3.90625 in
With Flanges	With Flanges

General Specifications

UPC	662289104468
Weight	23.00 LB
Packaged Length	9.06 IN
Packaged Width	9.06 IN
Packaged Height	3.75 IN
HTC	8483.50.9080
Country of Origin	United States of America
