• Constant Speed - No slip; no creep; minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets.
• Light Weight - High horsepower-to-weight ratio makes Browning Gearbelt drives ideal for any application where weight is a factor.
• Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement.
• Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft; Split Taper and QD Bushing styles, as well as, finished and minimum plain bore.

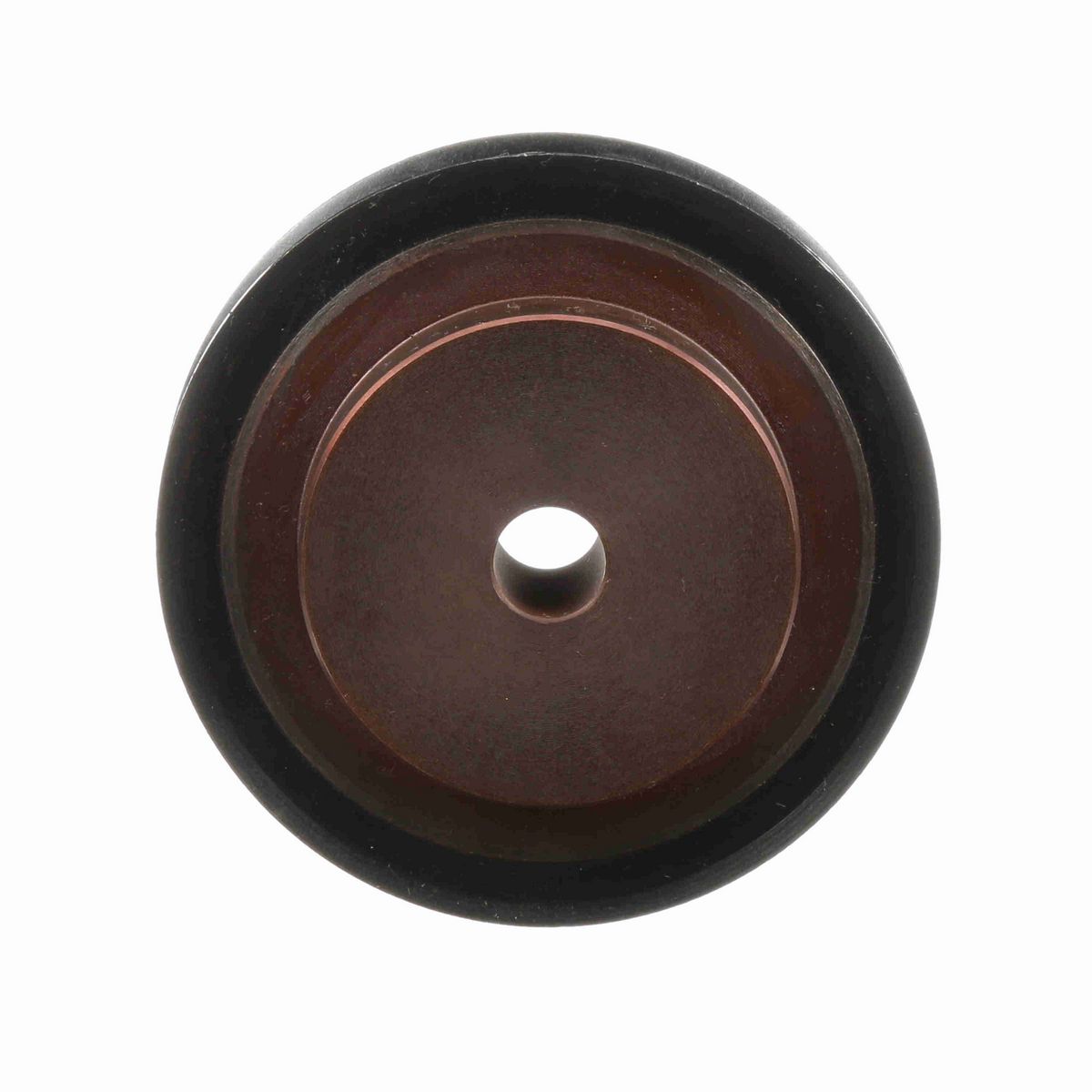

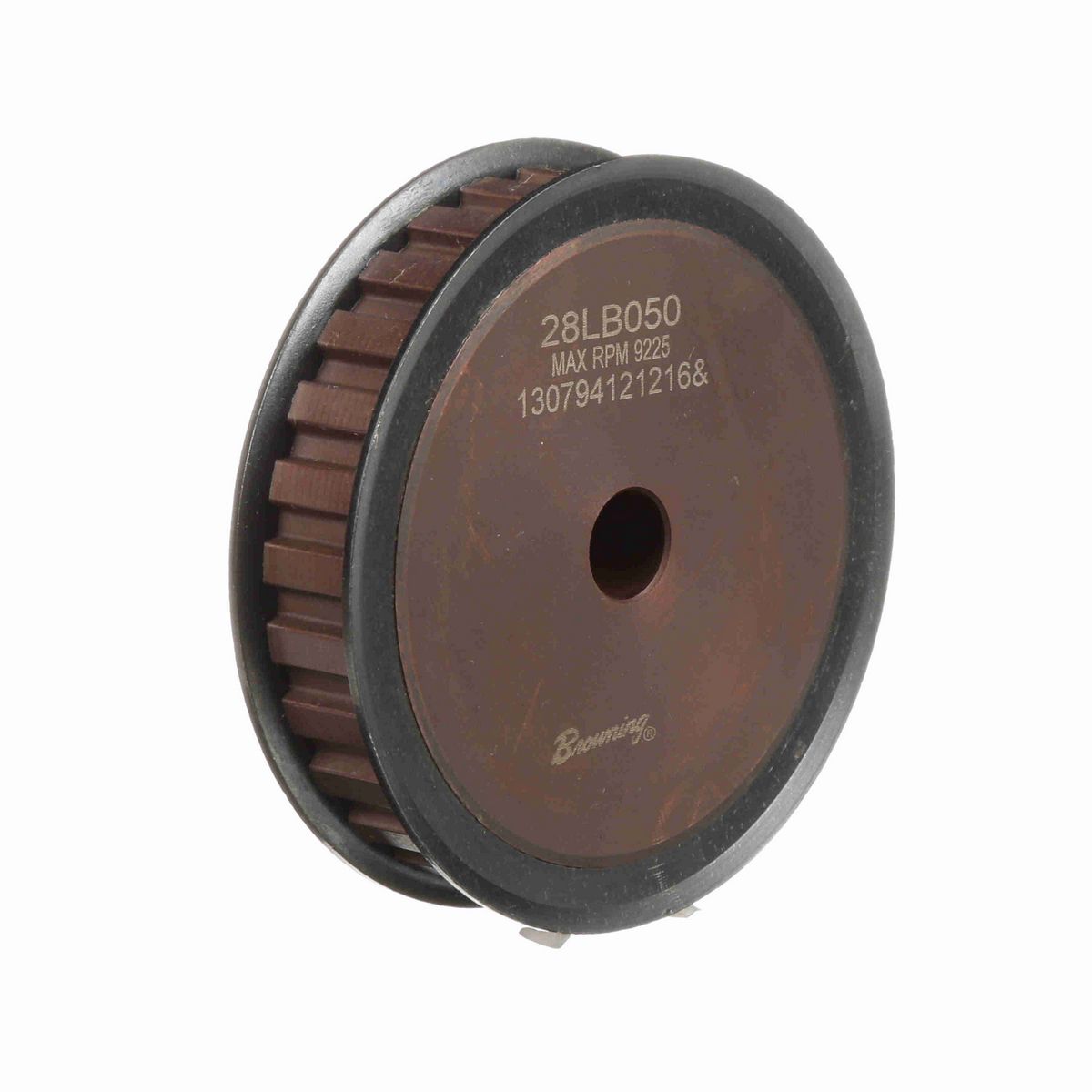

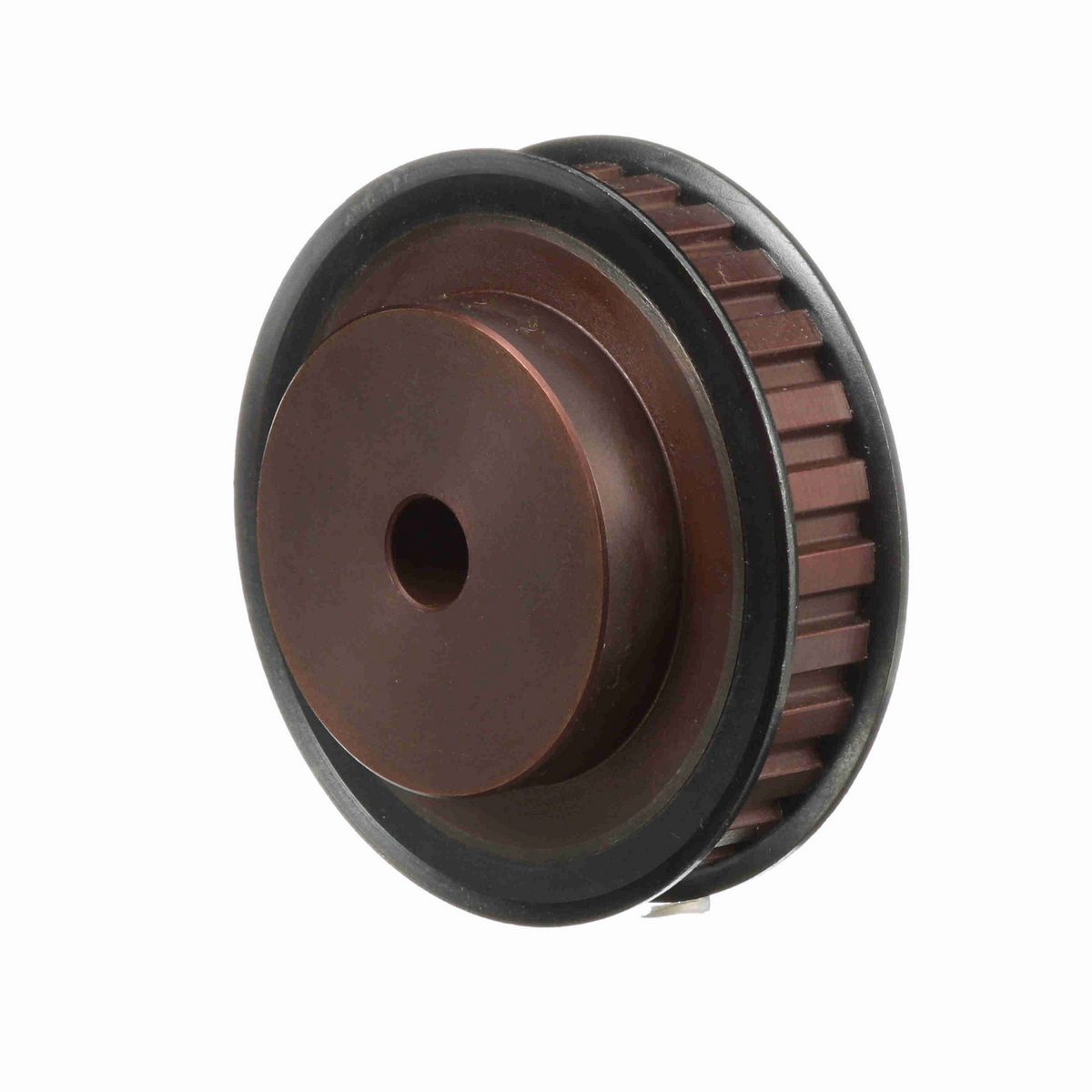

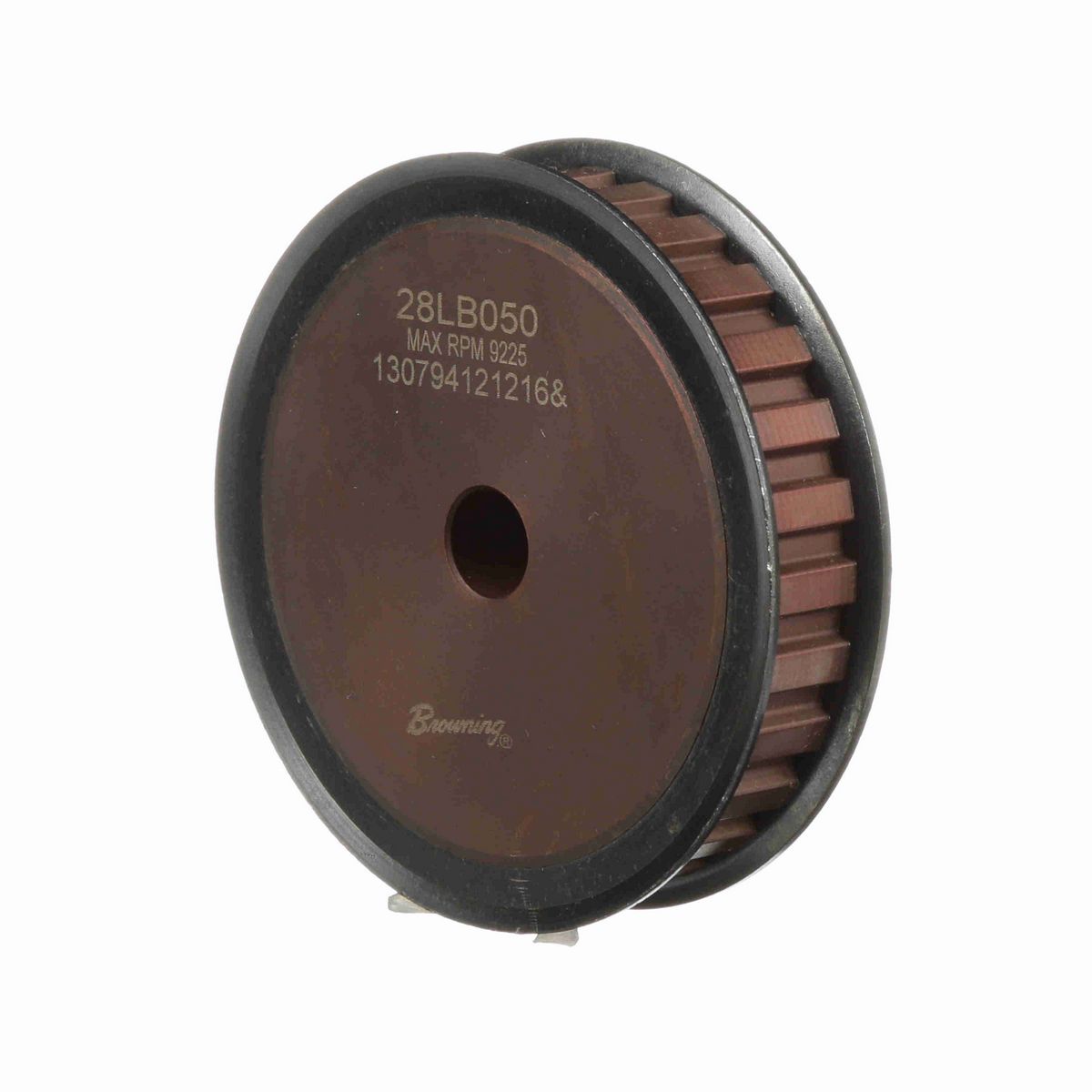

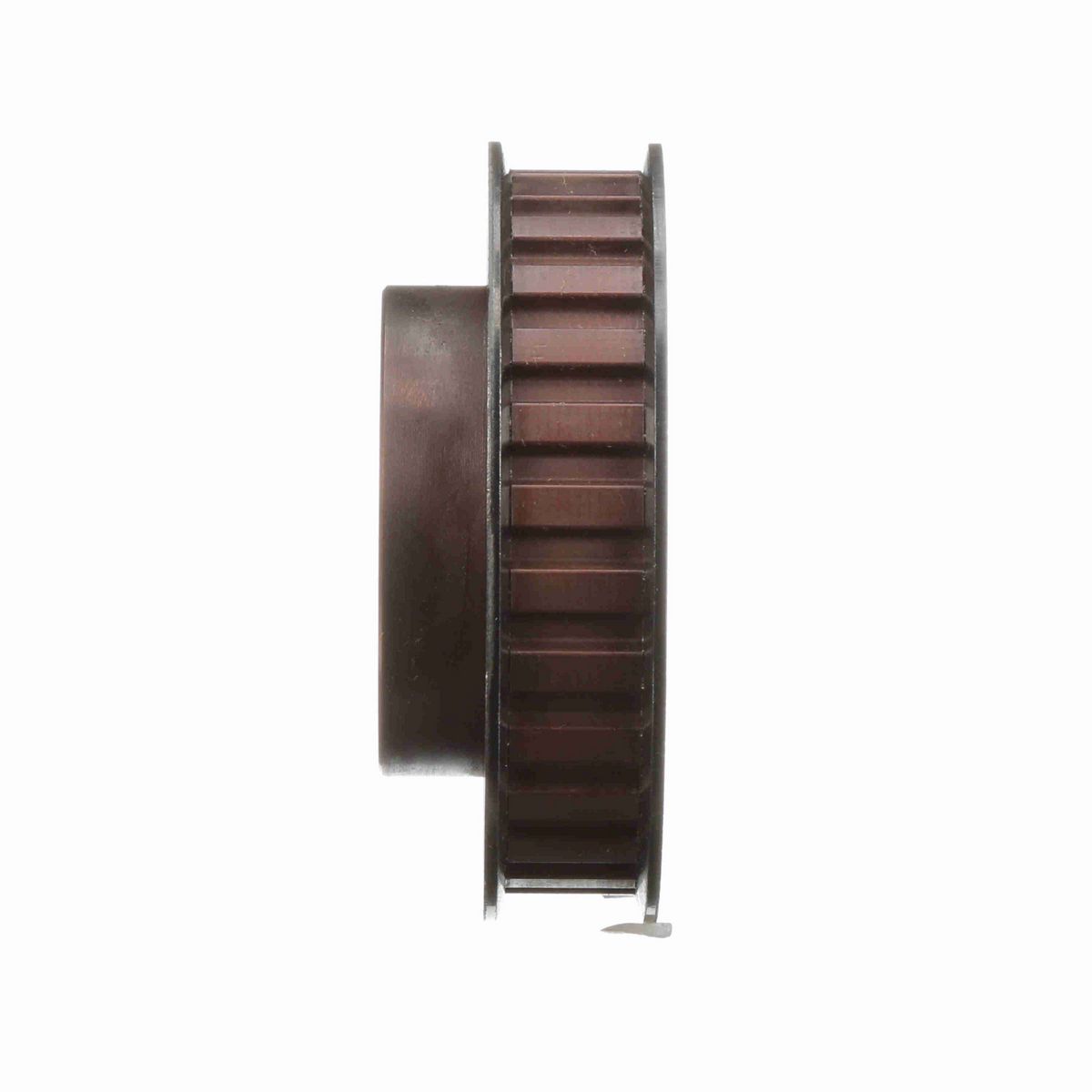

Technical Specifications

Number of teeth	28
Bore Range	1/2 to 1 3/8
Width (mm)	12.7 mm
Product Type	Gearbelt Pulley
Material	Steel
Bore Type	Rough Bore
Outside Diameter (mm)	84.1248 mm
Flange (in)	3.566 in
Outside Diameter (in)	3.312 in
Pitch Diameter (in)	3.342 in
Belt Section	L
Width (in)	0.5 in
Face Width	0.75
Overall Length (in)	1.25 in
With Flanges	With Flanges
Number of Hubs	1
Hub Projection	0.5
Bore Diameter (in)	0.5 in
Hub Diameter (in)	2.25 in
Length Through Bore	1.25
Pulley Construction	Solid

General Specifications

UPC	662289212255
Weight	2.15 LB
Packaged Length	3.70 IN
Packaged Width	3.60 IN
Packaged Height	1.90 IN
HTC	8483.50.9080
Country of Origin	United States of America
