• Constant Speed - No slip; no creep; minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets.
• Light Weight - High horsepower-to-weight ratio makes Browning Gearbelt drives ideal for any application where weight is a factor.
• Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement.
• Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft; Split Taper and QD Bushing styles, as well as, finished and minimum plain bore.

Technical Specifications

Width (mm)	25.4 mm

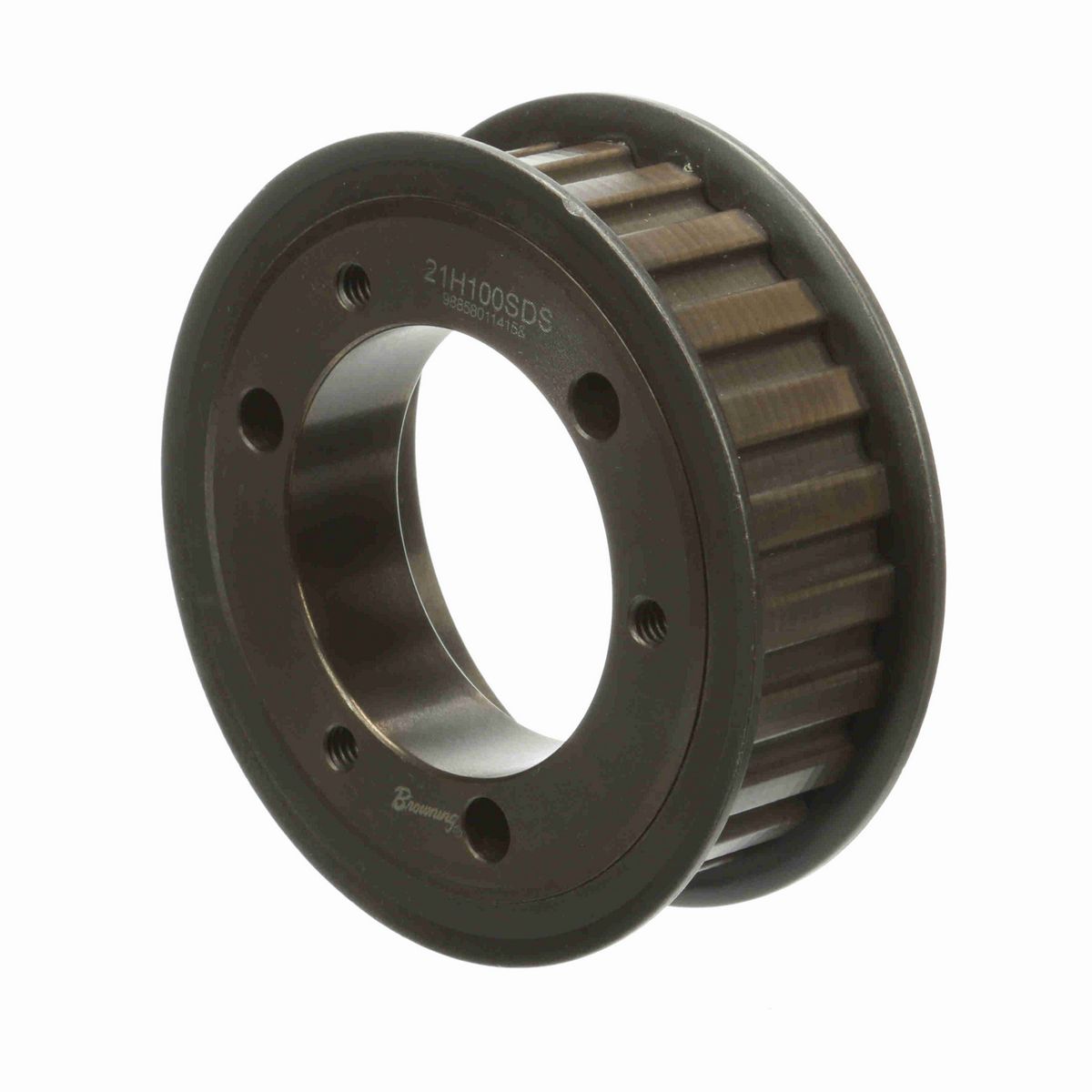

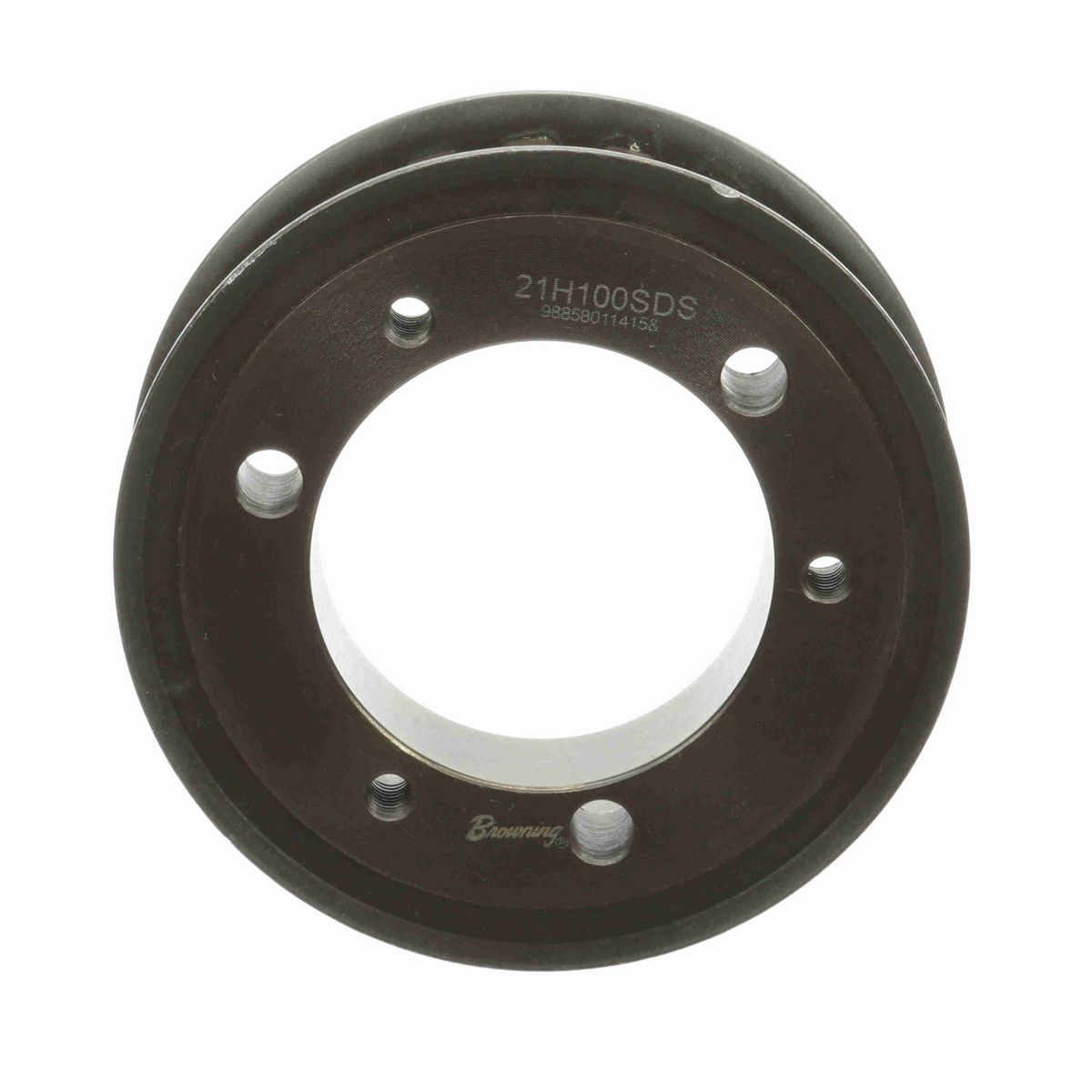

Product Type	Gearbelt Pulley
Bore Range	1/2 to 2
Number of teeth	23
Bore Type	Bushed Bore
Material	Steel
Pitch Diameter (in)	3.662 in
Belt Section	H
Inside Diameter (in)	3 in
Flange (in)	4.050 in
Outside Diameter (in)	3.608 in
Width (in)	1 in
Outside Diameter (mm)	91.6178 mm
Face Width	1.312
Pulley Construction	Solid
With Flanges	With Flanges
Length Through Bore	1.33
Overall Length (in)	2.26 in
Hub Diameter (in)	3.13 in
Hub Projection	0.95
Number of Hubs	1

General Specifications

UPC	662289347674
Weight	2.07 LB
Packaged Length	4.30 IN
Packaged Width	4.20 IN
Packaged Height	1.40 IN
HTC	8483.50.9080
Country of Origin	United States of America
