• Exclusive Taper Bushing: Single TorqTaper Bushing installs from either side of the unit for easy on - easy off mounting, with stabilizer ring.
• Standard Bearings: Commercially available Tapered Roller Bearings provide maximum overhung load capacity.

Technical Specifications

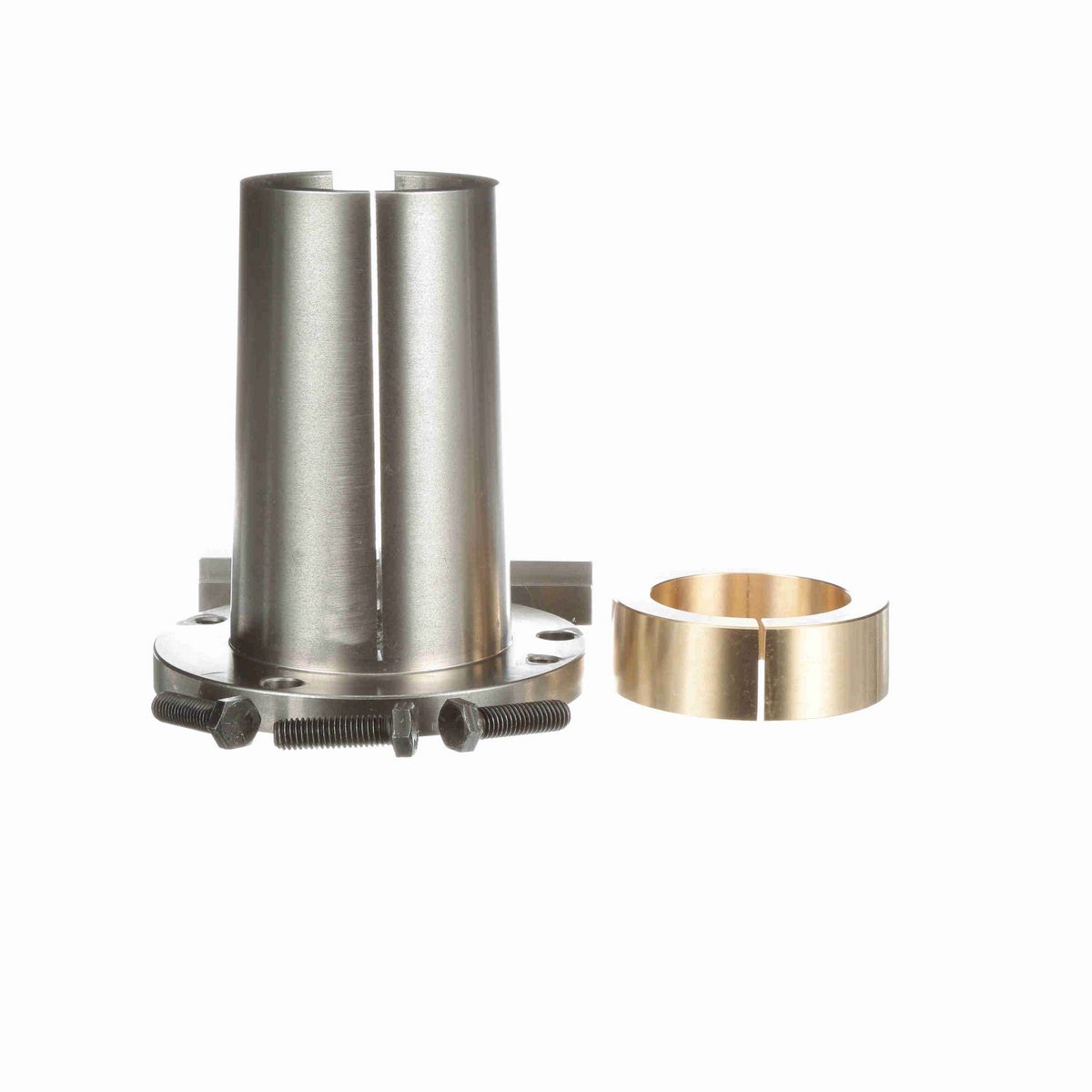

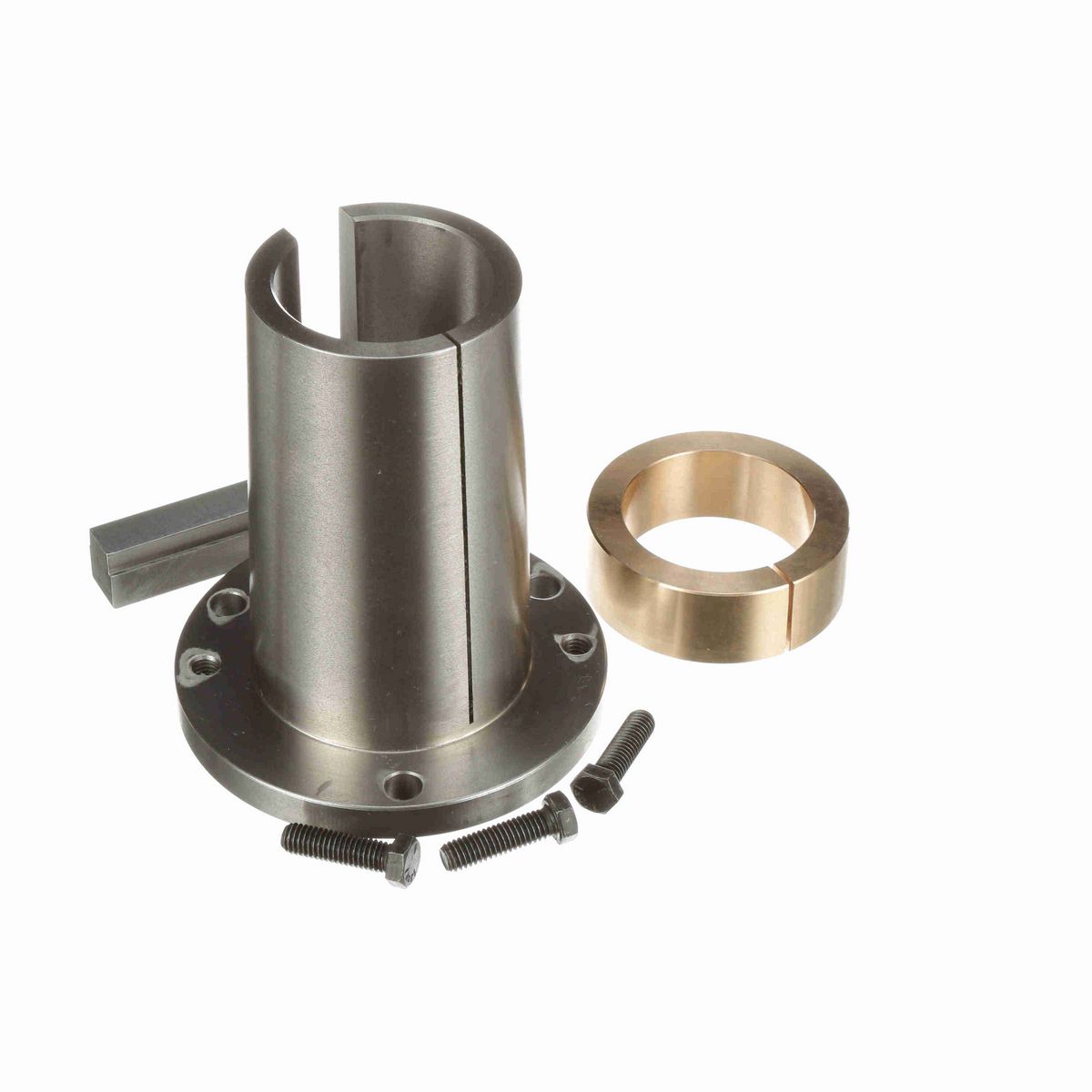

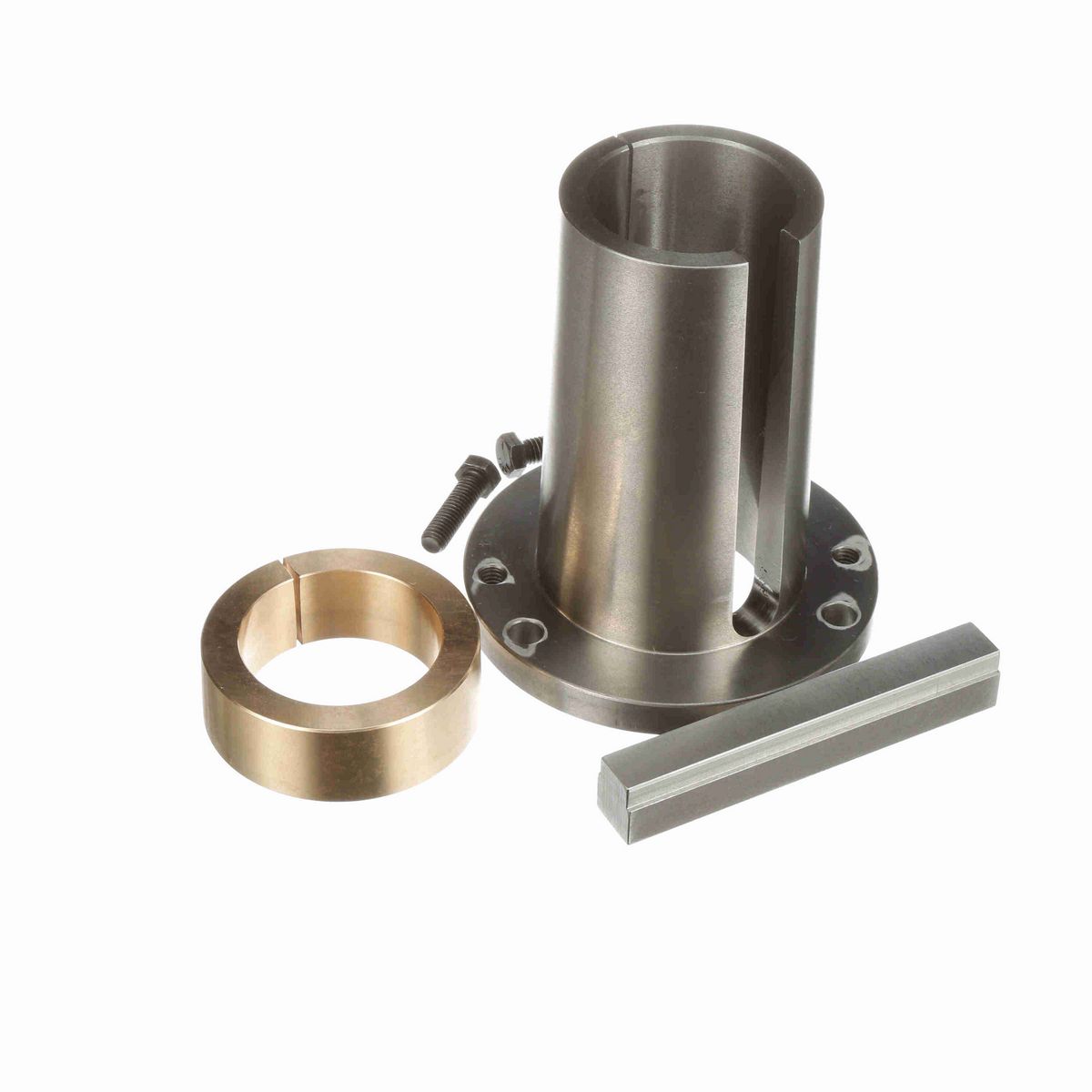

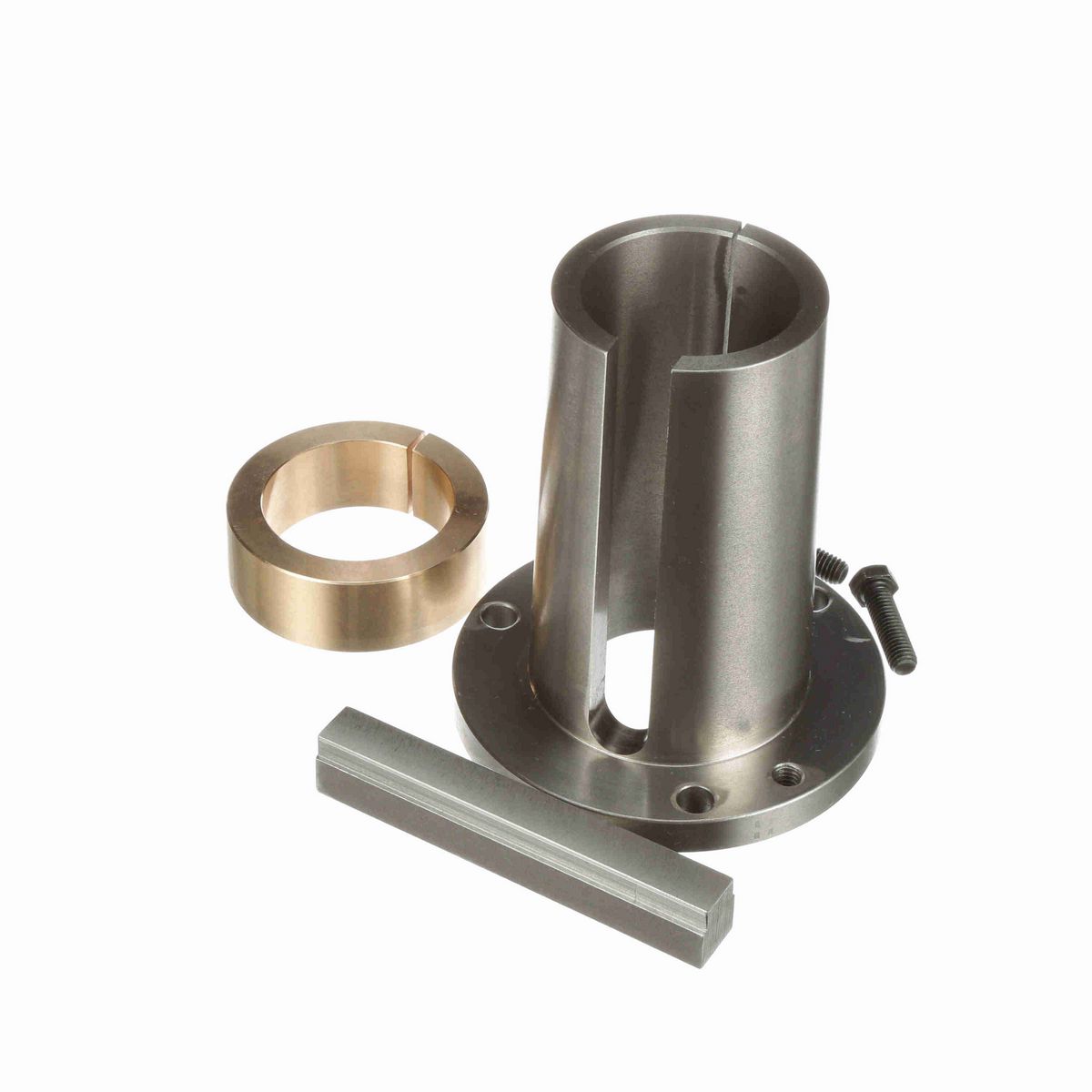

Product Type	TorqTaper Plus Bushing Kit
Total Length (in)	5.625 in
Outside Diameter (in)	5.31 in
Compatible Bore Size [Max] (in)	2.4375 in
Material	Ductile Iron
Bore Size (in)	2.4375 in
Length Through Bore (in)	5.625 in
Shaft keyseat	5/8 x 5/16 x 5 5/8
Model Name	215TBP
Bore Type	Inch
Bushing Type	Tapered Bushing Kit
Includes	Bushing, Key, Capscrews, stablizer ring

General Specifications

UPC	662288911234
Weight	10.00 LB
Packaged Length	7.10 IN
Packaged Width	6.90 IN
Packaged Height	7.10 IN
