• Constant Speed - No slip; no creep; minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets.
• Light Weight - High horsepower-to-weight ratio makes Browning Gearbelt drives ideal for any application where weight is a factor.
• Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement.
• Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft; Split Taper and QD Bushing styles, as well as, finished and minimum plain bore.

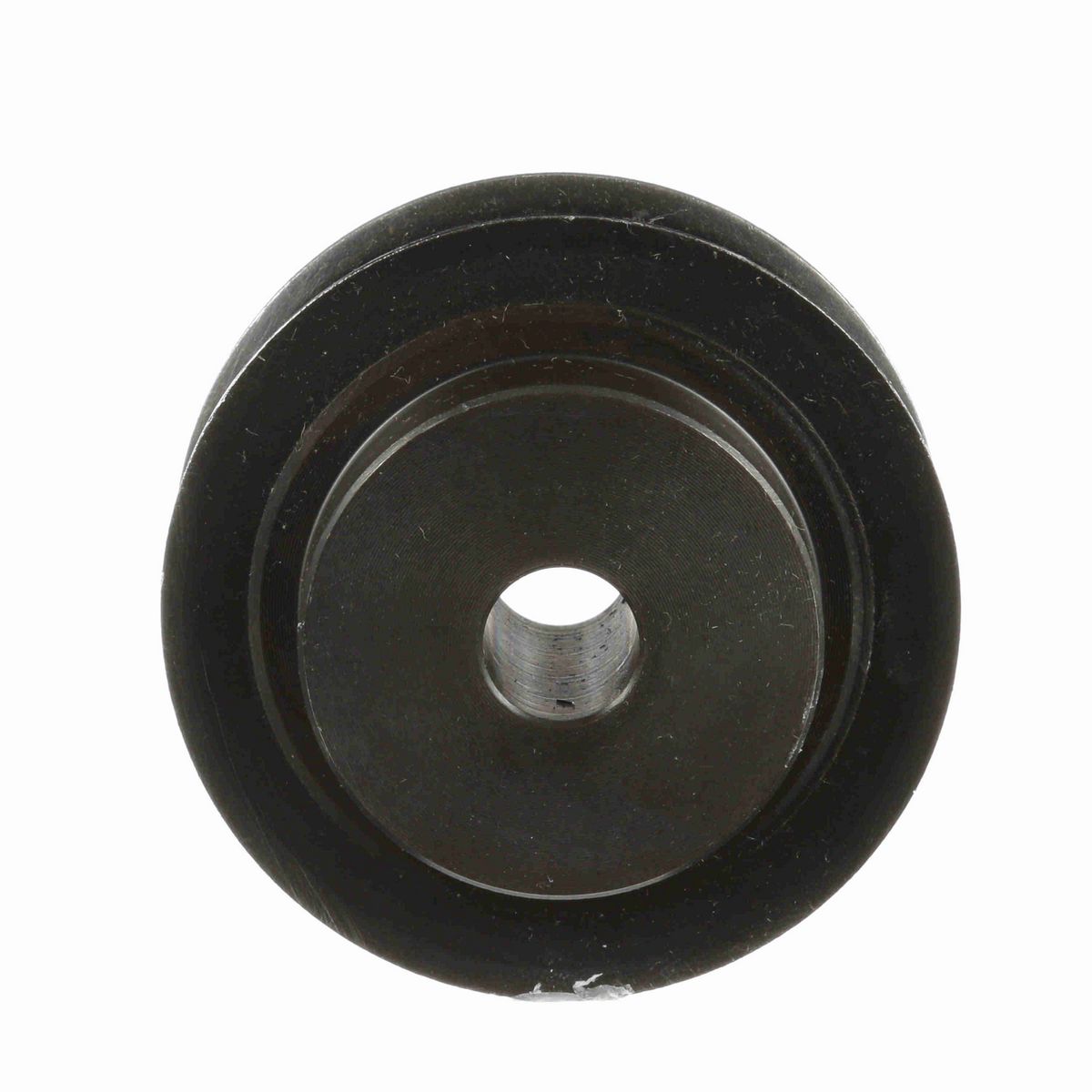

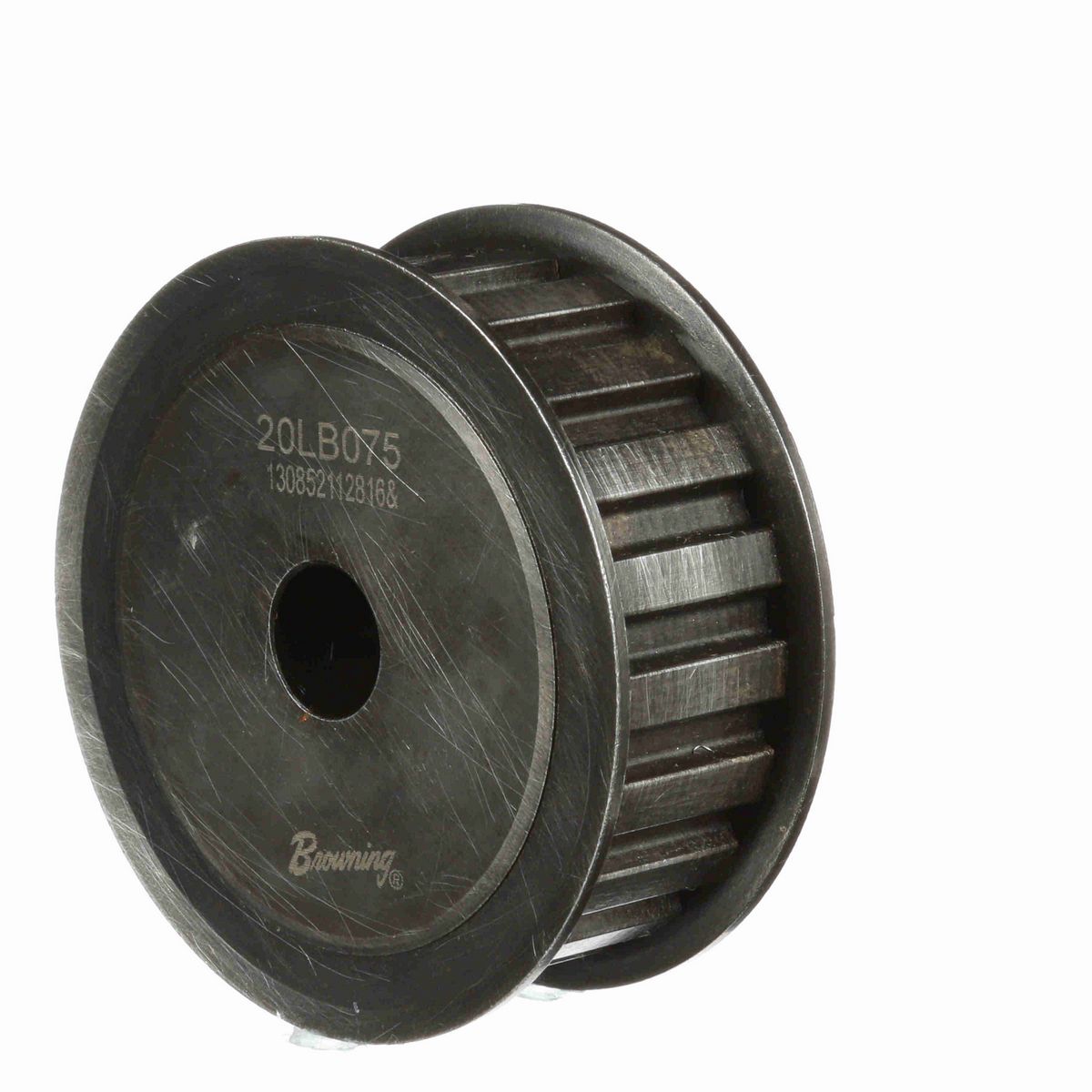

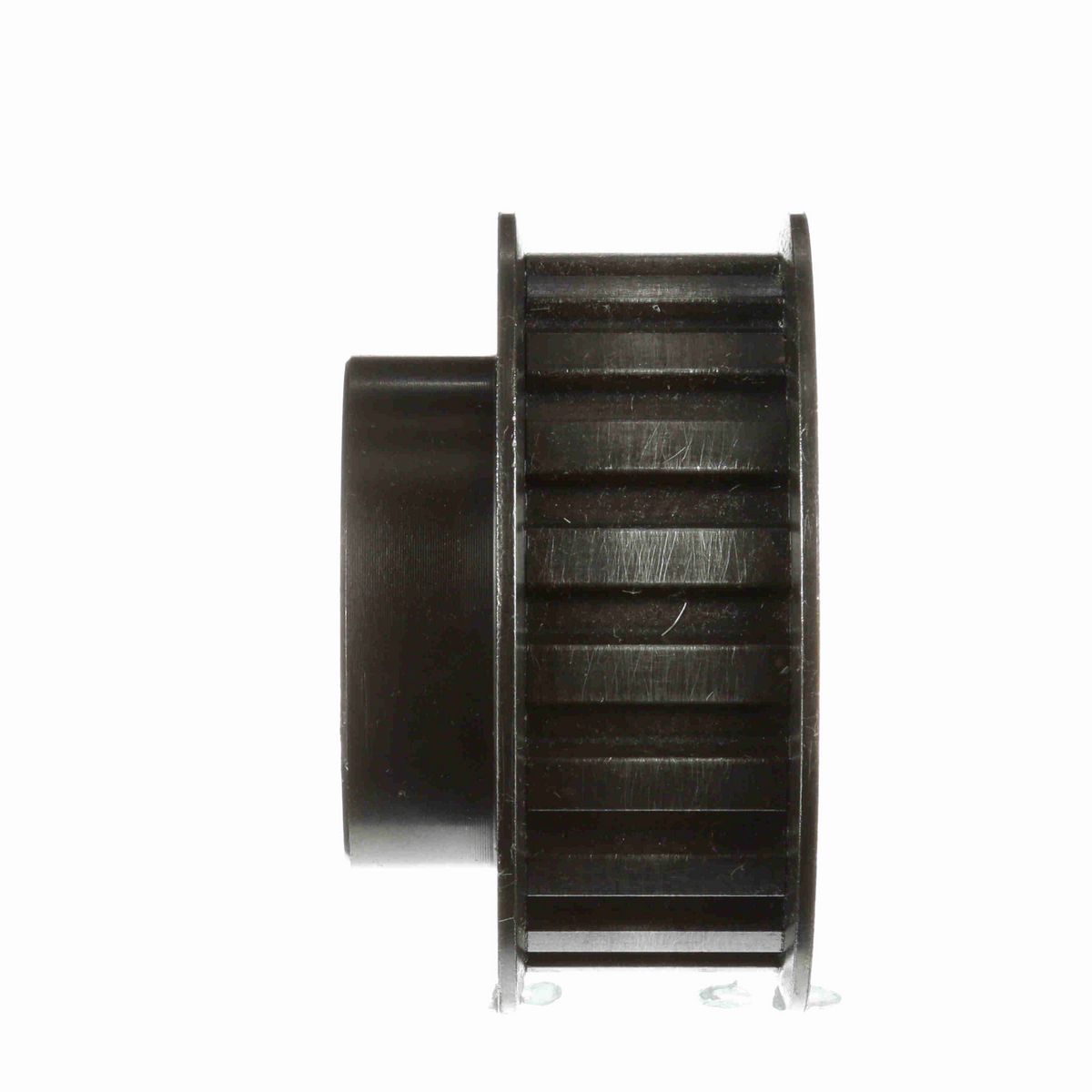

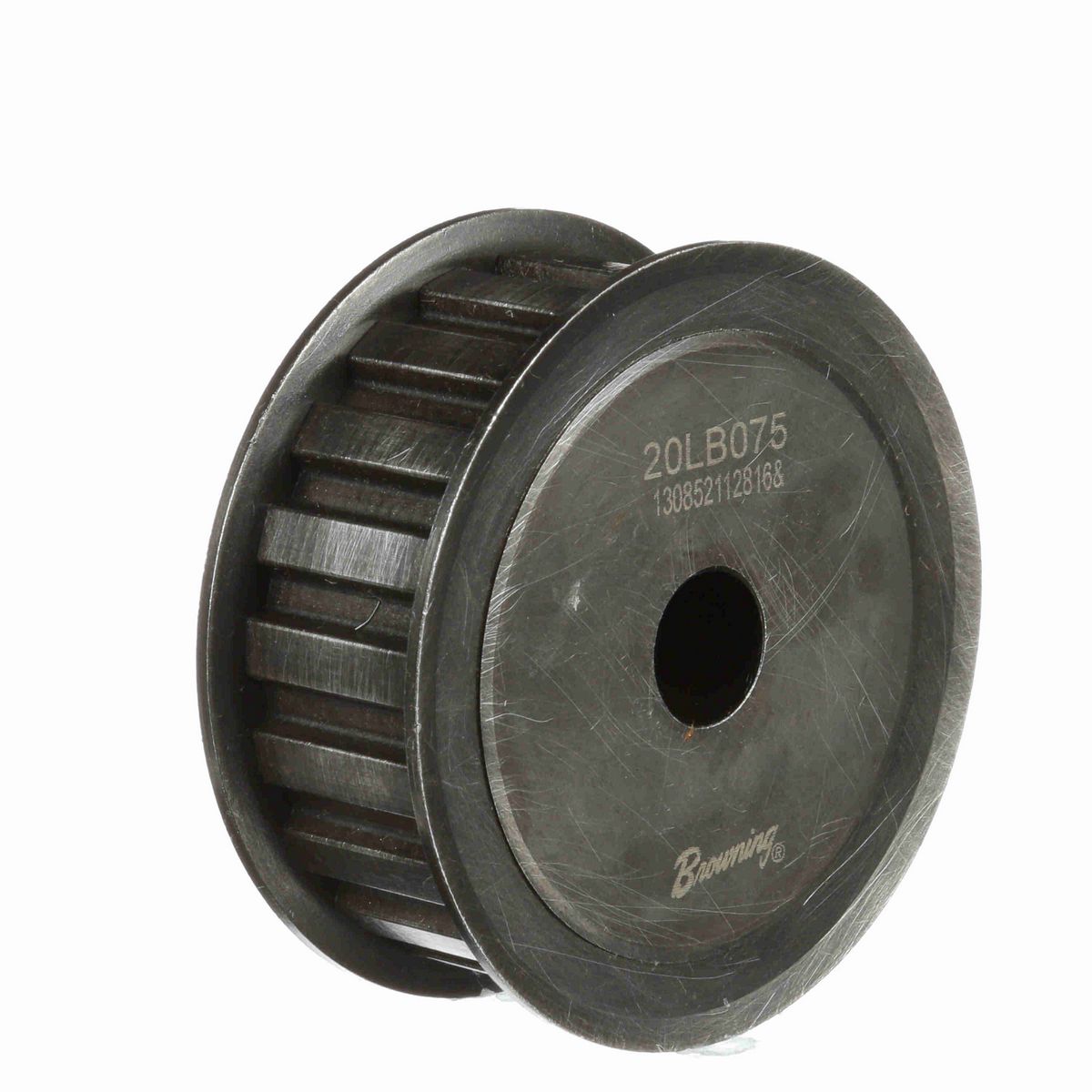

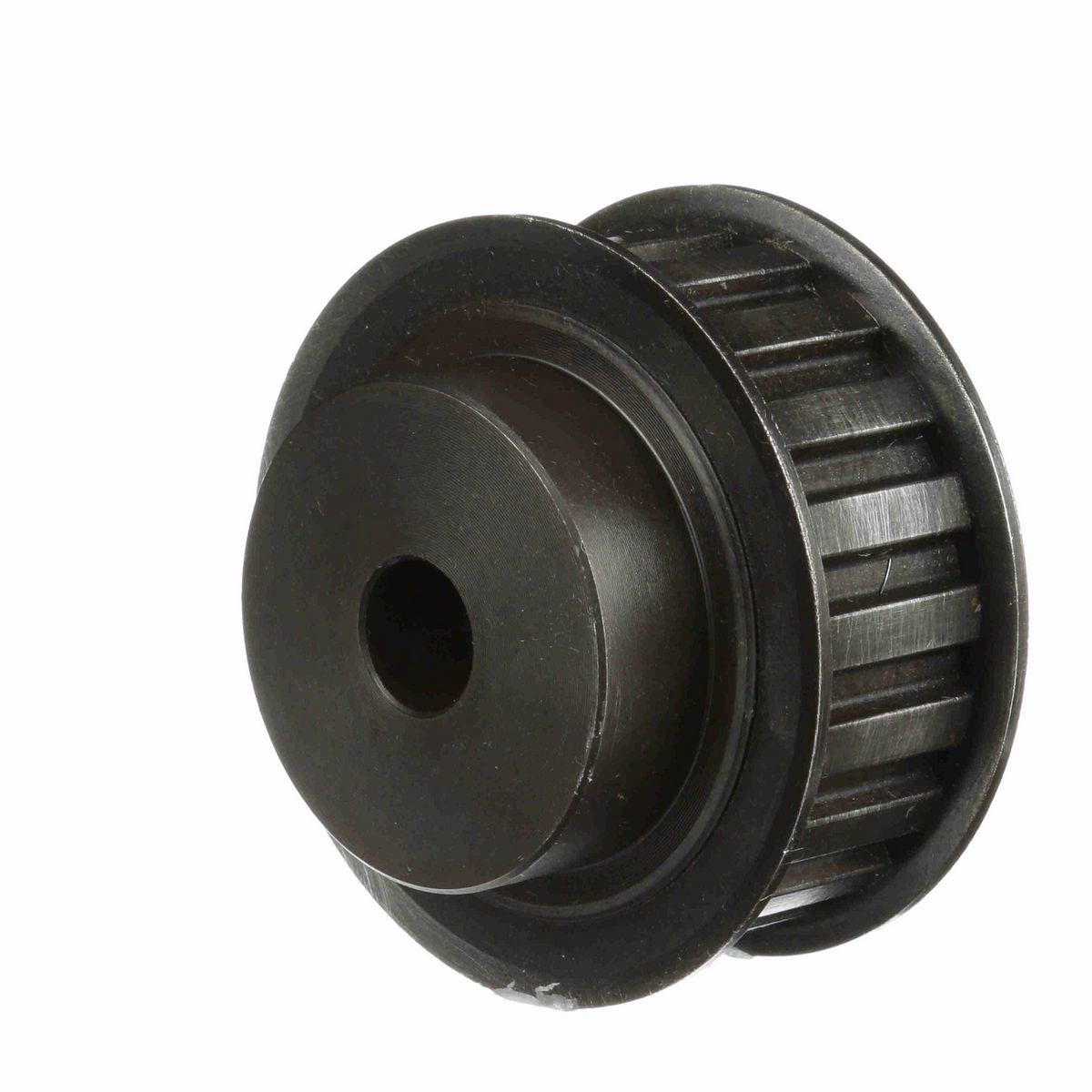

Technical Specifications

Model Name	GBPulley_Master2
Product Type	Gearbelt Pulley
Number of teeth	20
Width (mm)	19.05 mm
Bore Range	5/8 to 7/8
Material	Steel
Bore Type	Rough Bore
Flange (in)	2.6250 in
Outside Diameter (in)	2.357 in
Belt Section	L
Pitch Diameter (in)	2.387 in
Width (in)	0.75 in
Outside Diameter (mm)	59.8678 mm
Face Width	1
Number of Hubs	1
Hub Diameter (in)	1.6875 in
Overall Length (in)	1.5 in
With Flanges	With Flanges
Pulley Construction	Solid
Length Through Bore	1.5
Hub Projection	0.5
Bore Diameter (in)	0.5 in

General Specifications

UPC	662289122318
Weight	1.47 LB
Packaged Length	3.10 IN
Packaged Width	3.30 IN
Packaged Height	2.00 IN
HTC	8483.50.9080
Country of Origin	United States of America
