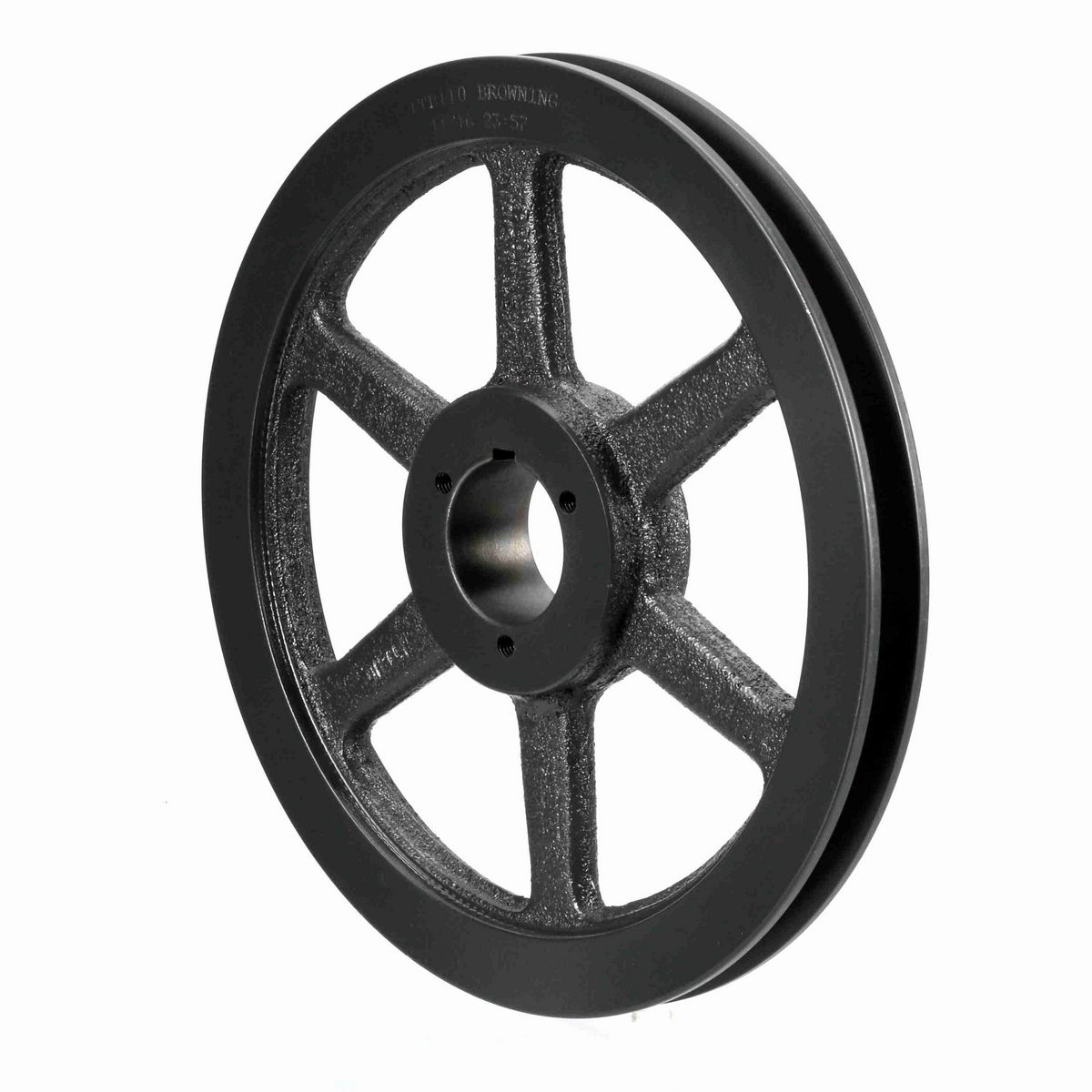

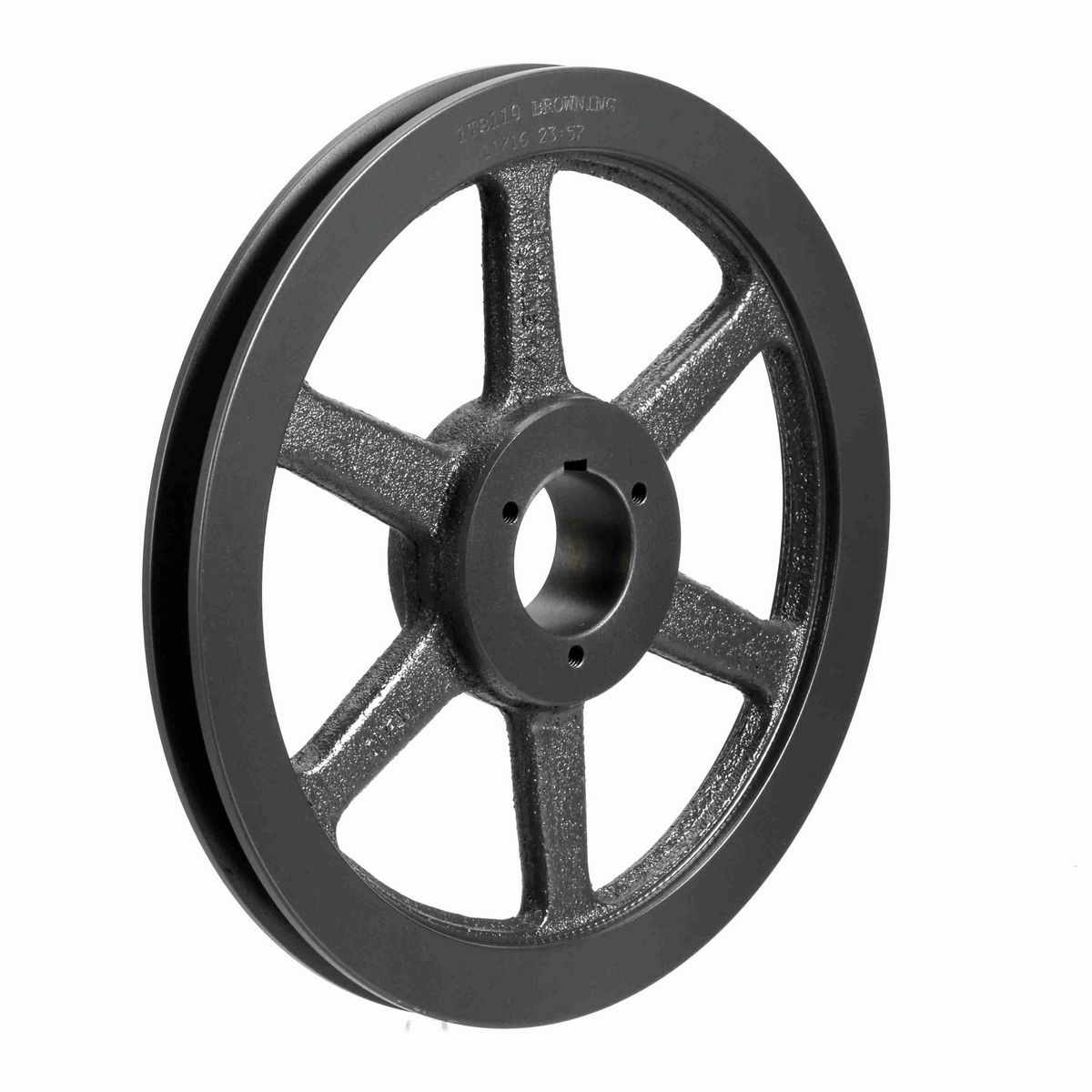

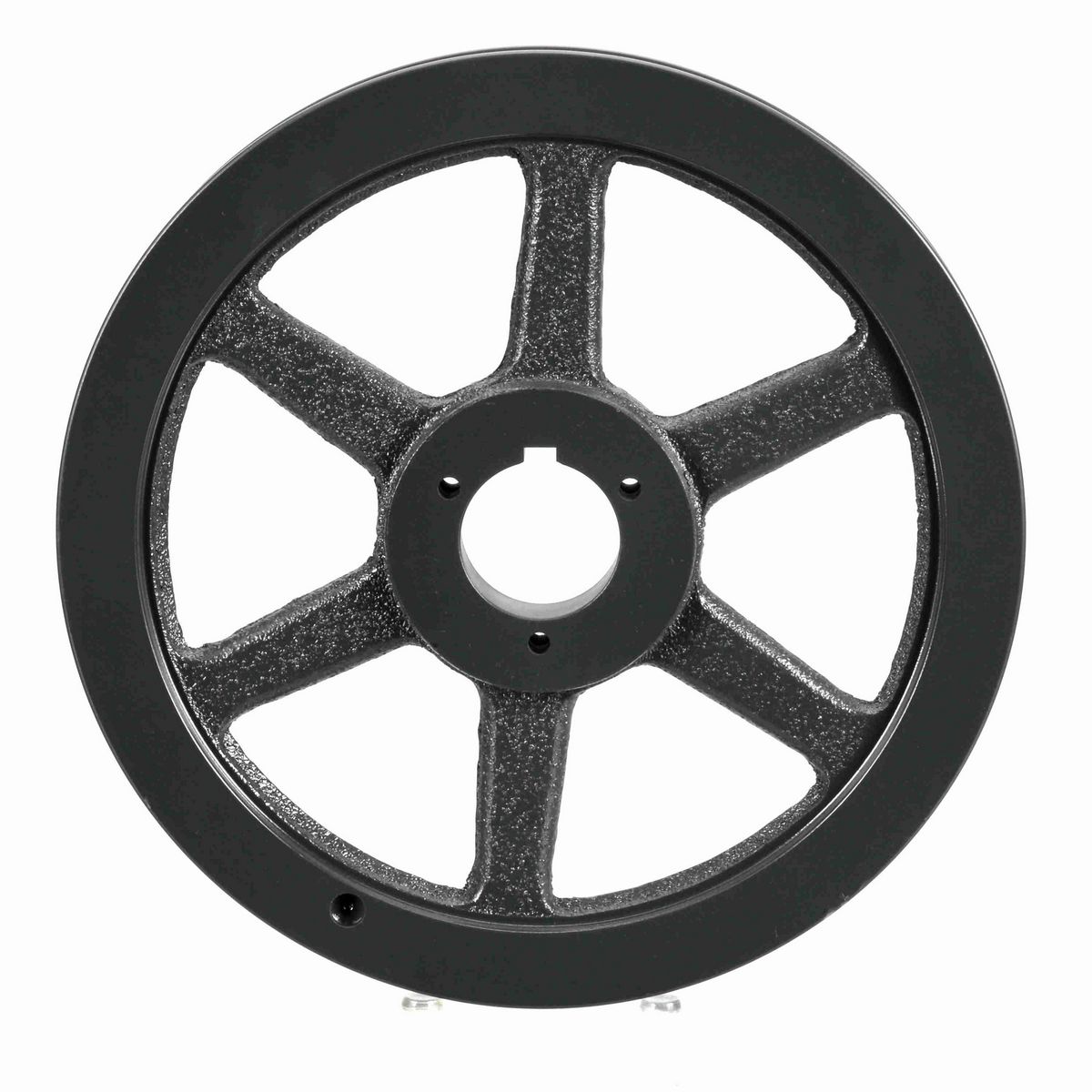

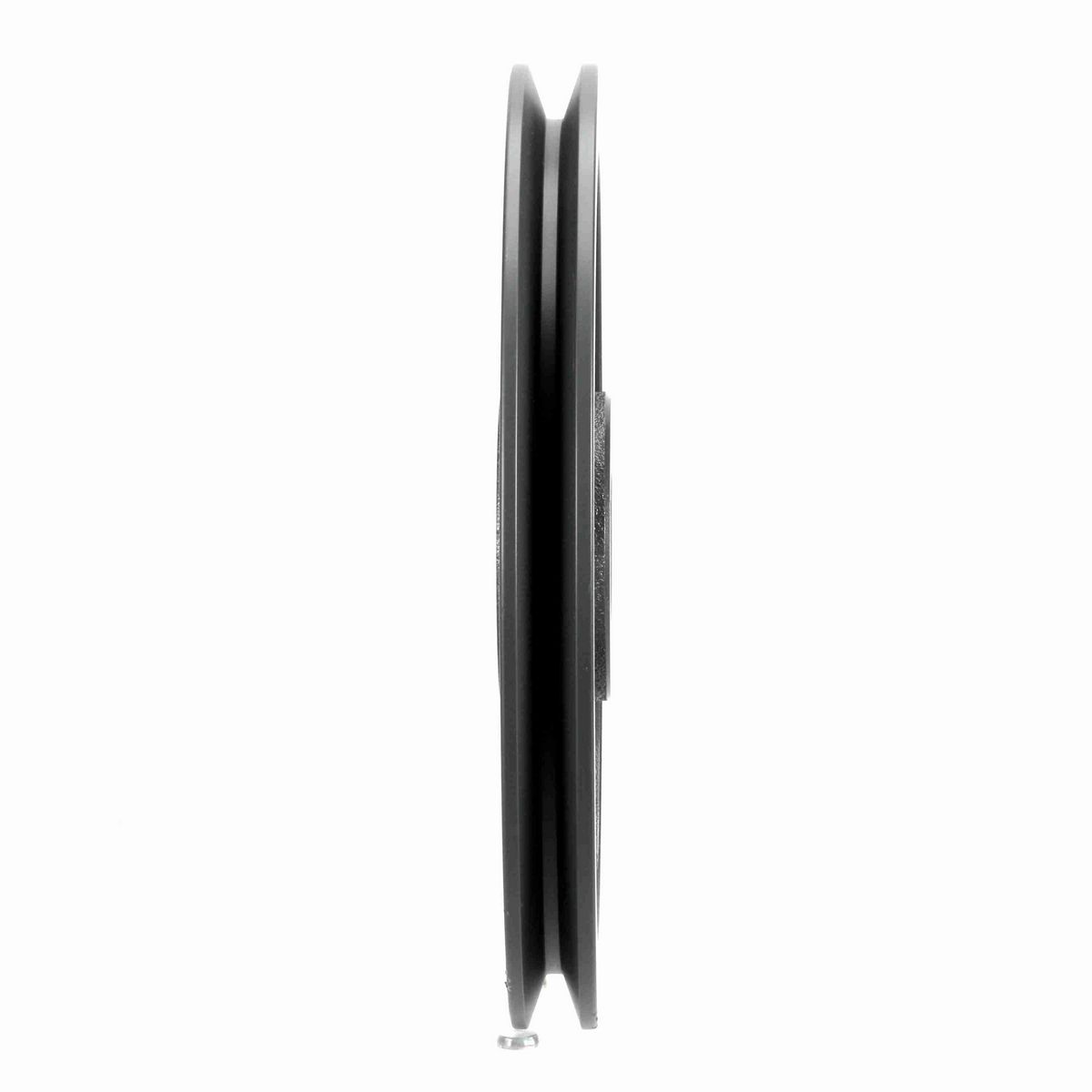

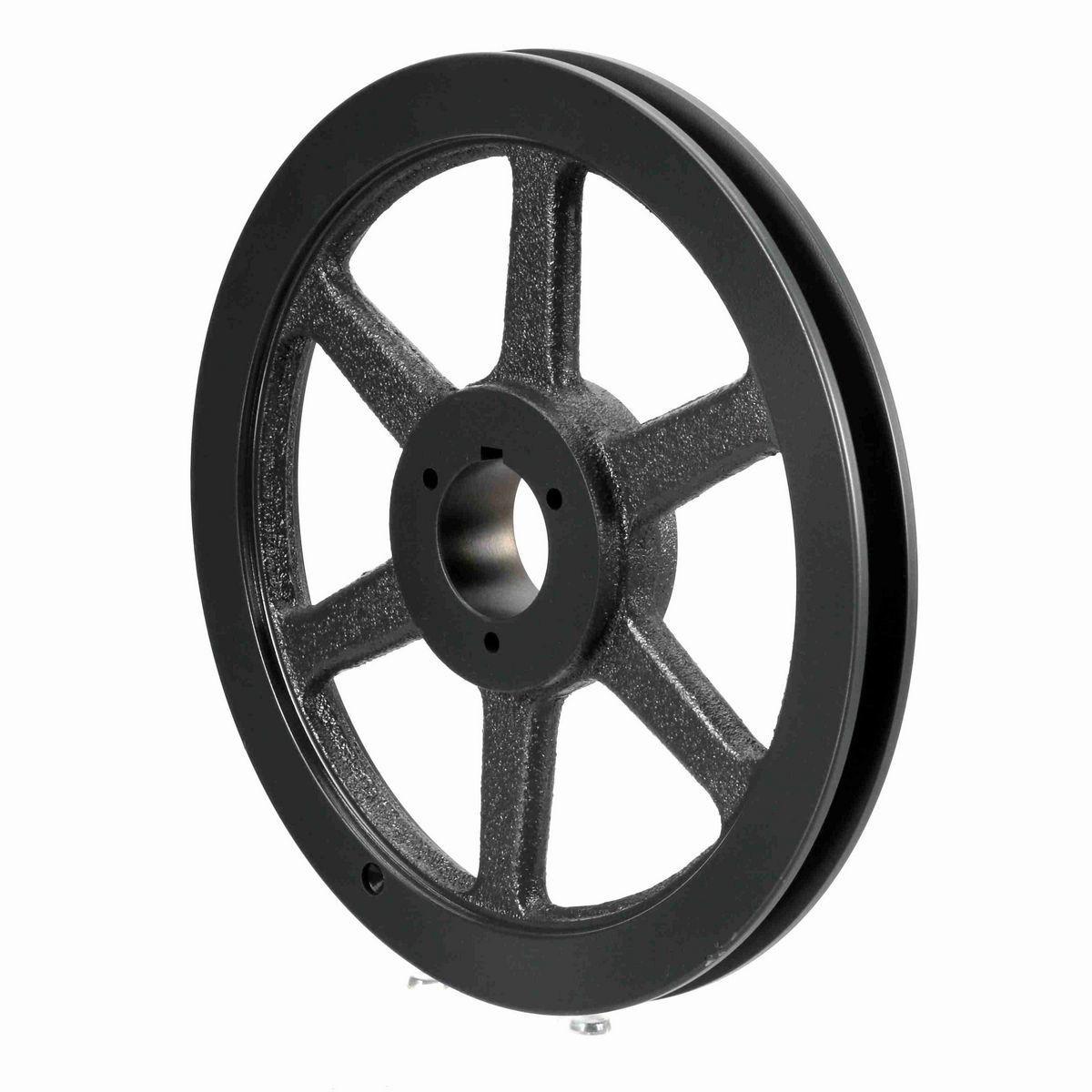

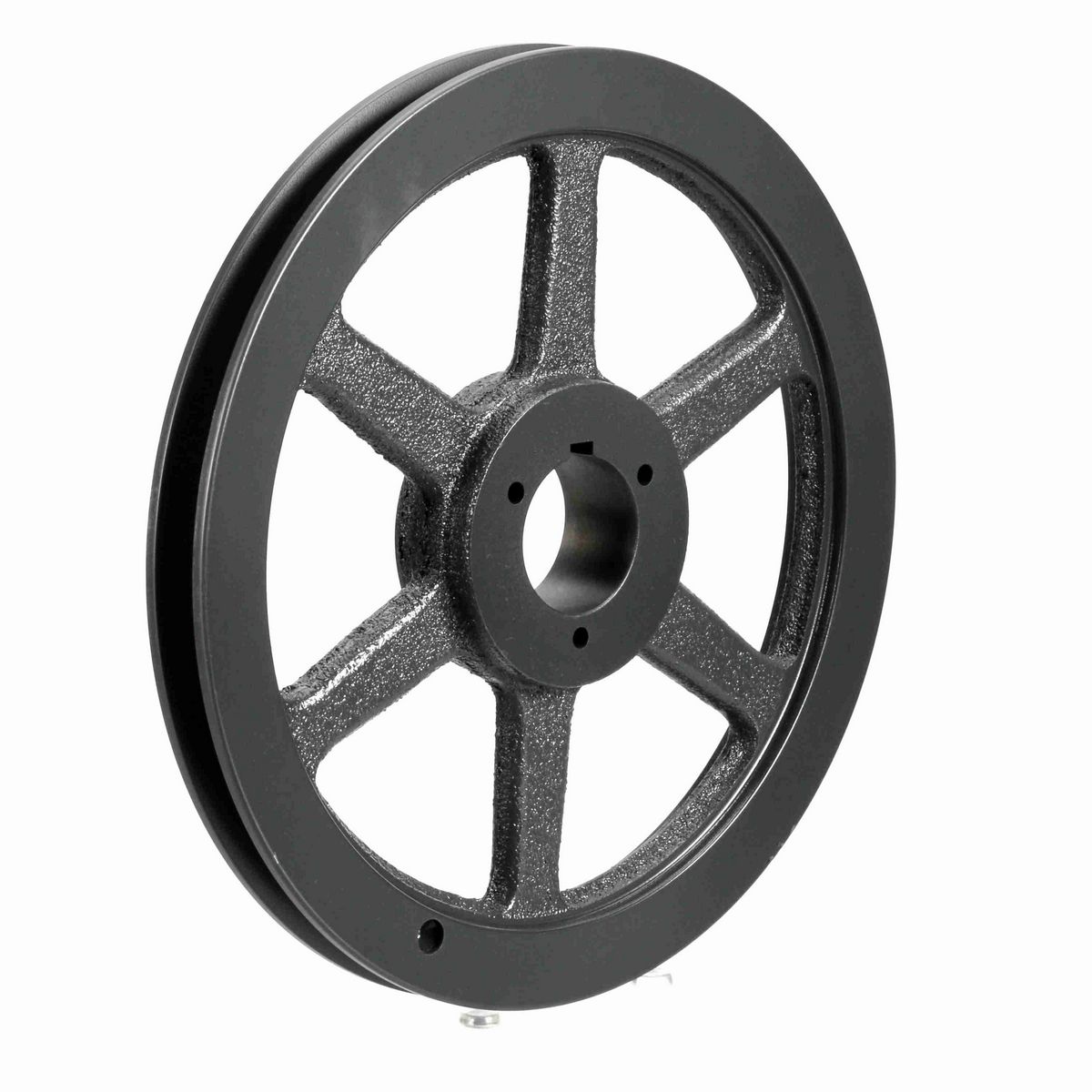

• Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
• Combination Groove - All Browning B Sheaves permit the running of A and B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
• Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.

Technical Specifications

Number of Grooves	1
Outside Diameter (in)	11.35 in
Bushing Used	P1
Model Name	1TB-L_Sheave_Master
Material	Cast Iron
Overall Length (in)	2.140625 in
Pulley Material	Cast Iron
Pitch Diameter (B)	11.3
Pitch Diameter (A)	10.8
Datum Diameter (B)	11
Datum Diameter (A)	10.6
Product Type	Multiple Sheaves
Bore (Min) (in)	0.5 in
Belt Section	A, B
Number of Hubs	1
Bore Type	Split Taper Bushed
Overall Width (in)	2.14
Face Width (in)	1
Bushing Bore Range	.500 - 1.750
Pulley Construction	Spoke
Keyway Size	0.375

General Specifications

UPC	662289102273
Weight	11.46 LB
Packaged Length	11.70 IN
Packaged Width	11.70 IN
Packaged Height	2.00 IN
