• Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
• Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
• Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
• New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material.

Technical Specifications

Number of Grooves	1
Pulley Material	Cast Iron
Material	Cast Iron
Datum Diameter (A)	4.2
Bushing Used	B
Outside Diameter (in)	4.88 in
Datum Diameter (B)	4.6

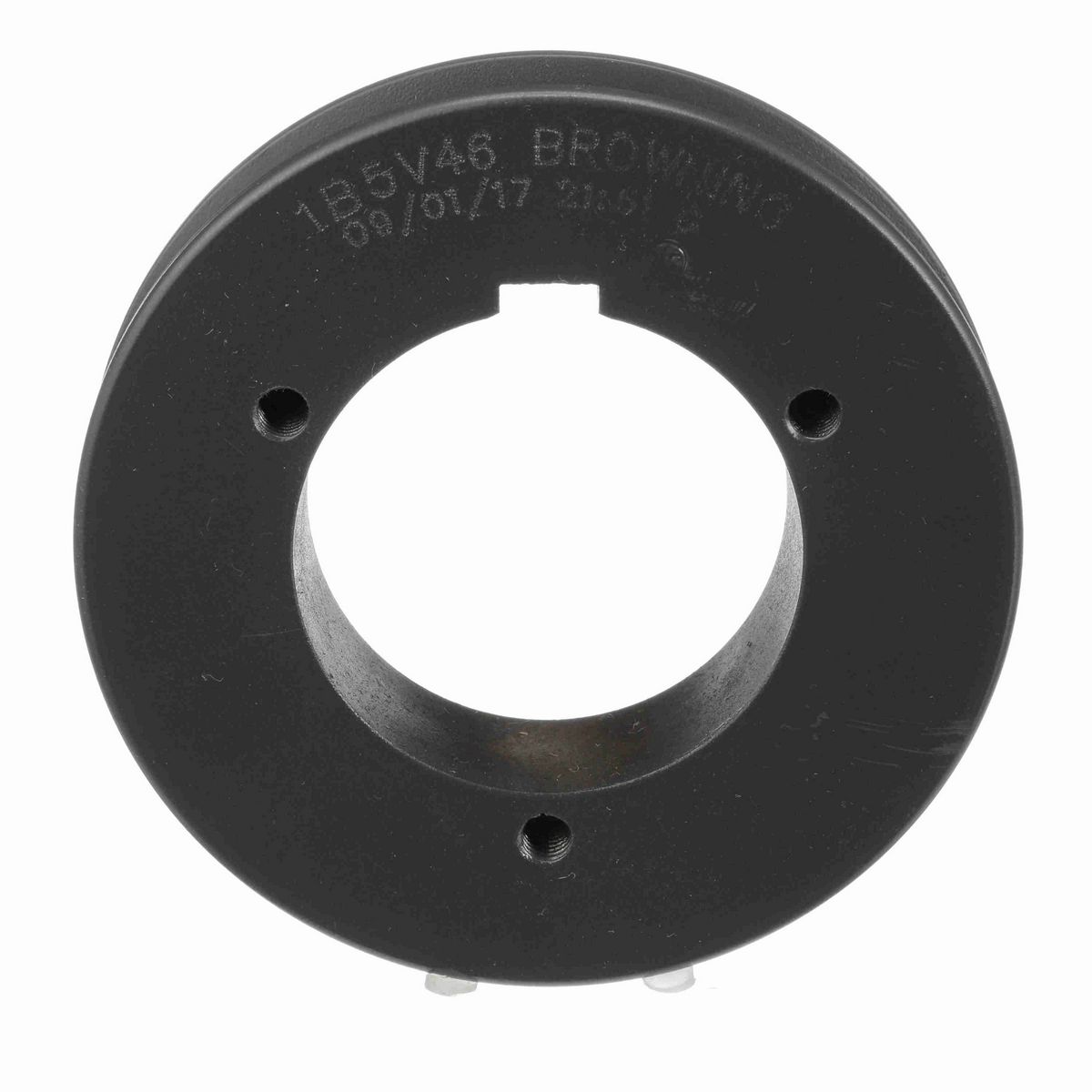

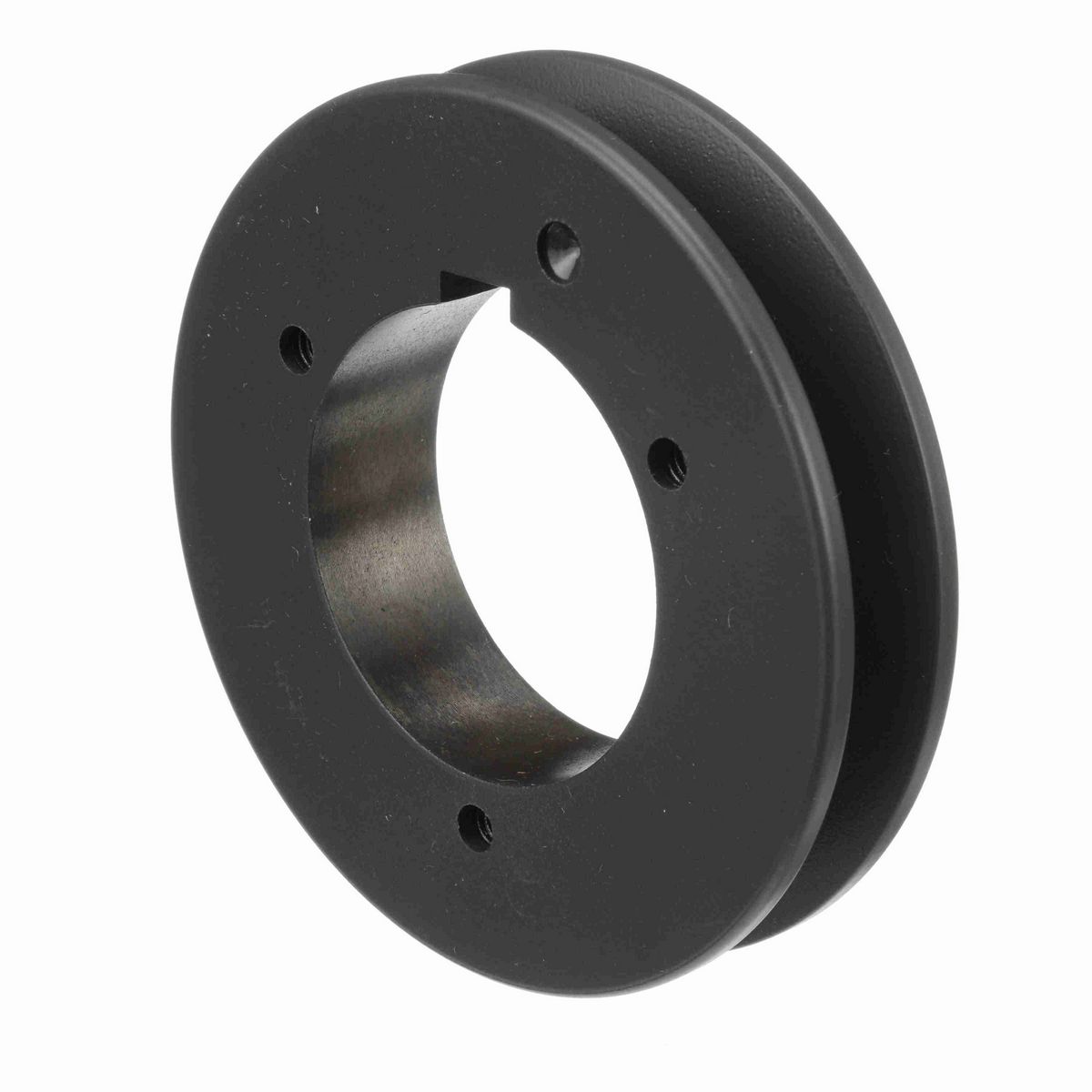

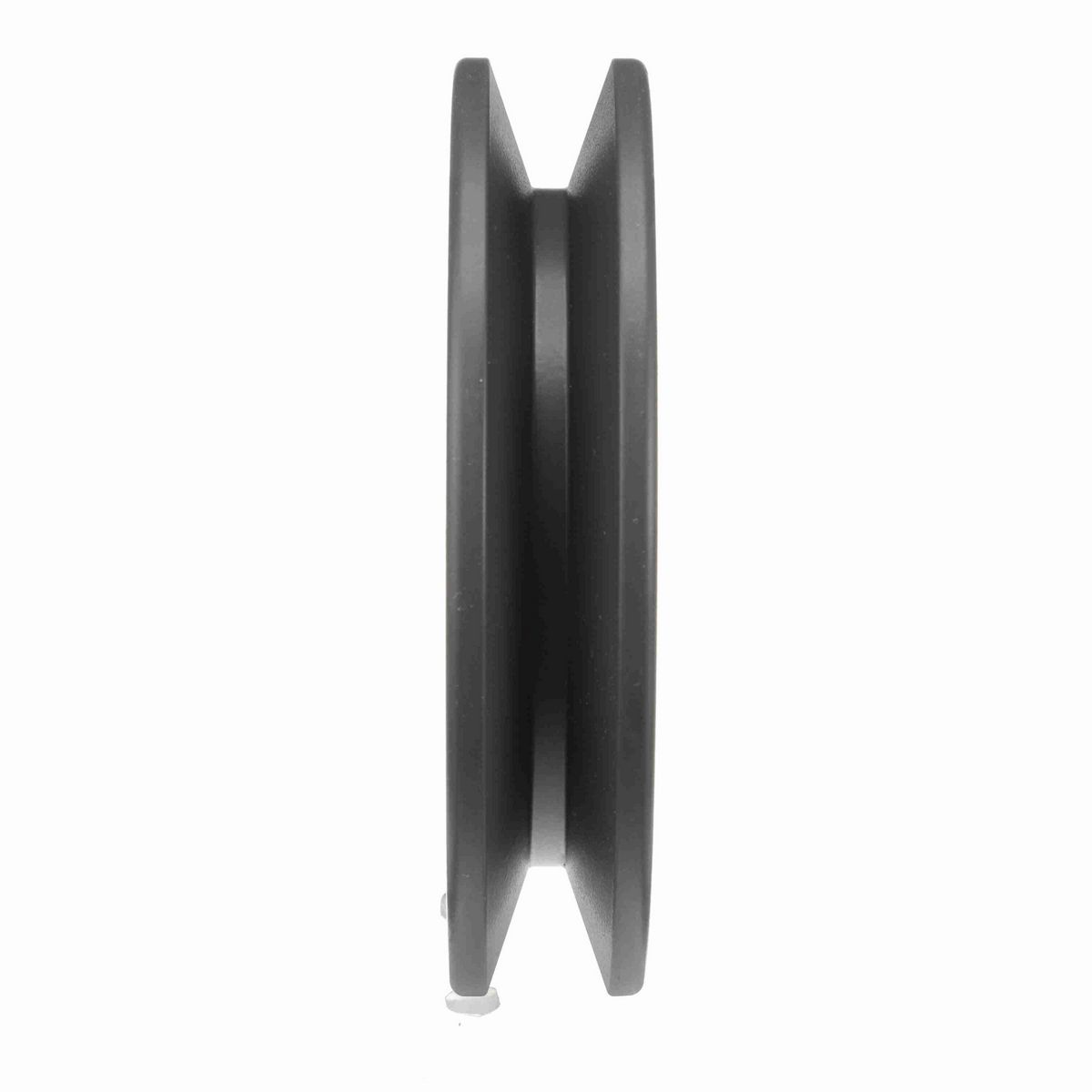

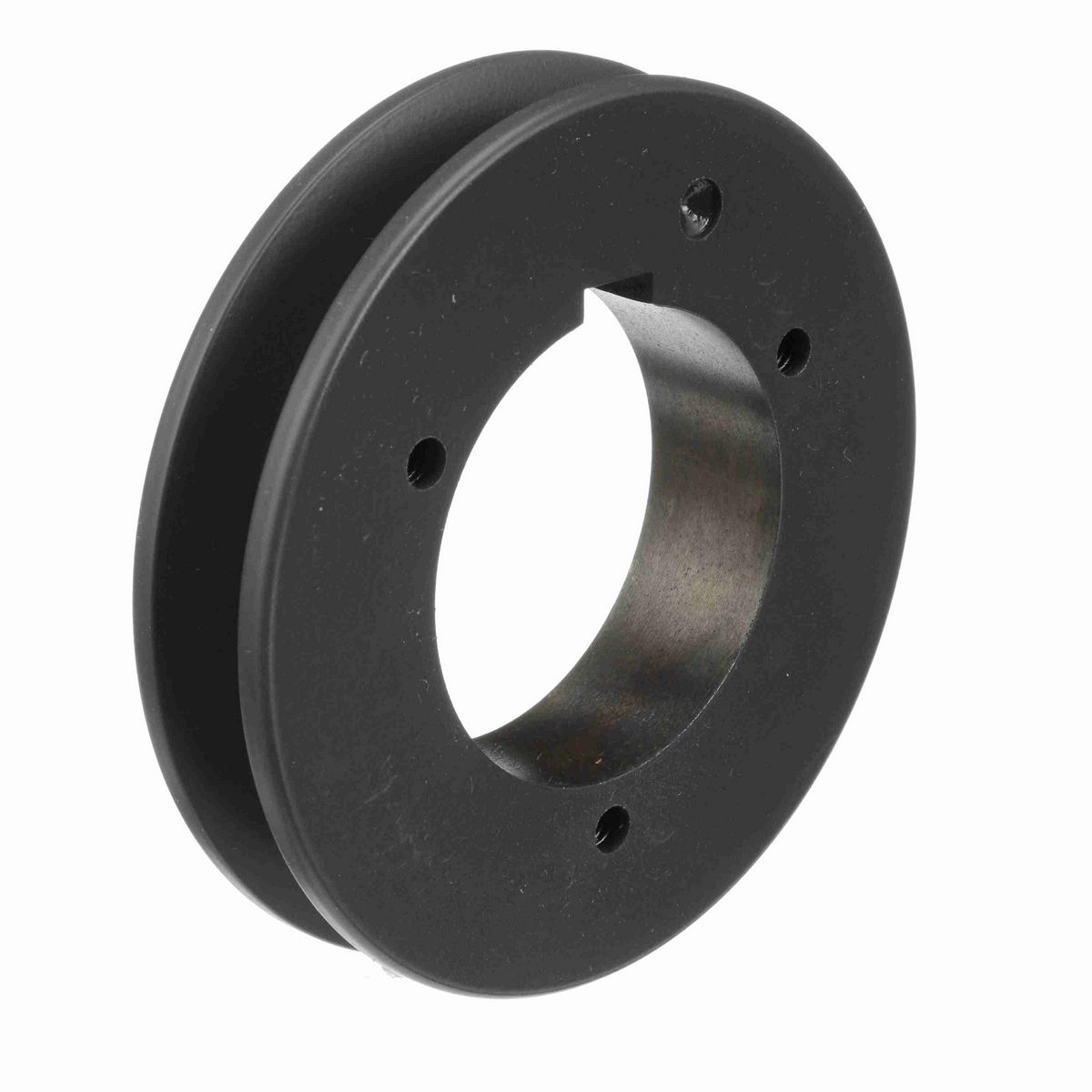

Model Name	1B5V-SheaveMaster
Overall Length (in)	2.140625 in
Pitch Diameter (5V)	4.7
Pitch Diameter (B)	4.9
Pitch Diameter (A)	4.4
Belt Section	A, B, 5V
Product Type	Multiple Sheaves
Bore (Min) (in)	0.5 in
Bore Type	Split Taper Bushed
Overall Width (in)	2.1875
Bushing Bore Range	0.500 - 2.4375
Keyway Size	0.500
Pulley Construction	Plain
Face Width (in)	1

General Specifications

UPC	662289033744
Weight	2.54 LB
Packaged Length	5.60 IN
Packaged Width	5.60 IN
Packaged Height	1.40 IN
