• Exclusive Taper Bushing: Single TorqTaper Bushing installs from either side of the unit for easy on - easy off mounting, with stabilizer ring.
• Standard Bearings: Commercially available Tapered Roller Bearings provide maximum overhung load capacity.

Technical Specifications

Shaft keyseat	1/4 x 1/8 x 3 7/8
Model Name	107TBP
Total Length (in)	3.875 in
Bore Size (in)	1.0625 in
Material	Ductile Iron

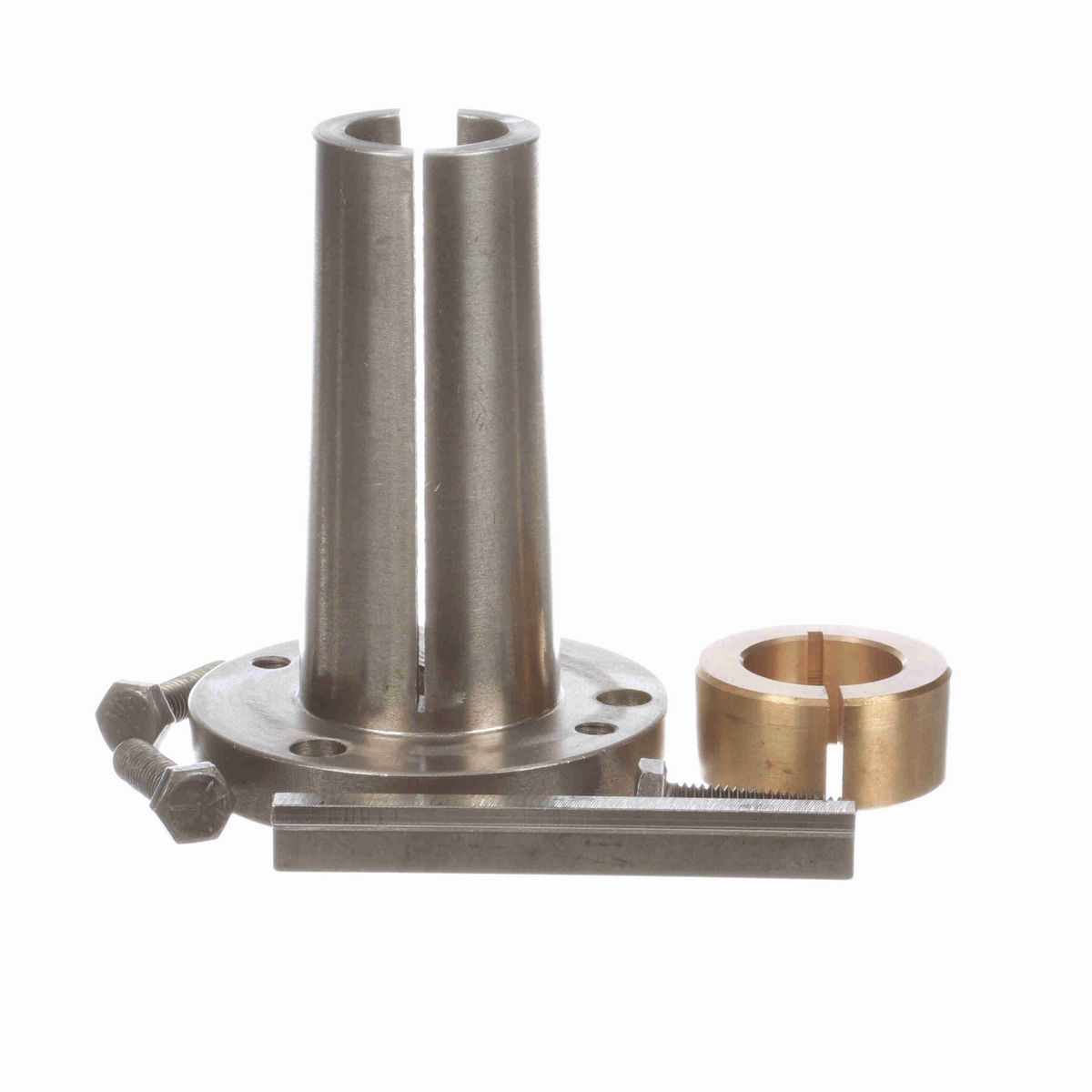

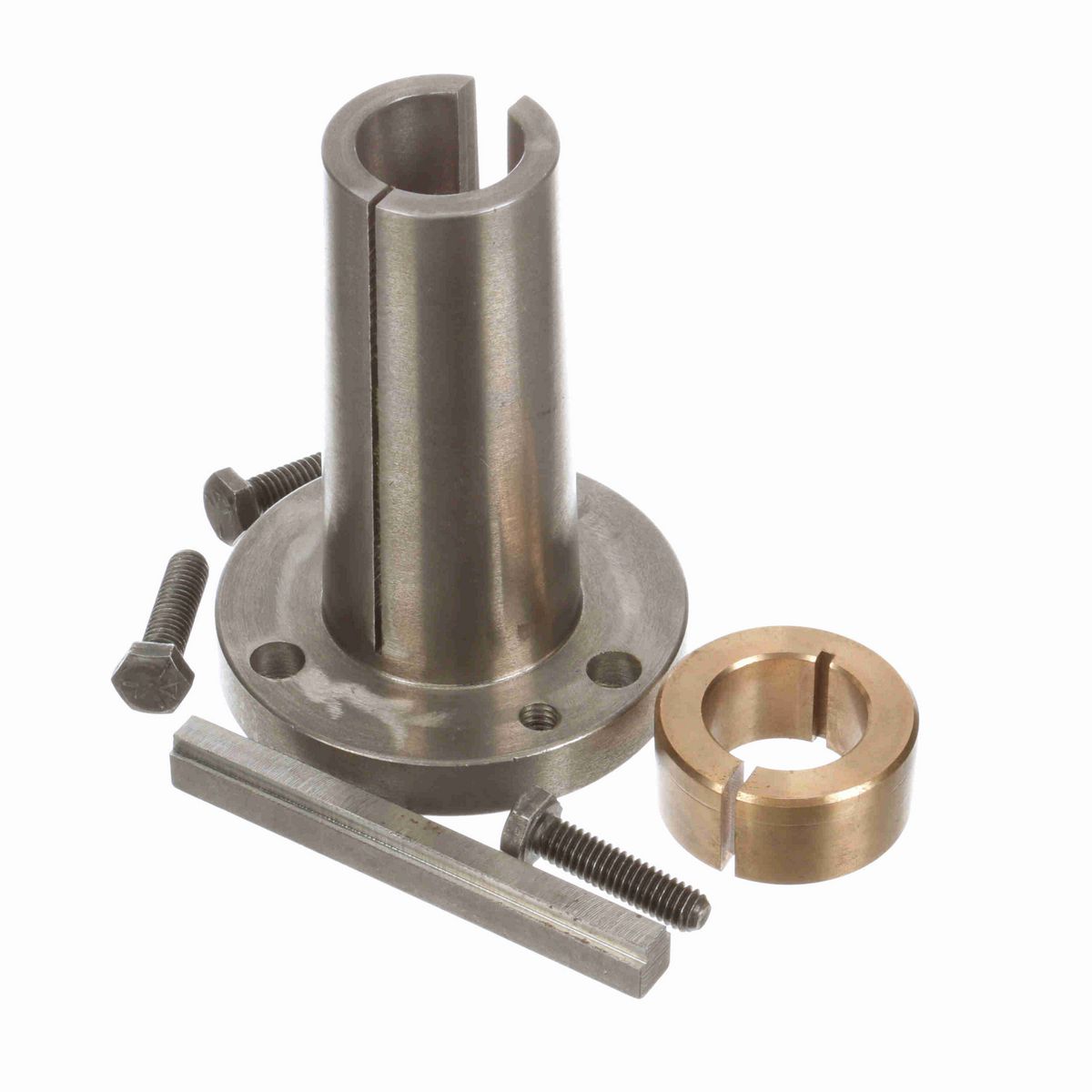

Product Type	TorqTaper Plus Bushing Kit
Length Through Bore (in)	3.875 in
Compatible Bore Size [Max] (in)	1.0625 in
Outside Diameter (in)	3.25 in
Bore Type	Inch
Bushing Type	Tapered Bushing
Includes	Bushing, Key, Capscrews, stablizer ring

General Specifications

UPC	662288910602
Weight	3.22 LB
Packaged Length	6.00 IN
Packaged Width	6.10 IN
Packaged Height	4.20 IN
