• Exclusive Taper Bushing: Single TorqTaper Bushing installs from either side of the unit for easy on - easy off mounting, with stabilizer ring.
• Standard Bearings: Commercially available Tapered Roller Bearings provide maximum overhung load capacity.

Technical Specifications

Outside Diameter (in)	3.25 in

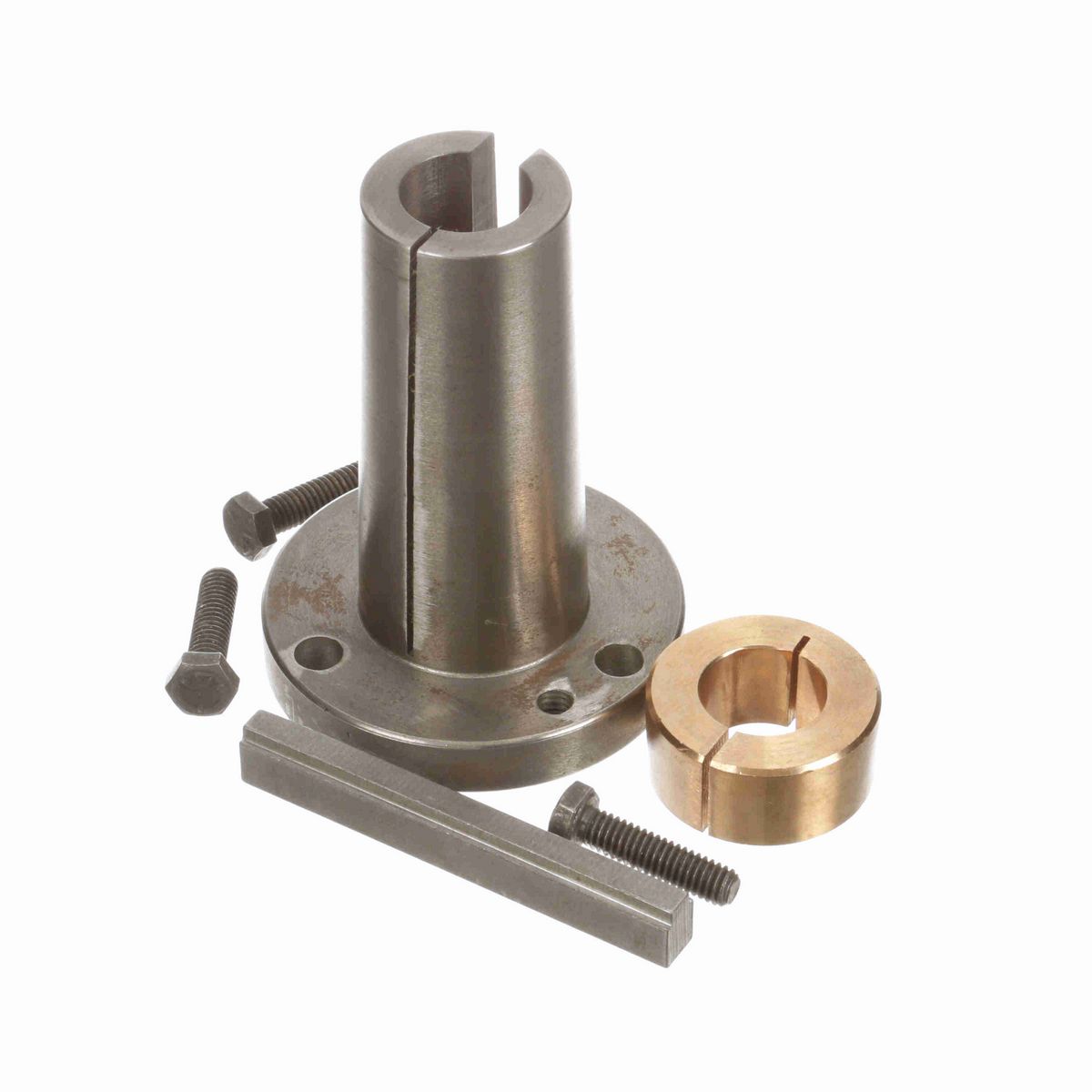

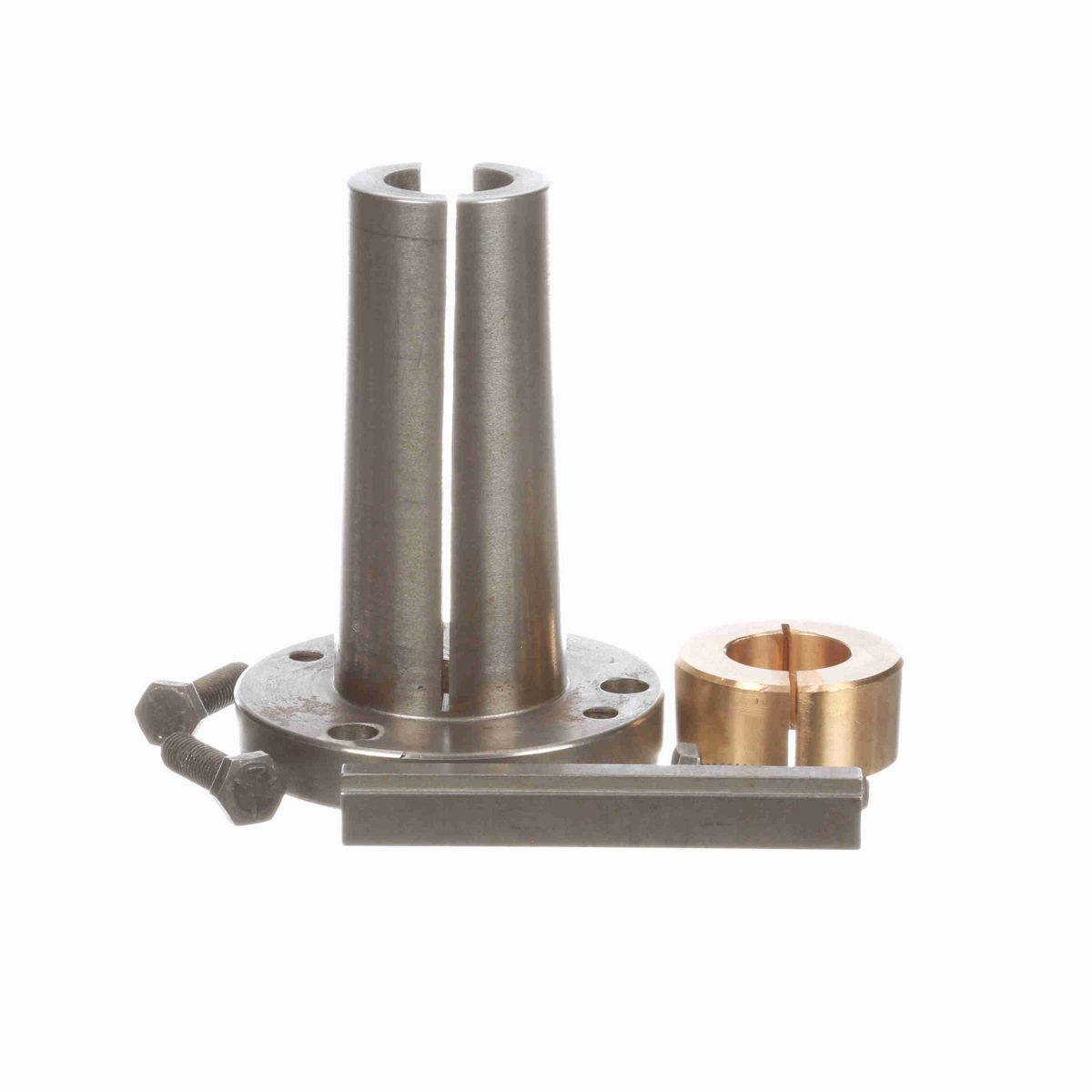

Product Type	TorqTaper Plus Bushing Kit
Total Length (in)	3.875 in
Shaft keyseat	1/4 x 1/8 x 3 7/8
Bore Size (in)	0.9375 in
Length Through Bore (in)	3.875 in
Material	Ductile Iron
Compatible Bore Size [Max] (in)	0.9375 in
Model Name	107TBP
Bore Type	Inch
Bushing Type	Tapered Bushing
Includes	Bushing, Key, Capscrews, stablizer ring

General Specifications

UPC	662288910589
Weight	3.46 LB
Packaged Length	5.60 IN
Packaged Width	5.50 IN
Packaged Height	4.30 IN
