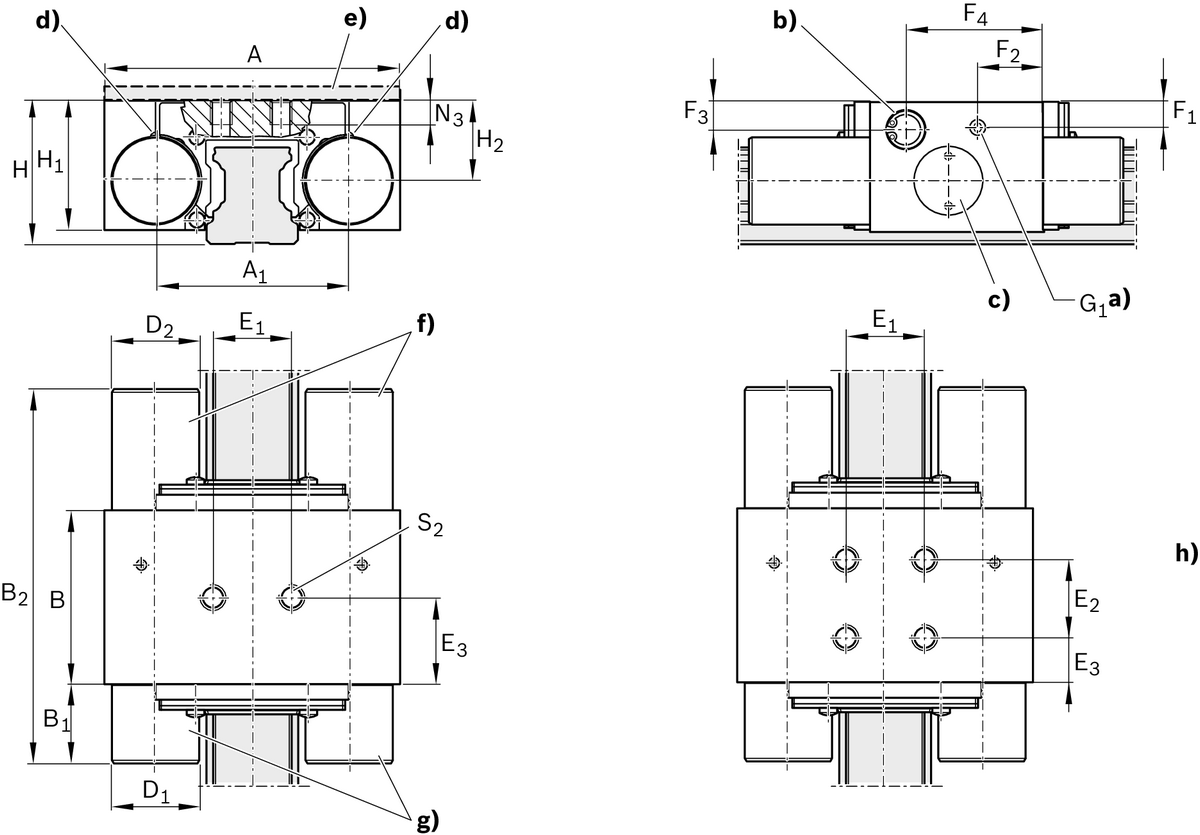

Тормозной блок Bosch Rexroth MBPS 5505 AS1A [R161954031]

Pneumatic clamping unit MBPS, 55

Product Description

Pneumatic clamping unit MPBS^*), FLS for ball rail systems
Size = 55
Can be used on all SNS ball guide rails
^*)Zimmer GmbH

• Clamps and brakes with spring energy accumulator
• Positive-locking integrated contact profiles ensure maximum axial and horizontal rigidity, and thus an excellent braking effect
• Dynamic and static stabilization in the axial direction
• Clamps and brakes without pressurization (spring energy)
• Clamping and Braking Units in short format
• Up to 1 million clamping cycles
• Up to 2,000 emergency braking operations
• Integrated all-round sealing
• High continuous output
• High positioning accuracy
• Mechanical gate valve gear mechanism
• Solid, rigid steel housing, chemically nickel-plated
• Low air consumption
• Maintenance-free
• 5 million clamping cycles (B10d value) – the B10d value is not attained with the PLUS connection
• Can be used on all SNS ball guide rails
• Add-ons with three pistons connected in series combined with strong springs result in holding forces up to 4,700 N at just 4.5 bar release pressure
