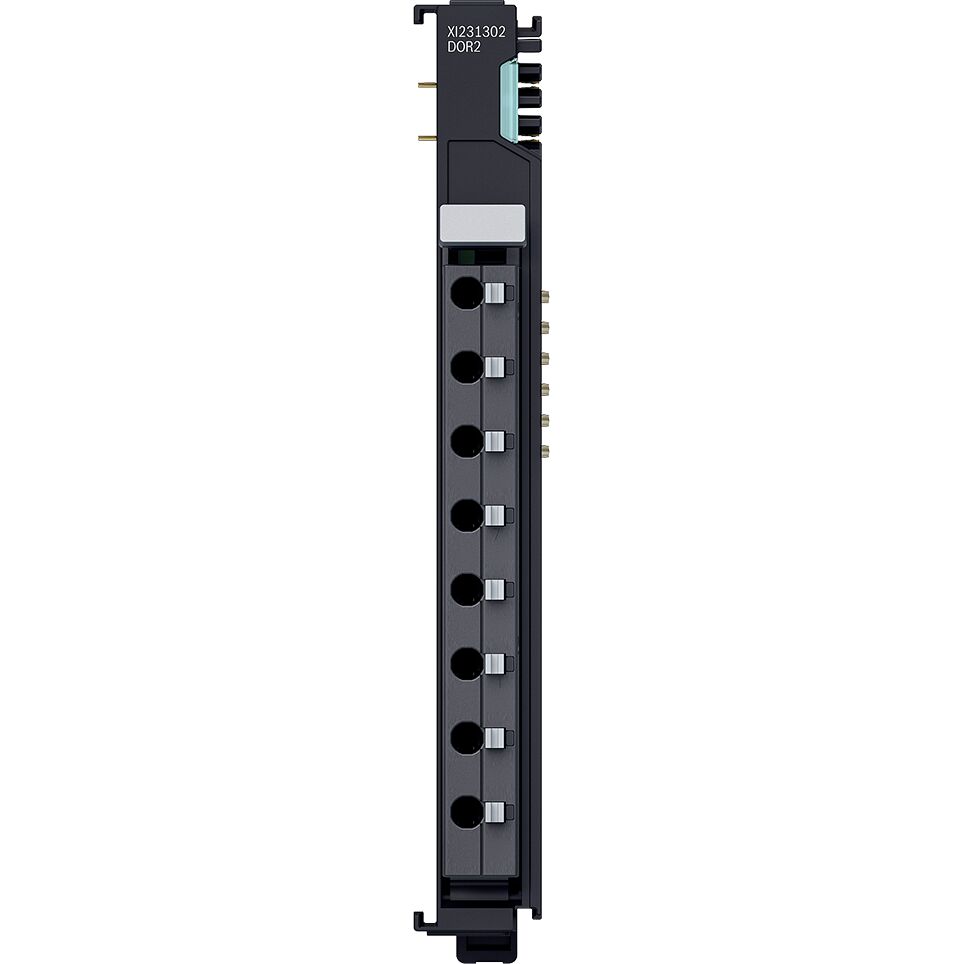

RELAY MODULE XI231302 [R911406103]

EPLAN

https://ecad-configuration.boschrexroth.com/?rootpartnr=BOS.XI231302**&downloads=true

Connection type

Push-in

Number of channels

2

Max. output current per channel [A]

1

Width [mm]

12

Height [mm]

105

Depth [mm]

99

International protection code

IP20

Protection class

III

Backplane-Bus

Standard-EtherCAT über LVDS

Switching cycles electr.

1 million

EMC resistance

EN 61000-6-2 and EN 61000-6-4

Bit width, output data in the process data image

1 byte

Maximum power dissipation in the module [W]

1.2

Post-assembly position

Vertical, on a horizontal support rail

Electrical isolation

1211 V DC UP to UL, 707 V DC UP/UL to FE, 1600 VDC UP/UL/FE to Relais, 3000 V AC UP/UL/Housing to Contacts, 3000 V AC Contacts Ch1 to Ch2

Switching cycles mech.

10 million

Current requirement UL

25 mA

Current requirement Up

25 mA

Net current module outputs [A]

2

Nominal voltage (UL/UP)

DC 24 V (19.2 V to 30 V, including tolerance and residual ripple) PELV/SELV (safety extra-low voltage)

Overvoltage category

2

Conductor cross-section

rigid: 0.2-1.5 mm²,Flexible: 0.2-1.5 mm²,AWG: 24 ... 16

Overload protection

External protection necessary

Permissible air humidity (storage) [%]

10-95

Permissible air humidity (transport) [%]

10-95

Ambient temperature (storage and transport) [°C]

-40-70

Ambient temperature during operation

Up to 2,000 m: -25 °C to +55 °C,2,000 m to 3,000 m: -25 °C to +50 °C,3,000 m to 4,000 m: -25 °C to +45 °C,4,000 m to 5,000 m: -25 °C to +40 °C

Maximum operating altitude [m]

5000

Contamination level

2, no condensation

Weight [kg]

0.14
