Опора подшипника Bosch Rexroth EMC80 [R15615A017]

Fastening elements for electromechanical cylinders

Bearing block

Nominal size [mm]

80

Weight [kg]

0.92

Surface finishing

galvanized

Pitch T guide rail [mm]

6

Material of electromechanical cylinders

Cast iron with spheroidal graphite

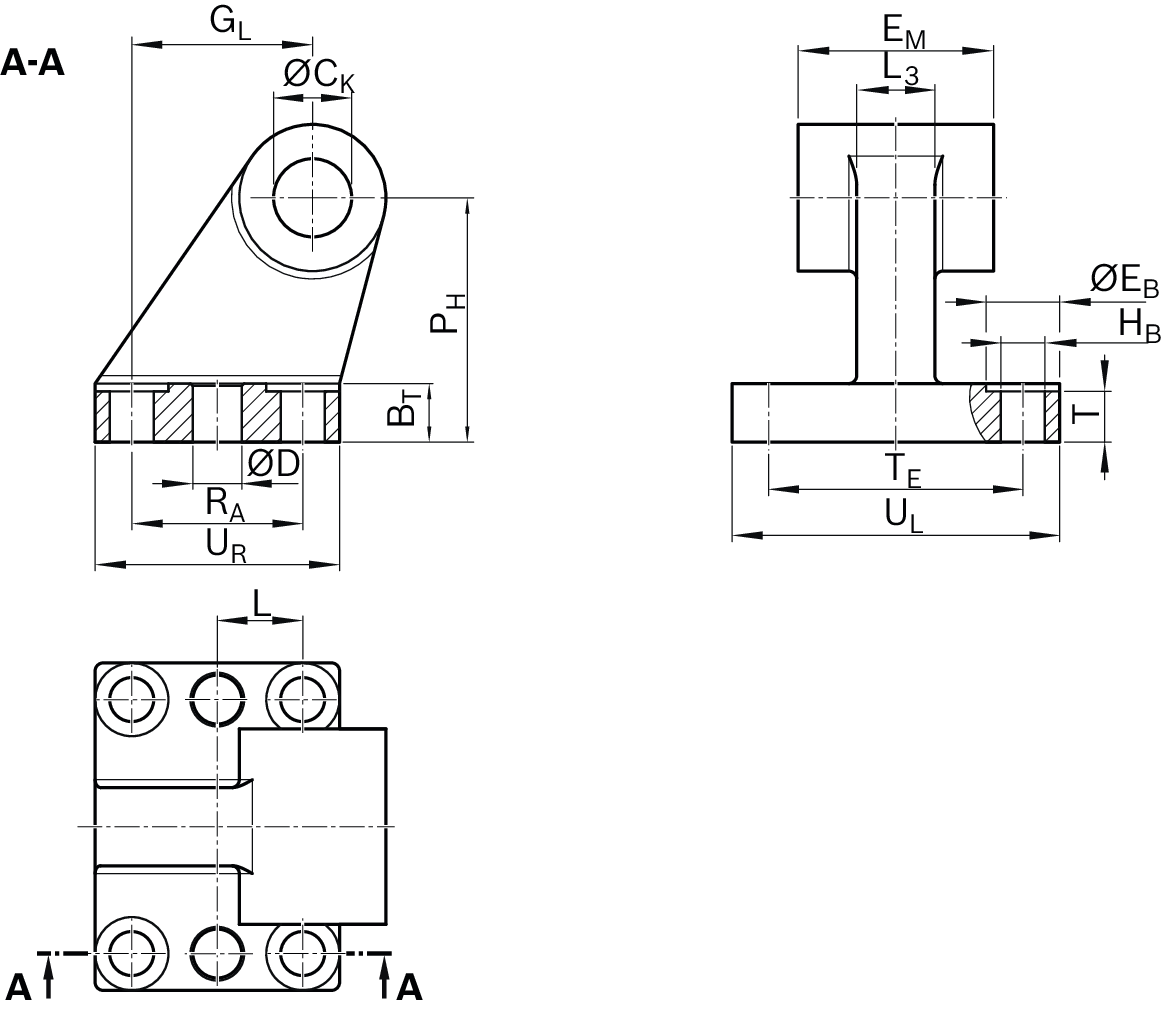

Dimension BR [mm]

15

Dimension BT [mm]

14

Dimension CK H9 [mm]

16

Dimension D H11 [mm]

10

Dimension EB H13 [mm]

15

Dimension EM [mm]

50

Dimension GL [mm]

47

Dimension HB H13 [mm]

9

Dimension L

20

Dimension L tolerance [mm]

±0.2

Dimension L3 [mm]

20

Dimension PH JS15 [mm]

63

Dimension RA JS14 [mm]

40

Dimension T [mm]

6

Dimension TE JS14 [mm]

66

Dimension TL tolerance [mm]

-0.2,-0.6

Dimension UL [mm]

86

Dimension UR [mm]

60
