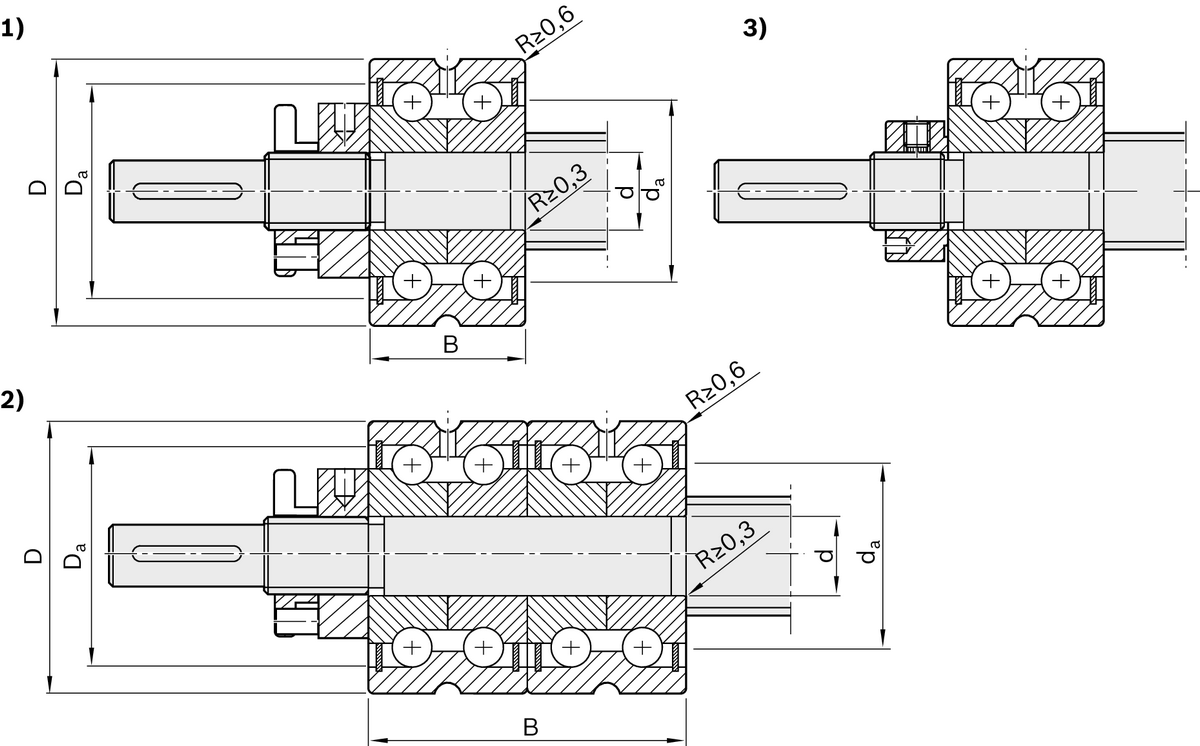

Подшипник Bosch Rexroth LAN-A-A 40 BG [R159014030]

Nominal size [mm]

63 x 10/20/40

Dynamic load capacity C [N]

72000

Note: dynamic load capacity C

Load on bearing (see general technical notes and information for bearings, "Project planning notes")

Outer diameter D [mm]

90

Weight [kg]

1.7

Limit speed nmin [min⁻¹]

1600

Limit speed (grease) nmax

1600

Static load capacity C0 [N]

149000

Note: static load capacity C0

Load on bearing (see general technical notes and information for bearings, "Project planning notes")

Rigidity against tilting Rkl [Nm/mrad]

750

Bearing frictional torque with seal MRb [Nm]

1.3

Rigidity of the bearing (axial) RFB [N/μm]

1200

Type

Angular-contact thrust ball bearing

Dimension B (profiled rail systems) [mm]

46

Dimension D [mm]

90

Dimension d [mm]

40

Dimension d tolerance [mm]

-0.005
