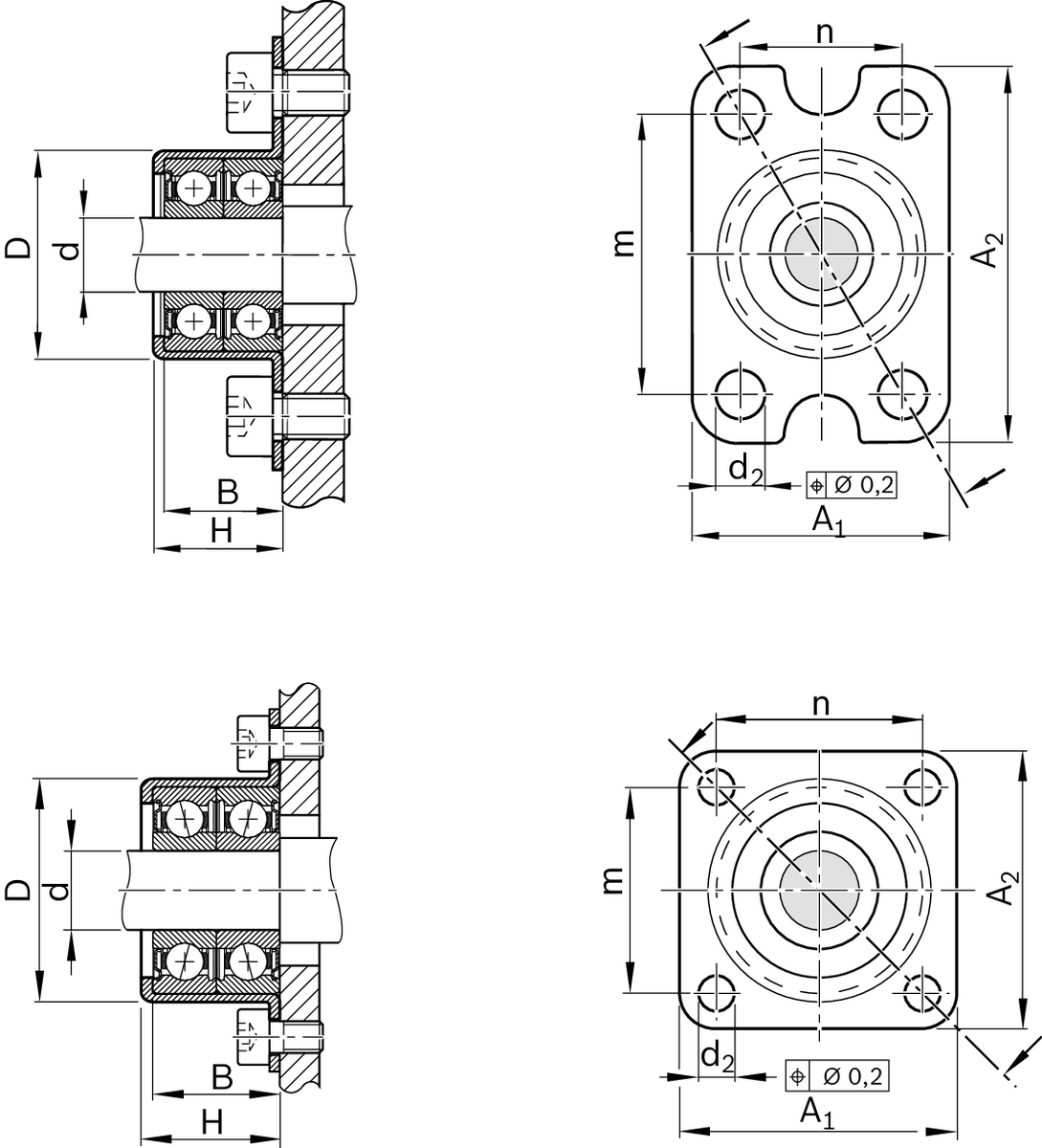

Подшипник Bosch Rexroth LAL-A-G 15 BG [R159041500]

Nominal size [mm]

25 x 5/10

Dynamic load capacity C [N]

16400

Note: dynamic load capacity C

Load on bearing (see general technical notes and information for bearings, "Project planning notes")

Outer diameter D [mm]

38.45

Weight [kg]

0.17

Static load capacity C0 [N]

22400

Note: static load capacity C0

Load on bearing (see general technical notes and information for bearings, "Project planning notes")

Type

Angular-contact thrust ball bearing

Dimension A1 (profiled rail systems) [mm]

47

Dimension A2 (profiled rail systems) [mm]

51

Dimension B (profiled rail systems) [mm]

22

Dimension D [mm]

38.45

Dimension d [mm]

15

Tolerance D [mm]

+0.03,-0.01

Dimension d2 [mm]

6.6

Dimension H [mm]

24
