Подшипник для цапфы Bosch Rexroth EMC32 & [R349940900]

Fastening elements for electromechanical cylinders

Bearing for trunnion

Nominal size [mm]

32

Weight [kg]

0.25

Surface finishing

galvanized

Material of electromechanical cylinders

Steel

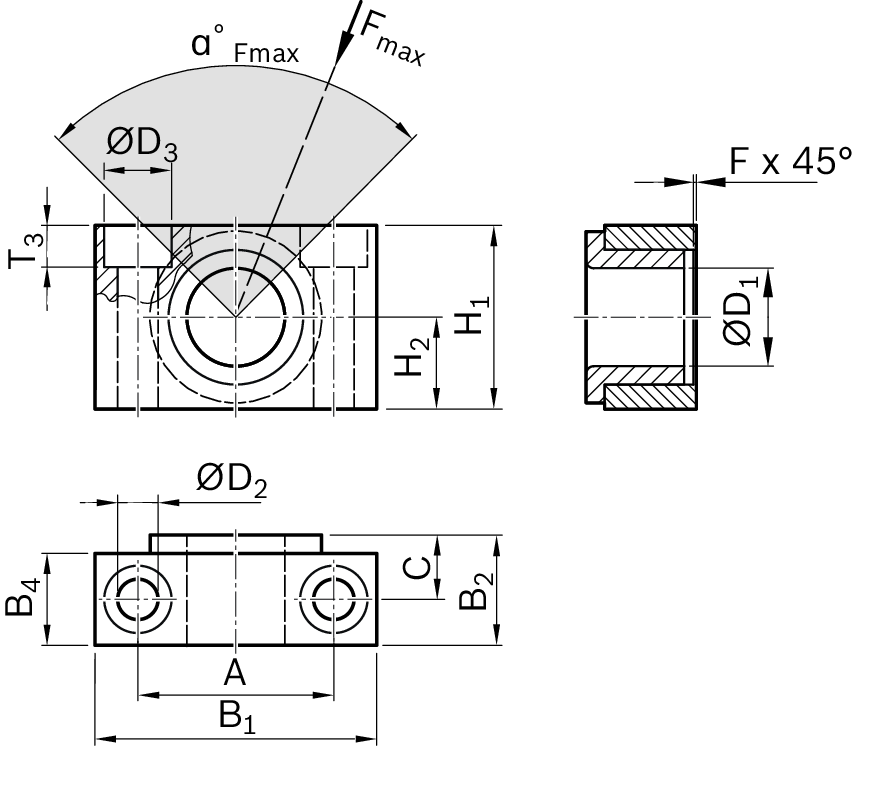

Dimension A (profiled rail systems) [mm]

32

Dimension A tolerance [mm]

±0.2

Dimension B1 f8 [mm]

46

Dimension B2 (profiled rail systems) [mm]

18

Dimension B4 [mm]

15

Dimension C [mm]

10.5

Dimension D1 H7 [mm]

12

Dimension D2 H12 [mm]

6.6

Dimension D3 H13 [mm]

11

Dimension F x 45° [mm]

1

Dimension H1 (profiled rail systems) [mm]

30

Dimension H2 (profiled rail systems) [mm]

15

Dimension H2 tolerance [mm]

±0.1

Dimension T3 (profiled rail systems) [mm]

6.8

Dimension T3 tolerance [mm]

-0.4

Footnote angle α Fmax

Bearing for trunnion for vertical load; if α Fmax is not complied with, a positive lock must be added

Angle α Fmax [°]

180
