Шариковое передаточное устройство Bosch Rexroth KUO-C22-BL-MFG [R053422310]

Nominal size [mm]

22

Dynamic load capacity C [N]

900

Maximum permissible linear speed vmax [m/s]

2

Note: maximum permissible speed vmax

In case of prolonged periods of use at speeds above 1 m/s, an increase in temperature and reduction in service life is to be expected depending on the load.

Outer diameter D [mm]

33

Operating temperature (min. … max.)

-30 °C ... +100 °C

Note: permissible operating temperature (min. ... max.)

At temperatures above 100 °C, only bright metal ball transfer units without a felt seal should be used. Make allowance for reduction in load capacity. Use high-temperature lubricant! Follow the manufacturer’s instructions! The existing lubricant oil *

Weight [kg]

0.11

Static load capacity C0 [N]

900

Maximum operating temperature [°C]

+100

Minimum operating temperature [°C]

-30

Product information

Ball transfer unit with bottom hole

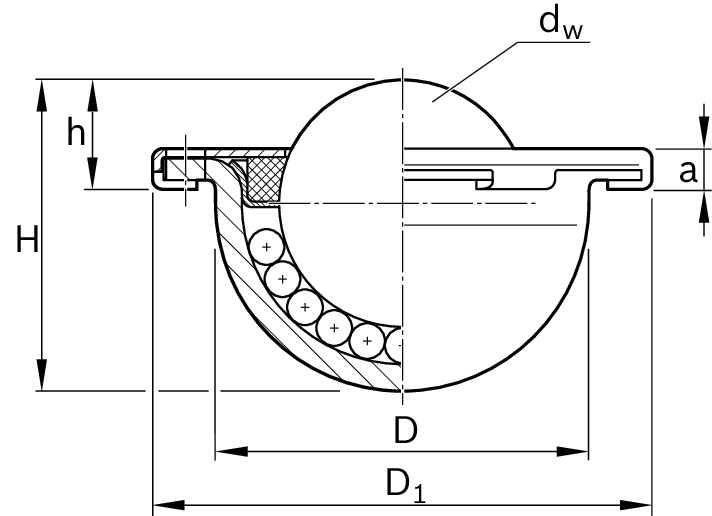

Dimension a [mm]

3.8

Dimension D [mm]

33

Tolerance D [mm]

-0.2

Dimension D1 [mm]

45

Dimension dW [mm]

22.225

Dimension h [mm]

9.8

Dimension H [mm]

27.7

Tolerance h

±0.2

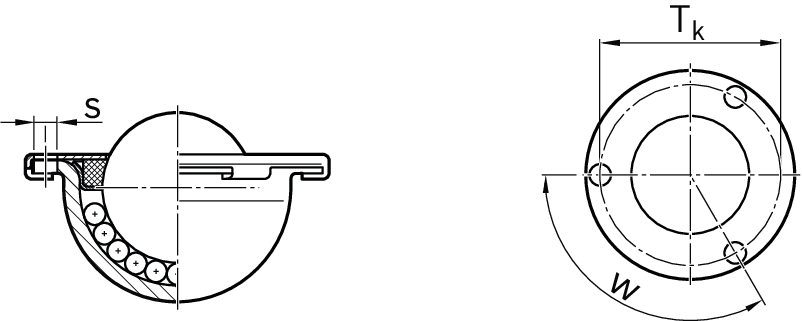

Dimension S [mm]

3.5

Dimension Tk [mm]

39
