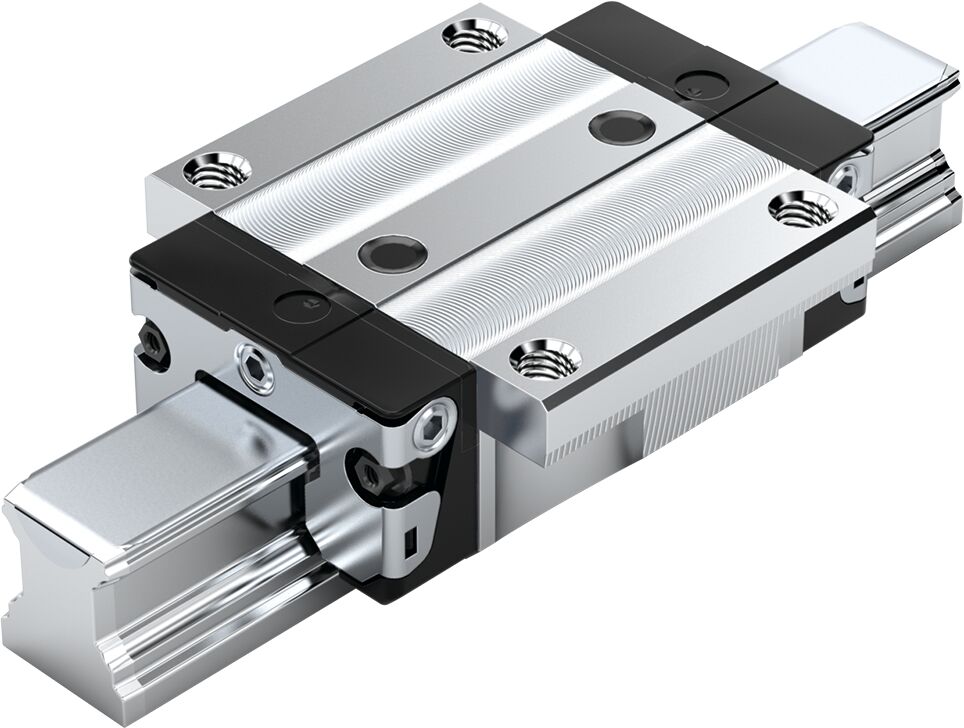

Шариковая каретка из нержавеющей стали Resist NR Bosch Rexroth KWD-030-FNS-C0-H-1 [R200179330]

Version

Ball rail system

Nominal size [mm]

30

Format

FNS - flange, normal, standard height

Model

High-precision ball runner block

Material (profiled rail systems)

Corrosion-resistant steel (runner block body Resist NR)

Preload class

C0 - Without preload (clearance)

Accuracy class

H - Highly accurate

Seal

SS - Standard seal

Ball chain

Without ball chain (standard)

Self-aligning for compensation of misalignments

Without self-alignment

Width of runner block [mm]

90

Length of runner block [mm]

97.7

Height of runner block [mm]

35.35

Height runner block with guide rail [mm]

42

Lubrication

With initial lubrication and preservation

Maximum acceleration rate amax [m/s²]

500

Note: Max. acceleration amax

If Fcomb◡> 2.8 • Fpr : amax = 50 m/s2

Maximum permissible linear speed vmax [m/s]

5

Permissible ambient temperature (min. ... max.)

-10 °C ... +80 °C

Note: permissible ambient temperature (min. ... max.)

100 °C admissible for short time. For operation at negative temperatures, please consult us.

Friction coefficient μ

0.002 ... 0.003

Note: friction coefficient μ

Without friction of seal

Weight [kg]

1.13

Dynamic load capacity C50 [N]

46000

Note: dynamic load capacity C50

Dynamic load capacity and load moments based on a travel of 50,000 m.

Dynamic load capacity C100 [N]

36500

Note: dynamic load capacity C100

Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.

Static load capacity C0 [N]

48100

Dynamic torsional moment load capacity Mt50 [Nm]

790

Note: Dynamic torsional moment load capacity Mt50

Dynamic load capacity and load moments based on a travel of 50,000 m.

Dynamic torsional moment load capacity Mt100 [Nm]

630

Note: Dynamic torsional moment load capacity Mt100

Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.

Static torsional moment load capacity Mt0 [Nm]

830

Dynamic longitudinal moment load capacity ML50 [Nm]

550

Note: Dynamic longitudinal moment load capacity ML50

Dynamic load capacity and load moments based on a travel of 50,000 m.

Dynamic longitudinal moment load capacity ML100 [Nm]

440

Note: Dynamic longitudinal moment load capacity ML100

Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.

Static longitudinal moment load capacity ML0 [Nm]

580

Pitch T guide rail [mm]

80

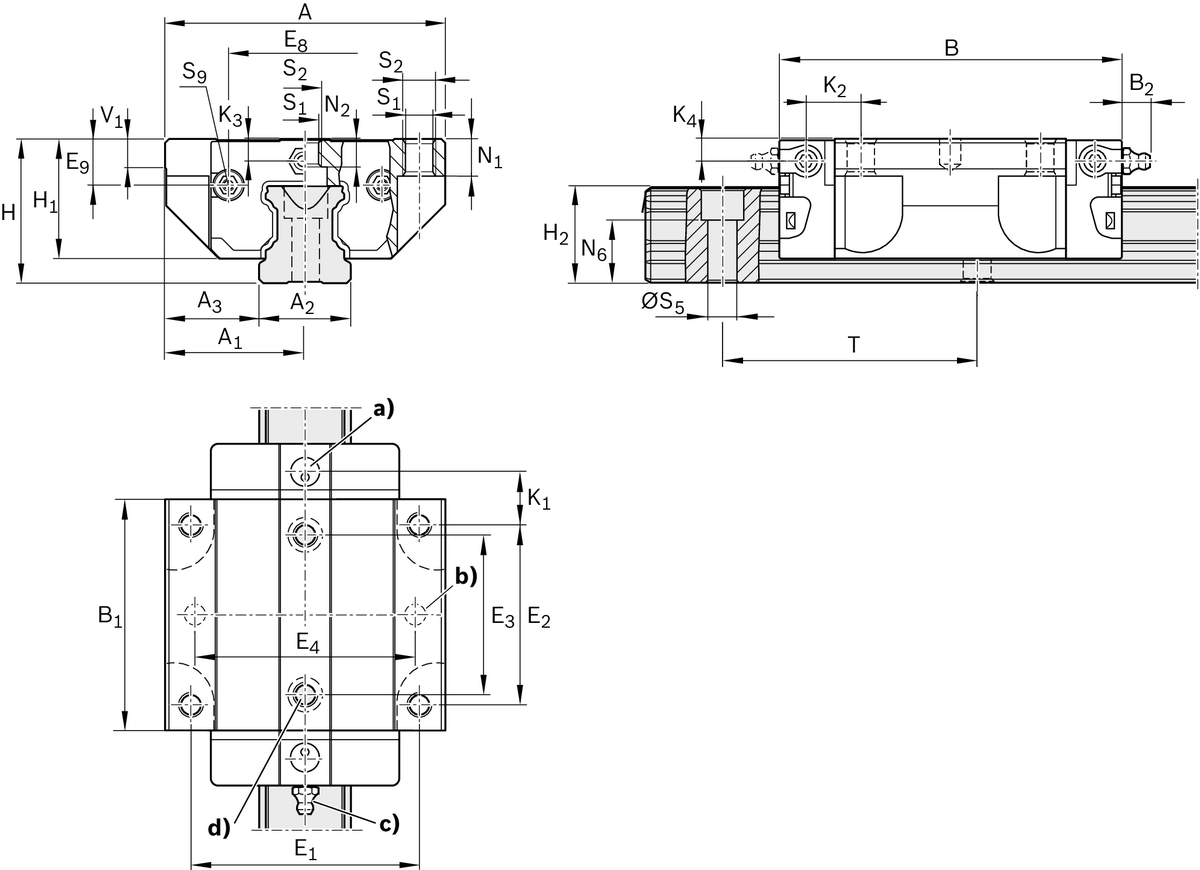

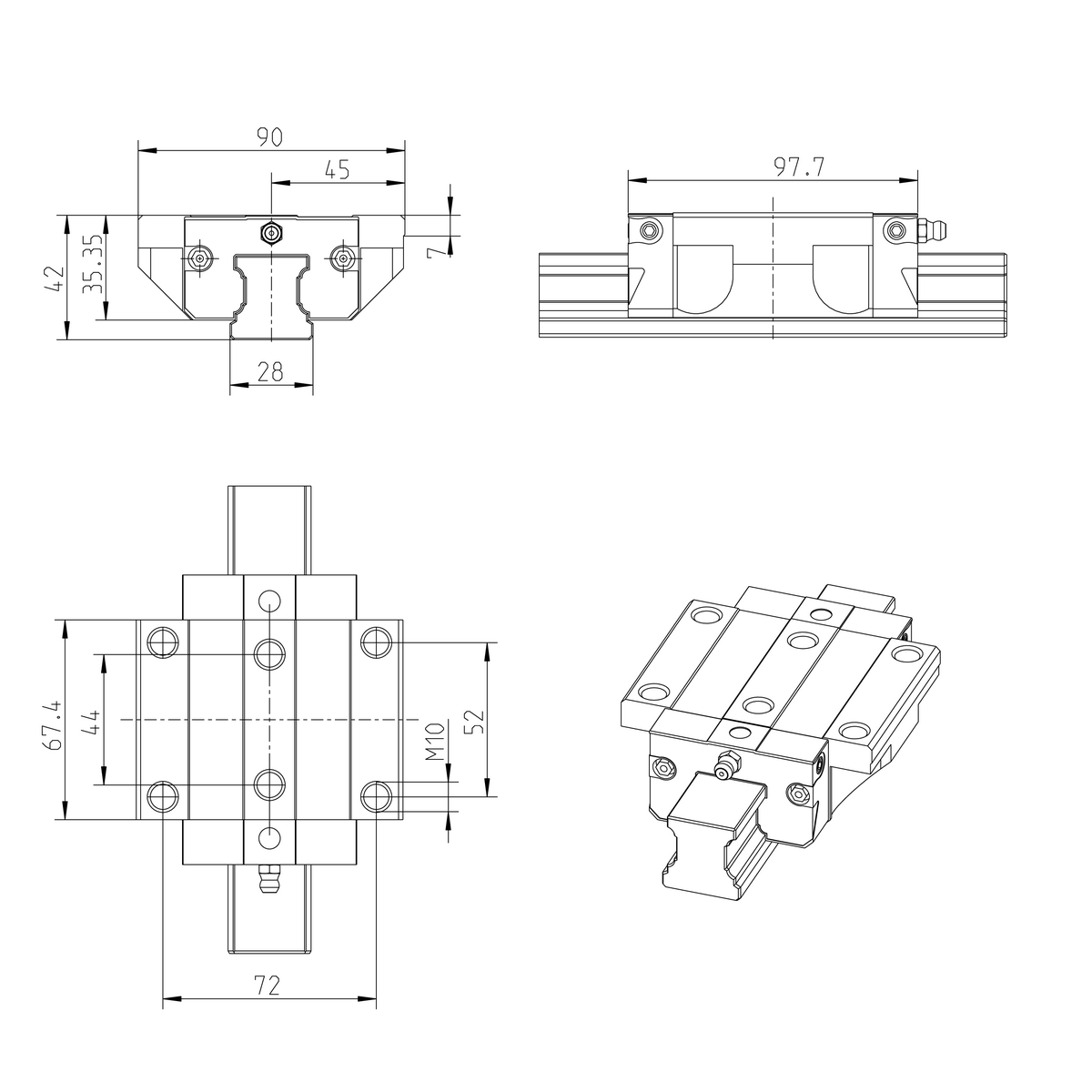

Dimension A (profiled rail systems) [mm]

90

Dimension A1 (profiled rail systems) [mm]

45

Dimension A2 (profiled rail systems) [mm]

28

Dimension A3 (profiled rail systems) [mm]

31

Dimension B (profiled rail systems) [mm]

97.7

Dimension B tolerance (profiled rail systems) [mm]

+0.5

Dimension B1 [mm]

67.4

Dimension E1 [mm]

72

Dimension E2 (profiled rail systems) [mm]

52

Dimension E3 (profiled rail systems) [mm]

44

Dimension E8 (profiled rail systems) [mm]

48.4

Dimension E9 (profiled rail systems) [mm]

14.6

Dimension H [mm]

42

Dimension H1 (profiled rail systems) [mm]

35.35

Dimension H2 with cover strip (profiled rail systems) [mm]

28.55

Dimension H2 without cover strip (profiled rail systems) [mm]

28.35

Dimension K1 (profiled rail systems) [mm]

14

Dimension K2 (profiled rail systems) [mm]

15.7

Dimension K3 (profiled rail systems) [mm]

6.05

Dimension K4 (profiled rail systems) [mm]

6.05

Dimension N1 (profiled rail systems) [mm]

11

Dimension N2 (profiled rail systems) [mm]

7.9

Dimension N6 (profiled rail systems) [mm]

17

Dimension N6 tolerance (profiled rail systems) [mm]

±0.5

Dimension S1 (profiled rail systems) [mm]

8.5

Dimension S2 (profiled rail systems)

M10

Dimension S5 (profiled rail system) [mm]

9

Dimension S9

M3x5 mm

Dimension S9 thread diameter (profiled rail systems)

M3

Dimension S9 lead [mm]

5

Dimension T1 min [mm]

16

Dimension V1 [mm]

7
