Ball runner block, SNH, size 55, Resist CR \u2013 coating, accuracy high, low preload, without ball chain
Product Description
The ball runner block is highly precise and corrosion-resistant thanks to its Resist CR coating. Additionally, it is characterized by the following product features:
Size 55
Format SNH: Width = slimline, length = normal, height = high
Runner block body made of unalloyed steel CS, matte-silver, hard chrome plated
Preload class C1: Low preload
Accuracy class H: High
Without ball chain
Preserved
Without initial lubrication
Without attachment element, left (front reference edge)
Without attachment element, right (front reference edge)
45° angular lube nipples loosely attached.
Runner block body in standard version
Overall length of the runner block = 159.0 mm
Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.
- Area of application: For restricted space in the transverse direction and high rigidity requirements
- Heavy-duty Ball Runner Block for heavy machine construction with extremely high load-bearing capacity
- Higher rigidity than SNS
- High torque load capacity
- Steel ball runner block body with corrosion-resistant coating, matt silver finish, hard chrome plated
- Low noise level and outstanding travel behavior
- Long-term lubrication is possible over several years
- Smooth, quiet running thanks to optimally designed ball return and guideway
- Optimized entry-zone geometry and high number of balls minimize variation in elastic deflection
- The same high load ratings in all four main directions of loading
- Preload classes: C0 (without preload, clearance) and C1 (moderate preload)
- Ball runner block pre-lubricated at the factory
Technical Specs
| Product attributes | |
|---|---|
Version | Ball rail system |
Nominal size [mm] | 55 |
Format | SNH - slimline, normal, high |
Model | Heavy-duty ball runner block |
Material (profiled rail systems) | Hard chrome plated |
Preload class | C1 - Low preload |
Accuracy class | H - Highly accurate |
Seal | SS - Standard seal |
Ball chain | Without ball chain (standard) |
Self-aligning for compensation of misalignments | Without self-alignment |

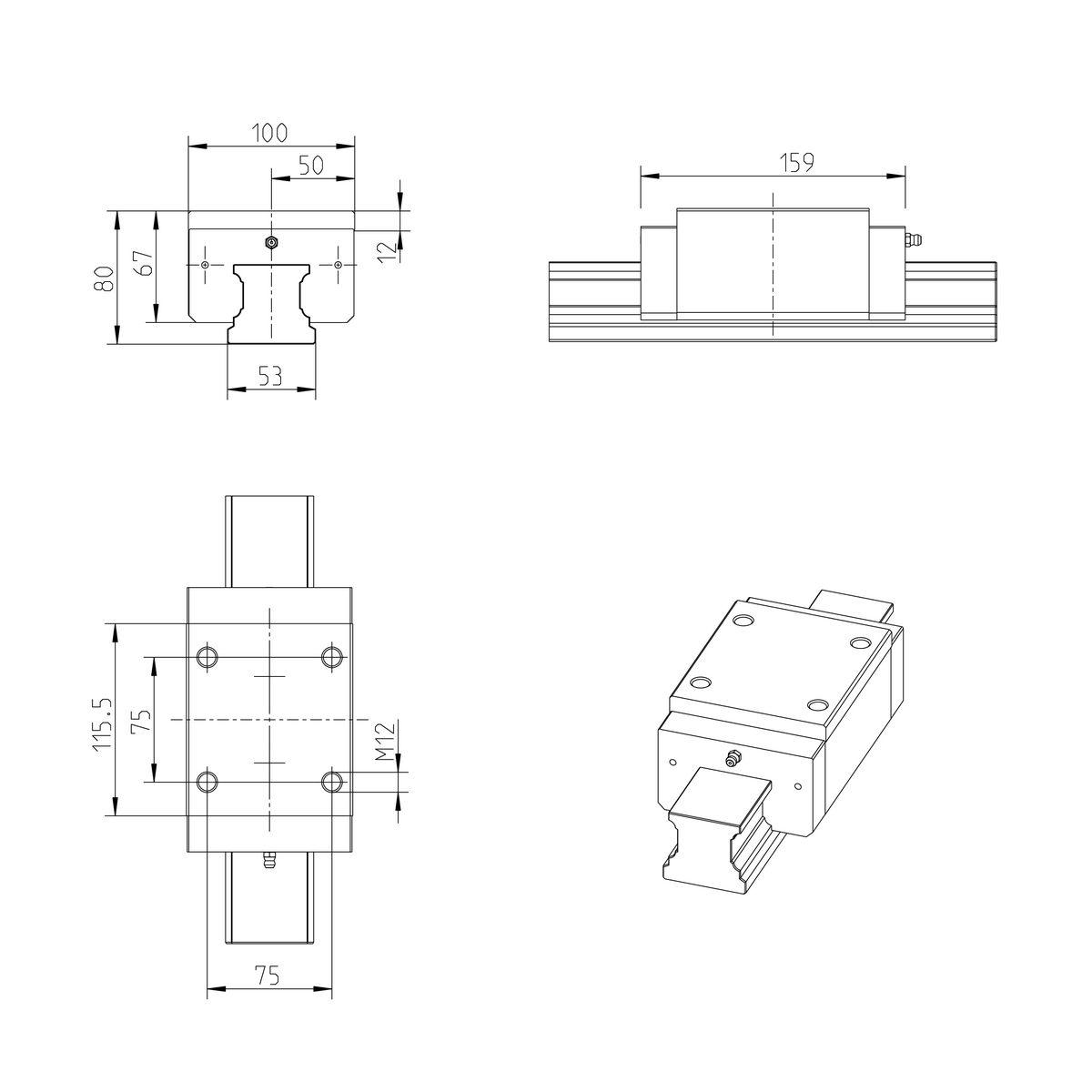

Width of runner block [mm] | 100 |
Length of runner block [mm] | 159 |
Height of runner block [mm] | 67 |
Height runner block with guide rail [mm] | 80 |
Lubrication | With preservation and without initial lubrication |
Maximum acceleration rate amax [m/s²] | 250 |
Note: Max. acceleration amax | If Fcomb◡> 2.8 • Fpr : amax = 50 m/s2 |
Maximum permissible linear speed vmax [m/s] | 5 |
Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
Note: permissible ambient temperature (min. ... max.) | 100 °C admissible for short time. For operation at negative temperatures, please consult us. |
Friction coefficient μ | 0.002 ... 0.003 |
Note: friction coefficient μ | Without friction of seal |
Weight [kg] | 4.7 |
Dynamic load capacity C50 [N] | 137000 |
Note: dynamic load capacity C50 | Dynamic load capacity and load moments based on a travel of 50,000 m. |
Dynamic load capacity C100 [N] | 109000 |
Note: dynamic load capacity C100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
Static load capacity C0 [N] | 174000 |
Dynamic torsional moment load capacity Mt50 [Nm] | 4390 |
Note: Dynamic torsional moment load capacity Mt50 | Dynamic load capacity and load moments based on a travel of 50,000 m. |
Dynamic torsional moment load capacity Mt100 [Nm] | 3480 |
Note: Dynamic torsional moment load capacity Mt100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
Static torsional moment load capacity Mt0 [Nm] | 5550 |
Dynamic longitudinal moment load capacity ML50 [Nm] | 2920 |
Note: Dynamic longitudinal moment load capacity ML50 | Dynamic load capacity and load moments based on a travel of 50,000 m. |
Dynamic longitudinal moment load capacity ML100 [Nm] | 2320 |
Note: Dynamic longitudinal moment load capacity ML100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
Static longitudinal moment load capacity ML0 [Nm] | 3690 |

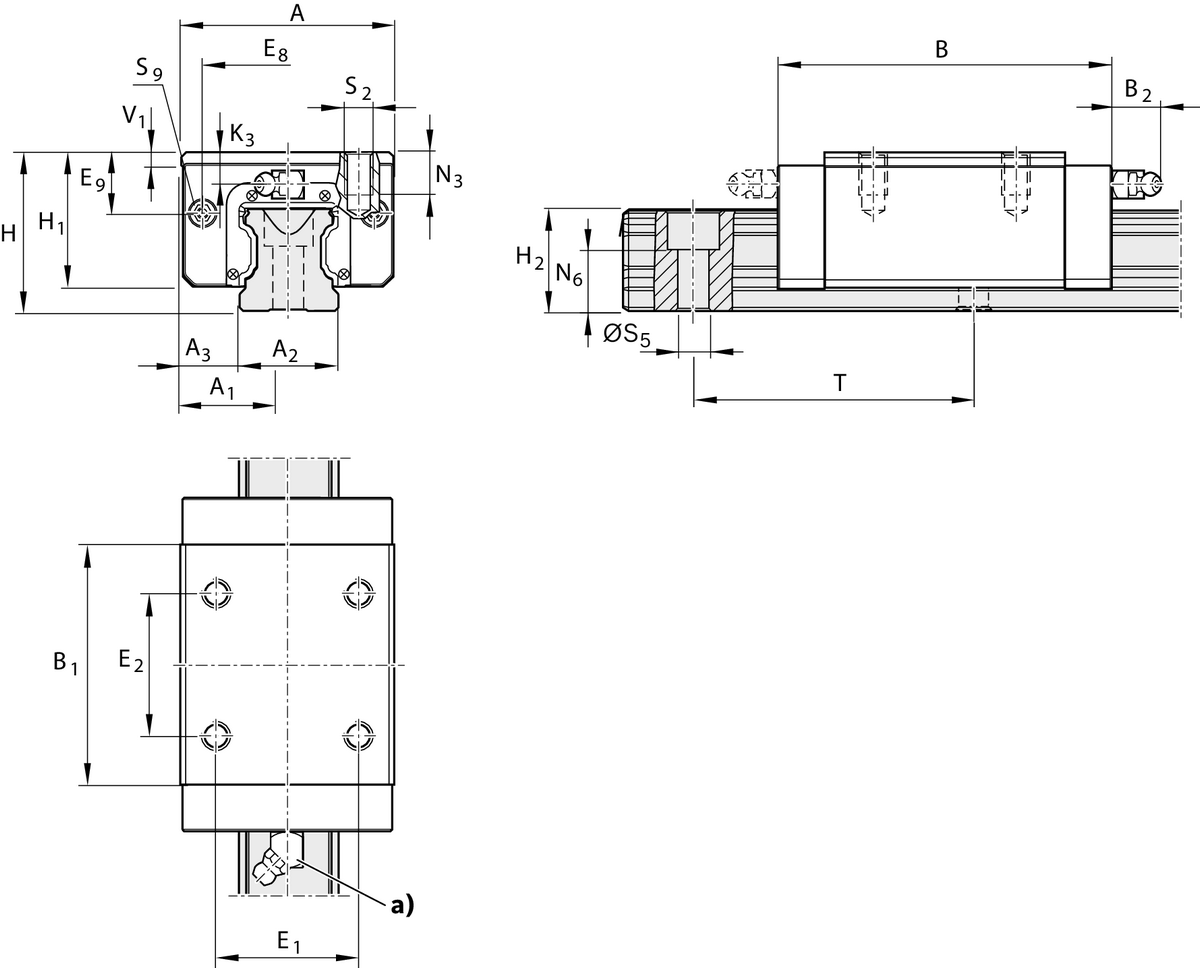

Pitch T guide rail [mm] | 120 |
Dimension A (profiled rail systems) [mm] | 100 |
Dimension A1 (profiled rail systems) [mm] | 50 |
Dimension A2 (profiled rail systems) [mm] | 53 |
Dimension A3 (profiled rail systems) [mm] | 23.5 |
Dimension B (profiled rail systems) [mm] | 159 |
Dimension B tolerance (profiled rail systems) [mm] | +0.5 |
Dimension B1 [mm] | 115.5 |
Dimension E1 [mm] | 75 |
Dimension E2 (profiled rail systems) [mm] | 75 |
Dimension E8 (profiled rail systems) [mm] | 80 |
Dimension E9 (profiled rail systems) [mm] | 32.3 |
Dimension H [mm] | 80 |
Dimension H1 (profiled rail systems) [mm] | 67 |
Dimension H2 with cover strip (profiled rail systems) [mm] | 48.15 |
Dimension H2 without cover strip (profiled rail systems) [mm] | 47.85 |
Dimension K3 (profiled rail systems) [mm] | 19 |
Dimension N3 (profiled rail systems) [mm] | 19 |
Dimension N6 (profiled rail systems) [mm] | 29 |
Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
Dimension S2 (profiled rail systems) | M12 |
Dimension S5 (profiled rail system) [mm] | 16 |
Dimension S9 | M5x8 mm |
Dimension S9 thread diameter (profiled rail systems) | M5 |
Dimension S9 lead [mm] | 8 |
Dimension T1 min [mm] | 20 |
Dimension V1 [mm] | 12 |
