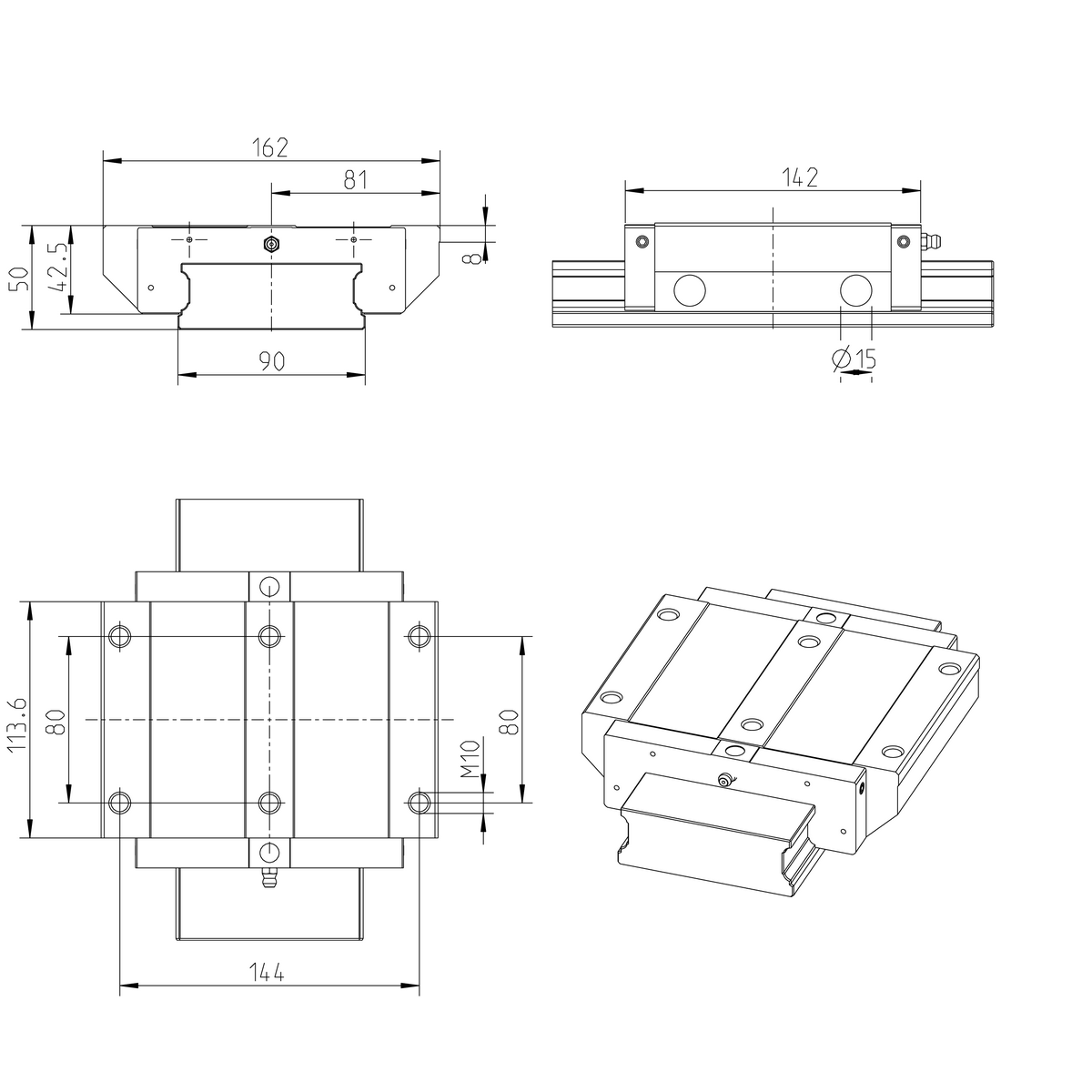

Шариковая каретка устойчивая к коррозии с покрытием Resist CR Bosch Rexroth KWC-035-BNS-C1-H-2 [R167131360]

Version

Ball rail system

Nominal size [mm]

35/90

Format

BNS - wide, normal, standard height

Model

Wide ball runner block

Material (profiled rail systems)

Hard chrome plated

Preload class

C1 - Low preload

Accuracy class

H - Highly accurate

Seal

SS - Standard seal

Ball chain

Without ball chain (standard)

Self-aligning for compensation of misalignments

Without self-alignment

Width of runner block [mm]

162

Length of runner block [mm]

142

Height of runner block [mm]

42.5

Height runner block with guide rail [mm]

50

Lubrication

With preservation and without initial lubrication

Maximum acceleration rate amax [m/s²]

250

Note: Max. acceleration amax

If Fcomb◡> 2.8 • Fpr : amax = 50 m/s2

Maximum permissible linear speed vmax [m/s]

3

Permissible ambient temperature (min. ... max.)

-10 °C ... +80 °C

Note: permissible ambient temperature (min. ... max.)

100 °C admissible for short time. For operation at negative temperatures, please consult us.

Friction coefficient μ

0.002 ... 0.003

Note: friction coefficient μ

Without friction of seal

Weight [kg]

3.84

Dynamic load capacity C50 [N]

89100

Note: dynamic load capacity C50

Dynamic load capacity and load moments based on a travel of 50,000 m.

Dynamic load capacity C100 [N]

70700

Note: dynamic load capacity C100

Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.

Static load capacity C0 [N]

126000

Dynamic torsional moment load capacity Mt50 [Nm]

4410

Note: Dynamic torsional moment load capacity Mt50

Dynamic load capacity and load moments based on a travel of 50,000 m.

Dynamic torsional moment load capacity Mt100 [Nm]

3500

Note: Dynamic torsional moment load capacity Mt100

Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.

Static torsional moment load capacity Mt0 [Nm]

6240

Dynamic longitudinal moment load capacity ML50 [Nm]

1850

Note: Dynamic longitudinal moment load capacity ML50

Dynamic load capacity and load moments based on a travel of 50,000 m.

Dynamic longitudinal moment load capacity ML100 [Nm]

1470

Note: Dynamic longitudinal moment load capacity ML100

Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.

Static longitudinal moment load capacity ML0 [Nm]

2620

Pitch T guide rail [mm]

80

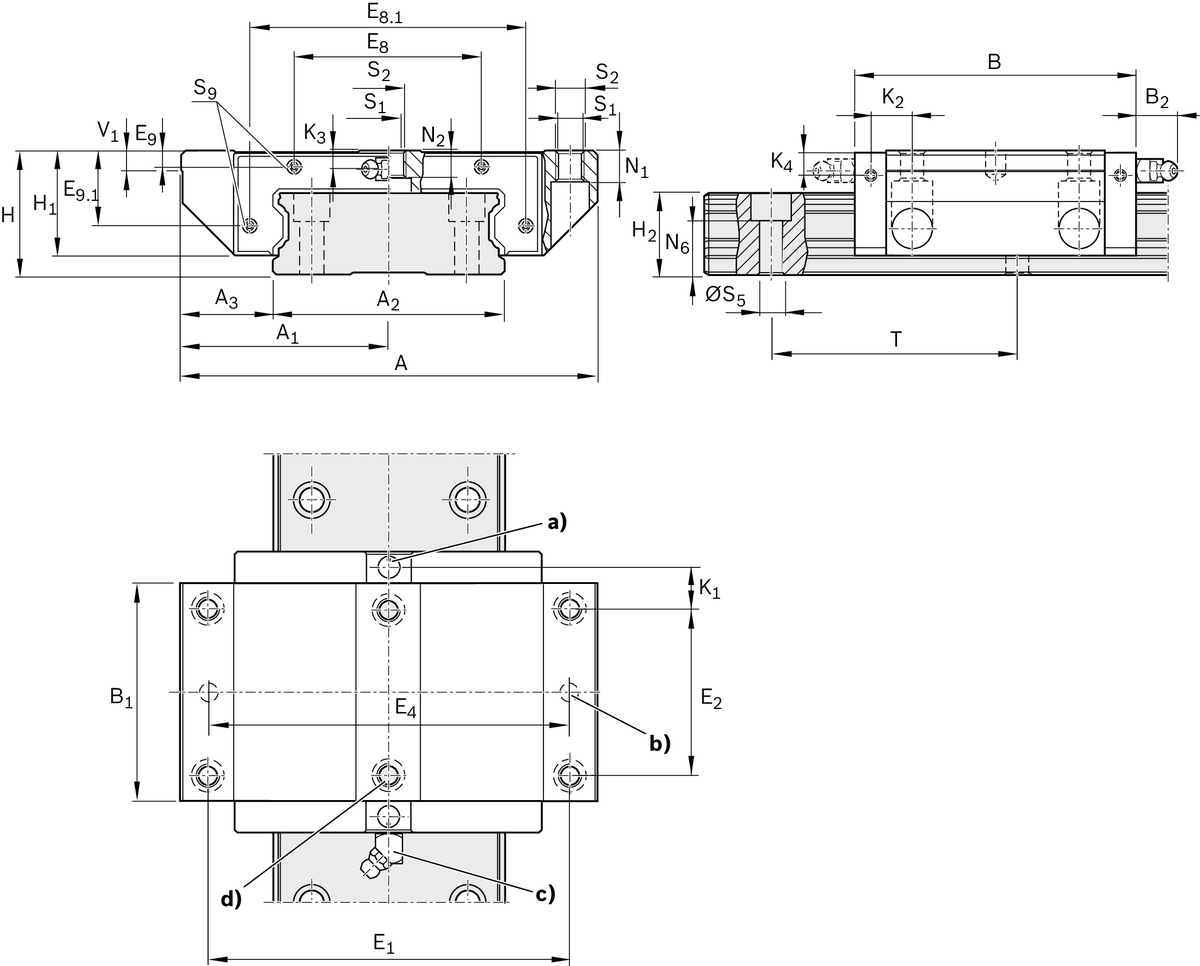

Dimension A (profiled rail systems) [mm]

162

Dimension A1 (profiled rail systems) [mm]

81

Dimension A2 (profiled rail systems) [mm]

90

Dimension A3 (profiled rail systems) [mm]

36

Dimension B (profiled rail systems) [mm]

142

Dimension B1 [mm]

113.6

Dimension E1 [mm]

144

Dimension E2 (profiled rail systems) [mm]

80

Dimension E8 (profiled rail systems) [mm]

79

Dimension E8.1 (profiled rail systems) [mm]

116

Dimension E9 (profiled rail systems) [mm]

6.8

Dimension E9.1 (profiled rail systems) [mm]

29.9

Dimension H [mm]

50

Dimension H1 (profiled rail systems) [mm]

42.5

Dimension H2 (profiled rail systems) [mm]

31.85

Dimension K1 (profiled rail systems) [mm]

22.8

Dimension K2 (profiled rail systems) [mm]

24.8

Dimension K3 (profiled rail systems) [mm]

9

Dimension K4 (profiled rail systems) [mm]

9

Dimension N1 (profiled rail systems) [mm]

14

Dimension N2 (profiled rail systems) [mm]

12

Dimension N6 (profiled rail systems) [mm]

20.5

Dimension N6 tolerance (profiled rail systems) [mm]

±0.5

Dimension S1 (profiled rail systems) [mm]

8.4

Dimension S2 (profiled rail systems)

M10

Dimension S5 (profiled rail system) [mm]

9

Dimension S9

M3x5 mm

Dimension S9 thread diameter (profiled rail systems)

M3

Dimension S9 lead [mm]

5

Dimension T1 min [mm]

12

Dimension V1 [mm]

8
