Одинарная цилиндрическая гайка Bosch Rexroth ZEM-E-S 12X5RX2-3 [R153246032]

Nominal size [mm]

12 x 5R x 2 - 3

Series

Miniature series

Dynamic load capacity C [N]

4560

Note: dynamic load capacity C

The load capacities are valid for tolerance grade T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes).

Maximum permissible linear speed vmax (m/min) [m/min]

30

Note: maximum permissible speed vmax

See "Characteristic speed d0 • n" (see General Technical Notes and Information, "Technical Data" (Technical Notes), and "Critical speed ncr" (see General Technical Notes and Information, "Project planning notes")

Storage temperature (min. … max.)

-15 °C ... +80 °C

Operating temperature (min. … max.)

-10 °C ... +80 °C

Direction of lead

Right

Nut type

ZEM-E-S cylindrical single nut

Note: permissible operating temperature (min. ... max.)

Permissible operating temperatures Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case.

Weight [kg]

0.13

Static load capacity C0 [N]

5800

Note: static load capacity C0

The load capacities are valid for tolerance grade T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes).

Category

A

Maximum operating temperature [°C]

+80

Bearing temperature max [°C]

+80

Minimum operating temperature [°C]

-10

Bearing temperature min [°C]

-15

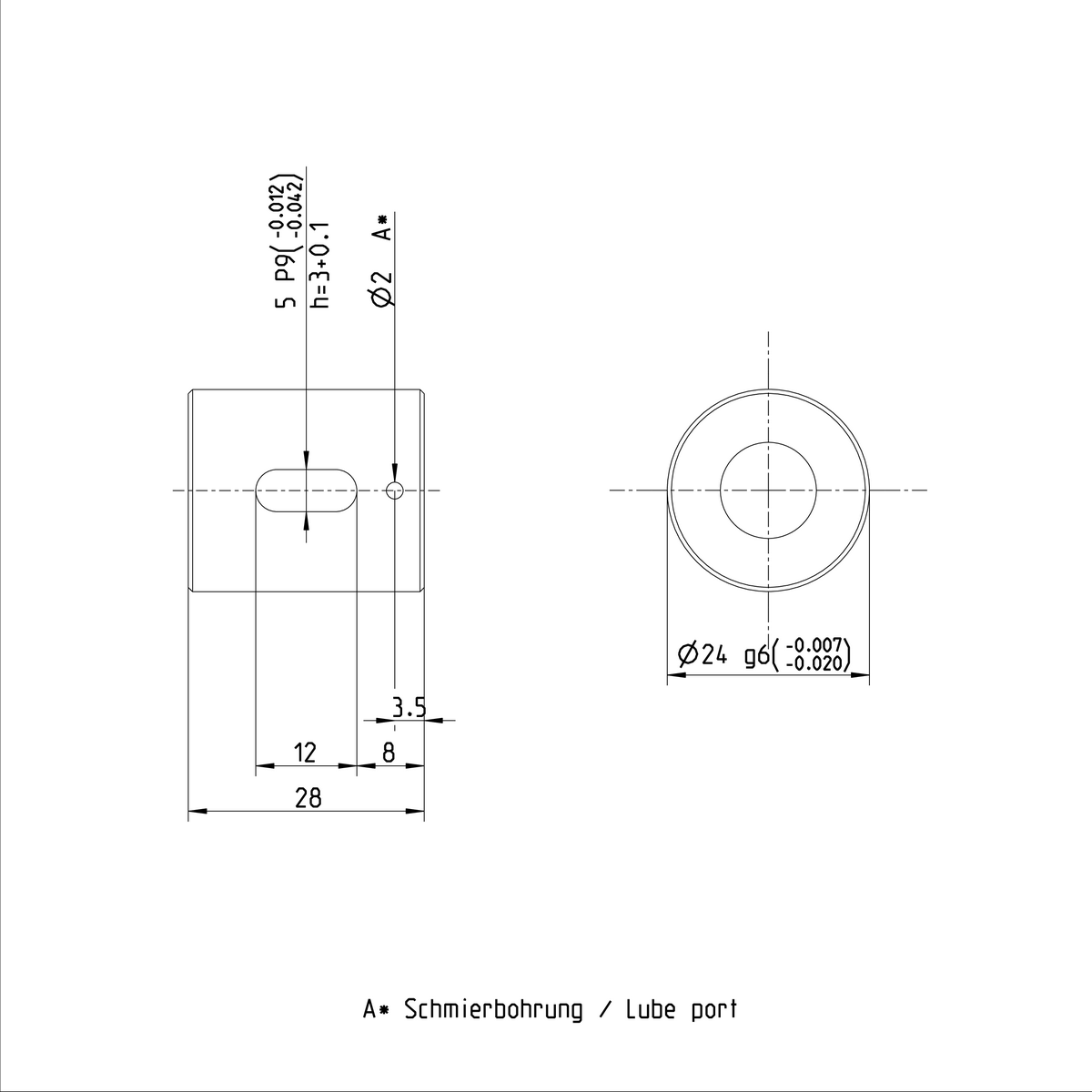

Dimension B P9 [mm]

5

Dimension d1 [mm]

11.4

Dimension D1 g6 [mm]

24

Dimension d2 [mm]

9.9

Dimension D4 [mm]

2

Dimension L

28

Dimension L tolerance [mm]

±0.1

Dimension L11 [mm]

12

Dimension L11 tolerance [mm]

±0.2

Dimension L6 [mm]

8

Dimension L7 [mm]

3.5

Dimension T1 [mm]

3
