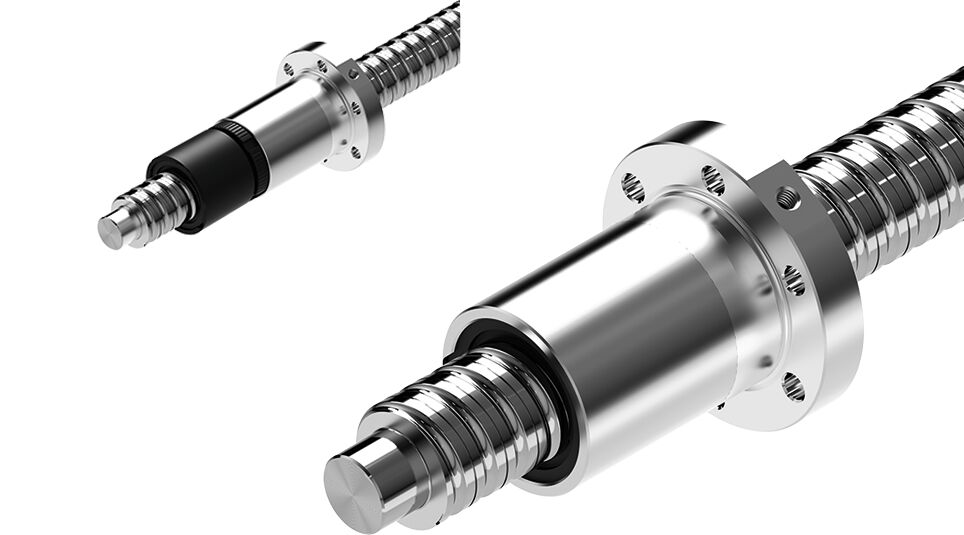

Одинарная гайка с фланцем Bosch Rexroth FEM-E-S 50X40RX6,5-2 [R151259013]

Nominal size [mm]

50 x 40R x 6,5 - 2

Series

Standard series

Dynamic load capacity C [N]

38500

Note: dynamic load capacity C

The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes).

Maximum permissible linear speed vmax (m/min) [m/min]

120

Note: maximum permissible speed vmax

See "Characteristic speed d0 • n" (section Technical notes) and "Critical speed ncr" (section Calculation and examples)

Operating temperature (min. … max.)

-10 °C ... +80 °C

Storage temperature (min. … max.)

-15 °C ... +80 °C

Direction of lead

Right

Nut type

FEM-E-S single nut with flange

Note: permissible operating temperature (min. ... max.)

Permissible operating temperatures Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case.

Hole pattern

BB4

Weight [kg]

4.35

Static load capacity C0 [N]

55800

Note: static load capacity C0

The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes).

Category

A

Maximum operating temperature [°C]

+80

Bearing temperature max [°C]

+80

Minimum operating temperature [°C]

-10

Bearing temperature min [°C]

-15

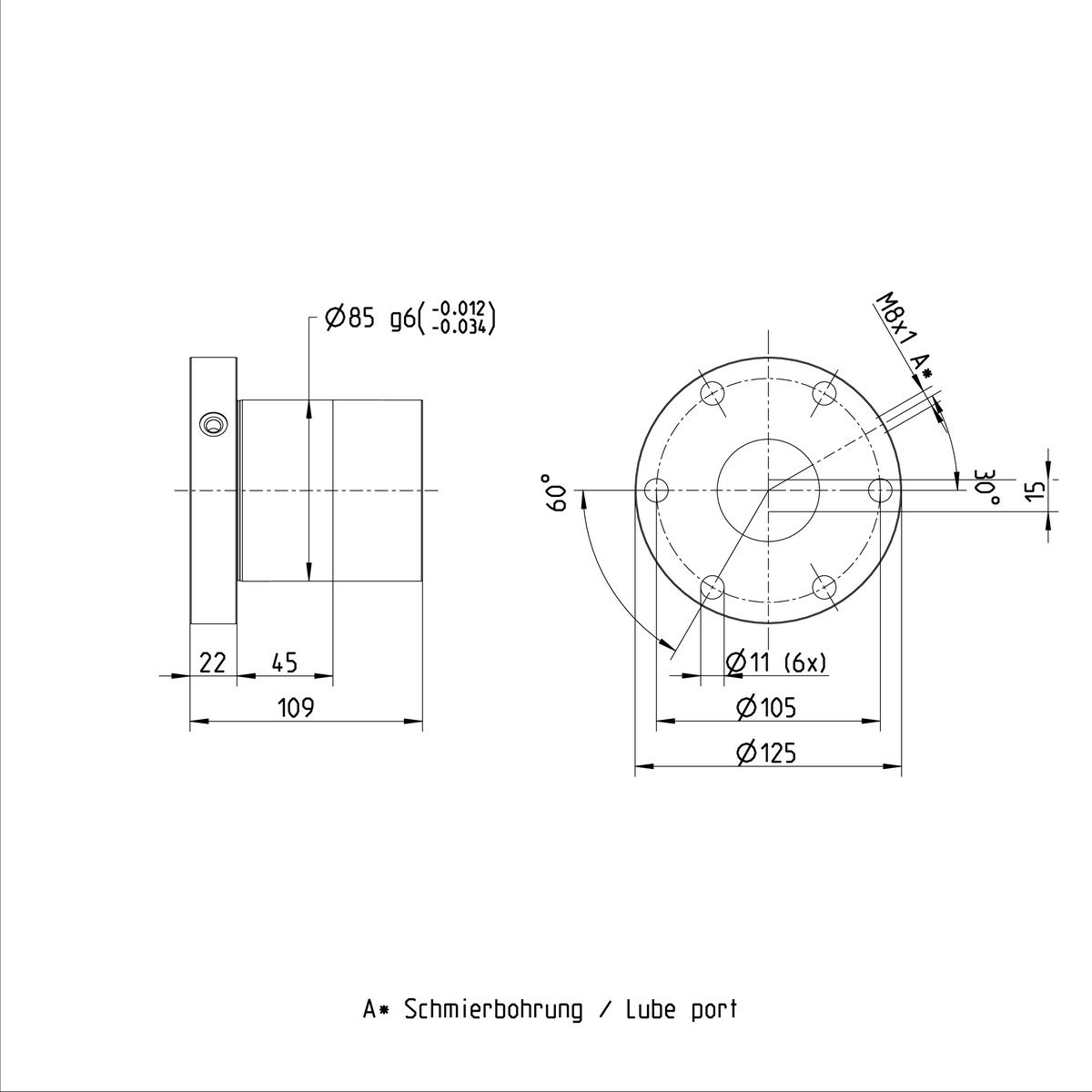

Dimension d1 [mm]

48

Dimension D1 g6 [mm]

85

Dimension d2 [mm]

43.4

Dimension D5 [mm]

125

Dimension D6 [mm]

105

Dimension D7 [mm]

11

Dimension L

109

Dimension L10 [mm]

87

Dimension L3 [mm]

22

Dimension L4 [mm]

45

Dimension Sx [mm]

5

Angle φ [°]

30
