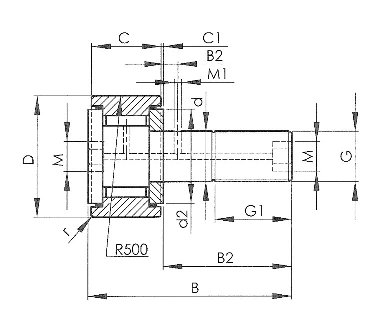

Measurement

D (mm):	40
d h7 (mm):	18
C max. (mm):	20
r min. (mm):	1
B (mm):	58
B1 (mm):	36,5
B2 (mm):	8
G (mm):	M18x1,5
G1 (mm):	19
M (mm):	6
M1 (mm):	3
C1 (mm):	0,8
d2 (mm):	32
Clamping torque MA (Nm):	87
Load ratings static C0 (kN):	26,73
Load ratings dynamic C (kN):	16,9
Load ratings as roller static C0 (kN):	18,71
Load ratings as roller dynamic C (kN):	11,83
Limiting speed grease nD (min-1):	2.900
Weight (kg):	0,249
Product:	Cam follower stud type
Product series:	KRV
Design:	Standard
Bearing:	Full complement needle rollers
Mounting:	With hexagonal hole
Sealing:	With seals
Coat design:	Crowned coat
Trademark:	ASK
